Please kindly Note, we offer 10 pieces free card with devices, if you want more, please kindly go to this link to buy more.

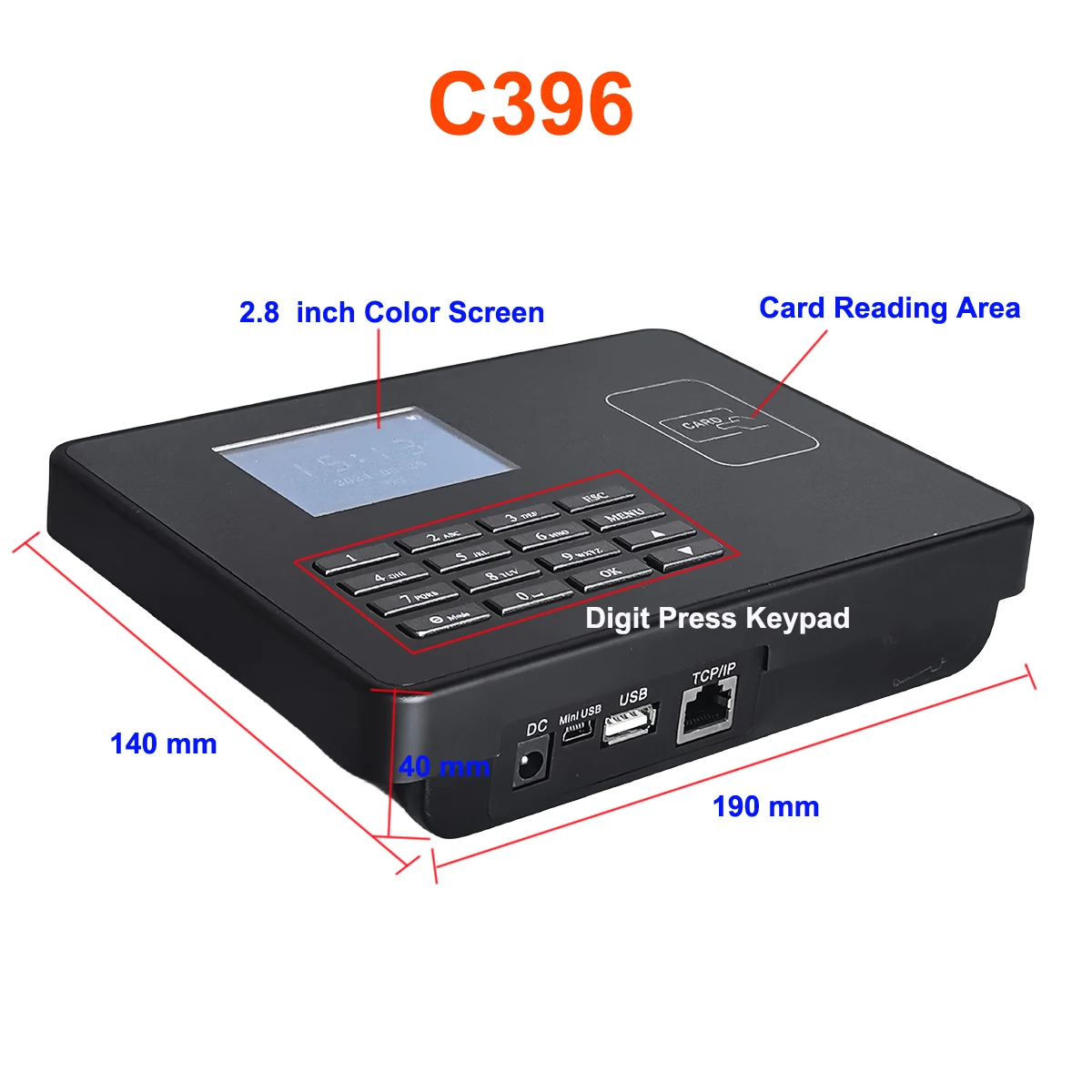

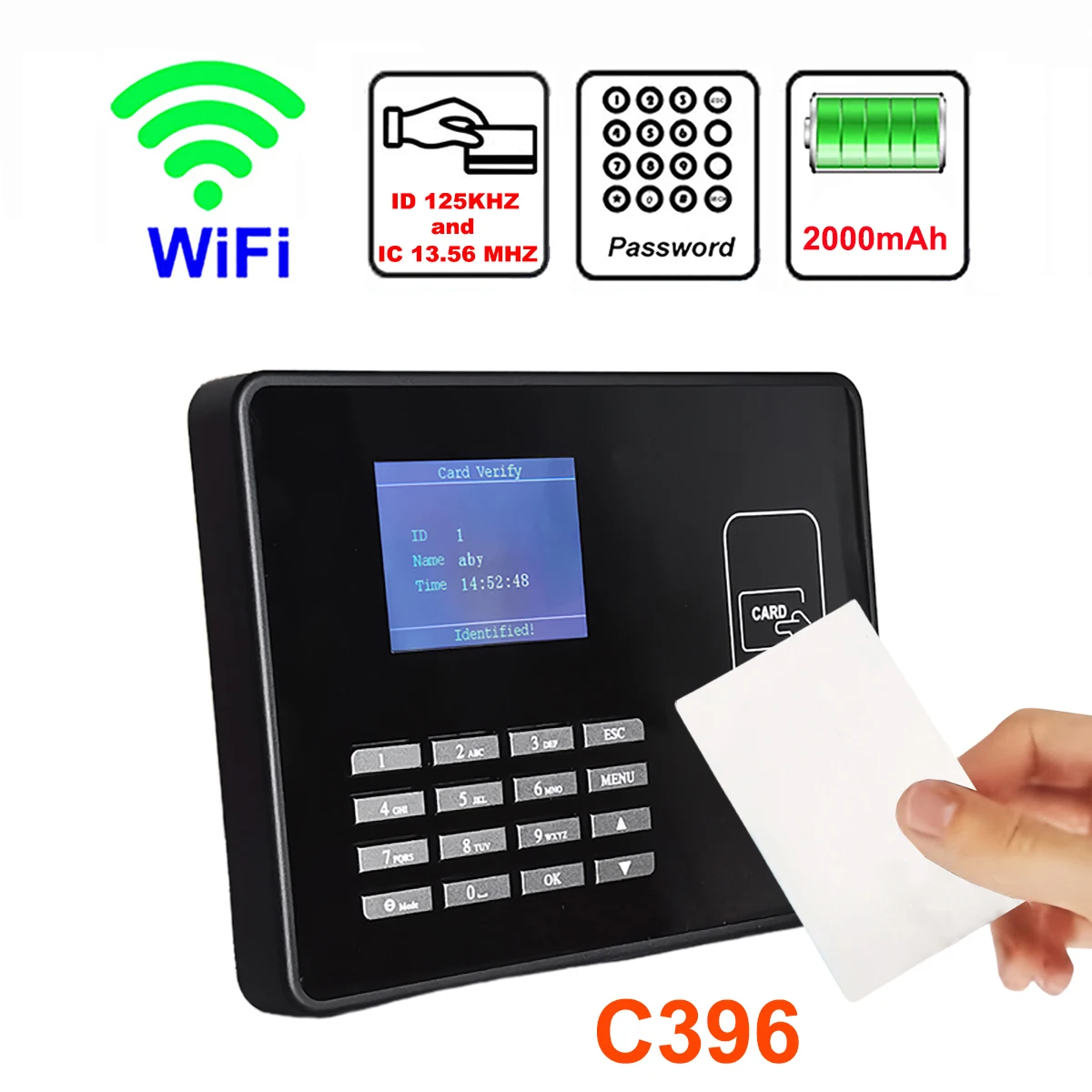

C396 Product Details

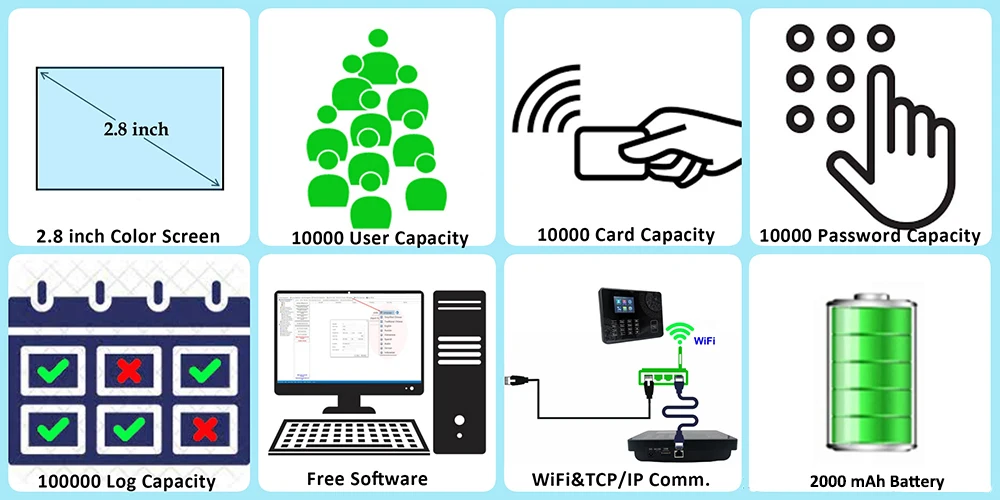

Specification

Screen: 2.8′ Color Screen
User Capacity:10,000
Card Capacity:10,000 (ID 125khz & IC 13.56mhz)
Password Capacity: 10,000
Storage capacity:100,000
Communication:Wifi,TCP/IP,USB
Recognition way: Card,Password
Recognition ways:1:1, 1:N
Standard Functions: Self-Service Query, T9 input, 9 Digits User ID,Schedule Bell,2000 mAh Back up Battery
SoftwareFree (Only Support Windows)
Menu: English or Spanish
FRR:<= 1%
FAR:<= 0.0001%
Working voltage: DC5V1A
Working temperature:0℃40℃
Working humidity(RH):20% ~ 80%
Dimension190×140×40 mm (L×W×T)

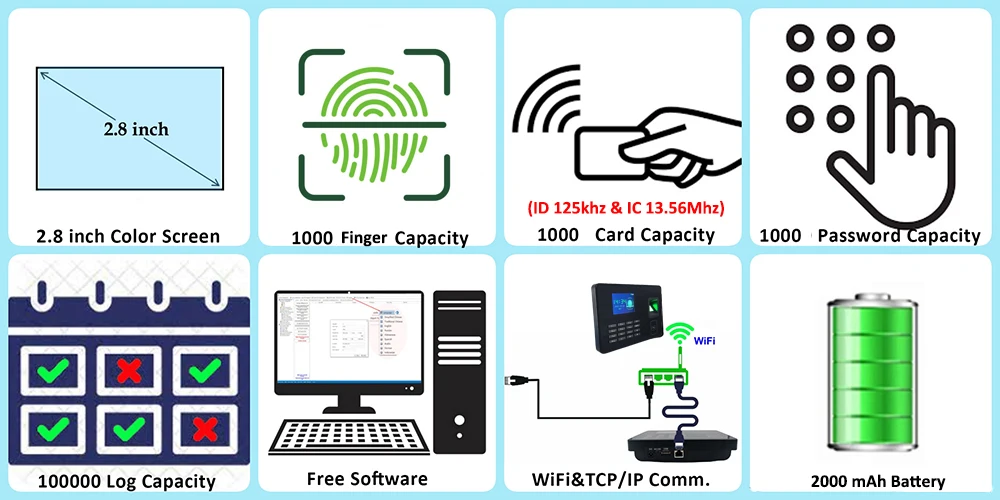

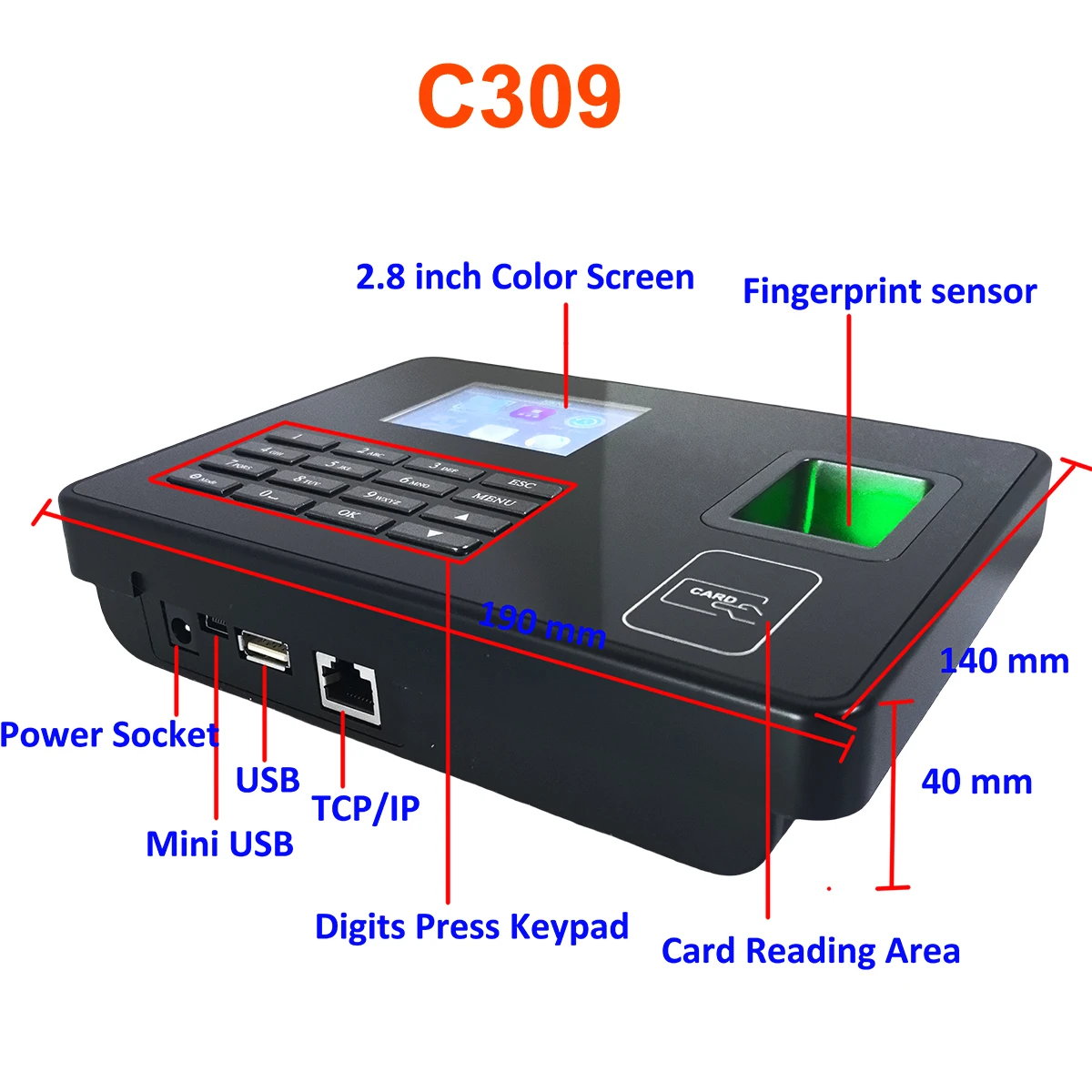

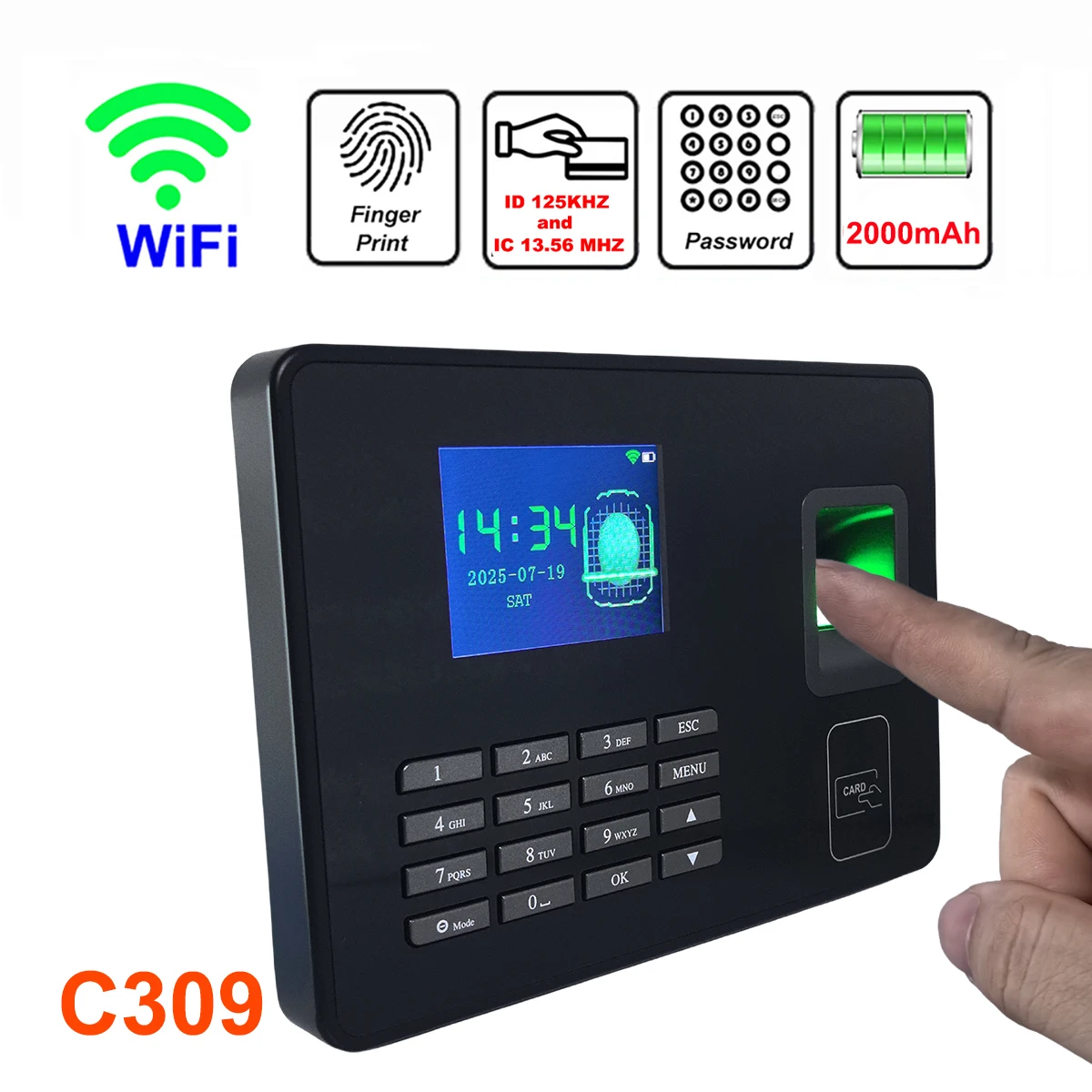

C309 Product Details

Specification

Screen: 2.8′ Color Screen
User Capacity:1,000
Fingerprint Capacity:1,000
Card Capacity:10,00 (ID 125khz & IC 13.56mhz)
Password Capacity: 1,000
Storage capacity:100,000
Communication:Wifi,TCP/IP, USB
Recognition way: Fingerprint,Card,Password
Recognition ways:1:1, 1:N
Standard Functions: Self-Service Query, T9 input, 9 Digits User ID,Schedule Bell,2000 mAh Back up Battery
SoftwareFree (Only Support Windows)
Menu: English or Spanish
FRR:<= 1%
FAR:<= 0.0001%
Working voltage: DC5V1A
Working temperature:0℃40℃
Working humidity(RH):20% ~ 80%
Dimension190×140×40 mm (L×W×T)

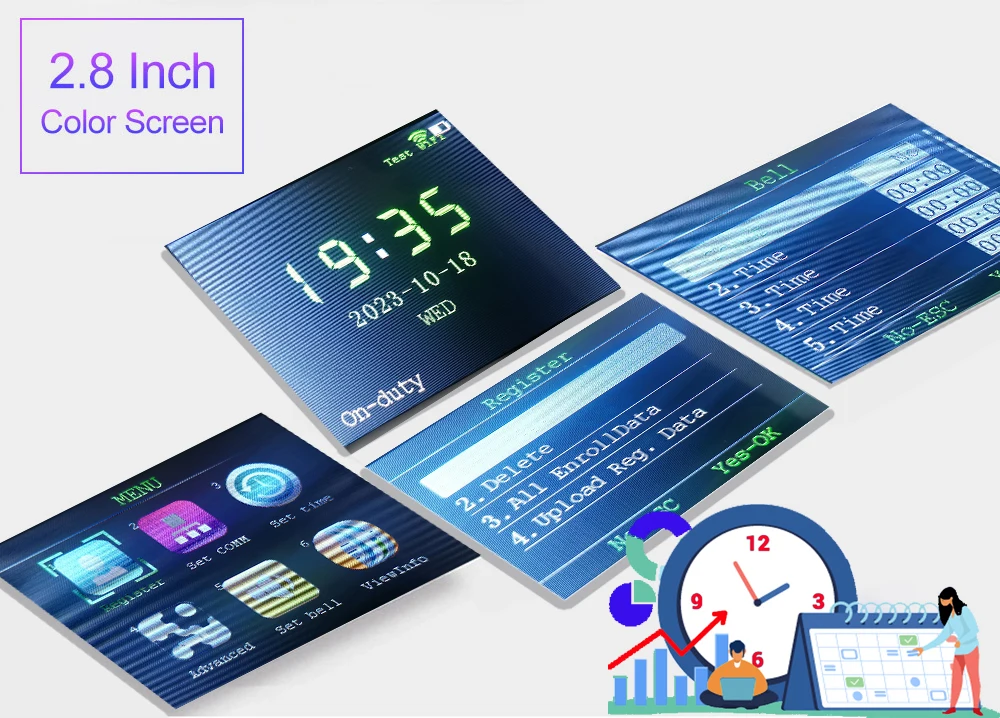

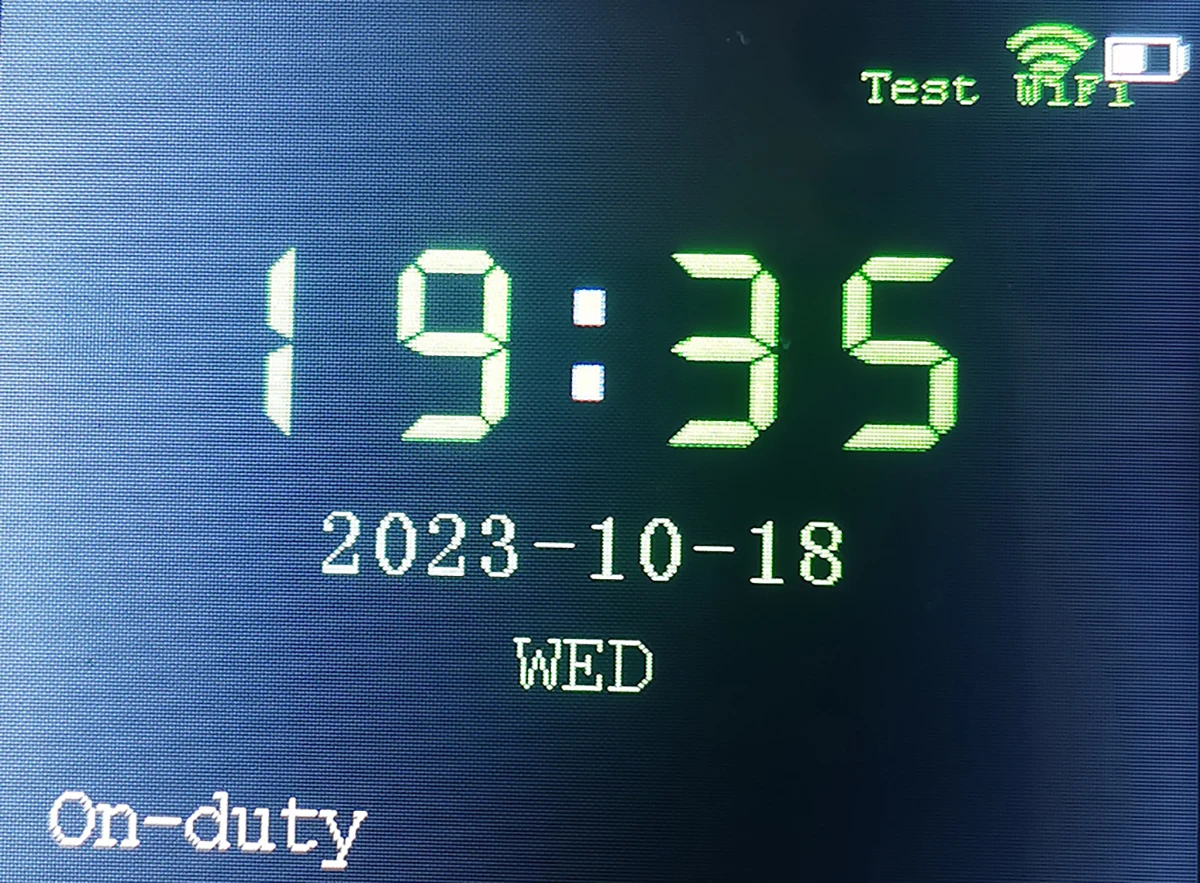

2.8 inch Color Screen

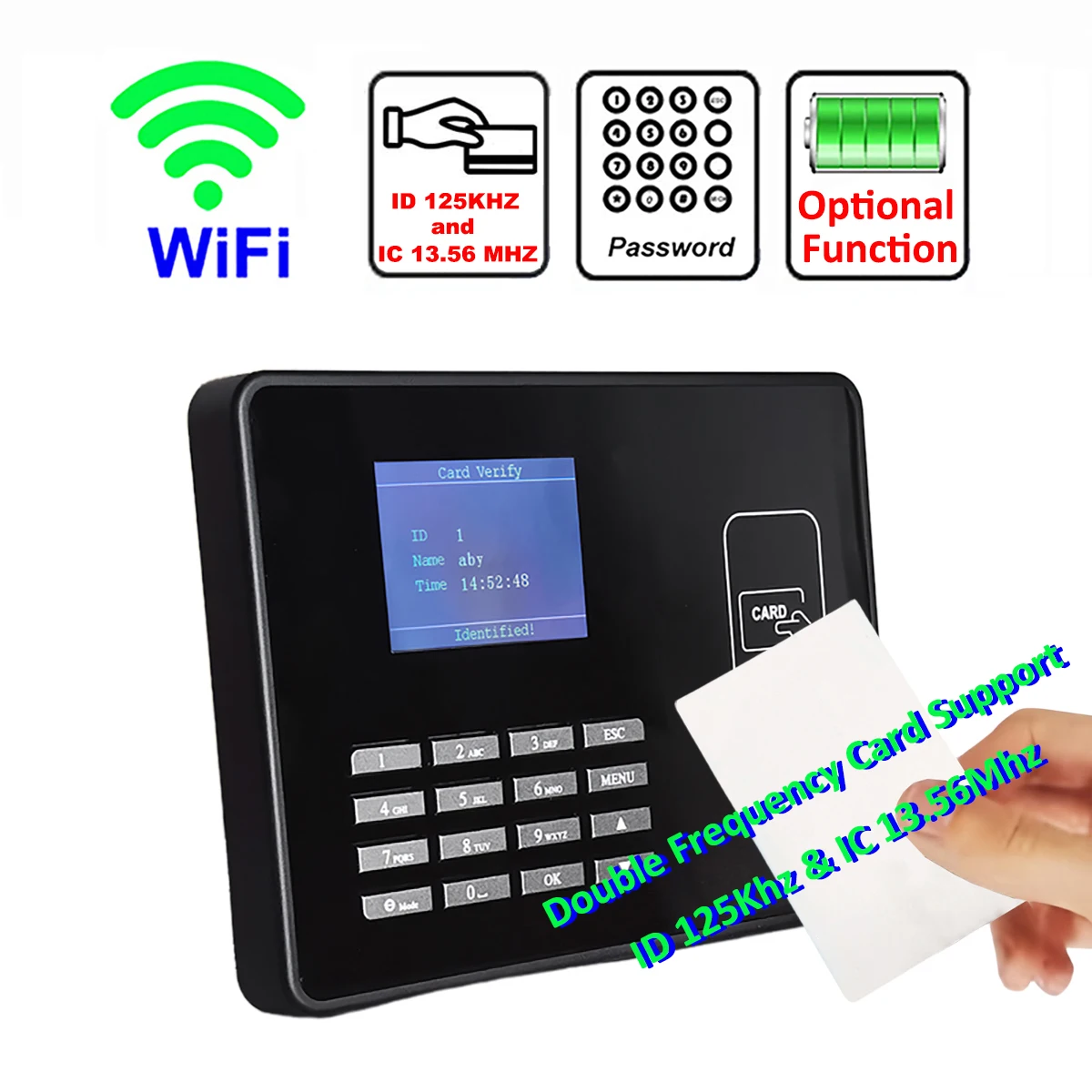

Support Double Frequency Card

Please kindly note, Device only support read card normal number

Card Frequency :
1, RFID 125khz (doesnot support HID) ;
2, IC 13.56mhz ( 13.56mhz only support some normal NFC card,not all NFC chip);

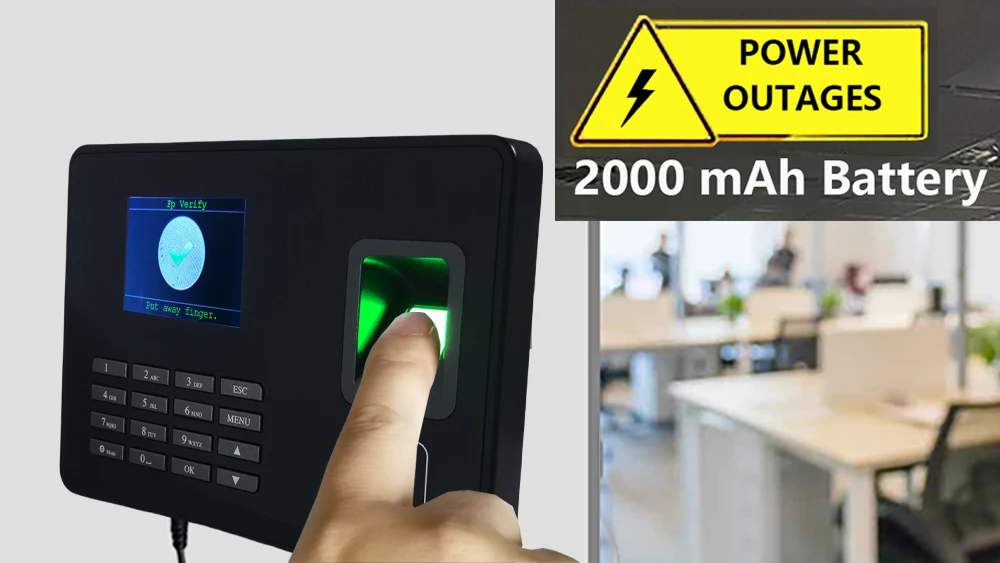

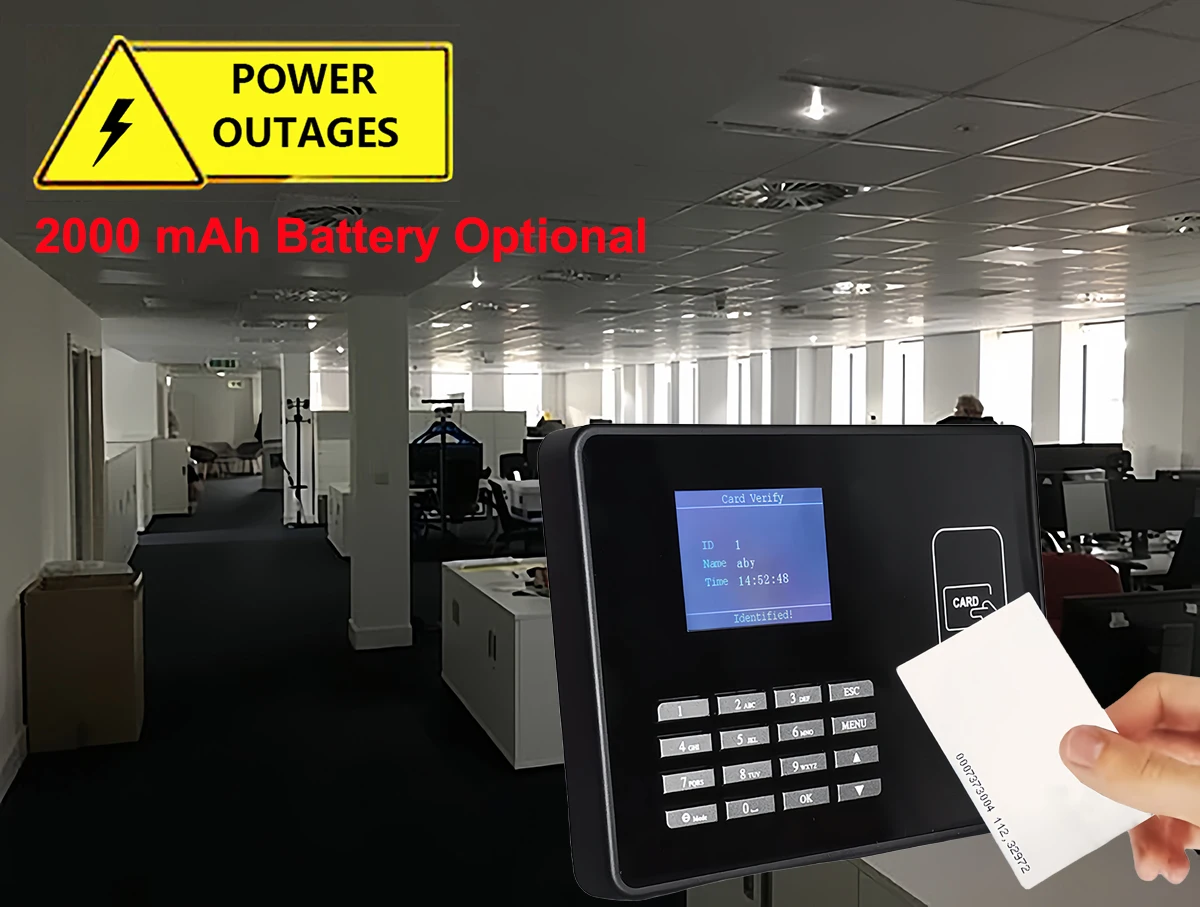

2000mAh Back up Battery Optional

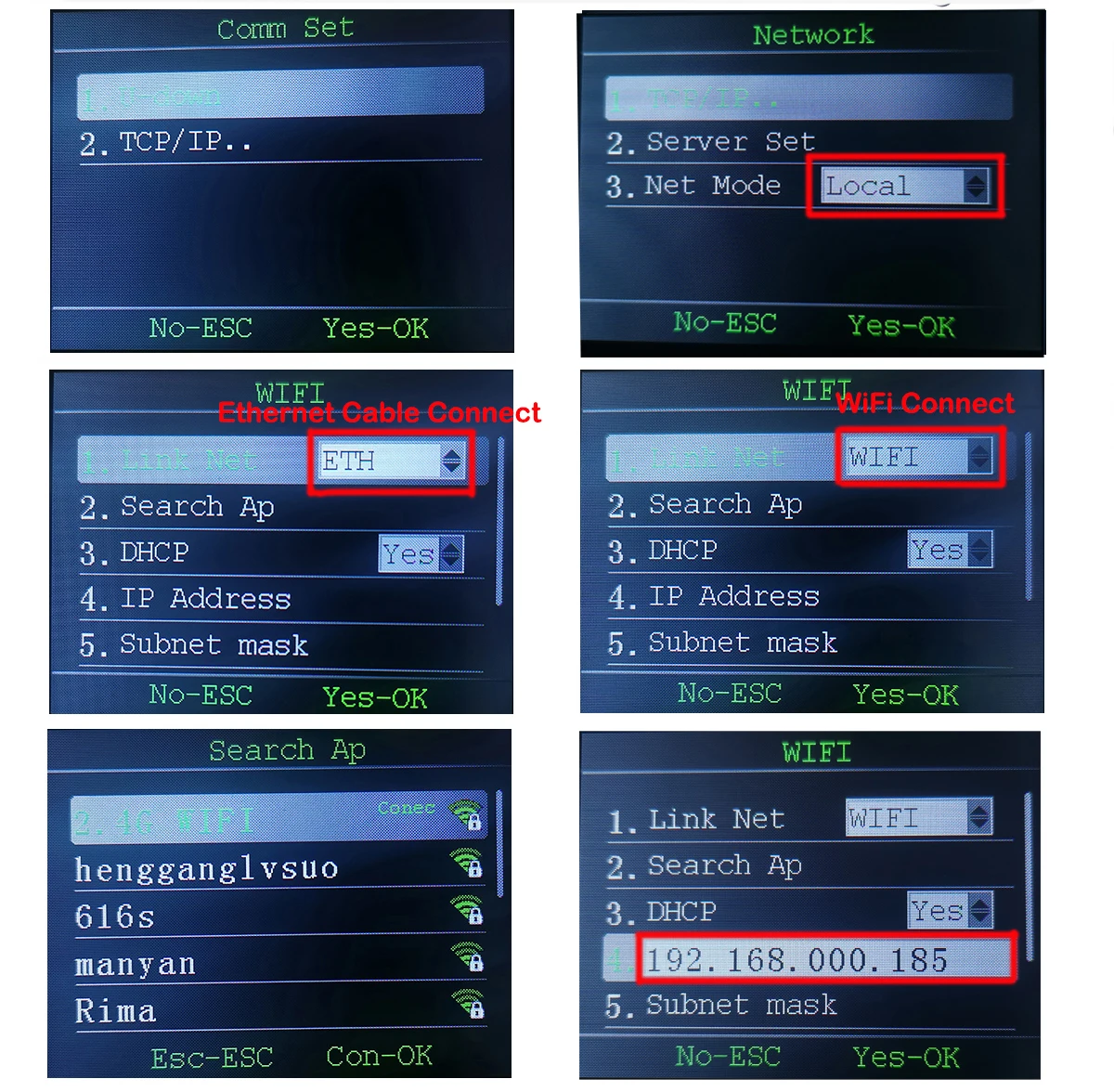

Standard 2.4G WiFi Communcaiton

Please kindly note:

WIFI is only for no cable connect, not means any Cloud;

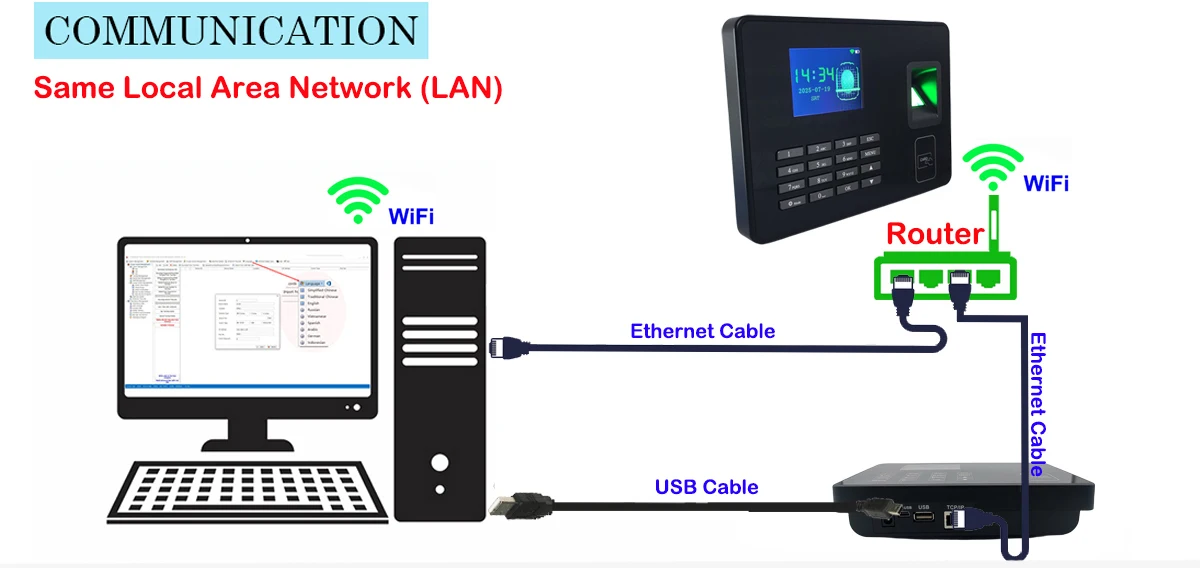

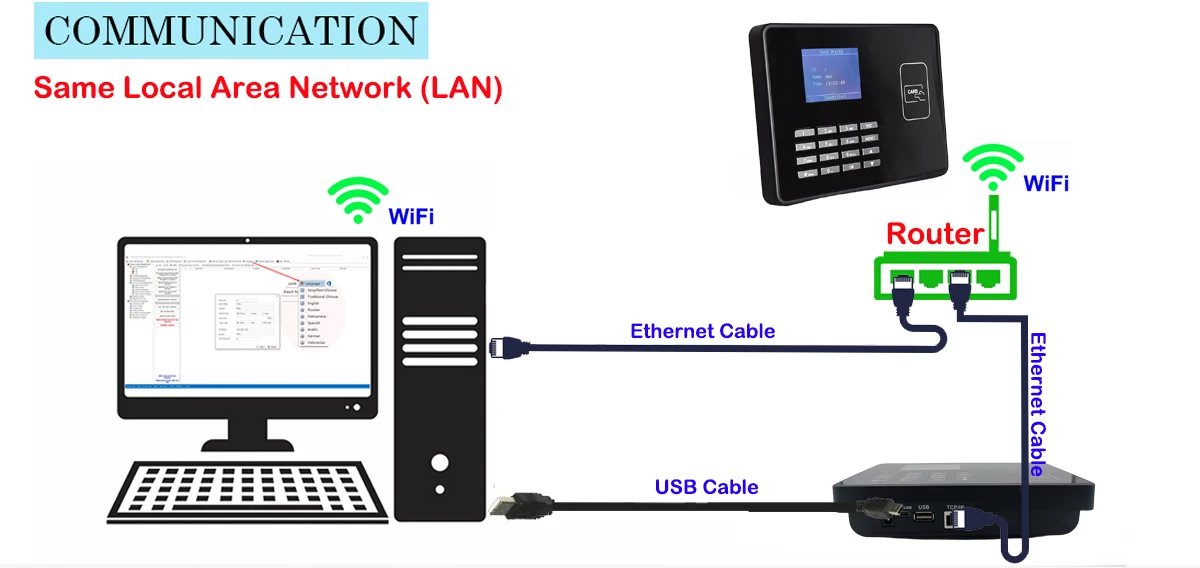

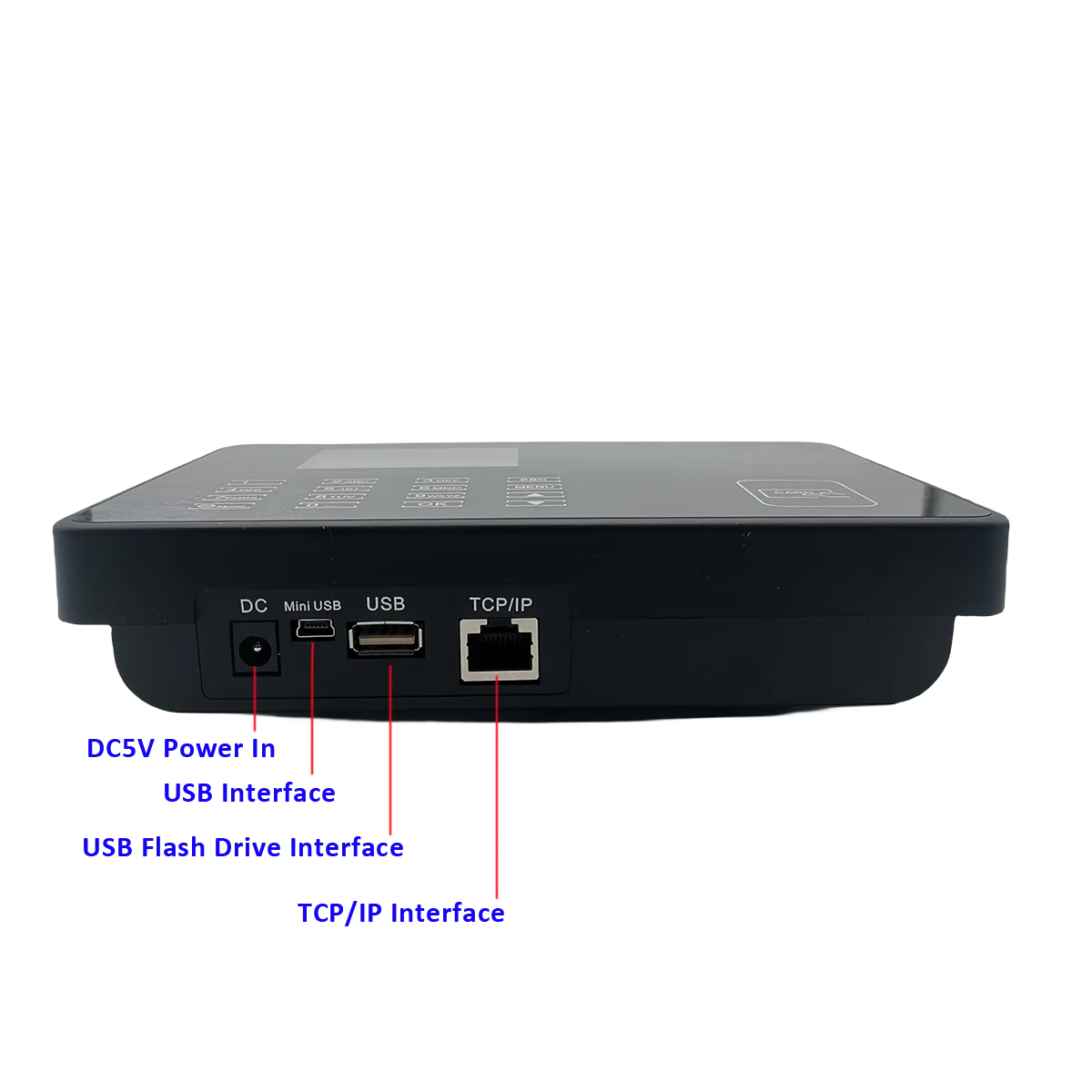

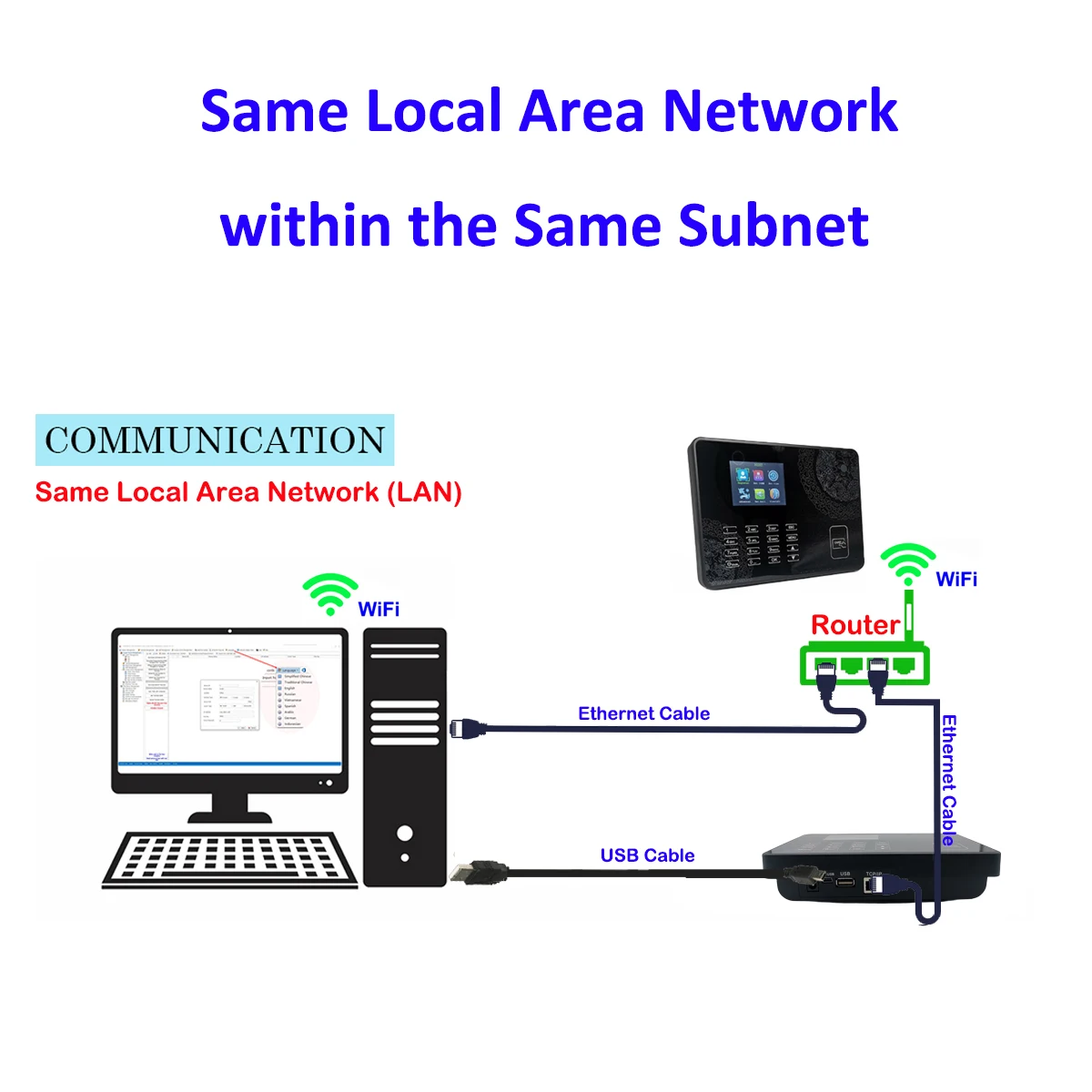

WiFi,TCP/IP Communication

Please kindly note,
Communication of device and software needs to work under same local area network within the same subnet. Unable to establish cross-network connection.

We donot offer the Cloud software system, but we can offer SDK for your Cloud system development.

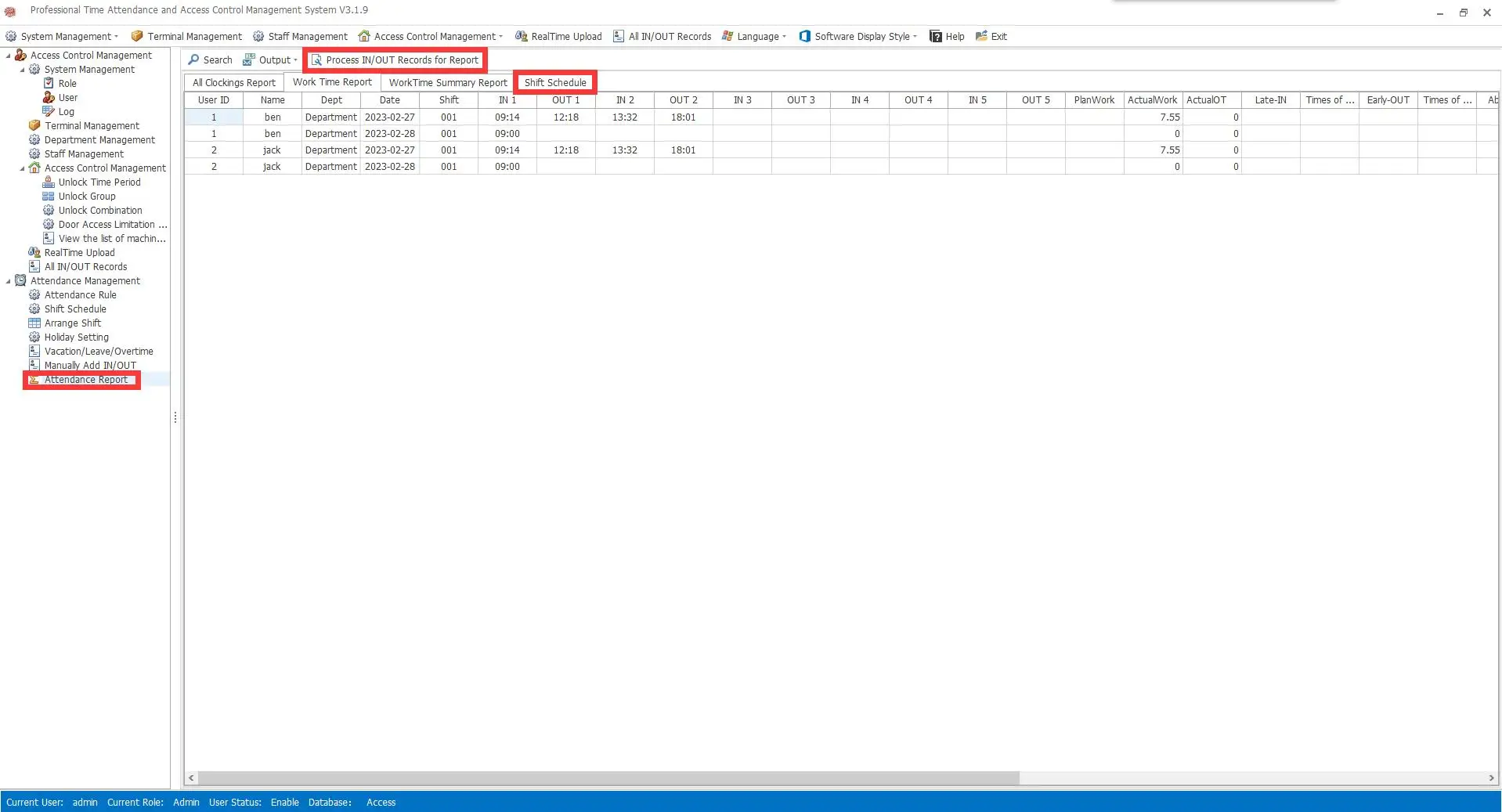

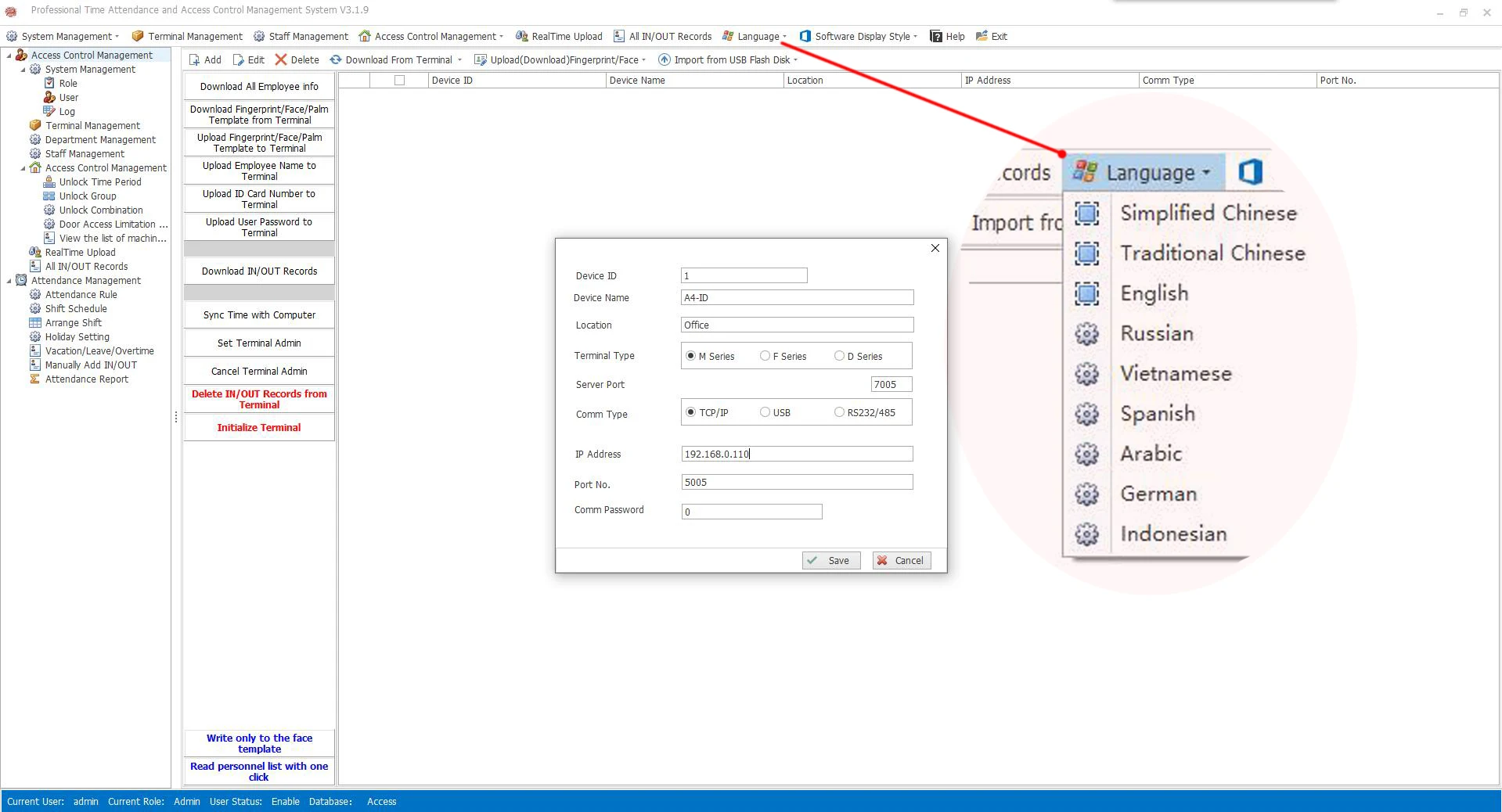

Free Software

Software Support English,Russian, Spanish, Arabic, German, Vietnamese, Indonesian

Software and device need to work under same local area network within the same subnet.

Can offer Lan and Cloud SDK for your system development.

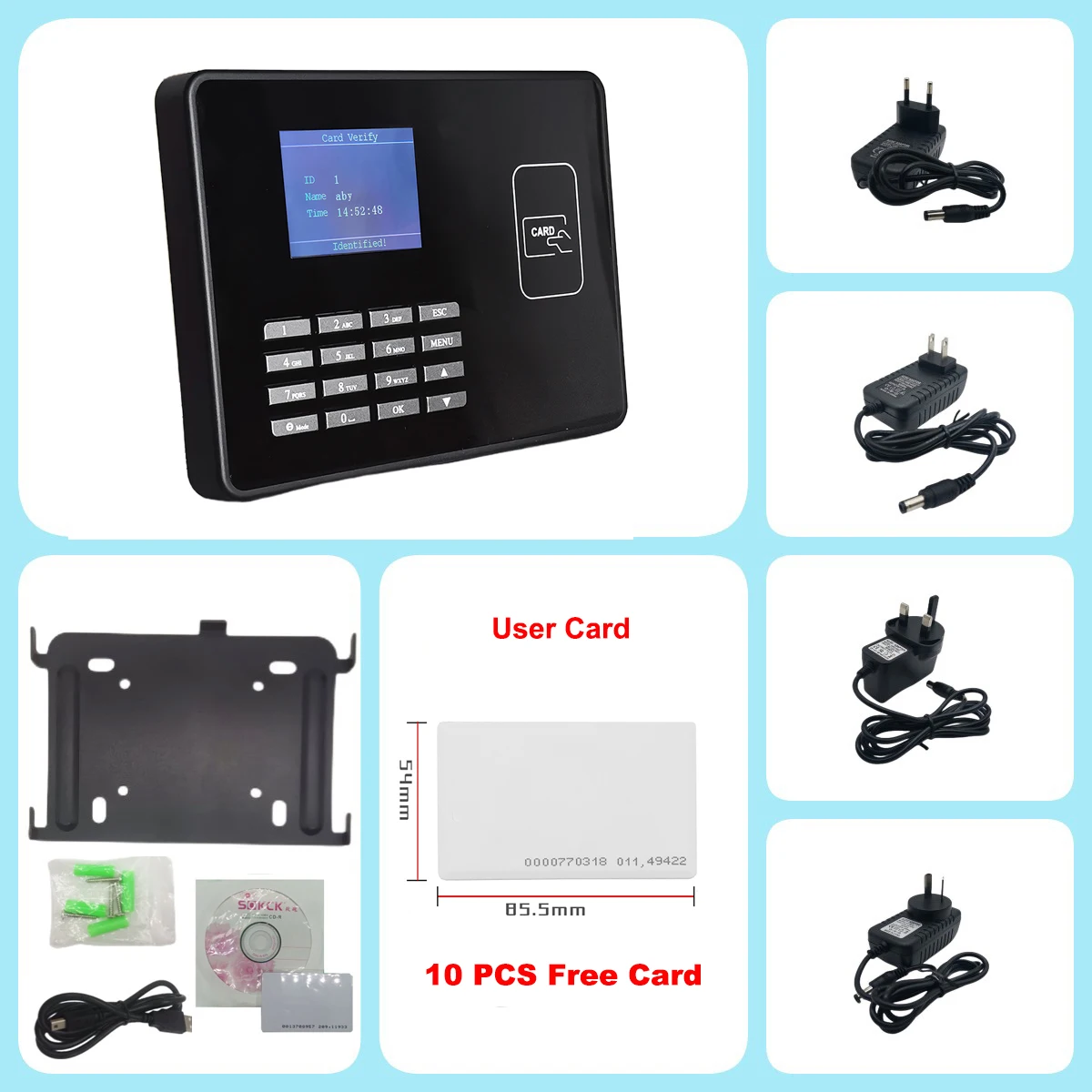

What is in C396 Box.

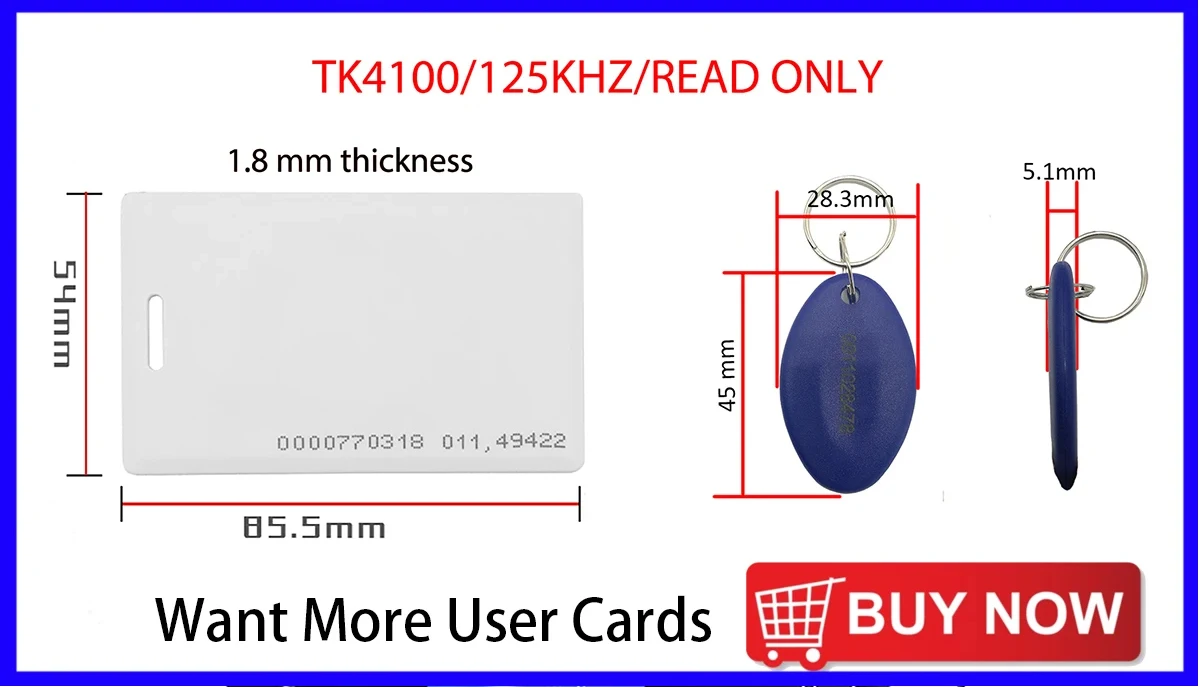

We will offer 10 pcs user Card, if you need more card, you can go to our user card link to buy more.

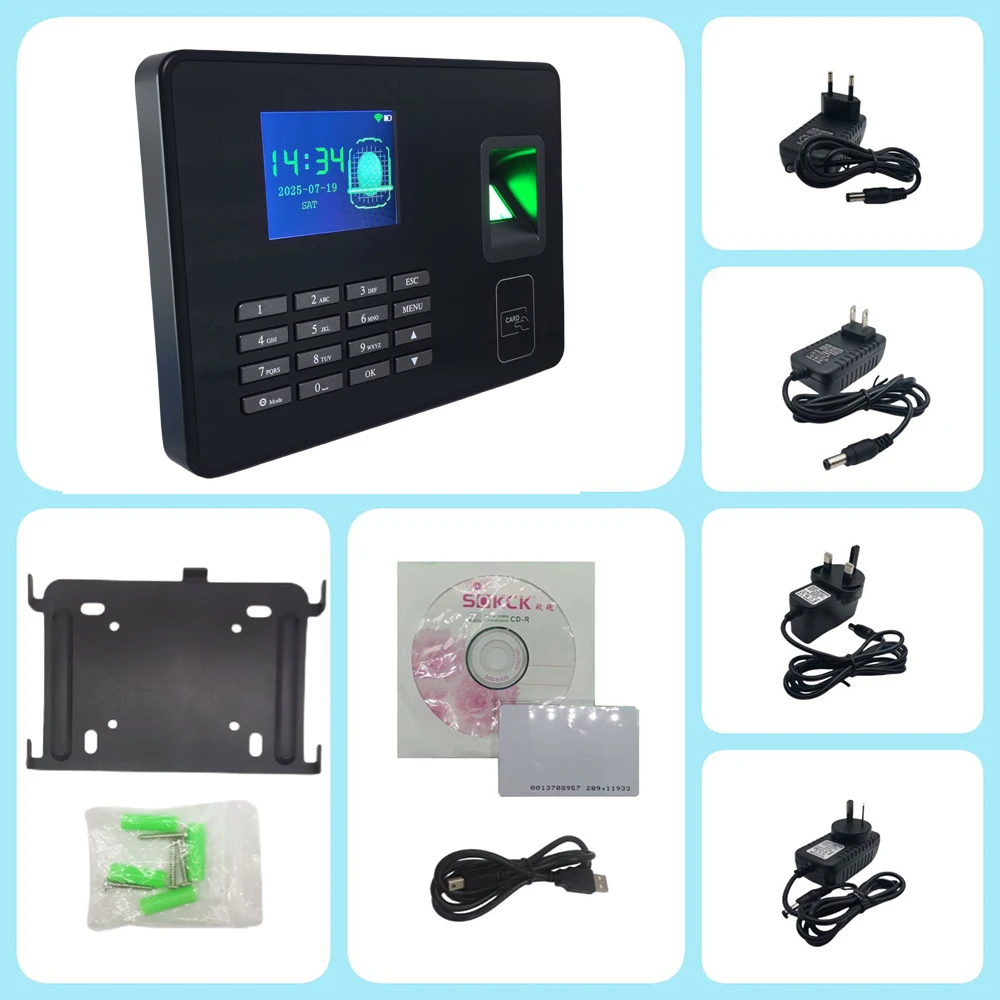

What is in C309 Box.

We will offer 10 pcs user Card, if you need more card, you can go to our user card link to buy more.

Remarks
