Descripción

Product Description:

Brand: NOYAFA

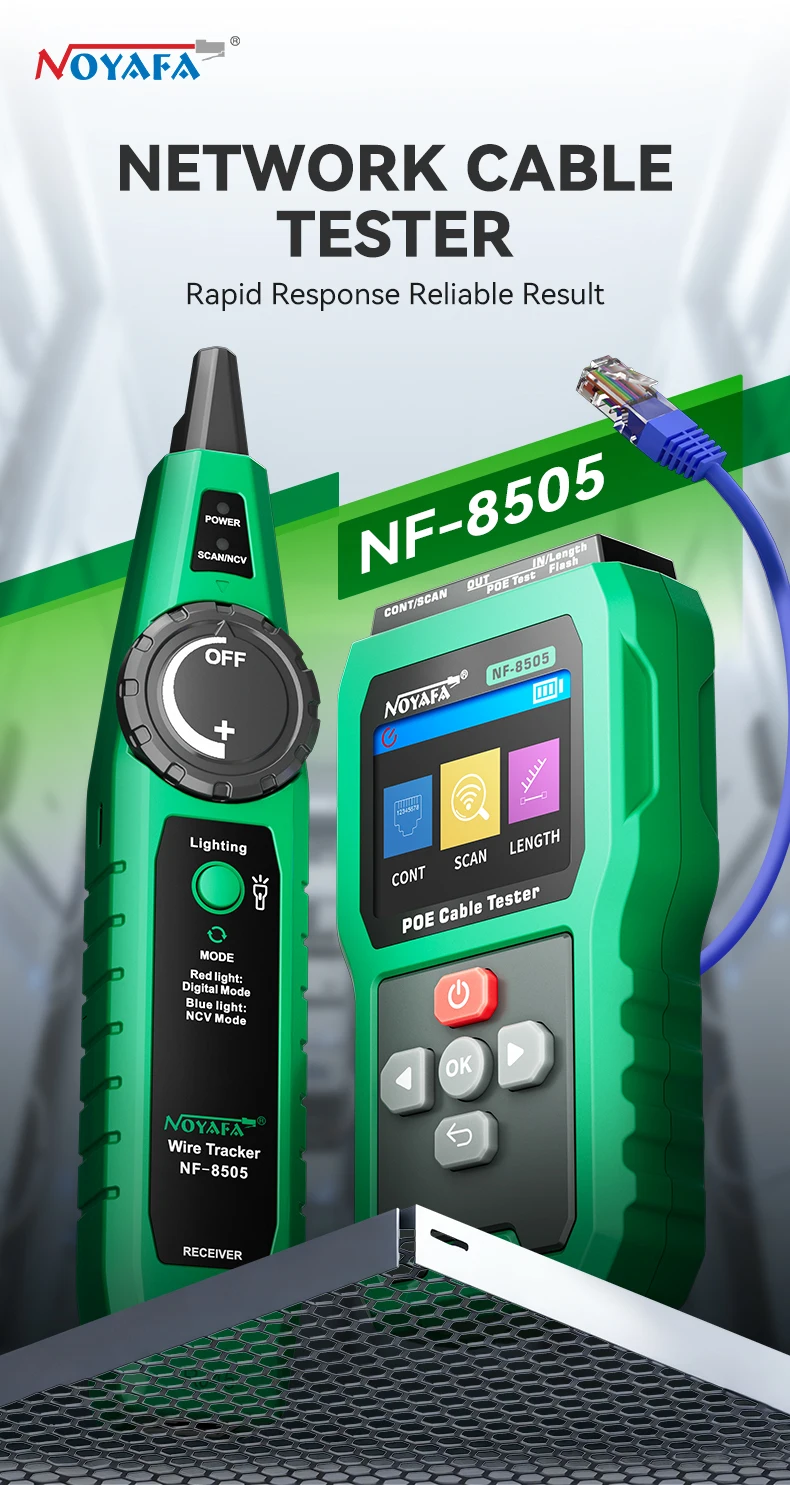

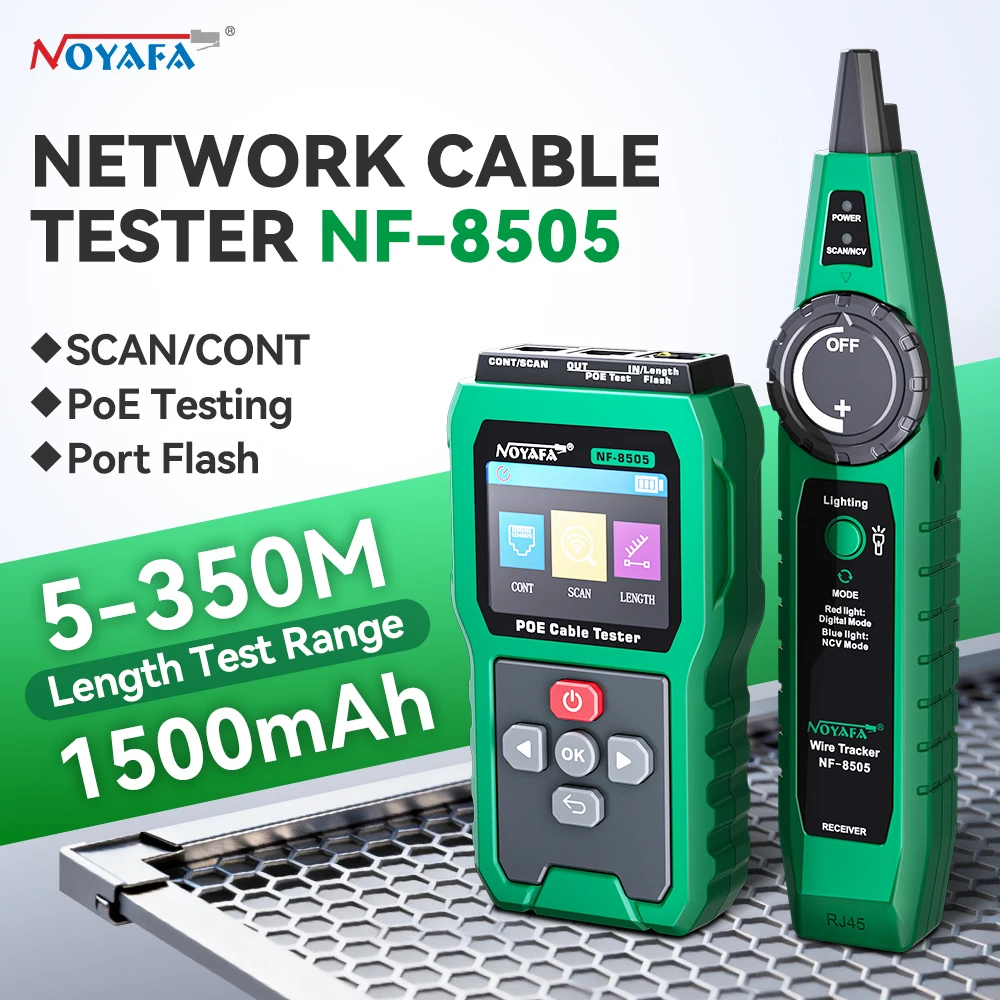

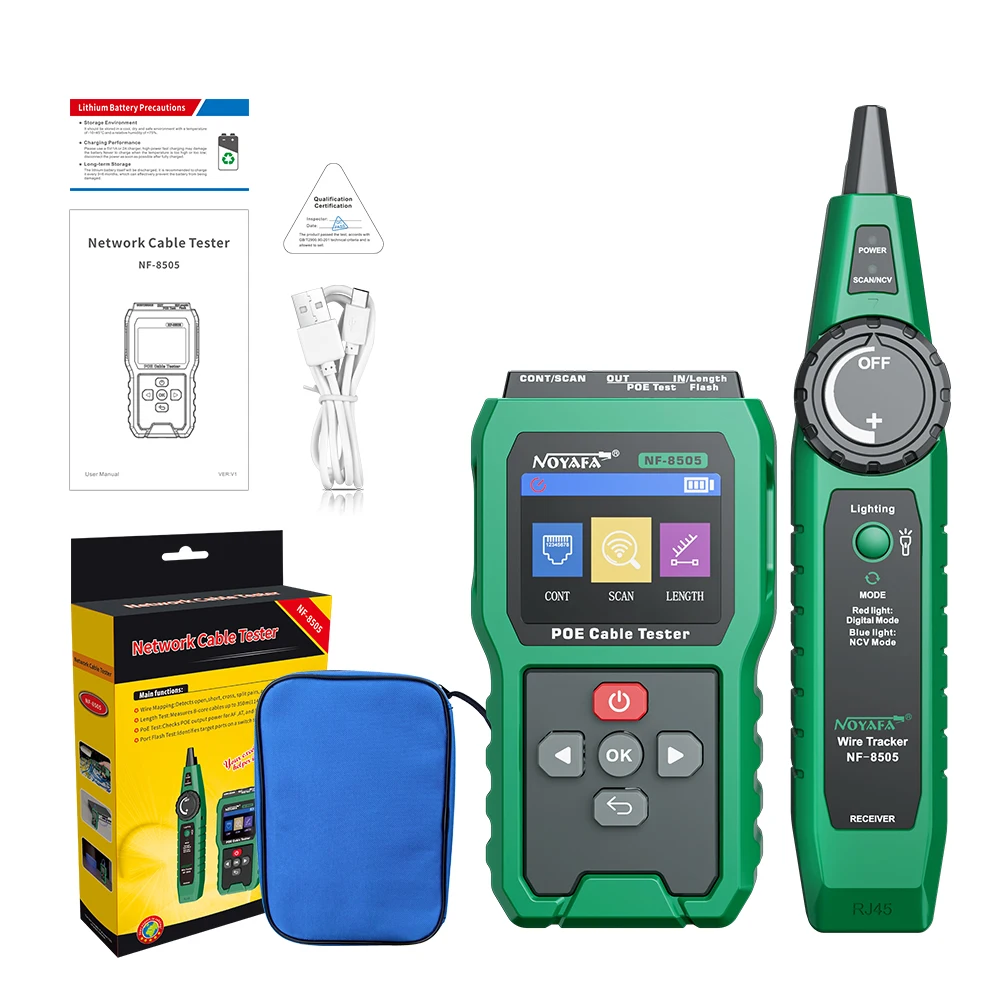

Product Name: Network Cable Tester

Type: NF-8505

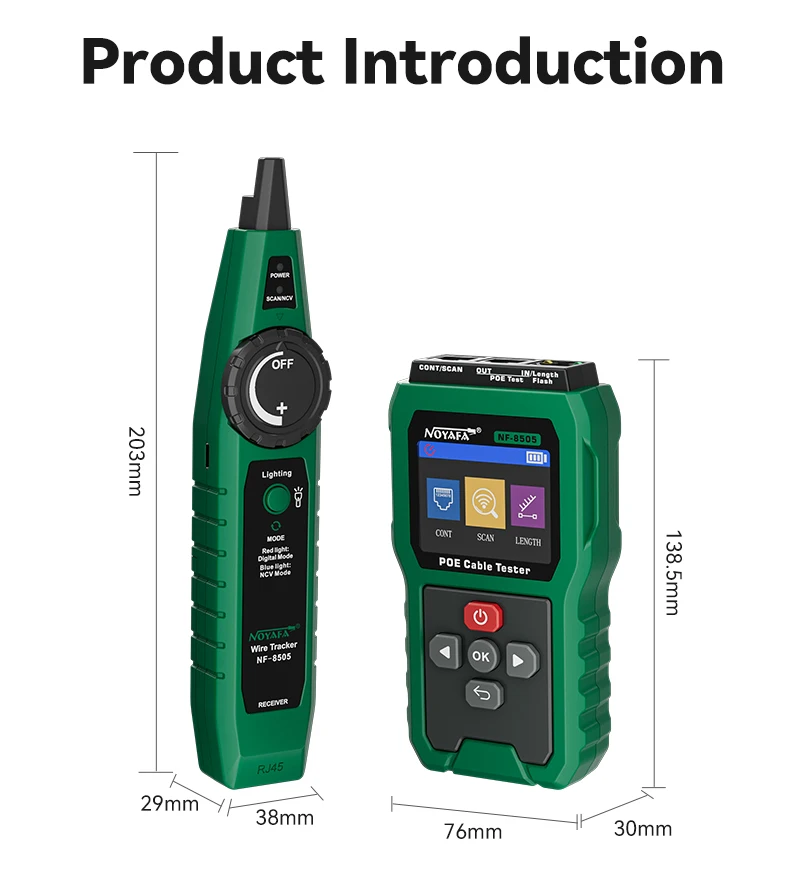

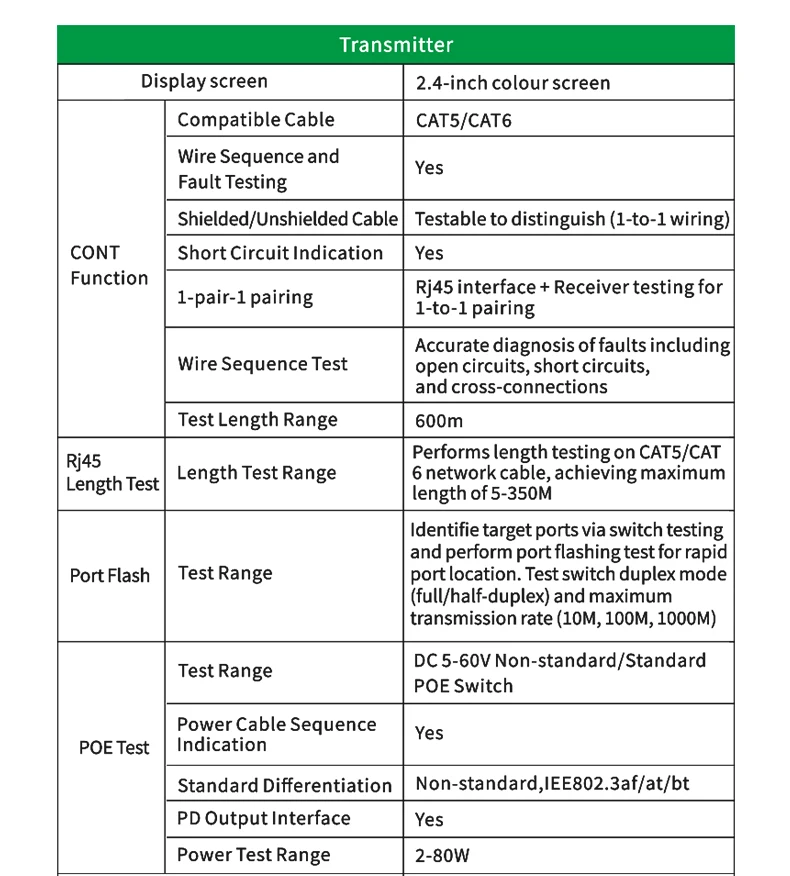

Size: 138x76x30mm, 203x38x29mm

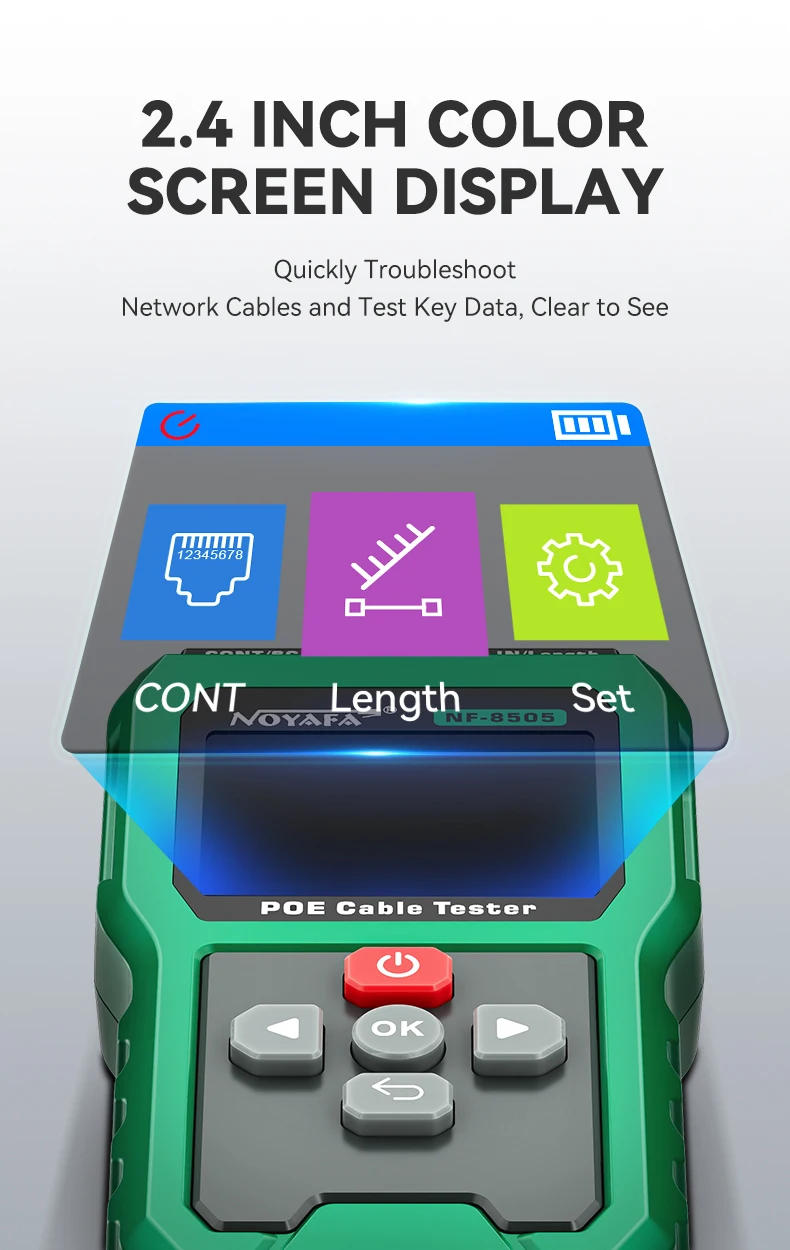

Display: 2.4inch LCD screen

Applicable network cable: CAT5, CAT6

Length Measurement Range: 5-350m

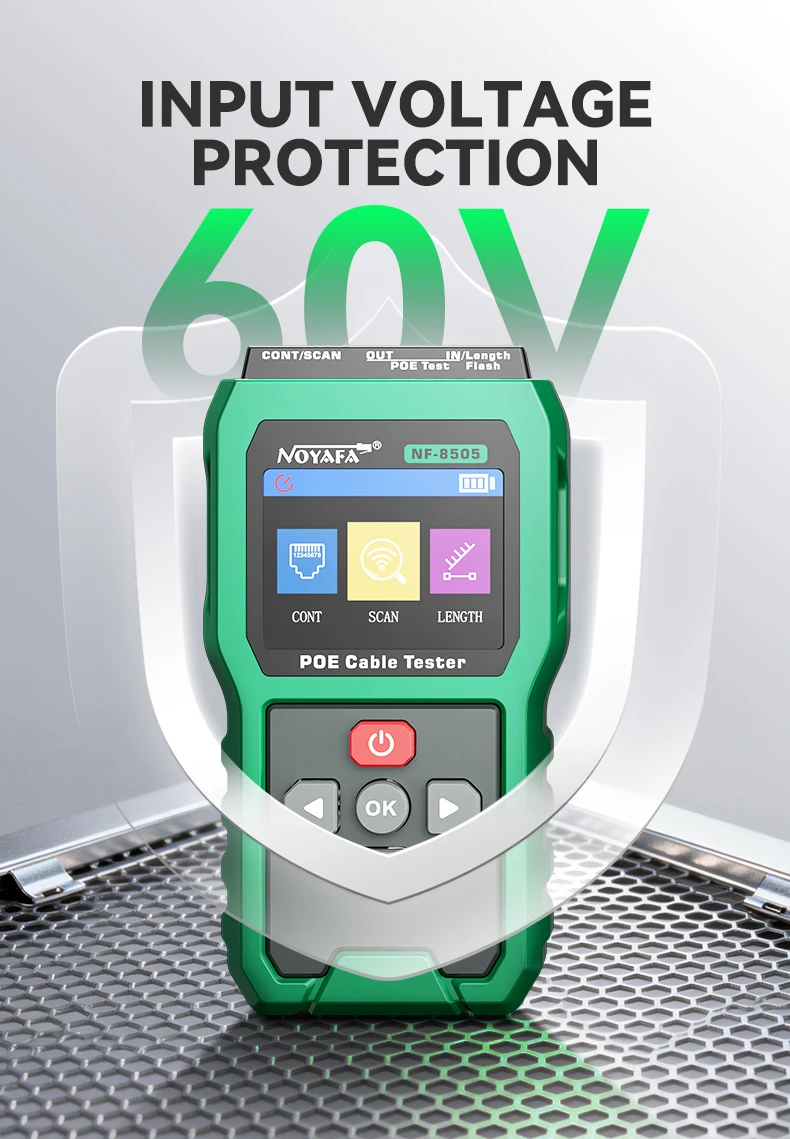

POE Voltage test range: DC5 ~ 60V

POE Power Test Range: 2-80W

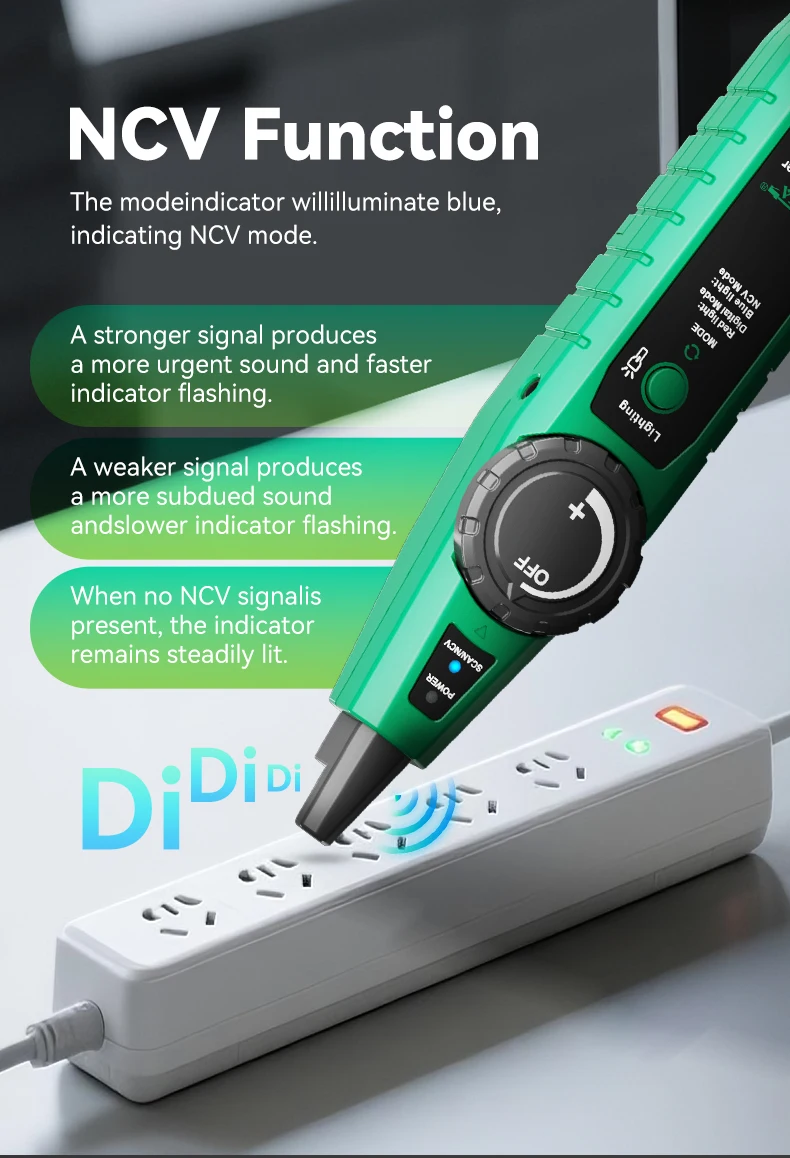

NCV Test: Yes

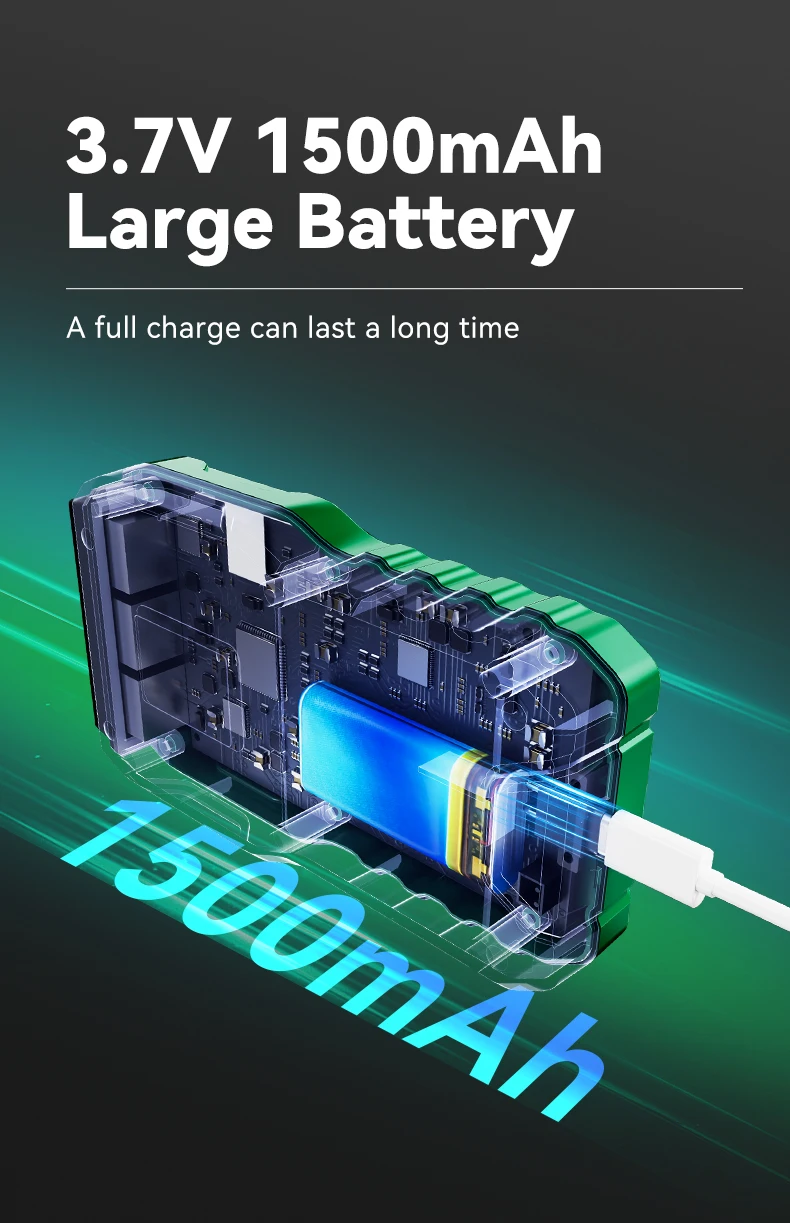

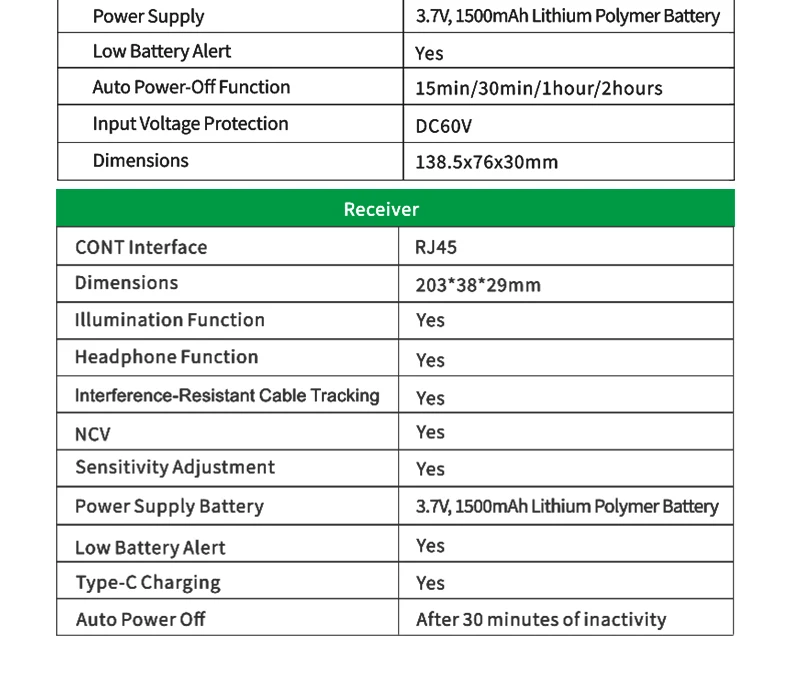

Battery Type: 3.7V/1500mAh Lithium Battery

Low Voltage Prompt: Yes

Low Battery Reminder: Yes

Main Function:

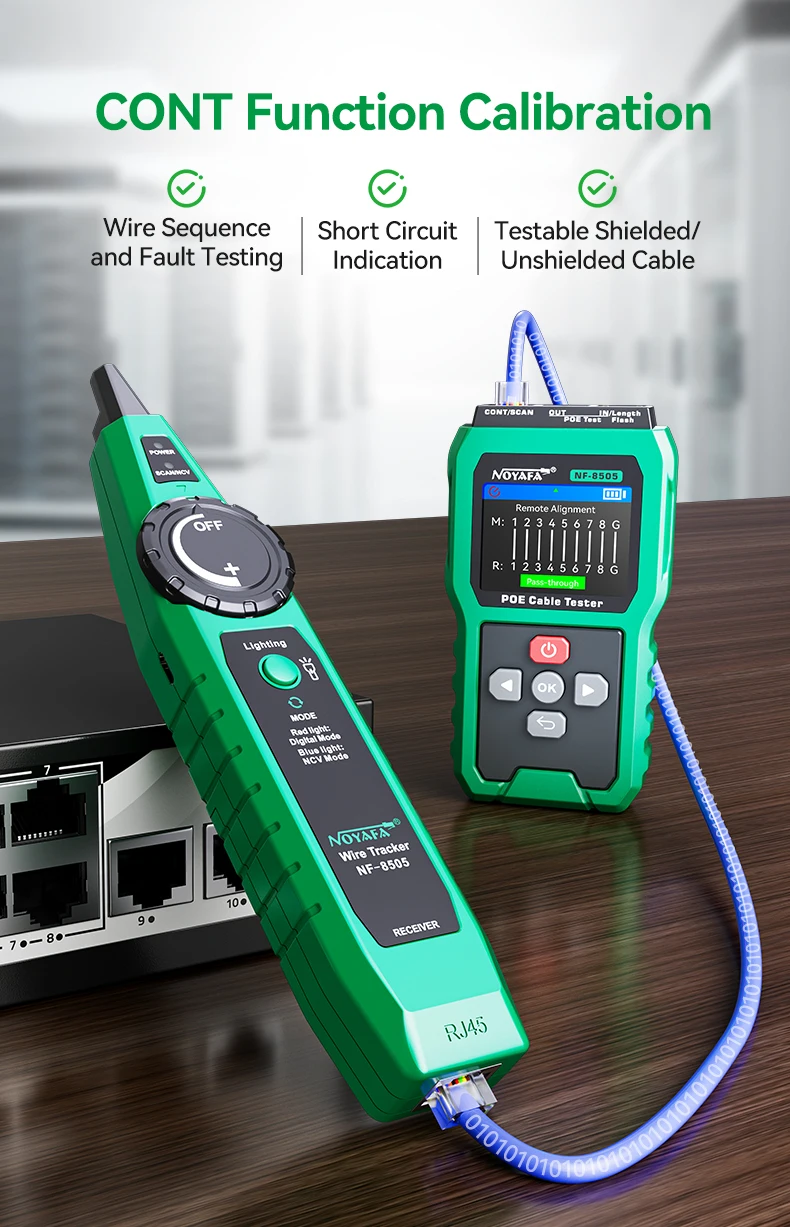

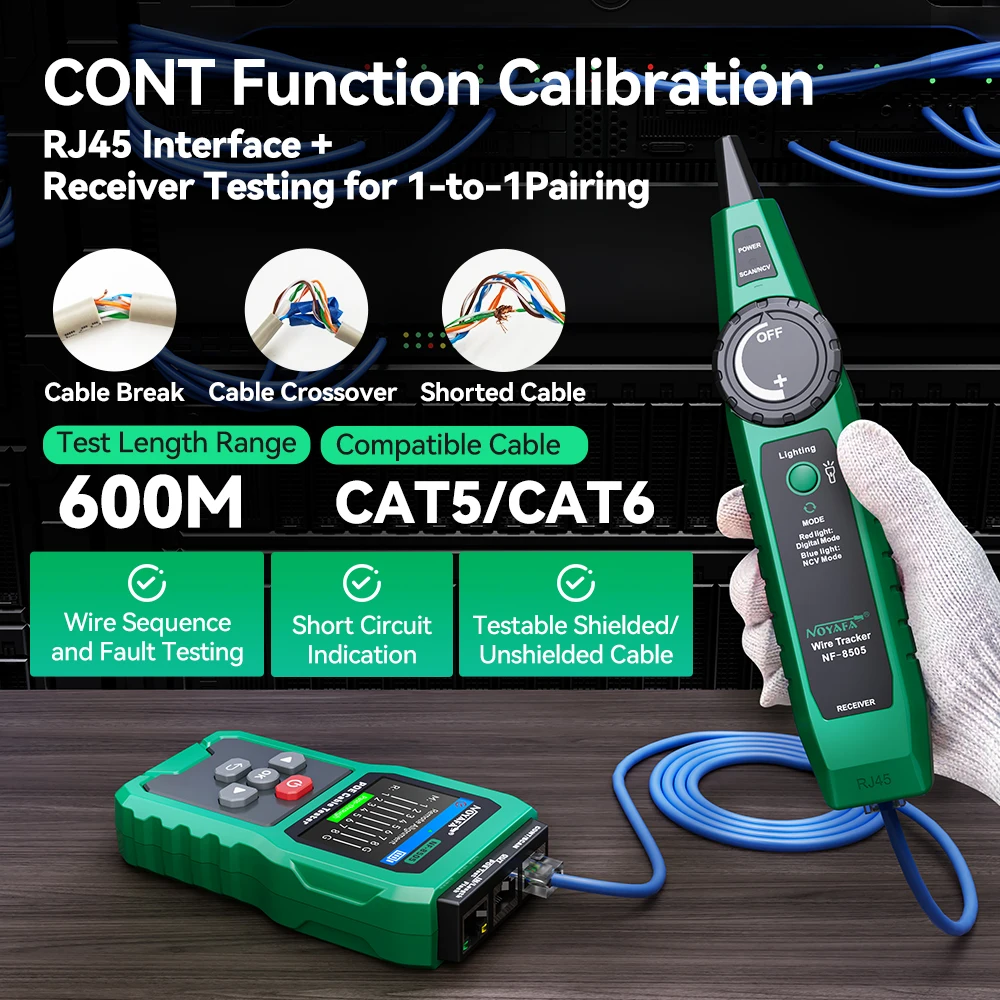

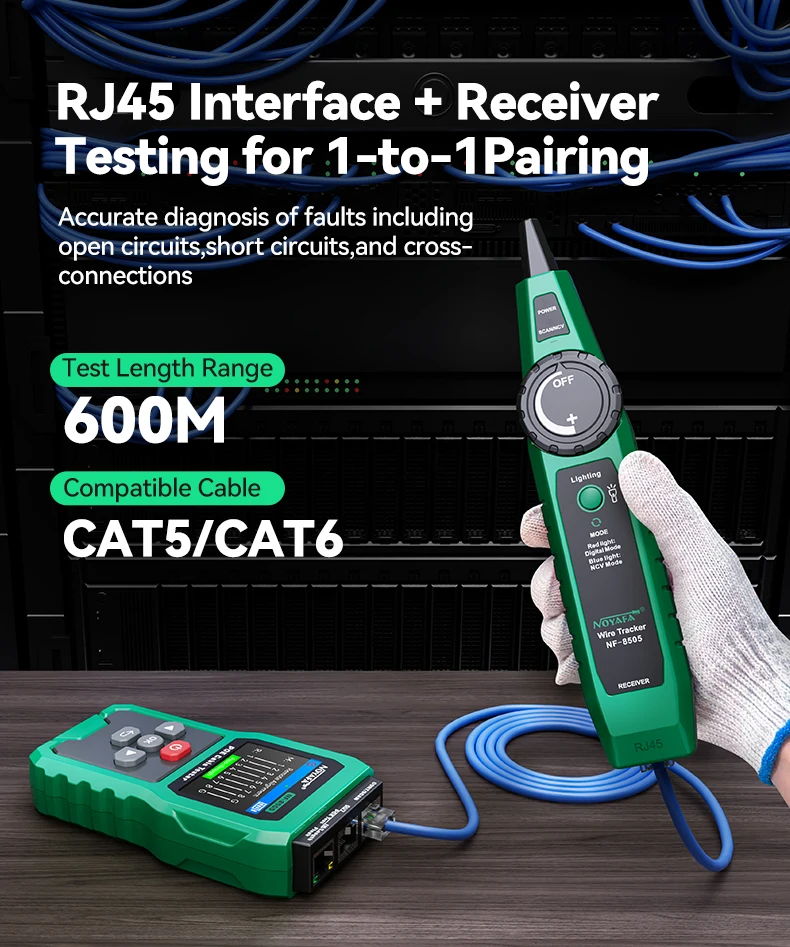

1. Cable Continuity Test: Test the short circuit, open circuit, crossover, normal, etc. of the network cable.

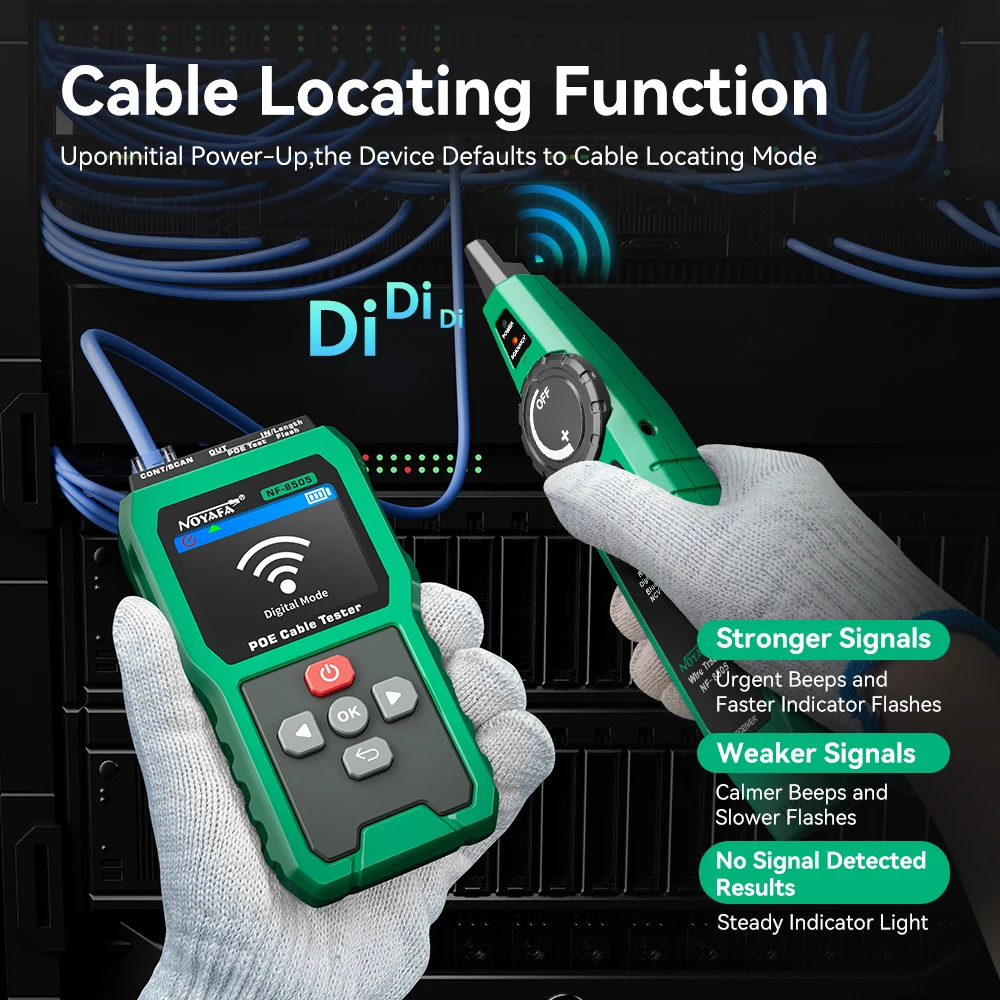

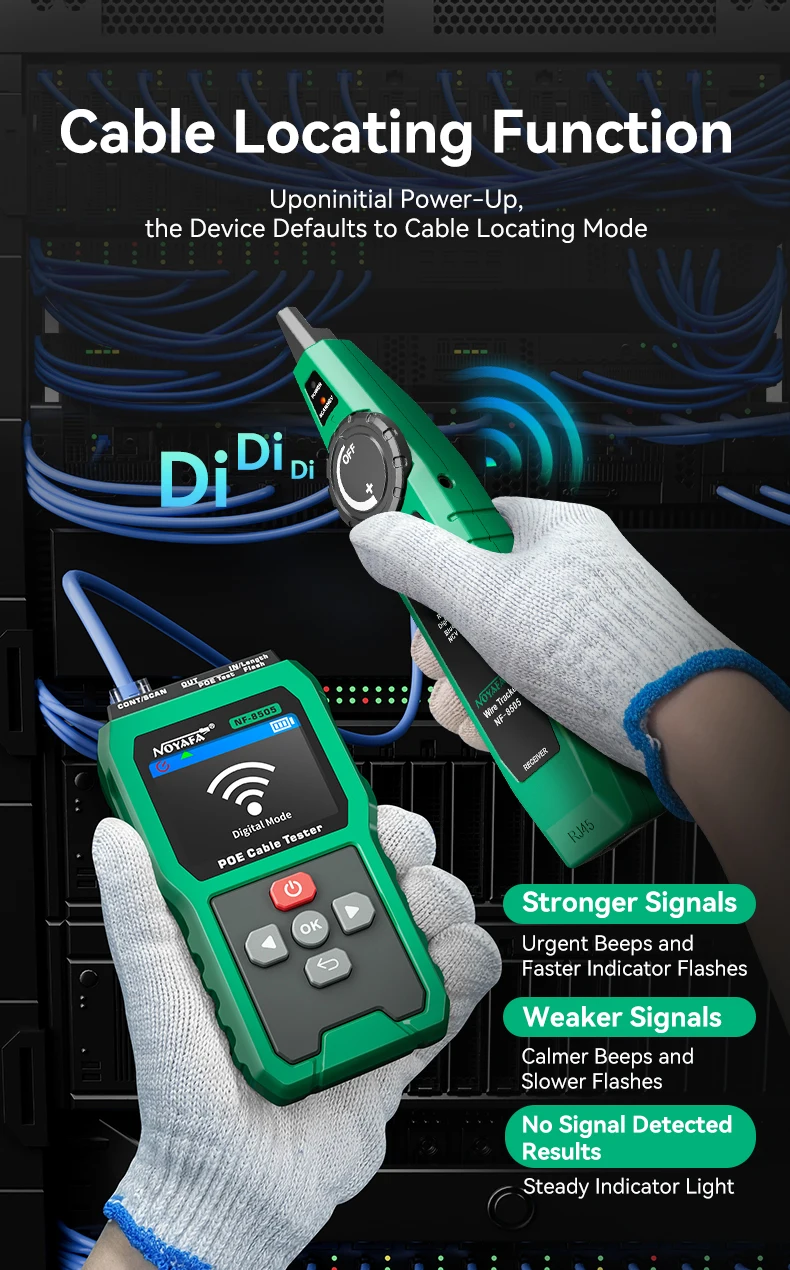

2. Line Hunting mode: Anti-jamming mode.

(1)The closer the receiver probe is to the target line, the stronger the signal and the louder the sound. The adjuster on the receiver is used to adjust the sensitivity when line hunting.

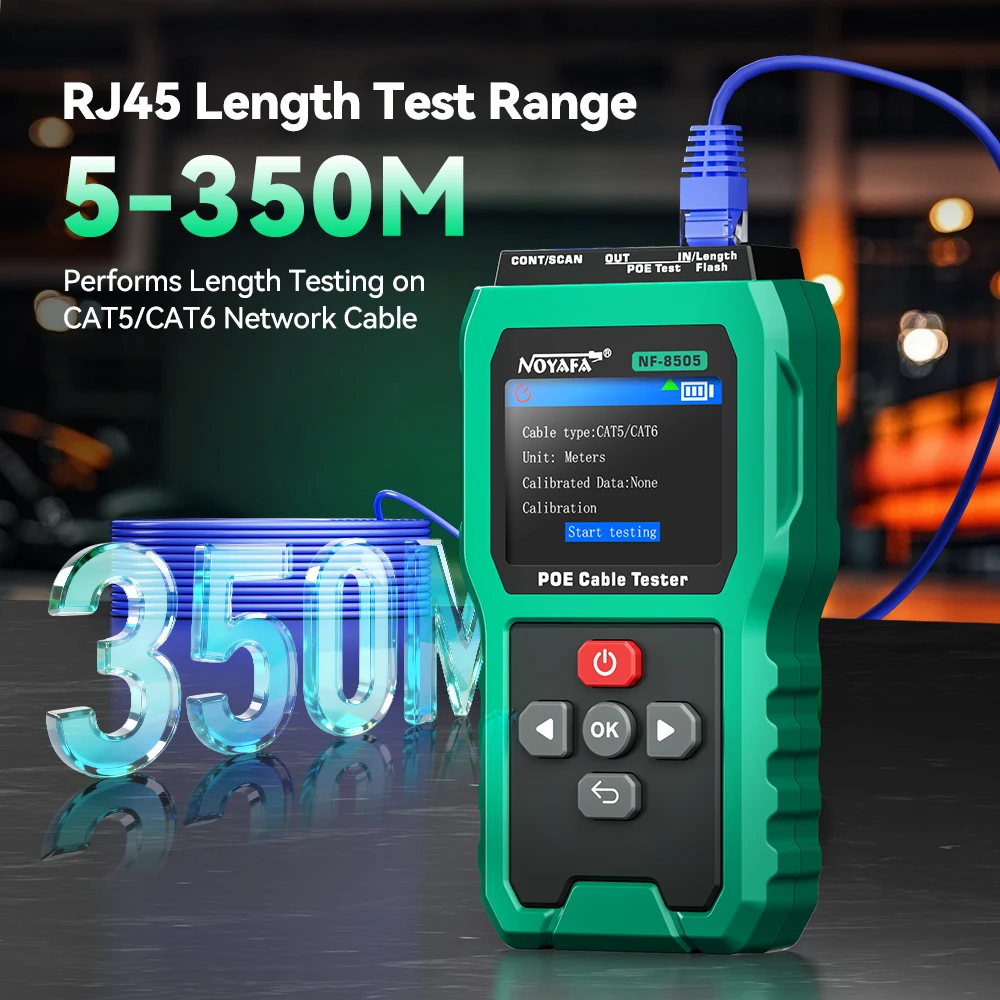

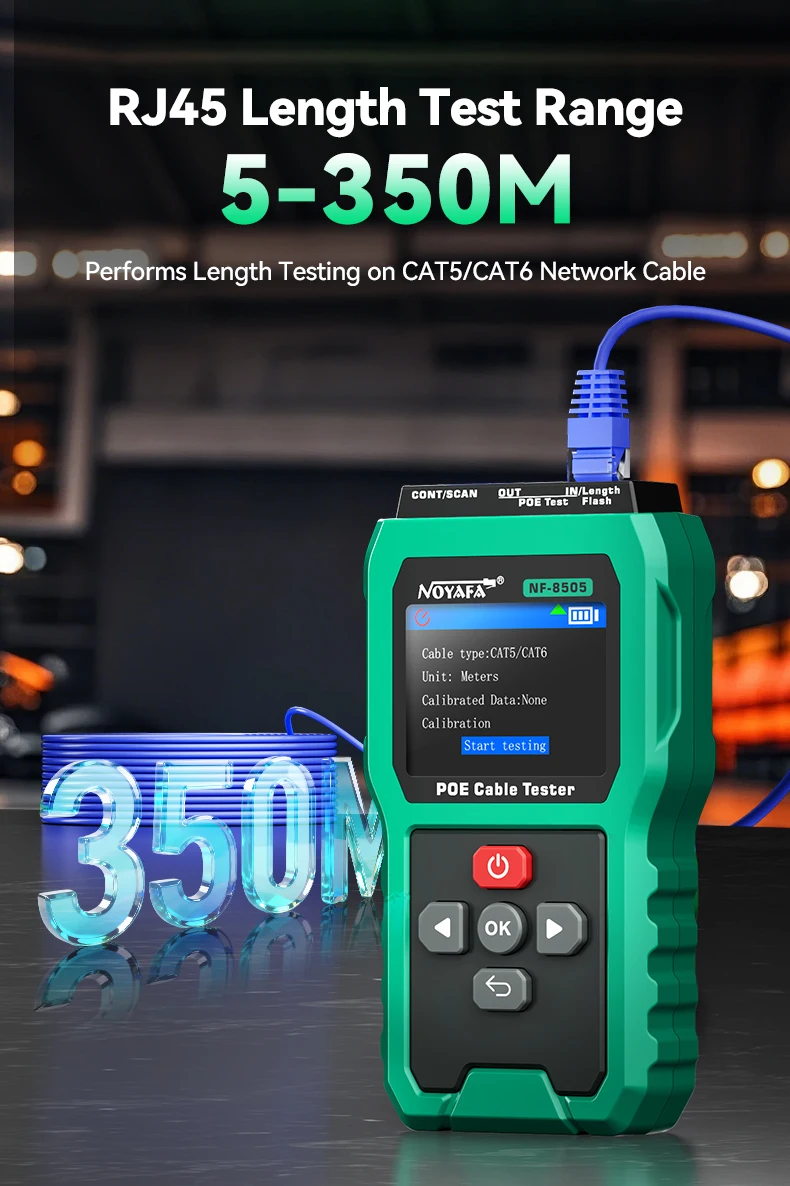

3. RJ45 Length Test: Network cable length test, breakpoint test and short circuit test. (Note: The RJ45 cable cannot be powered on during length measurement, and cannot be connected to equipment and instruments. The length must be between 5 meters and 350 meters, otherwise the measurement data will be inaccurate)

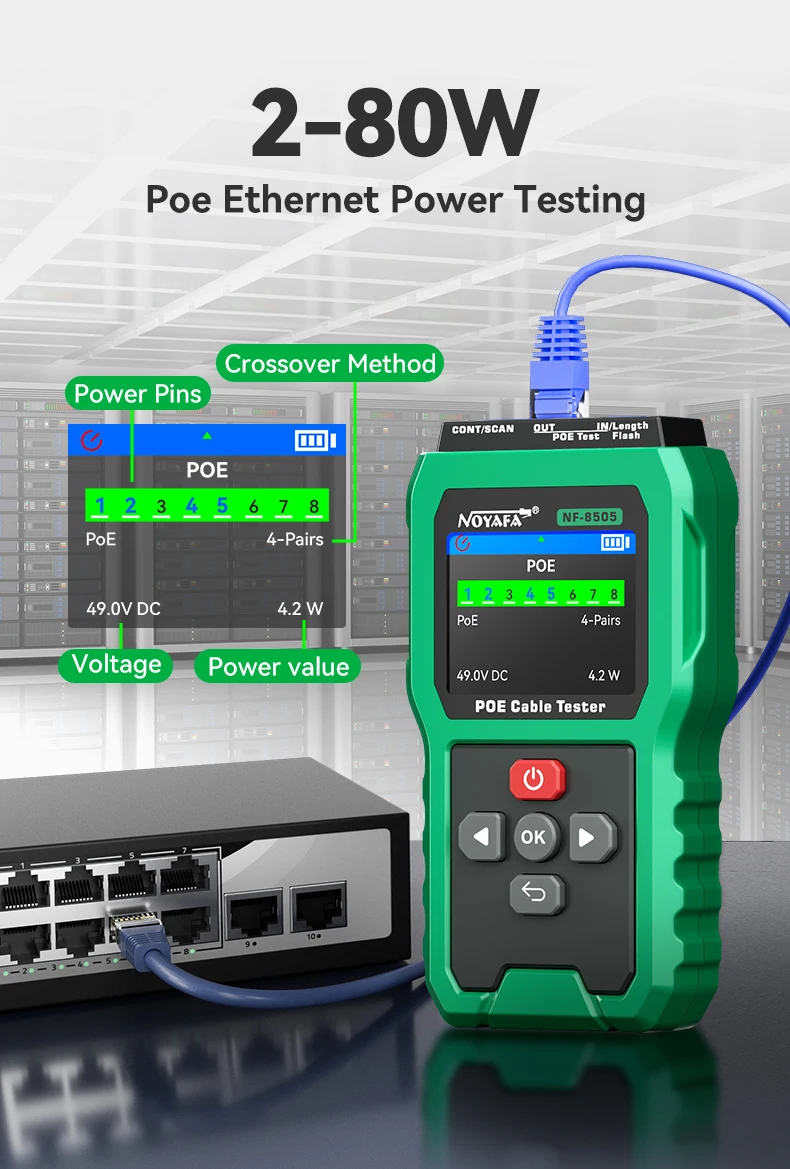

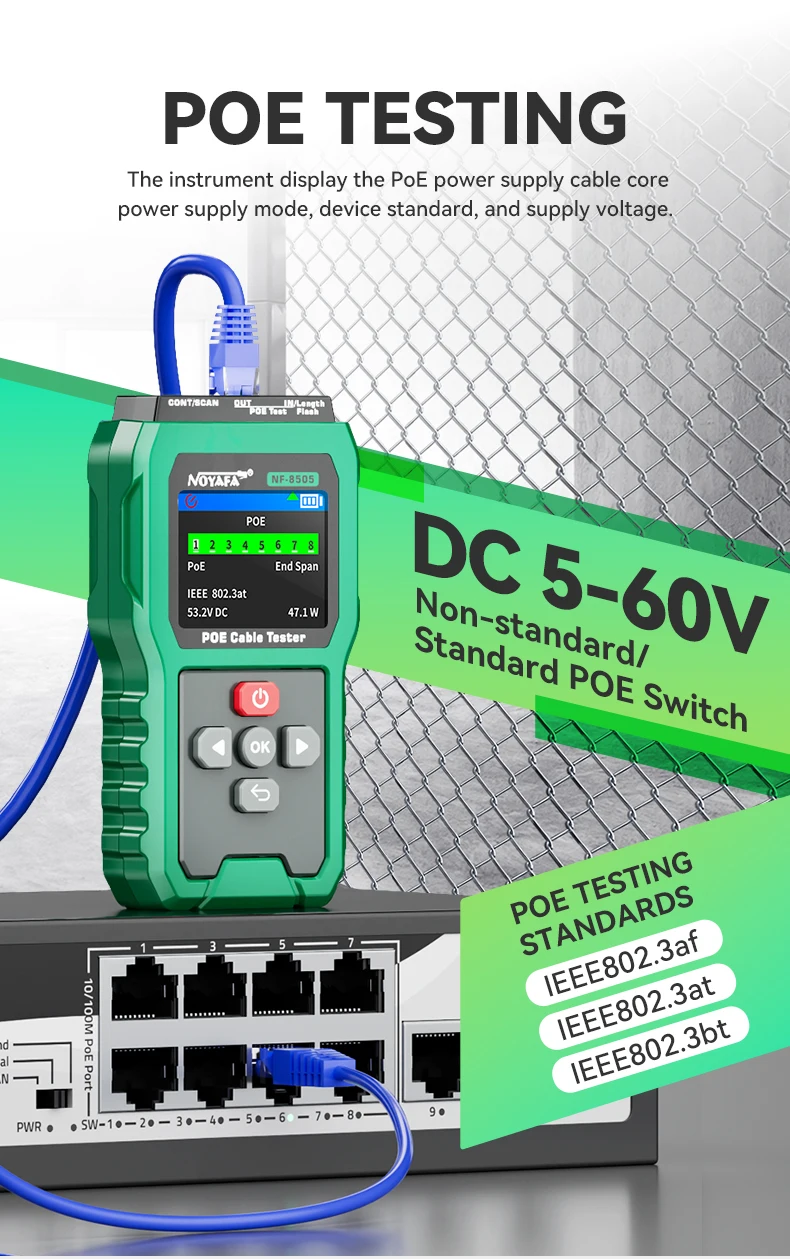

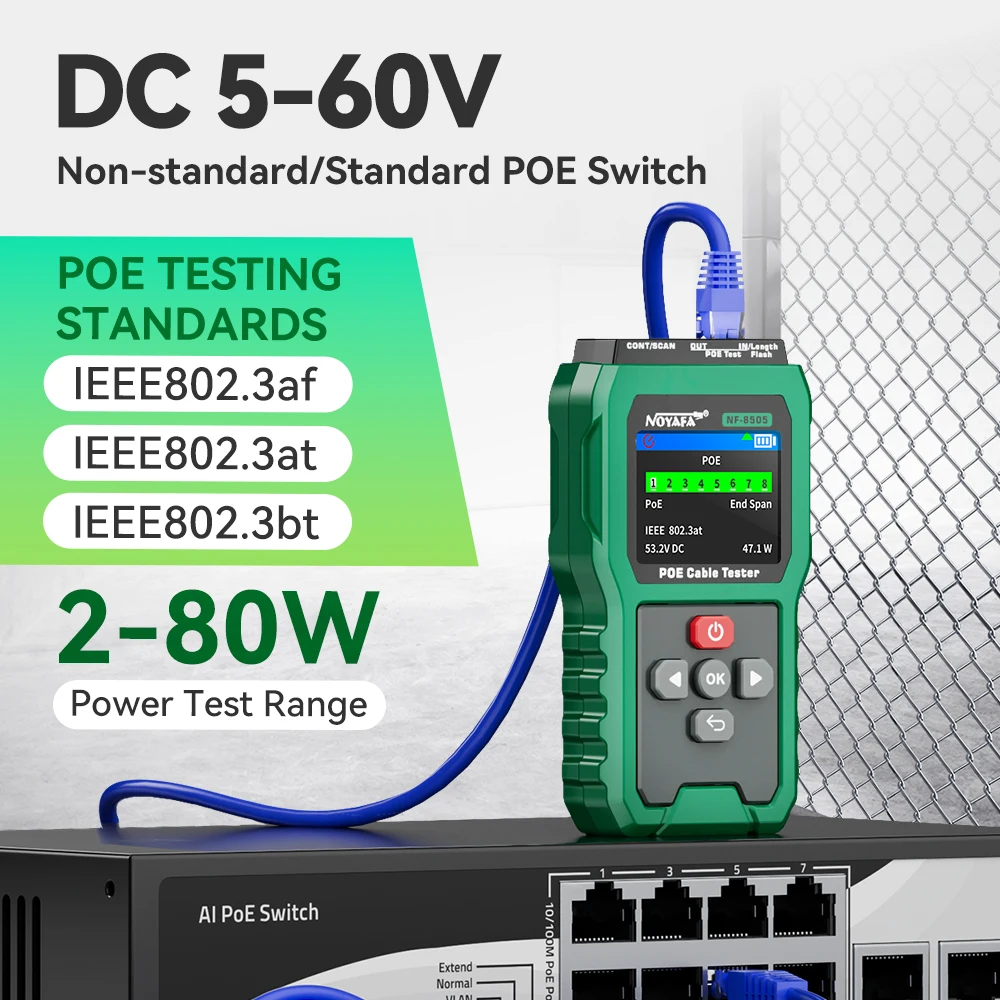

4. POE Test:

(1)Power supply wire core and power supply voltage detection, both standard and non-standard PoE can be tested.

(2)Support testing of POE power test range from 2 to 80W.

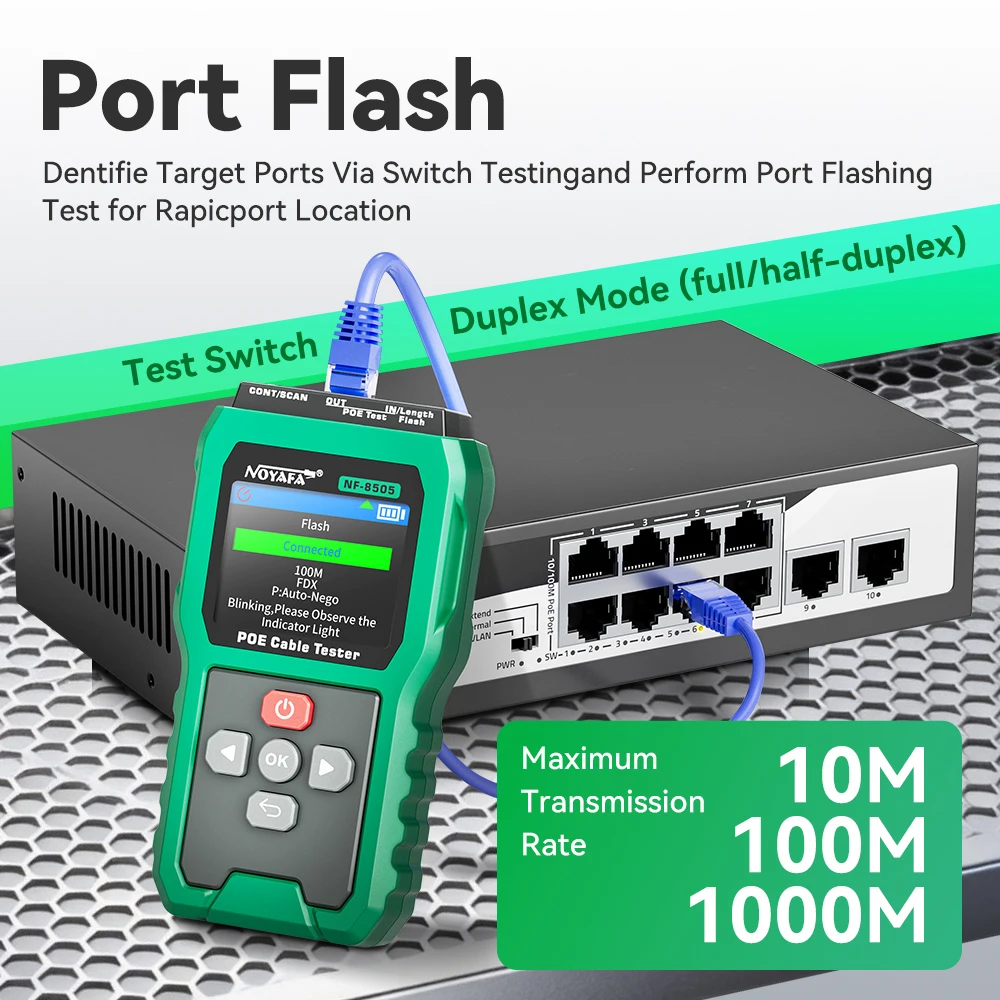

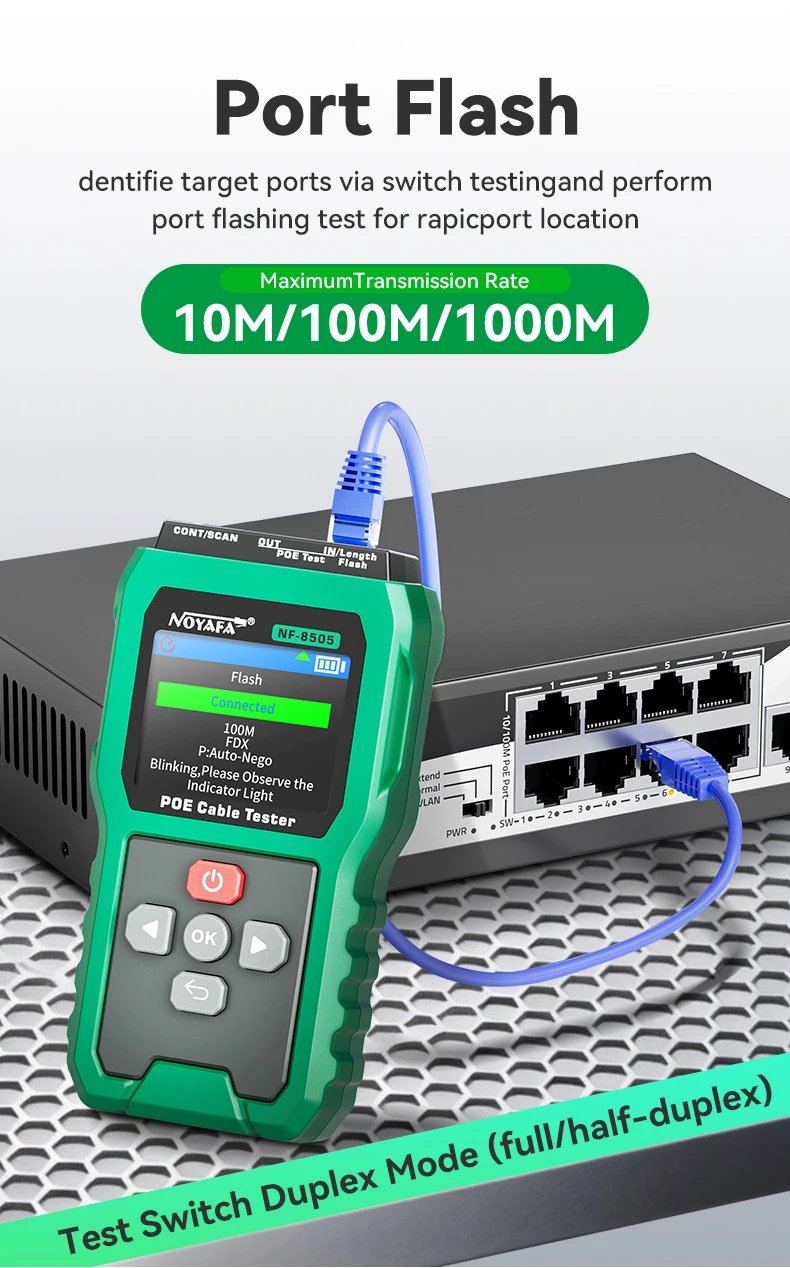

5. Port Flashing Test: Quickly find the network cable on the switch/router. (Link Test: The link test is automatically performed while the port is flashing, and the screen will display the speed of theswitch/router,full-duplex/half-duplex, auto-negotiation/forced negotiation.)

6. Setting Function: Mainly you can view or change the language, backlight time, automatic shutdown time and version options.

8. Light Function (Only on the Receiver): press once to turn on the light, press again to turn off.

9. Low Battery Reminder: The screen battery indicator flashes when the transmitter is low, and the battery status indicator flashes when the receiver is low.

Kind Tips

1. Please read the manual before using or servicing this equipment.

2. The network cable cannot be powered on during length measurement, and cannot be connected to equipment and instruments. Otherwise the instrument will be burned.
