Free App for iPhone and Android smartphone

Search «Tuya smart» in APP or Google Play store. It supports intercom, monitor, and unlock over mobile phones, which helps you control the system wherever and whenever.

Intercom between Indoor Monitor and Outdoor Unit, Also Intercom between Monitors

Press the Call Button on the outdoor unit to activate a conversation between the indoor monitor and the camera. What is more, if more than one monitor is connected to each family, the intra-monitor intercom is available. NOTE: It does not support intercom between/among families. However, each family supports 6pcs monitors. The slave monitors have to be without WIFI function.

Real-time Outdoor Monitoring

You can monitor outside from the monitor or your smartphone, which puts your mind at ease, and especially, you are able to get one step ahead and well prepared in circumstances of any emergency.

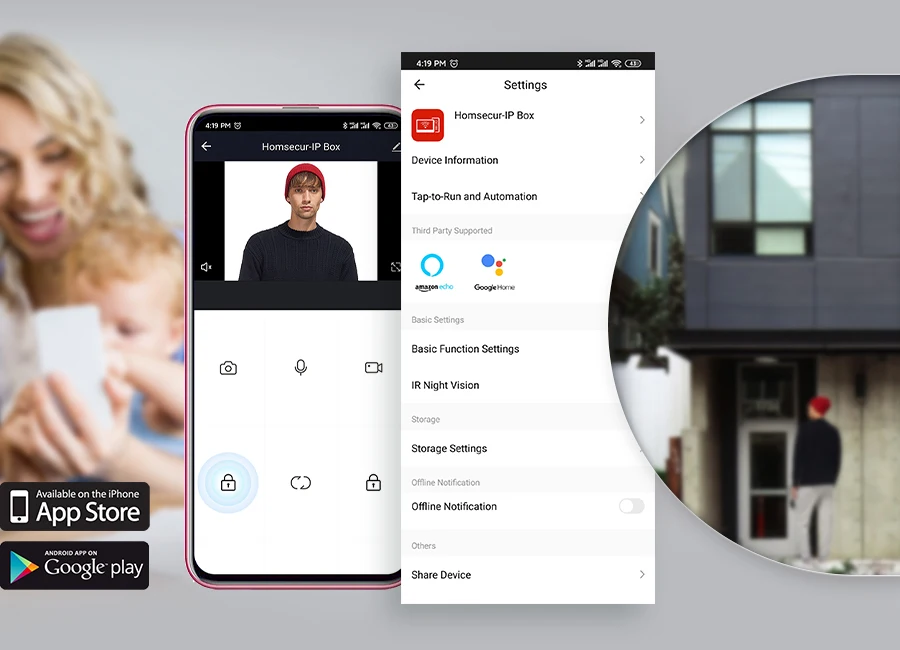

Intercom between Smartphone and Outdoor Unit

This monitor can work with wifi. When the camera is activated, you can also answer the call or unlock the door over the smartphone.

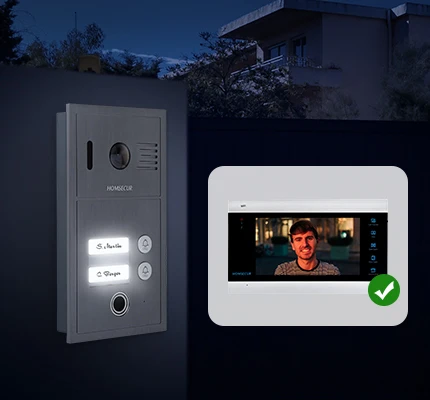

IR LEDs, Offset Lighting for Quality Night-vision at Night

This camera is equipped with IR LEDs, improving the caller’s visibility in low light conditions.

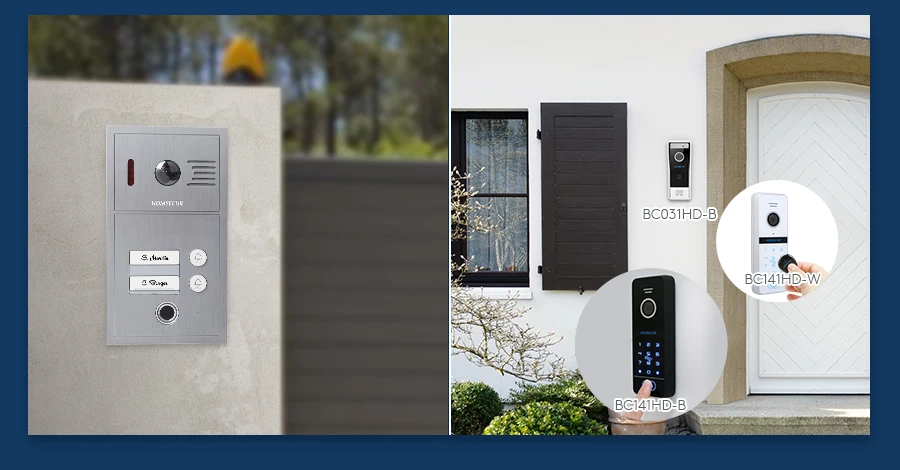

Up to 2 Outdoor Cameras

2 outdoor cameras connection is available when separately door unlock function is needed for front and back doors. Or an extra outdoor camera for single house can be added to each family. For example, with an outdoor camera with fingerprint, the family has its own unlock solutions and security for his house after entering the apartment.

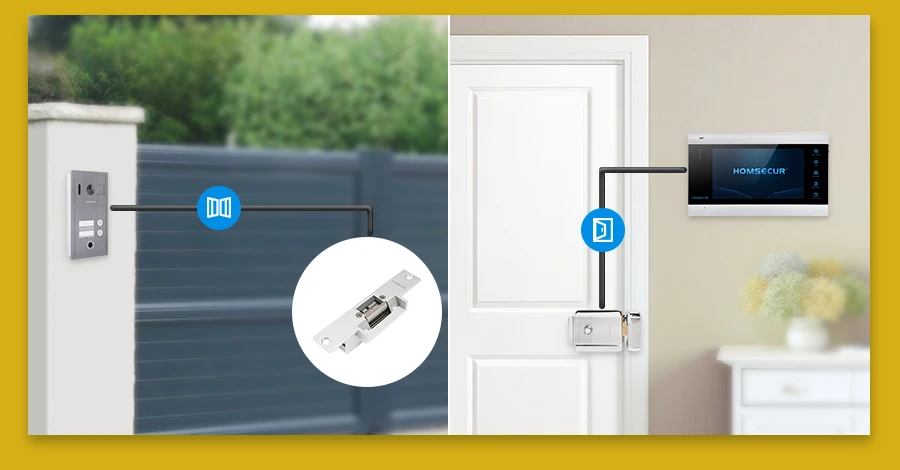

Work with 2 Electric Locks, Support Separately Control

One lock connects to the outdoor camera and the other lock connects to the indoor monitor for separately controlling. If the intruder maliciously destroys the outdoor camera, the house is still security when the lock is connected to the monitor.

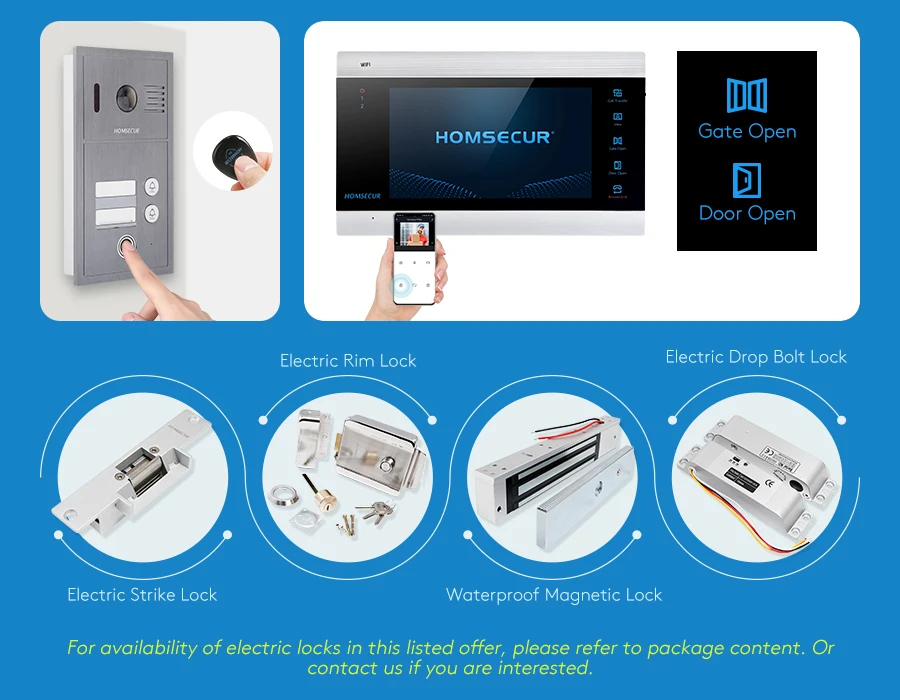

Compatible with Various of Electric Locks

When this intercom system is connected with 12V electric locks, you can open outdoor gates or doors for your visitors from the monitor or over the smartphone. The outdoor camera also supports unlocking via fingerprint and RFID. This access controlling function provides greater convenience than ever.

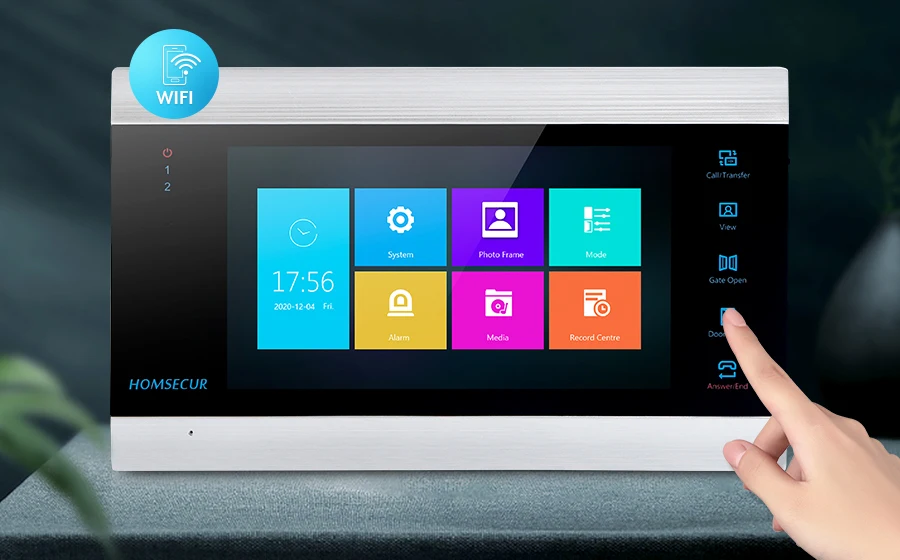

Extraordinary Functions for (HDK Series) Video Door Intercom

• Stylish UI Interface
  : Friendly menu for easy operation.


• Multi-Languages (customizable)
  : Builtin 13 languages menu and also can be customized.


• Transfer Call (1pcs monitors per family)
  : Convenient for the visitor to talk to any family members.


• Leave a Message
  : Audio & video message for the master to know the visitor when no one in.


• Snapshot & Record
  : Automatically snapshot a picture or record a video for the visited guests.


• Flexible Ringtones Setting
  : 3 groups of scheduled ringtone & adjustable volume (Mute Function)

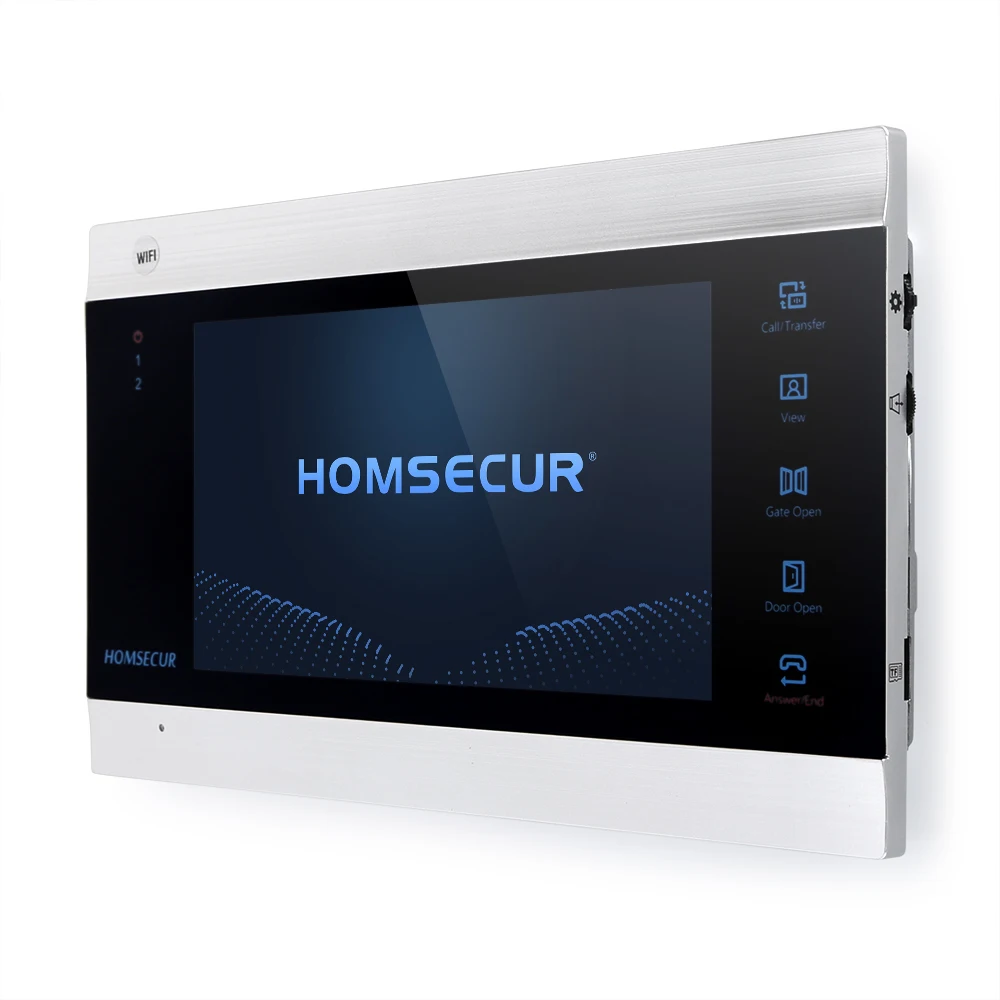

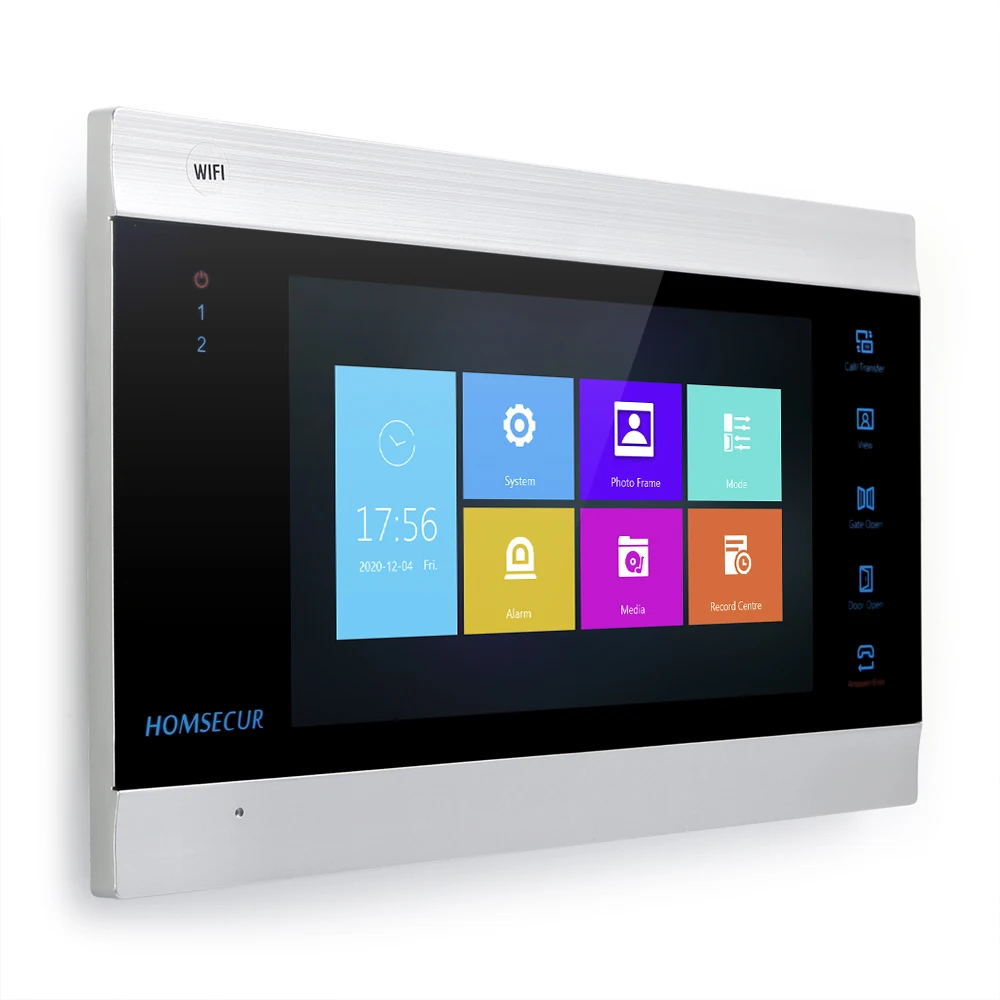

HOMSECUR® Indoor Monitor

• Touch button with UI design


• Support Tuyasmart APP


• Adjustable color, brightness, and contrast


• 10 Ringtones selectable and ringtone volume adjustable


• Hands-free communication


• Up to 6pcs indoor monitors per family


• Up to 2pcs outdoor cameras


• Work with DC12V electric locks

  Specifications of Indoor monitor

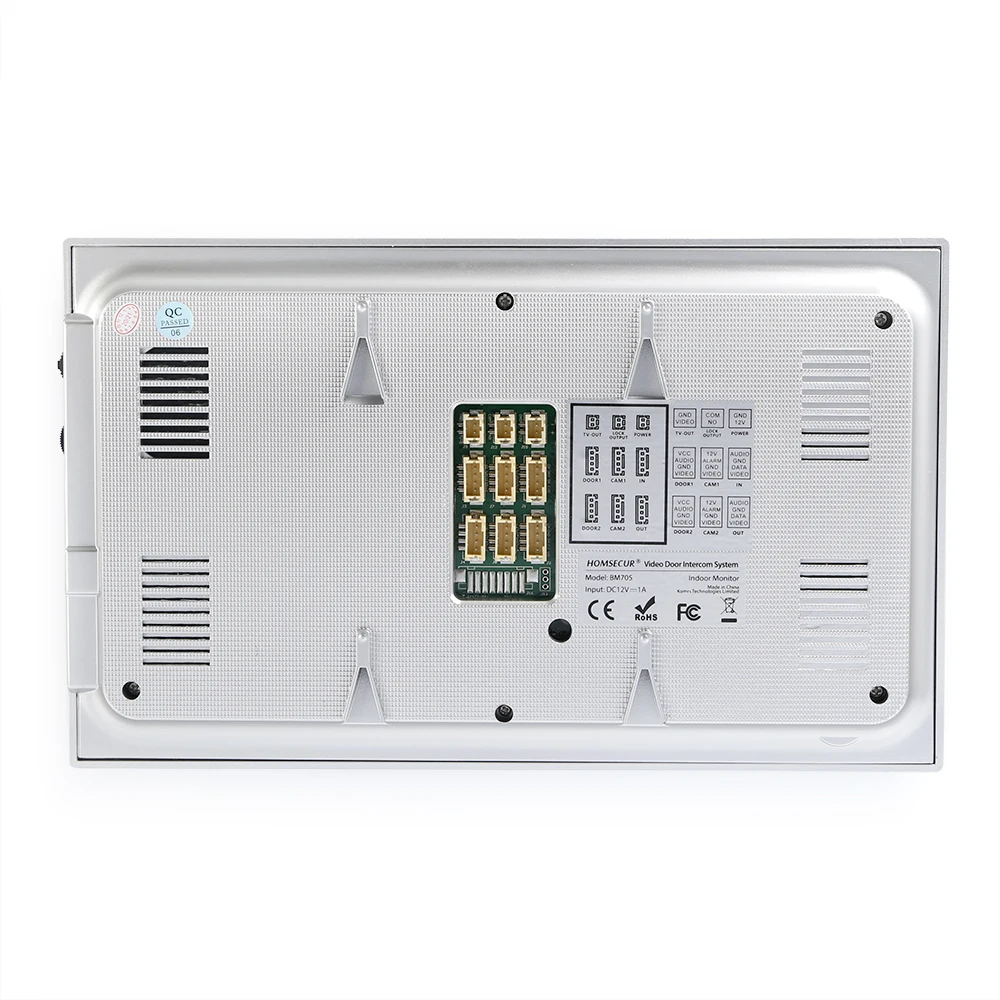

• Model NO.: BM705WF-B


• Screen: 7″ TFT LCD


• Effective Pixels: 1024×600


• Video Input Signal: CVBS, CVI, TVI, AHD2.0


• Motion Detection: Support


• Call Holding Duration: 60s


• Monitoring Duration: 60s


• Power Consumption (working): < 7.2W


• Power Consumption (standby): < 3W


• Material: ABS & Acrylic Panel


• Adapter Input: AC100-240V, 50-60HZ


• Adapter Output: DC15V/1A


• Net Weight: 440g


• Working Temperature: 0°C~50°C


• Installation: Surface mount


• Extension Memory: 2G-32G Micro SD Card (≥10 Class)


• Picture Format: JPEG


• Video Format: AVI


• Ringtones: 10 (Customizable)


• Wallpaper: 1024*600 JPG (Customizable)


• Menu Languages: Azərbaycan, Chinese, Deutsche, English, Español, Français, Polskie, Portugues, Pусский, Türk, Українська, שפה עברית, العربية (Customizable)


• Cable for Intra-monitor: 4 core


• Cable for Monitor-to-Camera: 4 core

HOMSECUR® Doorbell Camera with Fingerprint and RFID Access

• CMOS camera with 1080P Definition(Hor.) for the quality view


• 120° wide-angle for large view


• Ringtone and intercom volume adjustable


• Door release with NO/NC Dry Contact


• IR LEDs offset lighting for clear night-vision


• Illuminated call button for easy operation at night


• Ingress Protection Rating of IP65 for outside installation


• Up to 496 fingerprints capacity for family and company usage


• 200 IC cards to unlock the door

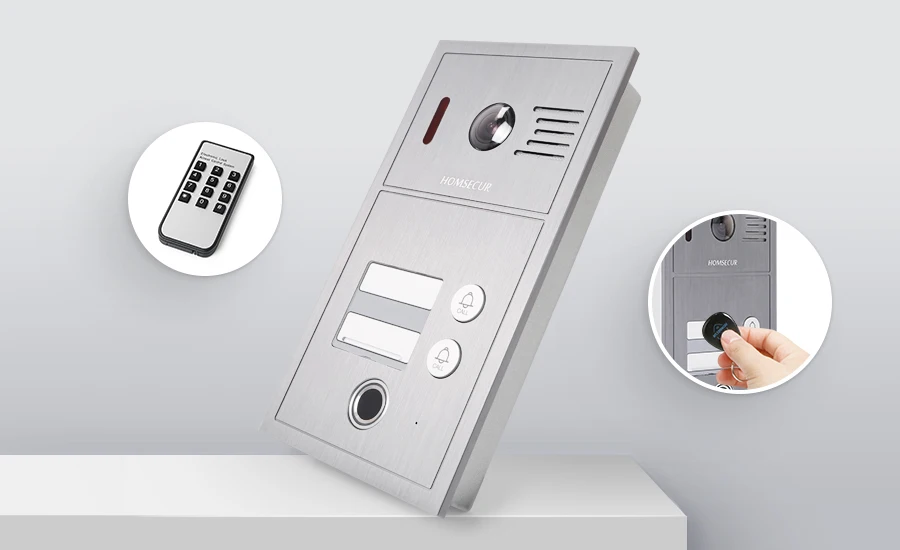

• Work as an access controller to unlock the door via fingerprint and RFID.


Work with the indoor unit to become a door intercom system with the video and audio function.

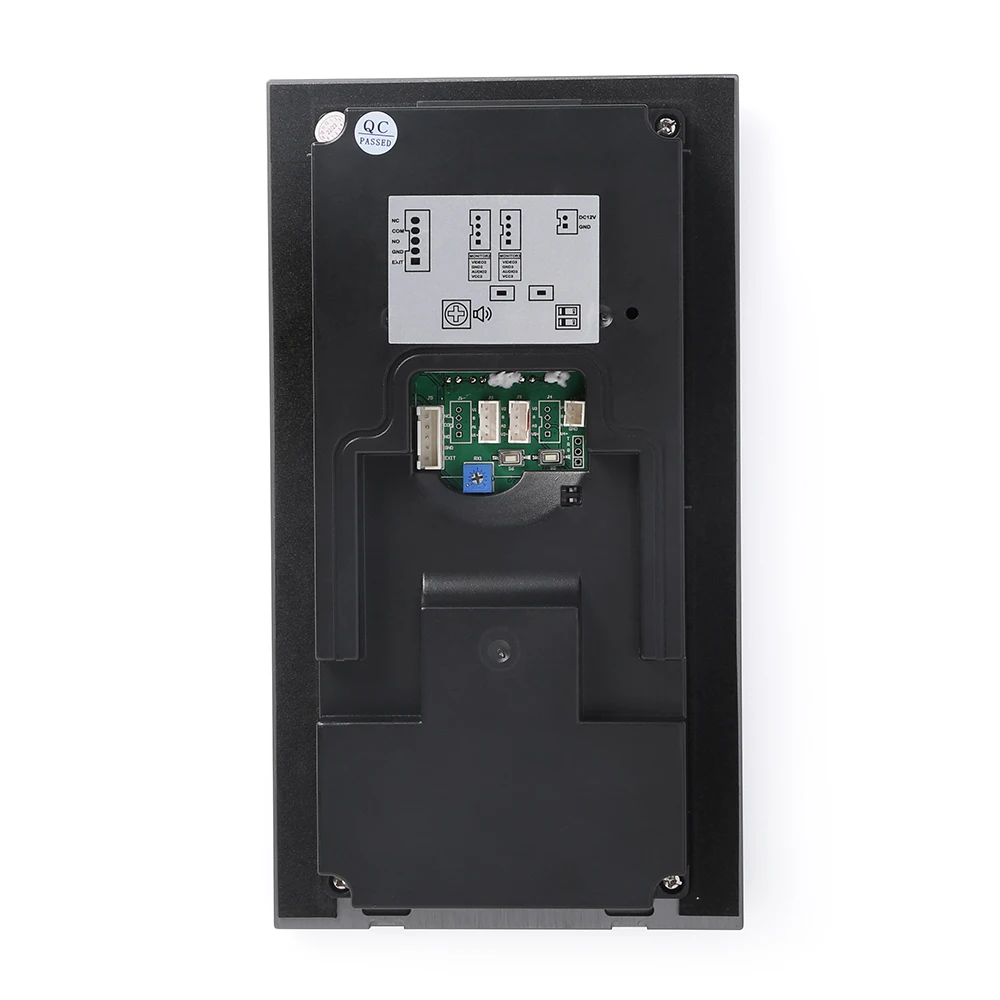

Specifications of doorbell camera

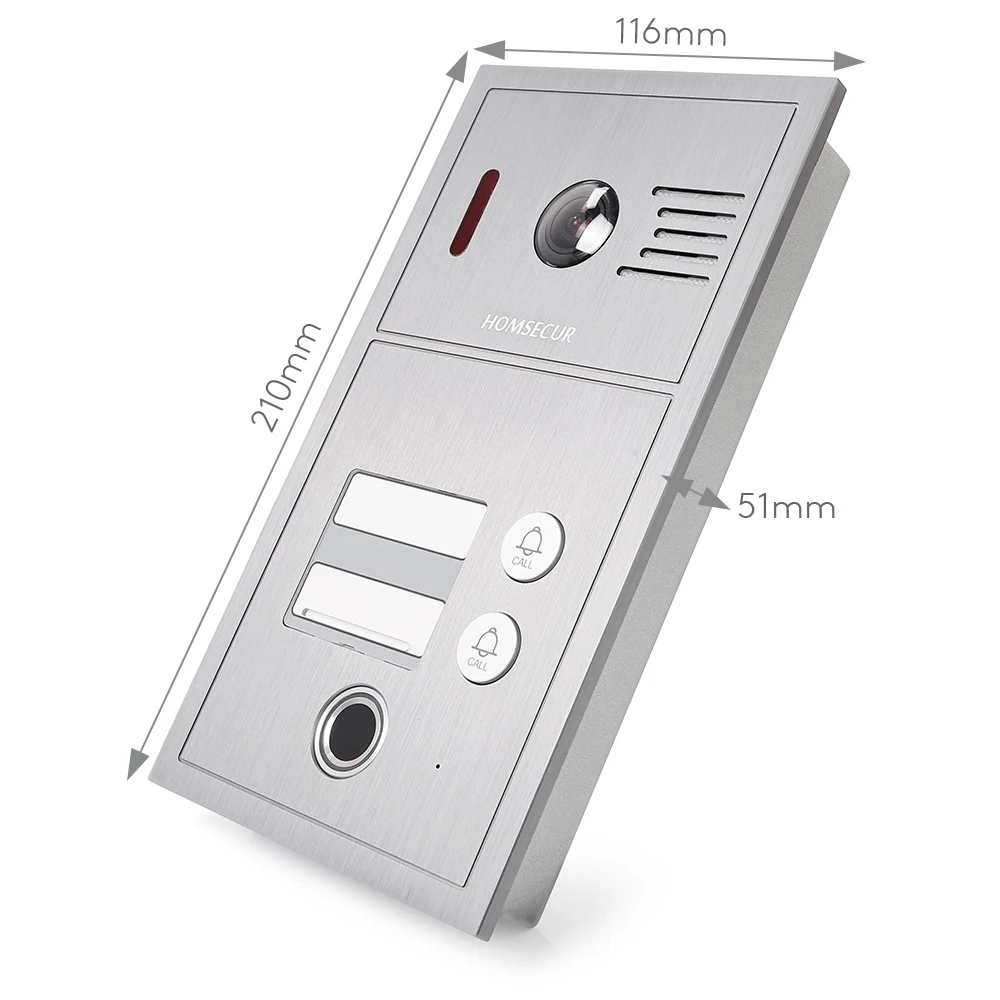

• Model NO.: B19BH-H


• Function: Call Button, Fingerprint, IC Card


• Sensor: 1/3″ CMOS


• Horizontal Resolution: 1080P


• Lens: 1.8mm


• Min. Illumination: 0.1Lux


• View Angle: Horizontal 120° Vertical 55°


• Night Backlight: IR LED, up to 1.5m


• Night Vision Image: Color


• Ingress Protection Rating: IP65


• Adapter Output: DC15V/2A


• Net Weight: 739g


• Material: Rust-proof aluminium alloy


• Working Temperature: -40°C~+50°C


• Installation: Flush Mount (Defaulted). If surface mount is needed, please leave a note.


• Fingerprint: up to 496pcs


• Remote Controller: 1pcs (For Fingerprint Function)


• Battery Model for Remote Controller: CR2025 3V lithium battery (Not included due to Airline limitations)


• Reading Capacity: up to 200pcs


• Reading Distance: ≤1cm


• Card Type: IC 13.56Mhz

Wiring Diagram

This system supports up to 2*outdoor cameras. Each family supports up to 6*monitors. Each doorbell camera connects to the monitor via 4 core cable. In addition, it works with fail-safe(NC) and fail-secure(NO) locks but the extra power supply has to be added.

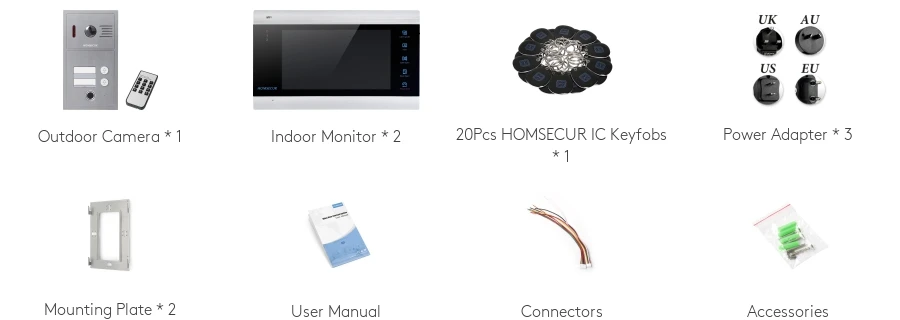

*All the products in the wiring are just for reference, please refer to package contents for what is included in this listing.

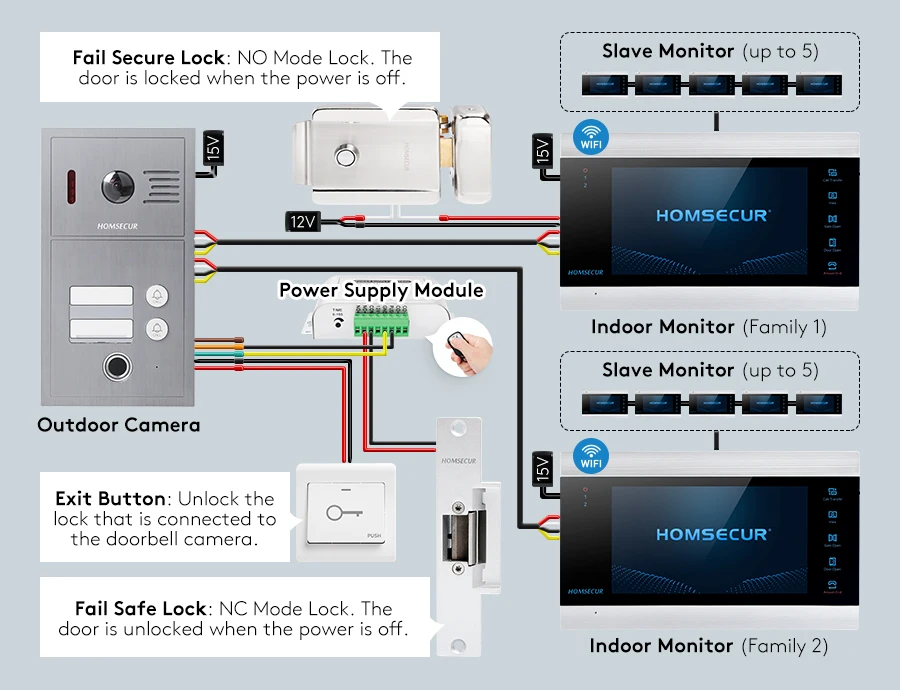

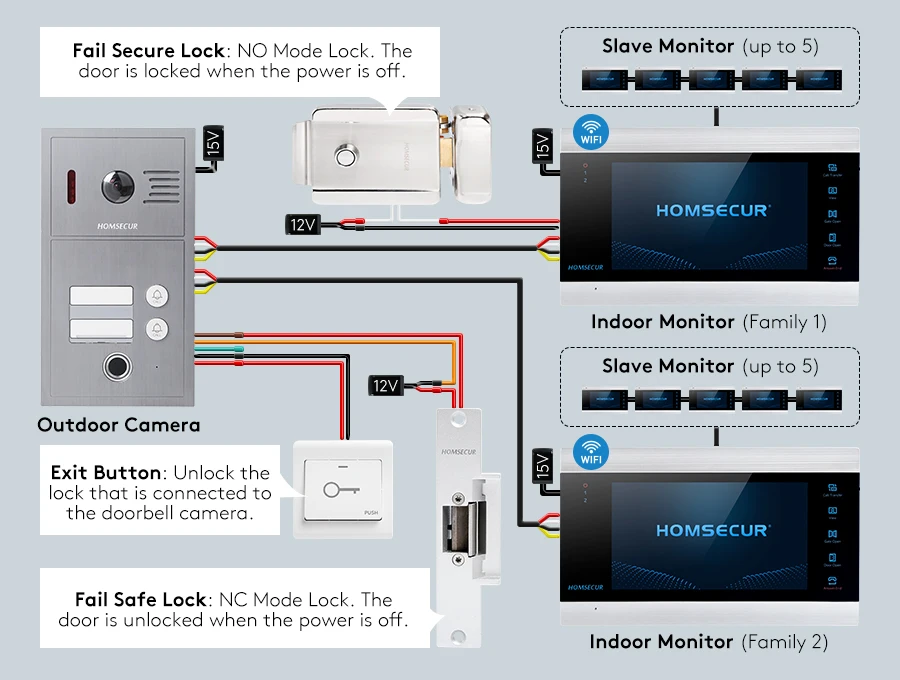

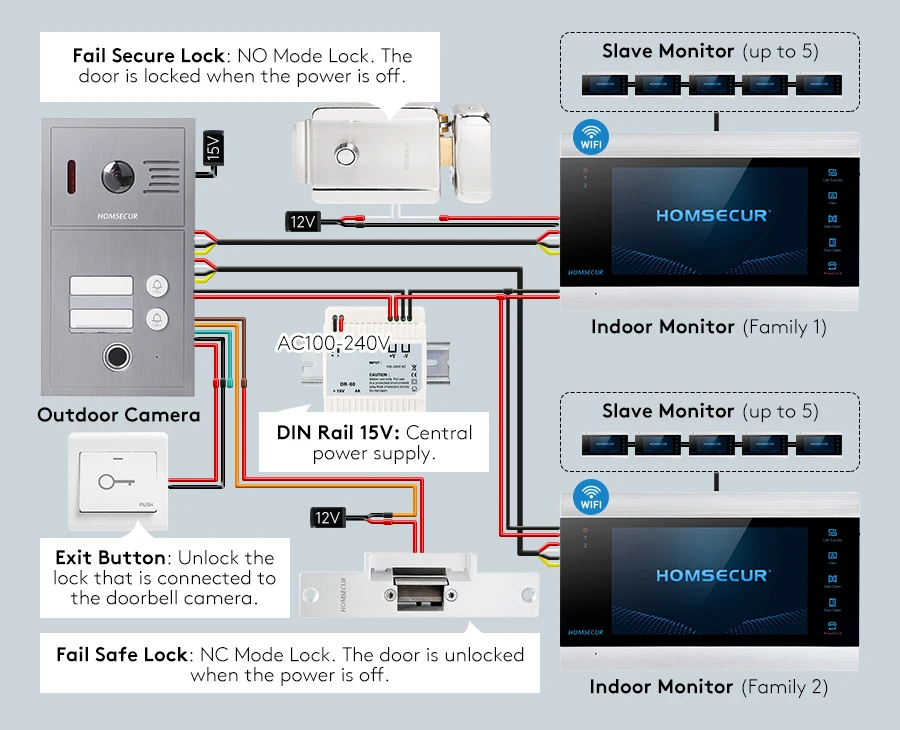

Fig. 1 Wiring for Fail Safe and Fail Secure Locks

Fig. 2 Wiring for Fail Safe Lock and unlock via Remote Control

It supports unlock via the exit button and the remote controller. However, the power supply module has to added.

Fig. 3 Wiring with Central Power Supply

*If hidden installation for the power supply is required, a central DIN Rail power supply can solve the issue.

Cable and Distance Requirement

The working distance for each family can work within 100m. Please pay attention to the cable requirements for better performance. If cat5 or cat6 cables will be used, the total length should be within 20-30m for stable performance.

Length of Cable Conductor Cross-sectional Area

0m ≤ Length < 30m RVV4* 0.30mm²

30m ≤ Length < 50m RVV4 * 0.50mm²

50m ≤ Length < 80m RVV4 * 0.75mm²

80m ≤ Length ≤ 100m RV
