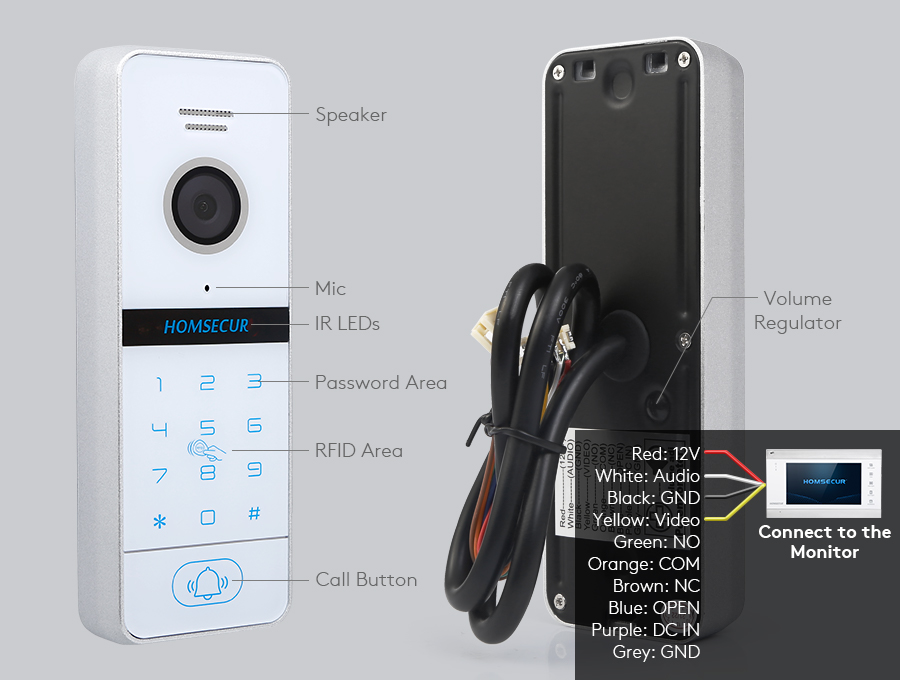

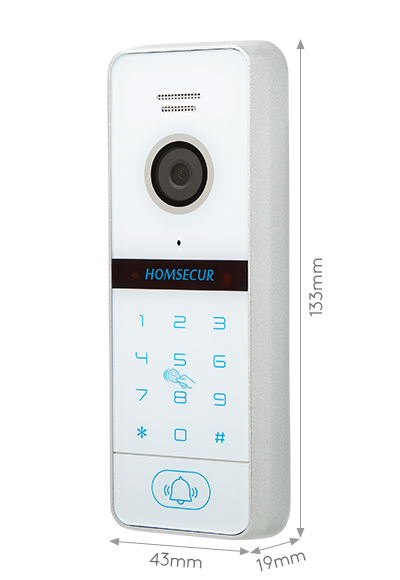

HOMSECUR® Camera with Password & RFID Access B10AF-W

CMOS camera with 2.0MP for the quality view	120° wide angle for large view	Ringtone and intercom volume adjustable
Door release with NO/NC Dry Contact	IR LEDs offset lighting for clear night-vision	Illuminated call button for easy operation at night

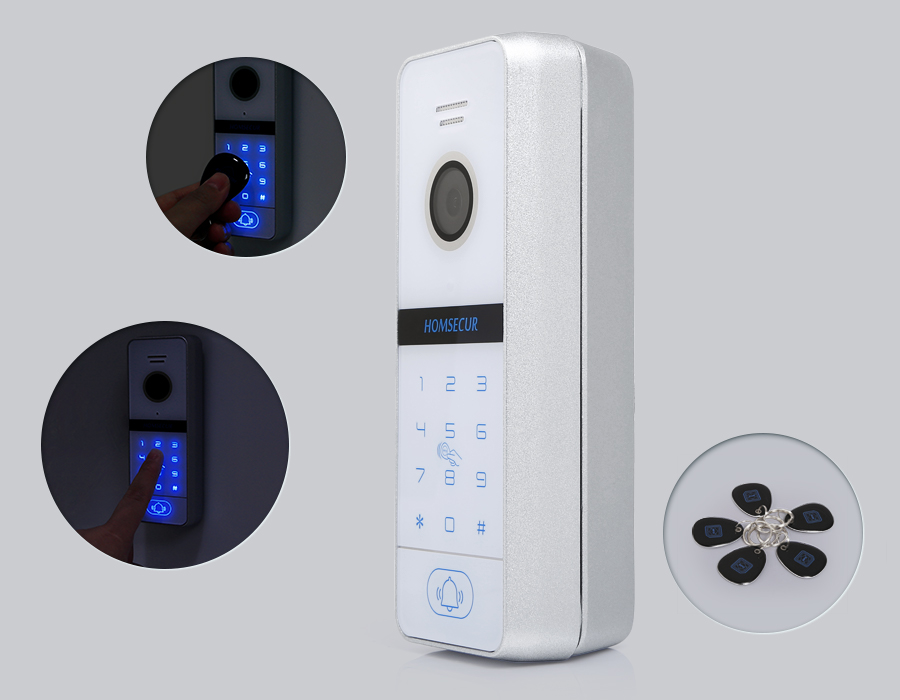

Ingress Protection Rating of IP65 for outside installation	200 IC cards and 200 groups of the password to unlock the door	Work as an access controller to unlock the door via IC card and password
Work with the indoor unit to become a door intercom system with the video and audio function

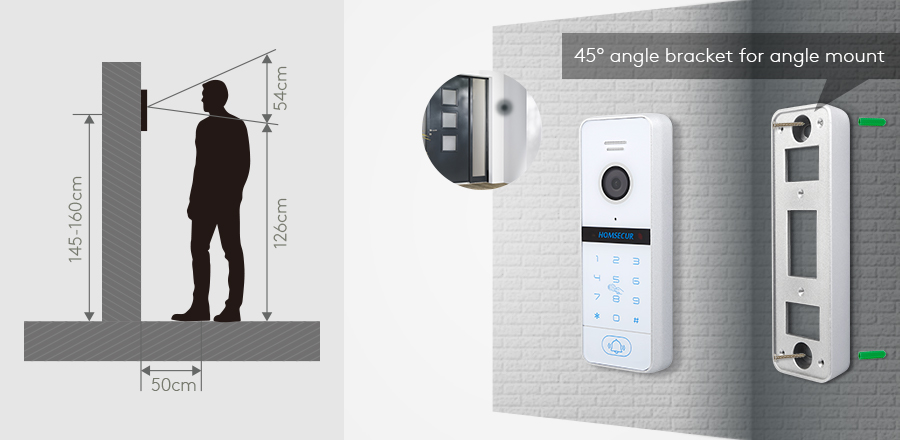

Installation

Surface mount

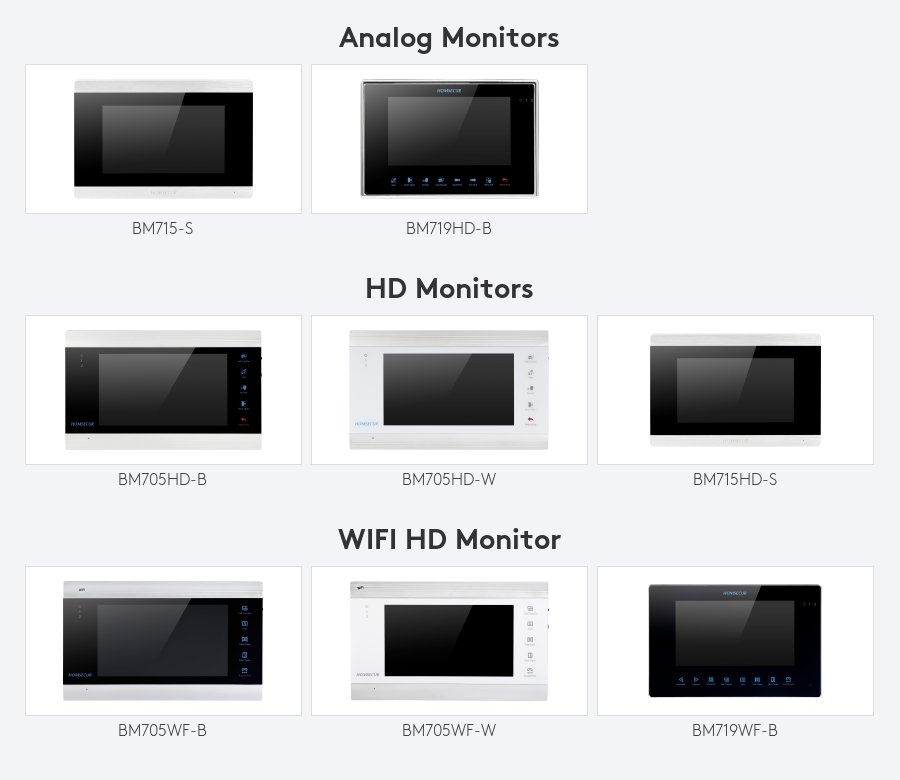

Compatible Monitors

These cameras can ONLY work with HOMSECUR® (HDK Series) monitors including Analog Monitors, HD Monitors and WIFI HD Monitors. Below are some of the models for reference. Please contact us if more information is needed.

Outdoor Camera
Model NO.	B10AF-W
Color	White
Function	Call Button, Password, IC Card
Sensor	1/3″ CMOS
Horizontal Resolution	1080P(2.0MP
Min. lllumination	0.1Lux
View Angle	Horizontal 120°
Night Backlight	IR LED, up to 1.5m
Night Vision Image	Black & White
Ingress Protection Rating	IP65
Adapter Output	DC15V/2A
Working Current	≤250mA
Standby Current	≤40mA
Net Weight	265g
Material	Acrylic panel
Working Temperature	-40°C~+50°C

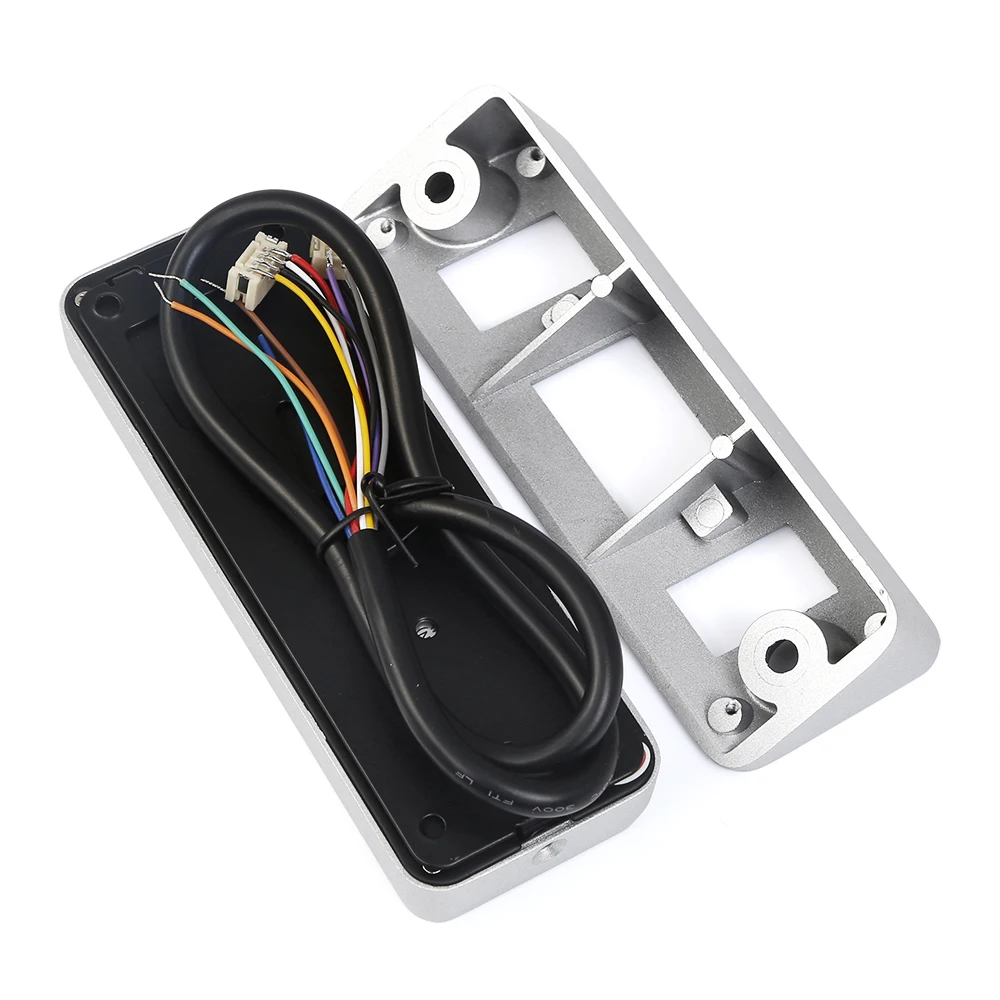

Mount	45°Angle mount
Installation	Surface mount
Reading Capacity	up to 200pcs
Reading Distance	≤2cm
Card Type	13.56MHz IC Card
Connect to Exit Button	Support
Unlock Duration Adjustable (Electric Locks Connected to Outdoor Station)	1s-10s
