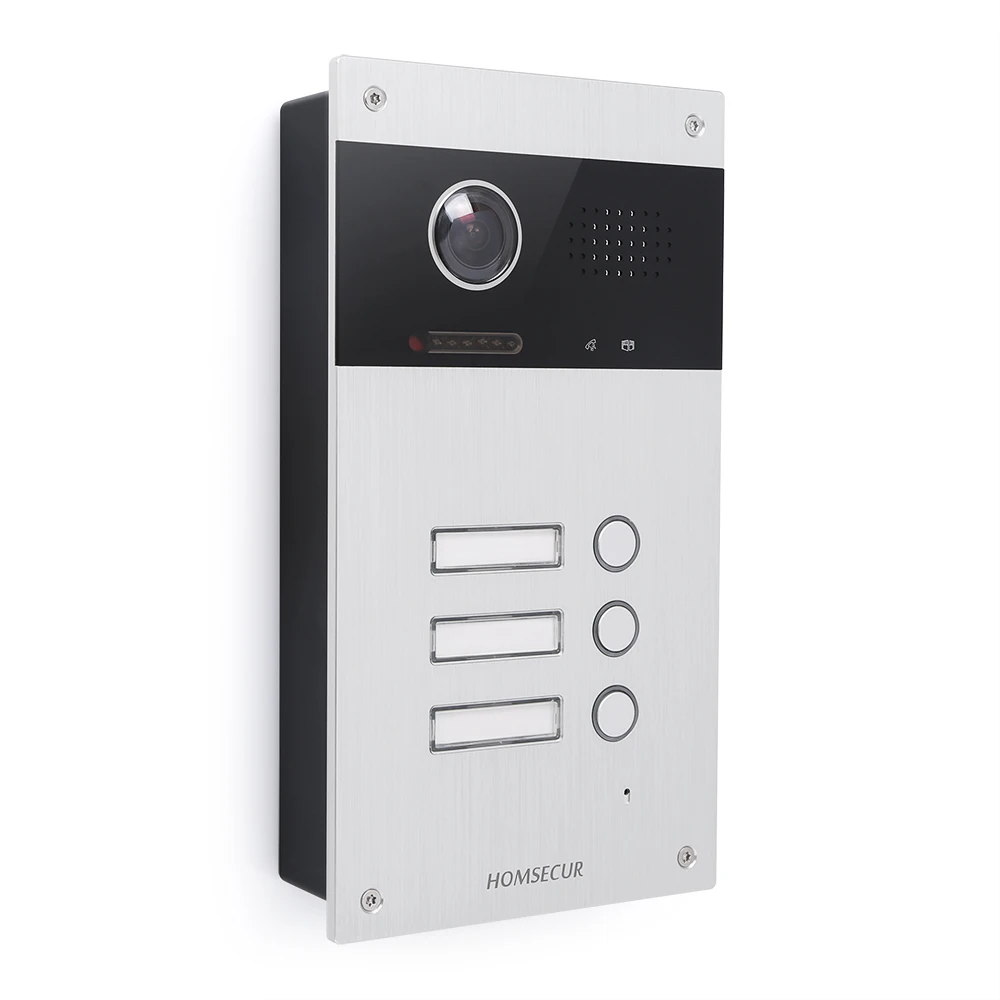

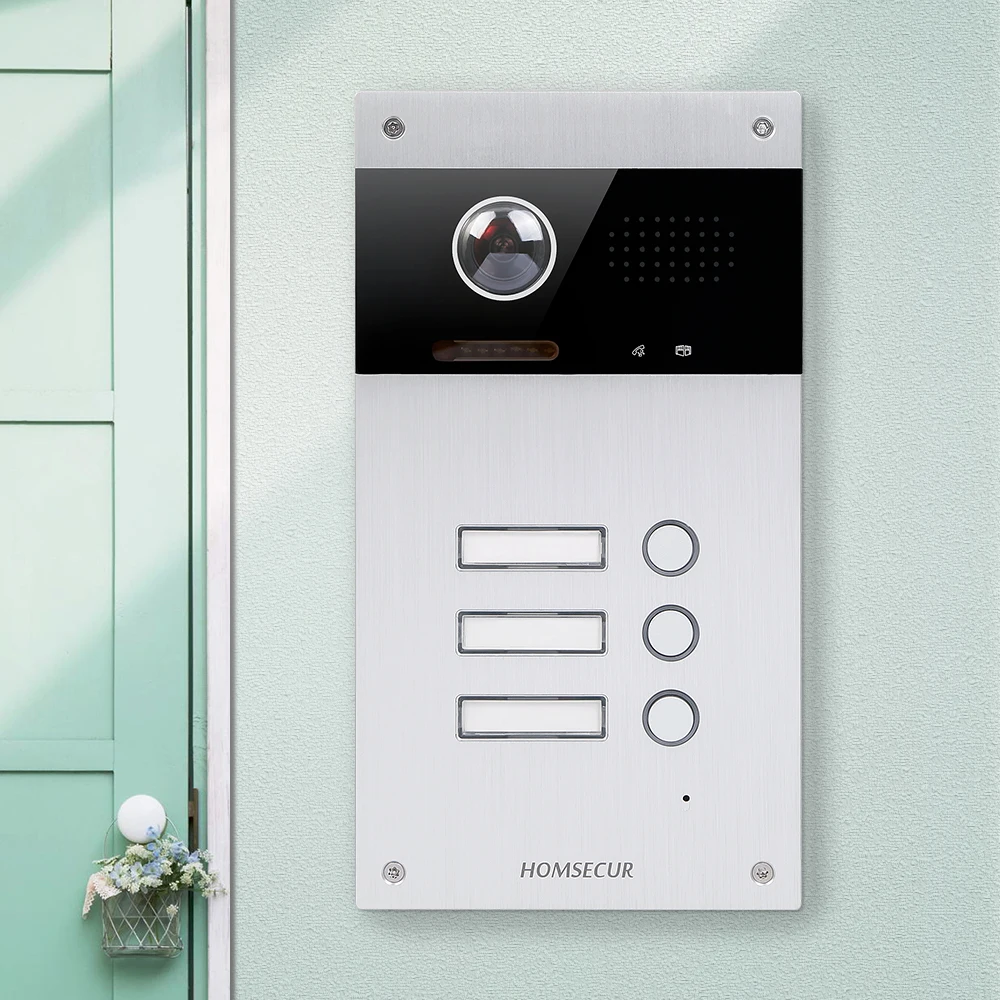

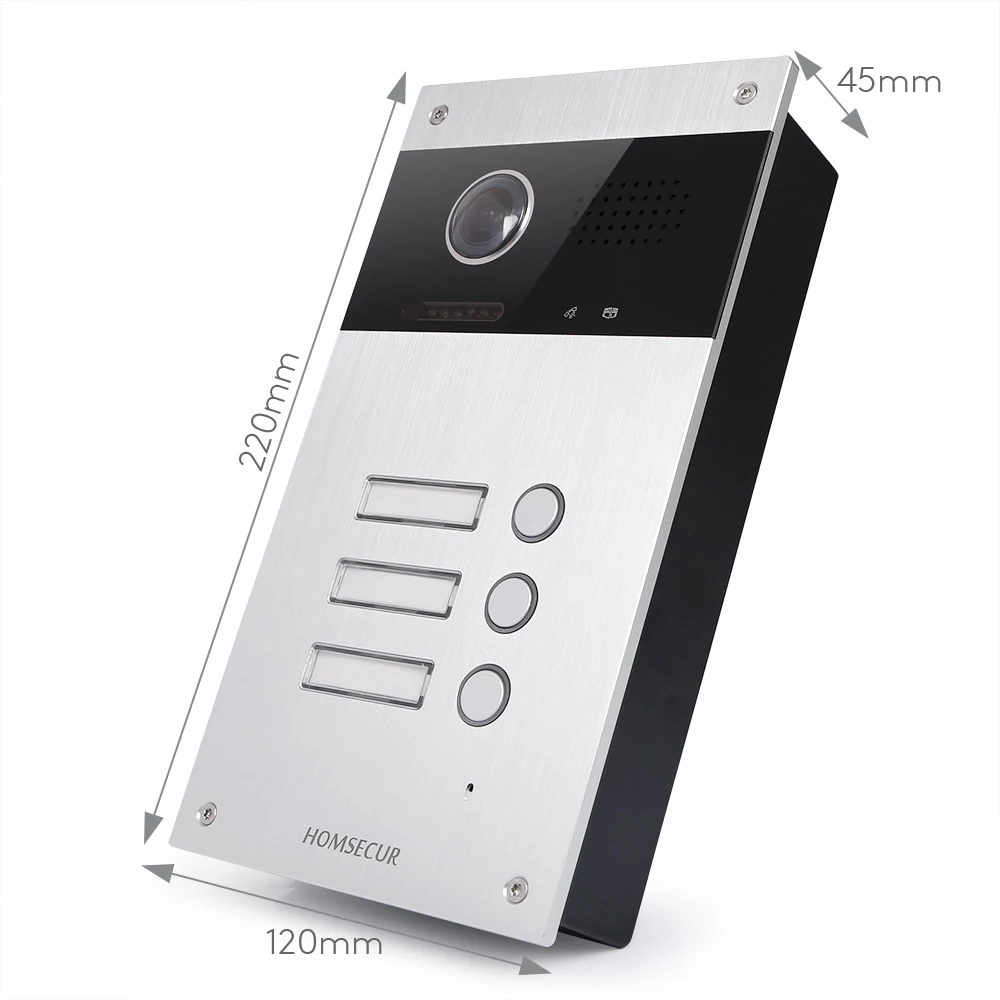

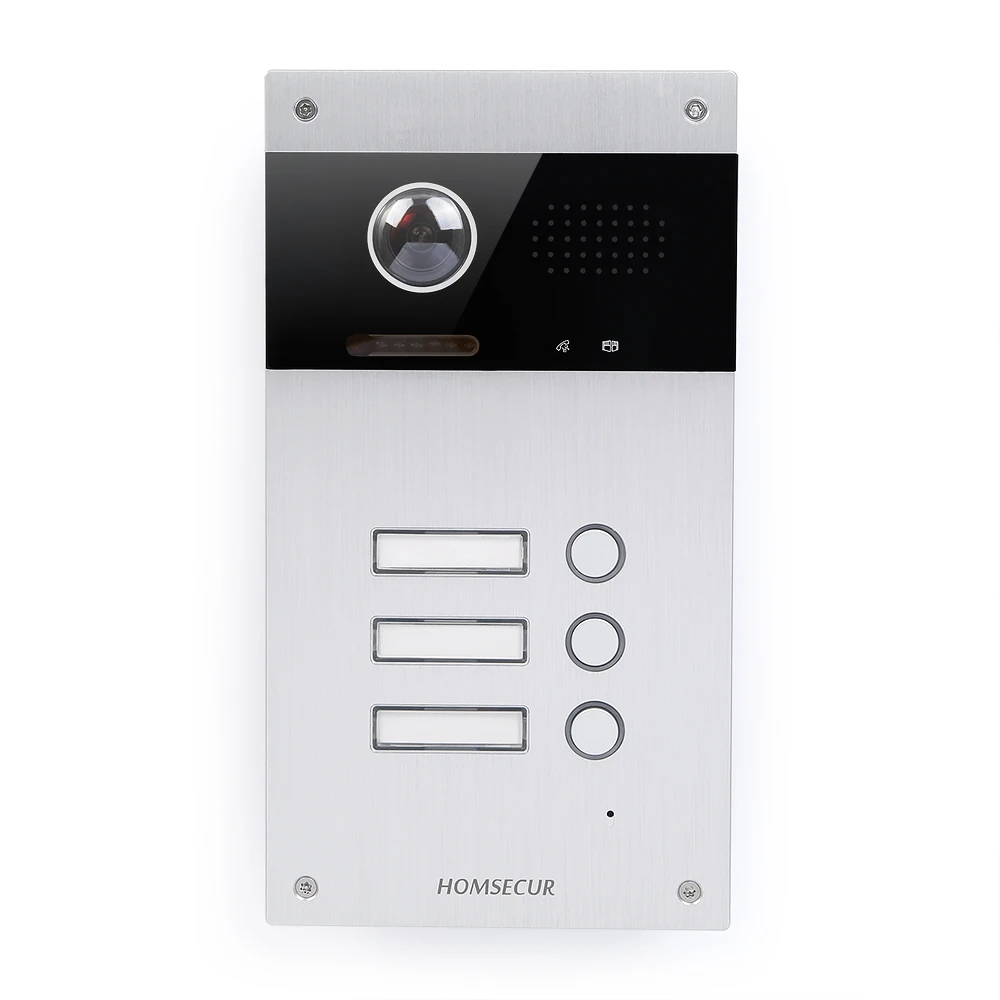

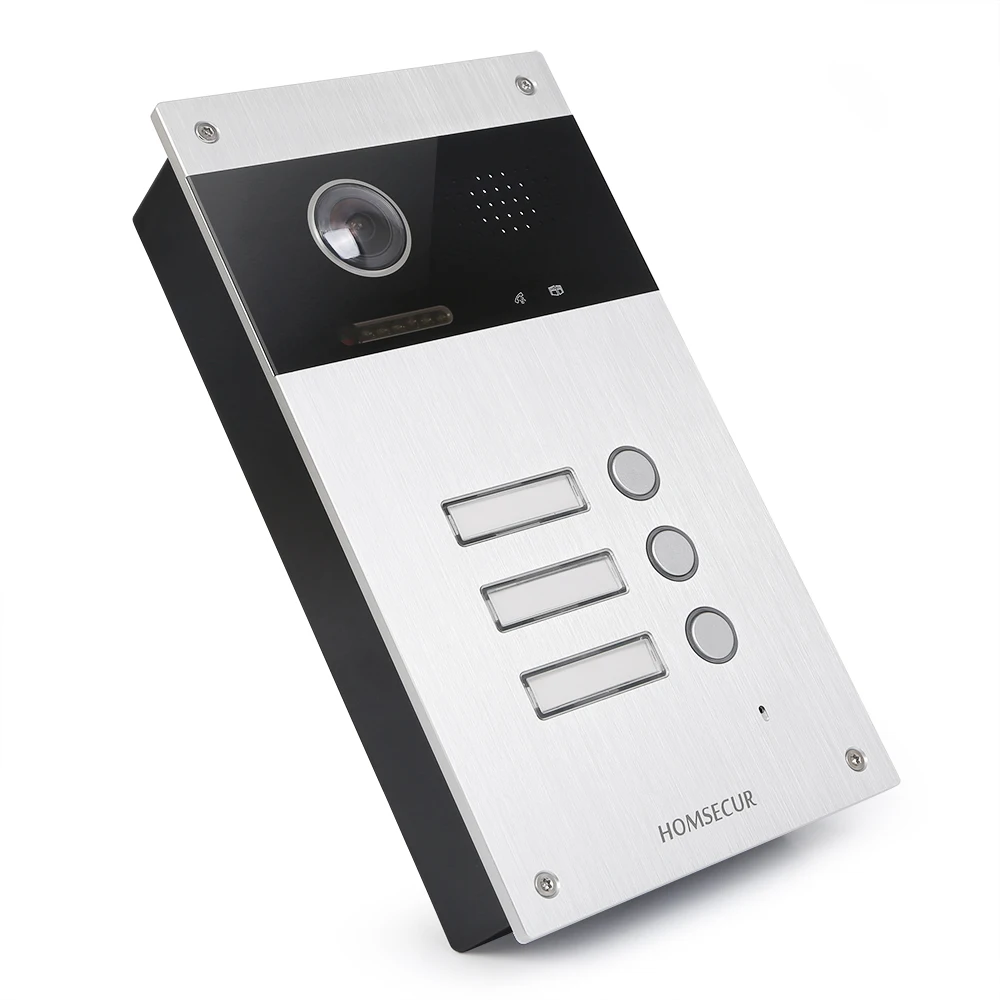

HOMSECUR® 2 Wire Doorbell Camera

• CMOS camera with 800TVL for the quality view
  170° wide-angle for large view
  Door release with NO/NC Dry Contact
  IR LEDs offset lighting for clear night-vision
  Illuminated call button for easy operation at night
  Ingress protection rating of IP65 for outside installation
  Flush mount and surface mount optional

Specifications of the Doorbell Camera

• Doorbell Camera Model NO.: B16CB-S
  Sensor: 1/3″ CMOS
  Horizontal Resolution: 800TVLine
  Lens: 1.8mm
  Min. lllumination: 0.1Lux
  View Angle: 170°
  Night Backlight: IR LED, up to 1.5m
  Night Vision Image: Black & White
  Ingress Protection Rating: IP65
  Adapter Output: DC24V
  Net Weight: 614g
  Material: Rust-proof aluminium alloy
  Working Temperature: -40°C~+50°C

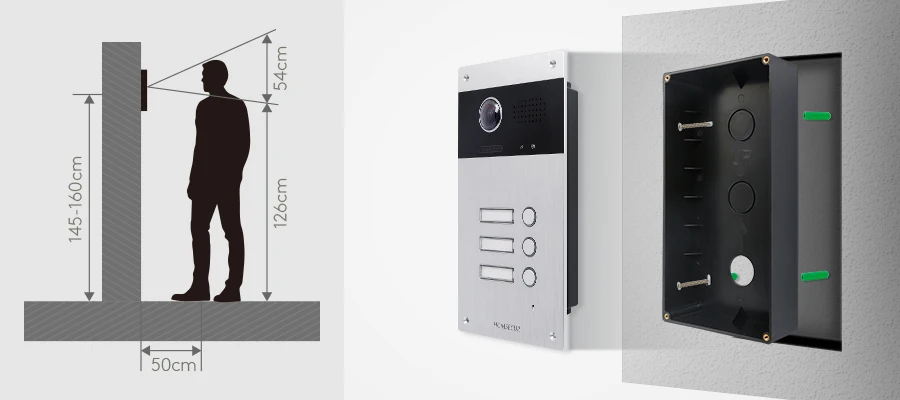

  Installation: Flush Mount (Defaulted)

Installation: Flush Mount, Surface Mount (If needed, please leave a note)

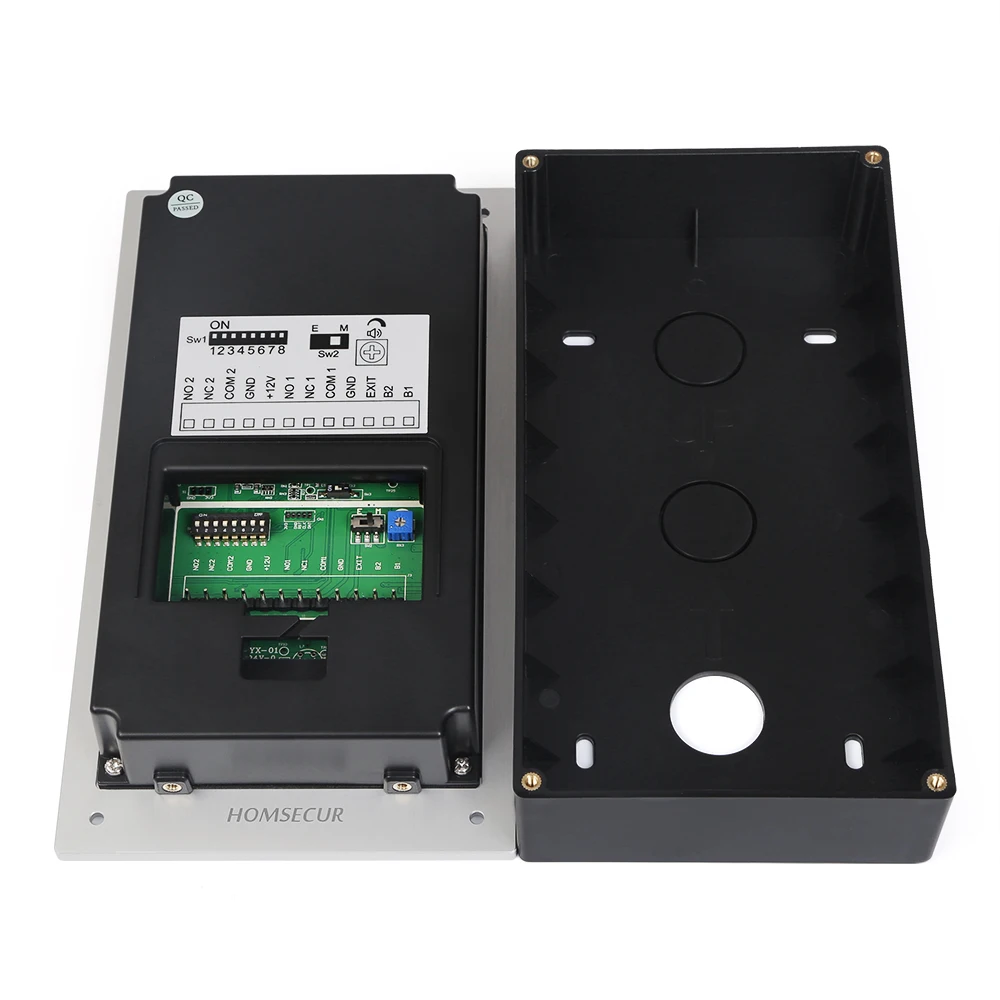

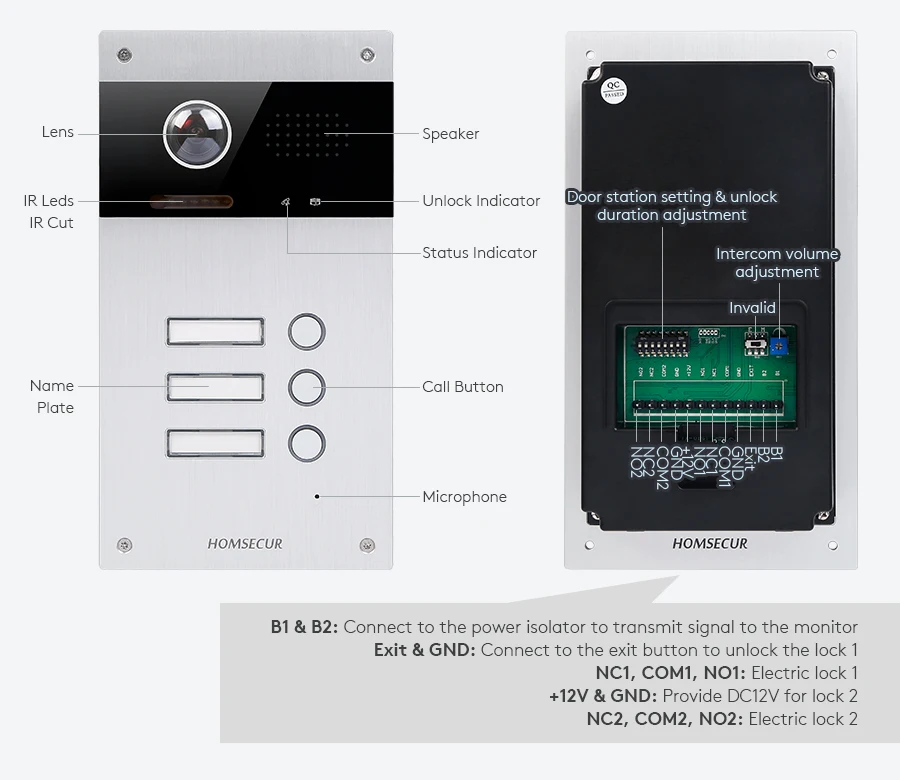

Interface

Compatible Monitors
These cameras can ONLY work with HOMSECUR® (HDK Series) 2 Wire monitors below. Please contact us if more information is needed.
