Distinguished Functions for Video Doorphone Intercom

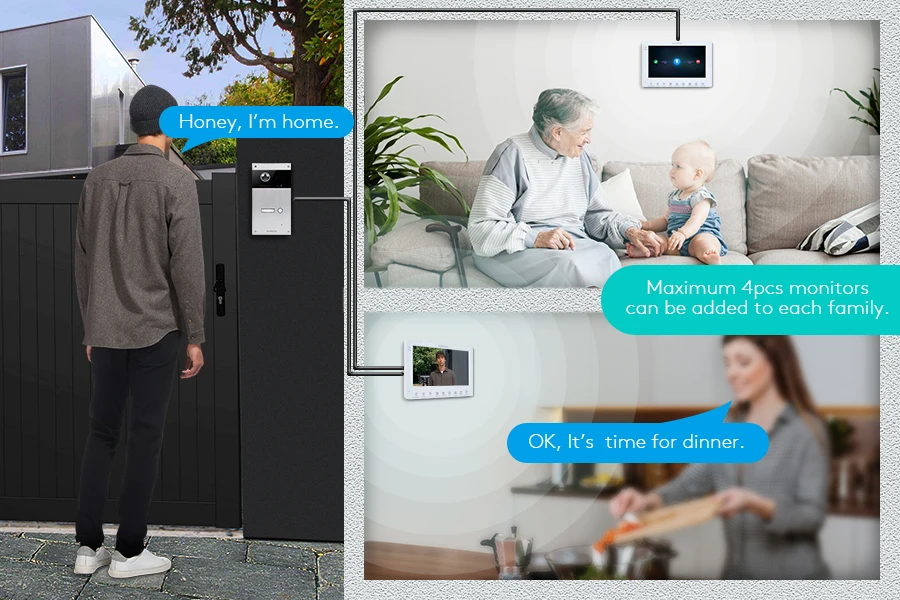

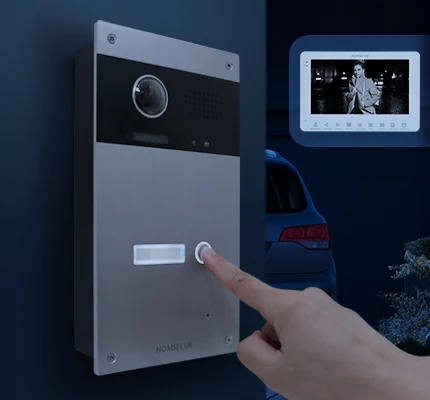

Intercom between Indoor Monitor and Outdoor Camera, Also Intercom between Monitors

Press Call Button on the doorbell camera to activate a conversation between the indoor monitor and the doorbell camera. What is more, if more than one monitor are connected to one family, the intra-monitor intercom is available. Maximum 4pcs monitors can be added to each family.

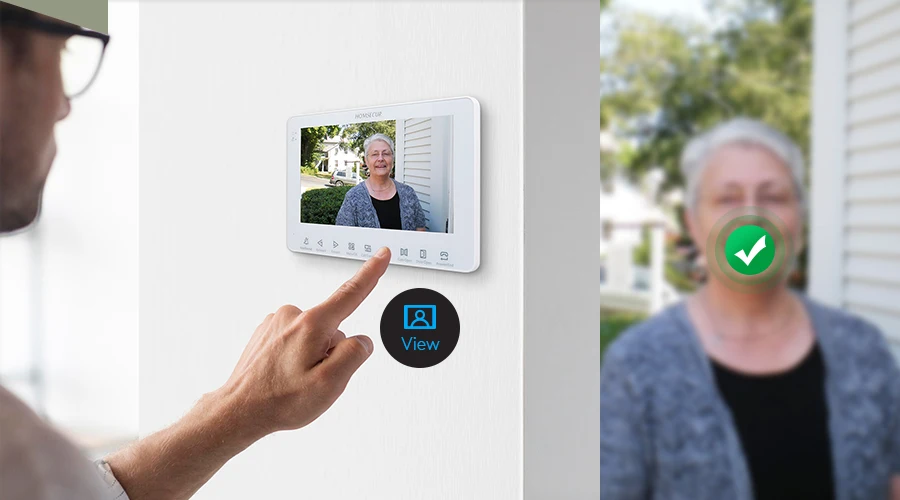

Real-time Outdoor Monitoring

You can view outside from the monitor, which puts your mind at ease, and especially, you are able to get one step ahead and well prepared in circumstances of any emergency.

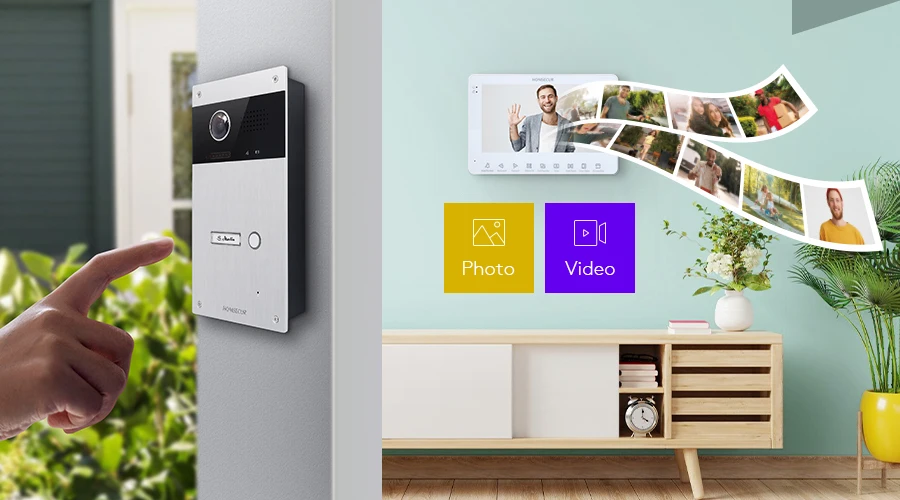

External SD Card Storage, Always Knowing Who the Visitors Are

Once the Call Button on the doorbell camera is pressed, the monitor will snapshot a picture or record a short video (Inserting an SD card is necessary). You can check picture or video records when you are back, no more miss an unexpected visitor and eliminate the potential risks around the house.

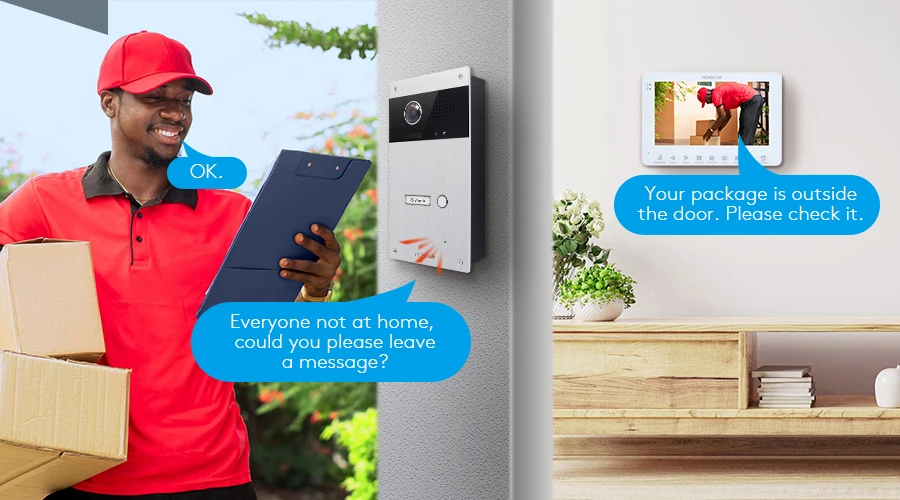

Audio & Video Mailbox, Being Convenient for Certain Situation

If the visitor comes when no one is in, he can leave a message to the master after hearing the remind «Everyone not at home, could you please leave a message?» from the monitor. Especially for the courier to tell where he places the parcel rather than make a reservation and come back again to deliver the package.

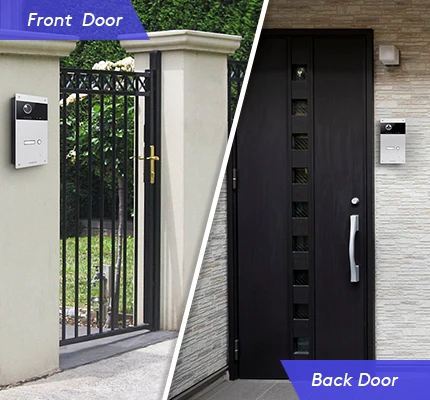

Up to 2 Outdoor Cameras

2 outdoor cameras connection is available when separately door unlock function is needed for front and back doors.

IR LEDs, Offset Lighting for Quality Night-vision at Night

This camera is equipped with IR LEDs, improving the caller’s visibility in low light conditions. The image in the night is black and white.

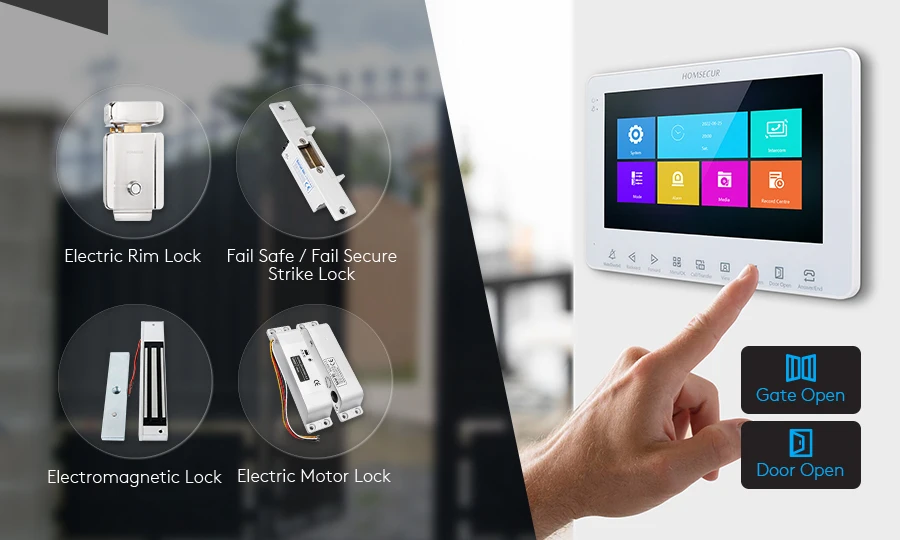

Compatible with Various of Electric Locks

When this video doorphone intercom system is connected with 12V/24V electric locks, you can open outdoor gates or doors for your visitors from the monitor.(For availability of electric locks in this listed offer, please refer to package content. Or contact us if you are interested.)

Work with 3 Electric Locks at the same time, Support Separately Control

2pcs locks connect to the doorbell camera and the 3rd lock connects to the indoor monitor per family for separately controlling. If the intruder maliciously destroys the outdoor camera, each family house is still security if a lock is connected to the monitor. The unlock duration for these locks are adjustable.

Extraordinary Functions for Video Doorphone Intercom

1. Stylish UI Interface

Friendly menu for easy operation

2. Multi-Languages (customizable)

Built-in 13 languages menu and also can be customized

3. Transfer Call (1pcs monitor per family)

Convenient for the visitor to talk to any family members.

4. Snapshot & Record

Automatically snapshot a picture or record a video for the visited guests.

5. Leave a Message

Audio & video message for the master to know the visitor when no one in.

6. Flexible Ringtones Setting

3 groups of scheduled ringtone & adjustable volume

Compelling Features

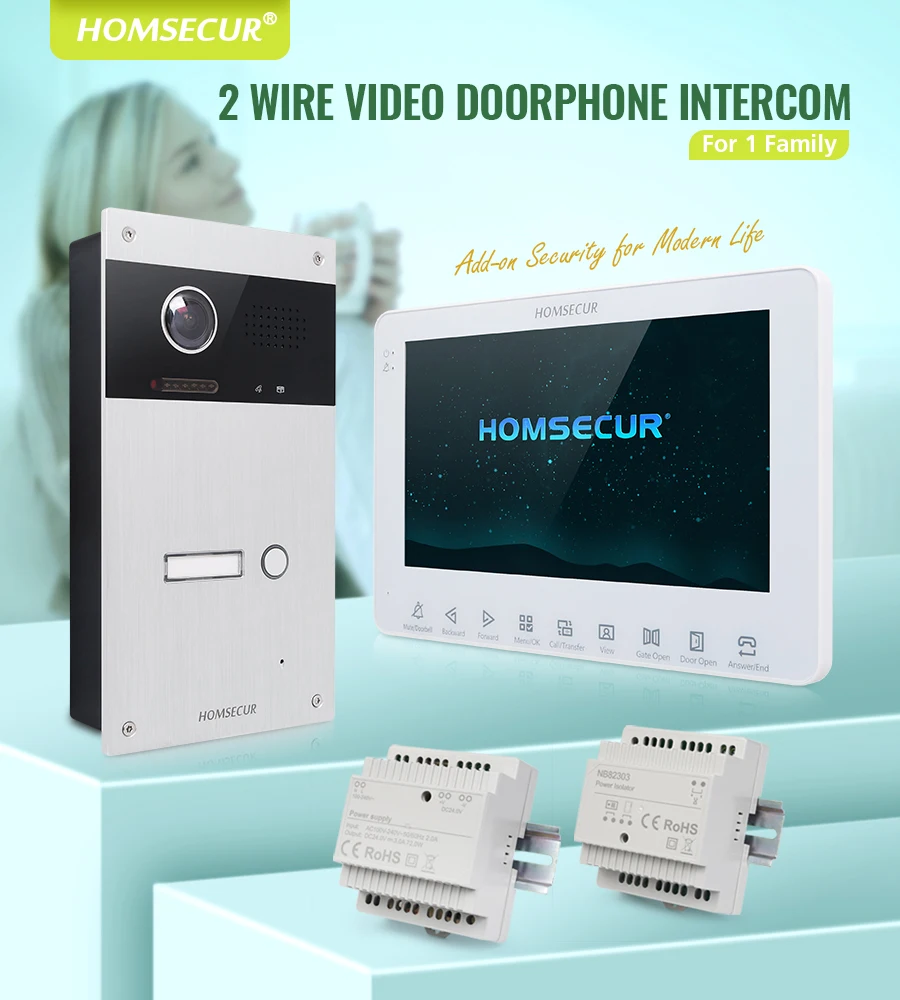

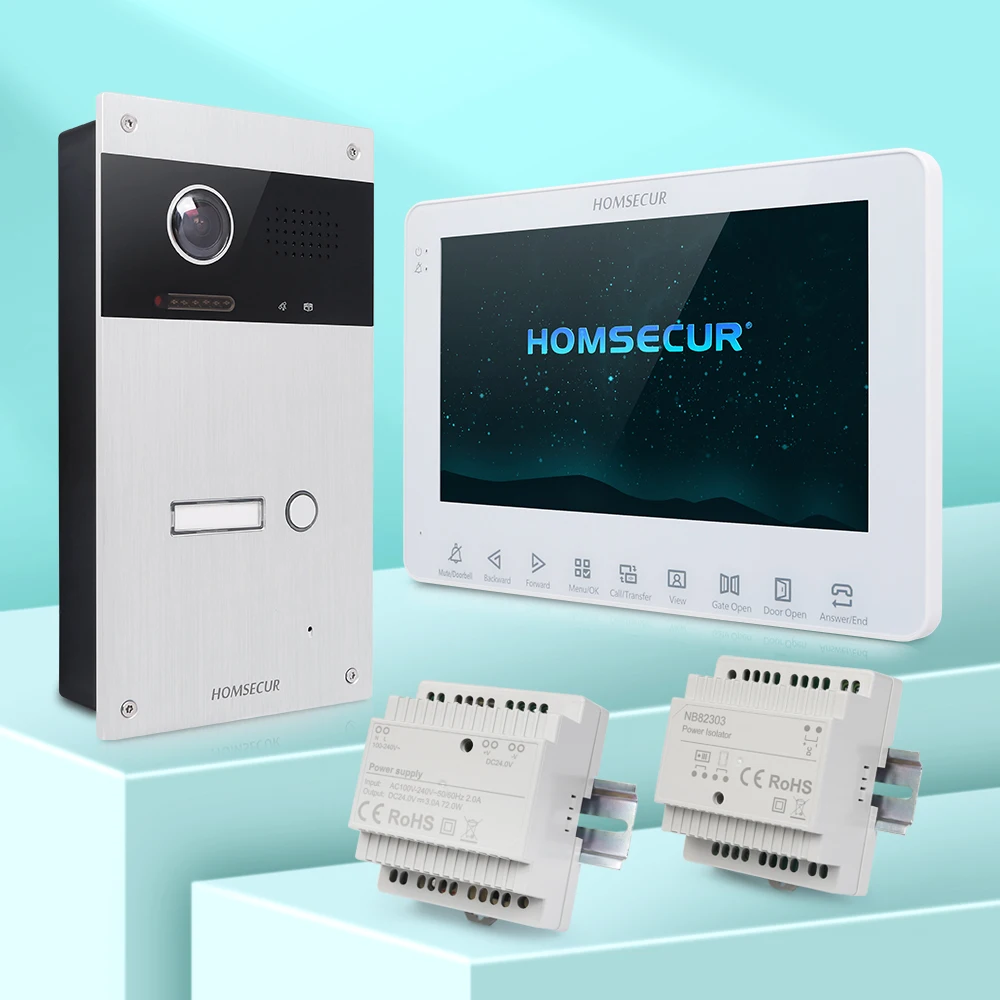

HOMSECUR® 2 Wire Indoor Monitor

• Touch button with UI design

• Adjustable color, brightness, and contrast

• 10 Ringtones selectable and ringtone volume adjustable

• Hands-free communication

• Up to 4 indoor monitors per family

• Up to 2 outdoor cameras

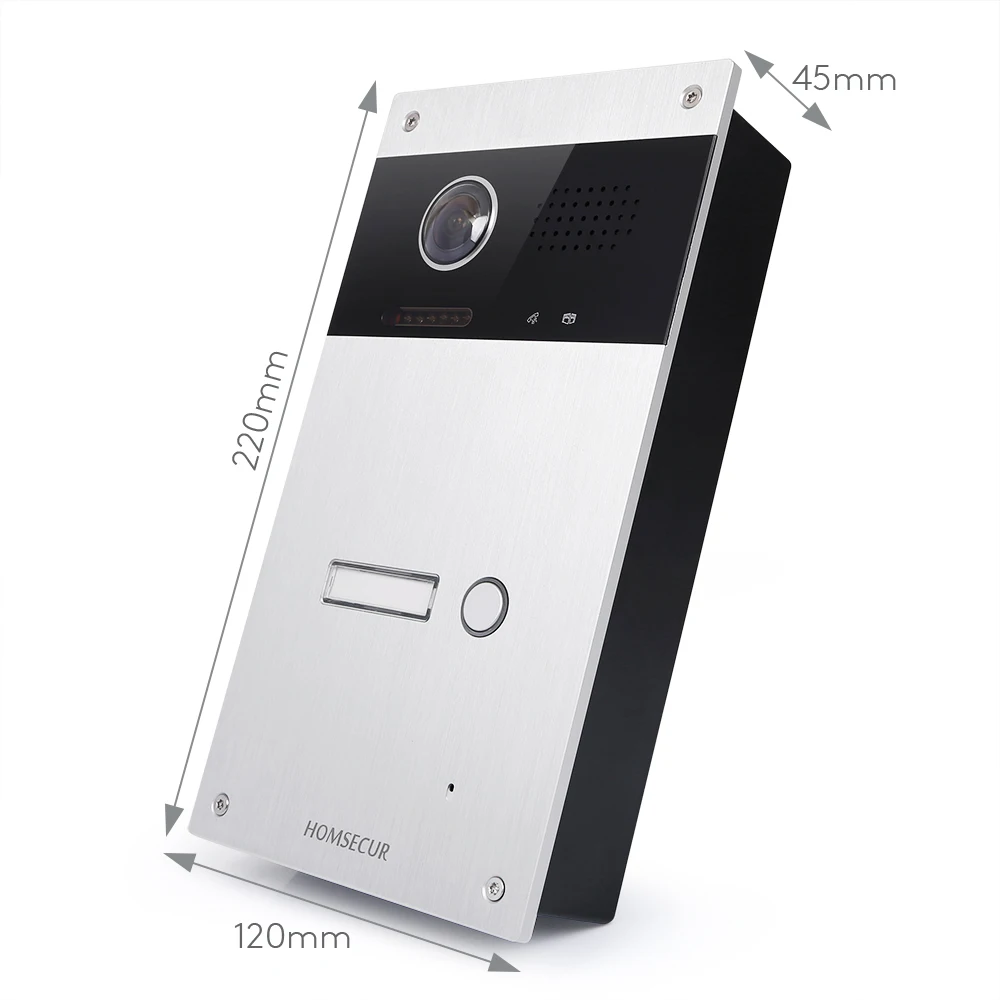

Specifications of Doorbell Camera

• Model No.: B16AB-S

• Sensor: 1/3″ CMOS

• Horizontal Resolution: 800TV Line

• Lens: 1.8mm

• Min. Illumination: 0.1Lux

• View Angle: 170°

• Night Backlight: IR LED, up to 1.5m

• Night Vision Image: Black & White

• Ingress Protection Rating: IP65

• Adapter Output: DC24V

• Net Weight: 614g

• Material: Rust-proof aluminium alloy

• Working Temperature: -40°C~+50°C

• Installation: Flush Mount (Defaulted)

• If surface mount is needed, please leave a note.

HOMSECUR® Doorbell Camera

• CMOS camera with 800TVL for the quality view

• 170° wide-angle for large view

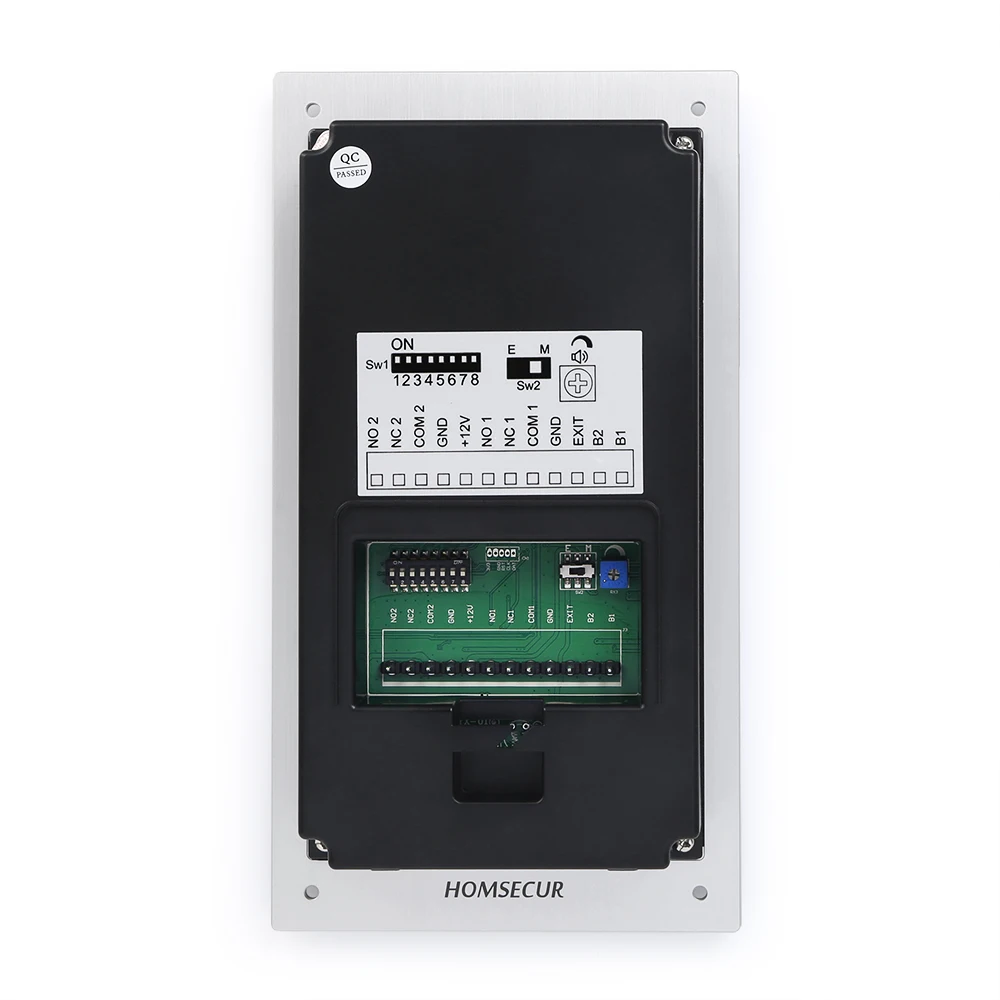

• Door release with NO/NC Dry Contact

• IR LEDs offset lighting for clear night-vision

• Illuminated call button for easy operation at night

• Ingress protection rating of IP65 for outside installation

• Flush mount and surface mount optional

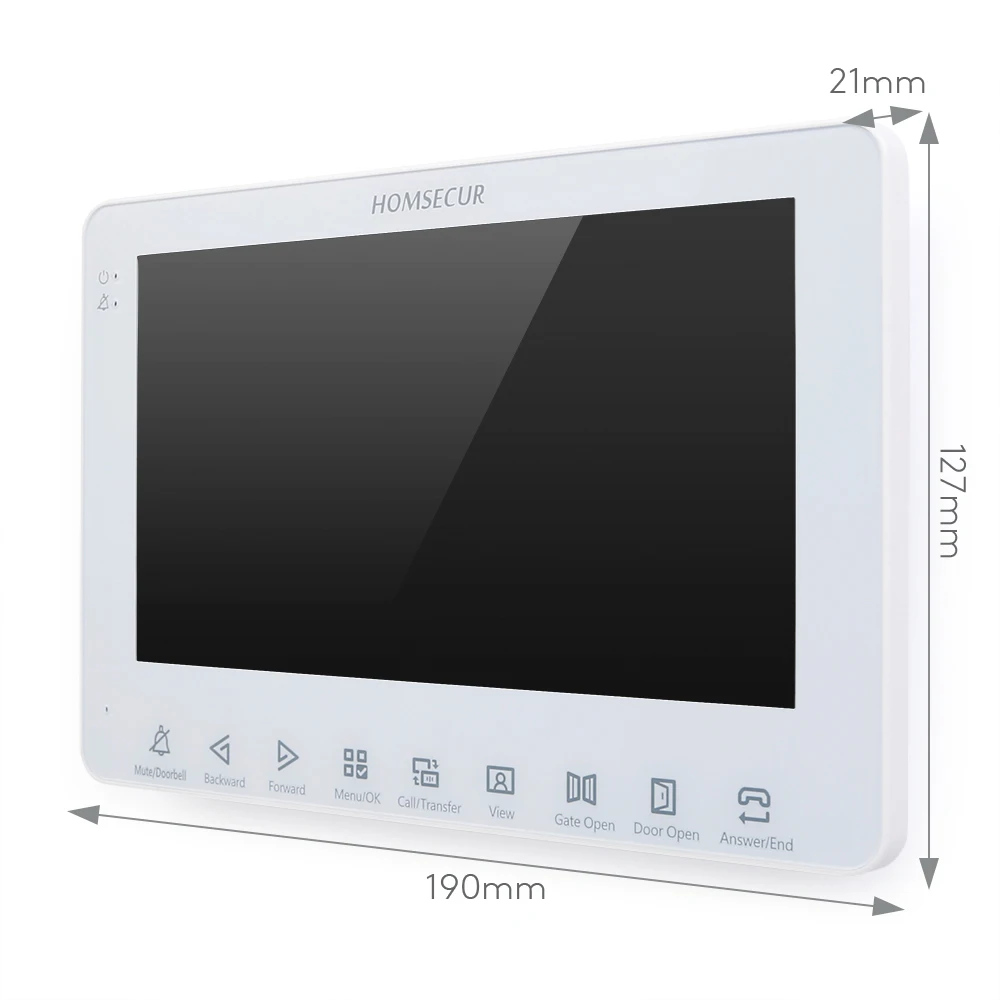

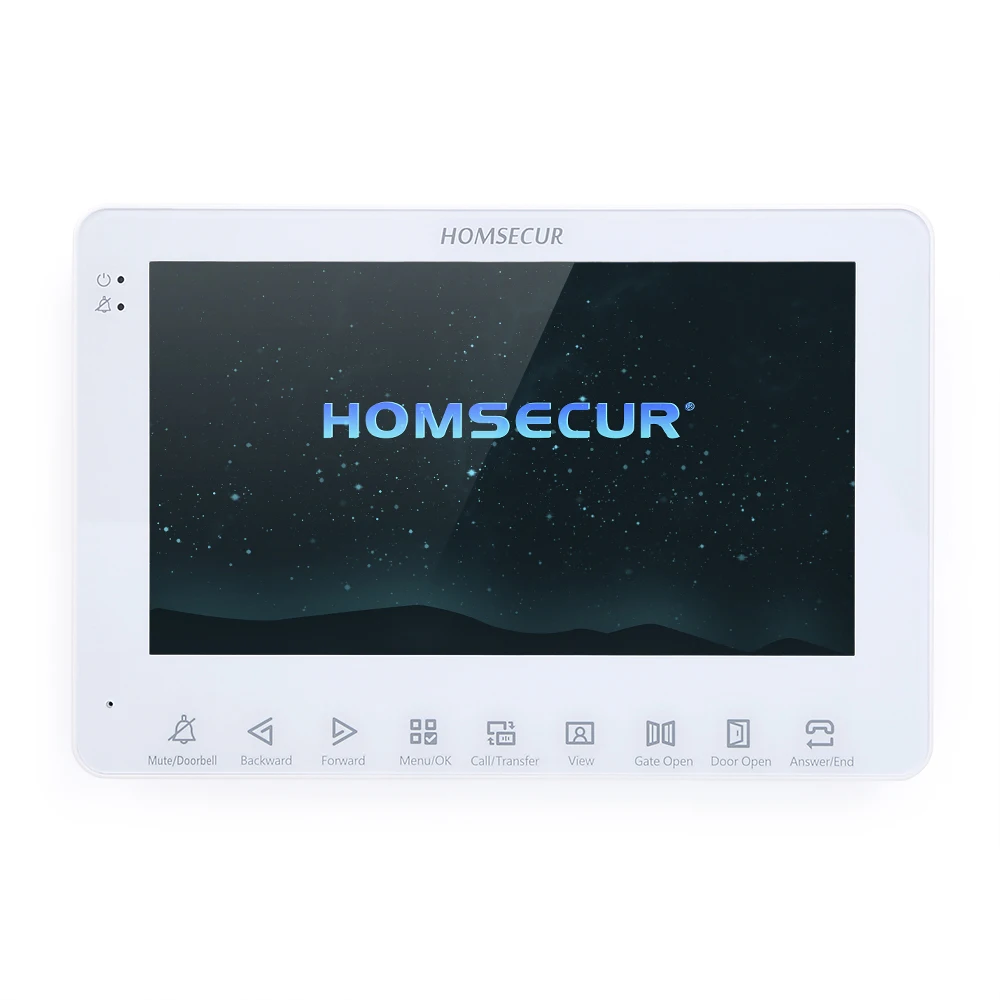

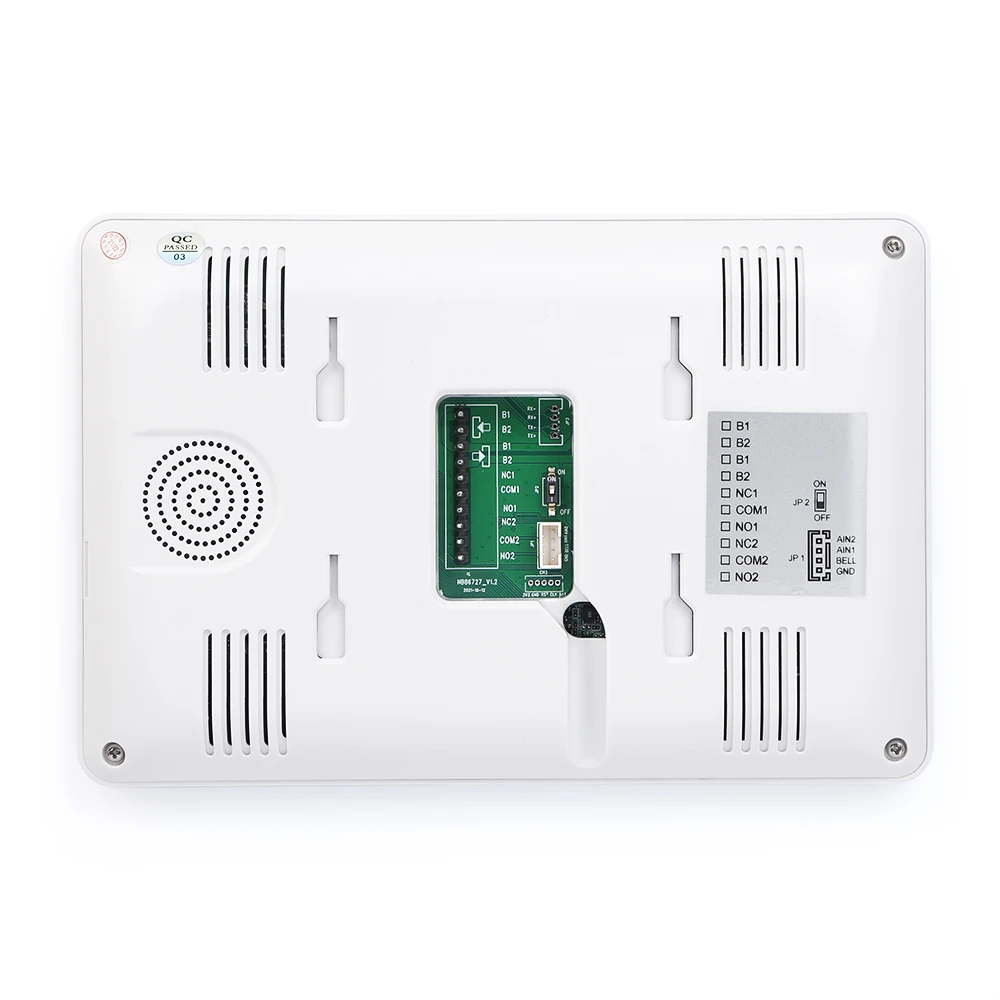

Specifications of Indoor Monitor

• Model No.: BA20B-W

• Color: White

• Screen: 7″ TFT LCD

• Effective Pixels: 800×480

• Video Input Signal: CVBS

• Monitoring Duration: 30s/60s/120s/180s/300s optional

• Power Consumption (working): <20mA

• Power Consumption (standby): <300mA

• Adapter Input: AC100-240V, 50-60HZ

• Adapter Output: DC24V

• Net Weight: 330g

• Material: Acrylic panel

• Working Temperature: 0°C~50°C

• Installation: Surface mount

• Extension Memory: 2G-32G Micro SD Card (≥10 Class)

• Picture Format: JPG

• Video Format: AVI

• Ringtones: 10 (Customizable)

• Menu Languages: Azərbaycan, Deutsche, English, Español, Français, Polskie, Portugues, Italia, Pусский, Türk, Українська, שפה עברית , العربية (Customizable)

• Cable for Intra-monitor: 2 core

• Cable for Monitor-to-Camera: 2 core

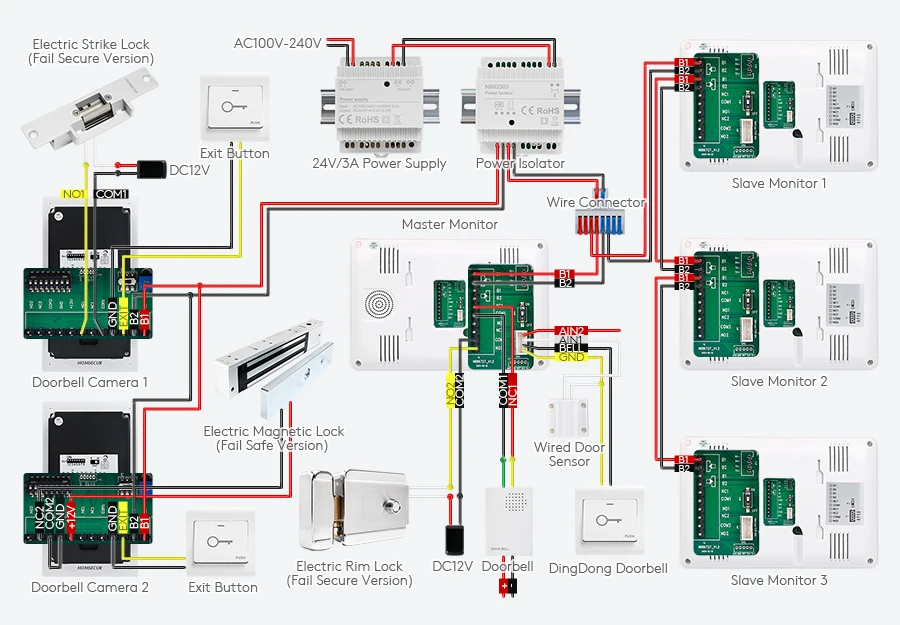

Wiring Diagram

Each family supports up to 2*cameras, 4*monitors, and 3*locks of separately controlling. All of the locks can be fail-safe version(unlocked when the power is off) or fail-secure version(locked when the power is off).

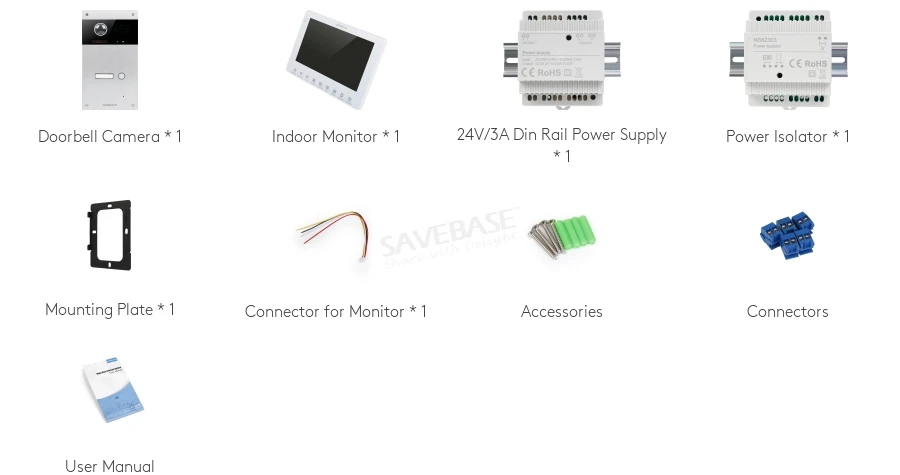

* All the products in the wiring are just for reference, please refer to package contents for what is included in this listing.

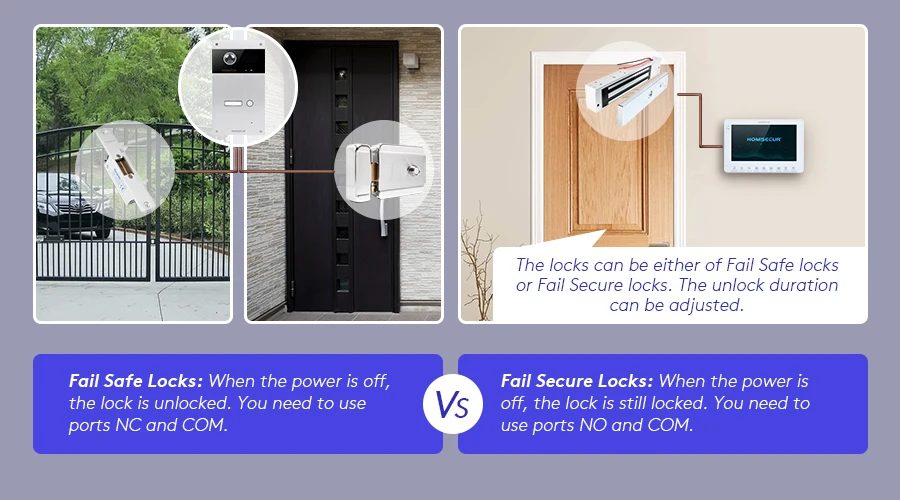

Tips for the locks

The doorbell camera and the indoor monitor can work with 2 types of locks, Fail Safe mode locks and Fail Secure locks.

• The unlock duration of the doorbell camera can be adjusted at 2s/6s/8s/10s. The 1st lock needs an extra DC12V power supply but the 2nd lock can be powered by the outdoor station.

• The unlock duration of the indoor monitor can be adjusted within 02-10s. An extra DC12V power supply is needed.

Fail Safe Locks: When the power is off, the lock is unlocked. You need to use ports NC and COM.

Fail Secure Locks: When the power is off, the lock is still locked. You need to use ports NO and COM.

Cable and Distance Requirement

The whole system can work within 100m. Please pay attention to the cable requirements for better performance. If cat5 or cat6 cables will be used, the total length should be within 20-30m for stable performance.

Length of Cable Conductor Cross-sectional Area

0m ≤ Length < 30m RVV2* 0.30mm²

30m ≤ Length < 50m RVV2 * 0.50mm²

50m ≤ Length < 80m RVV2 * 0.75mm²

80m ≤ Length ≤ 100m RVV2 * 1.00mm²
