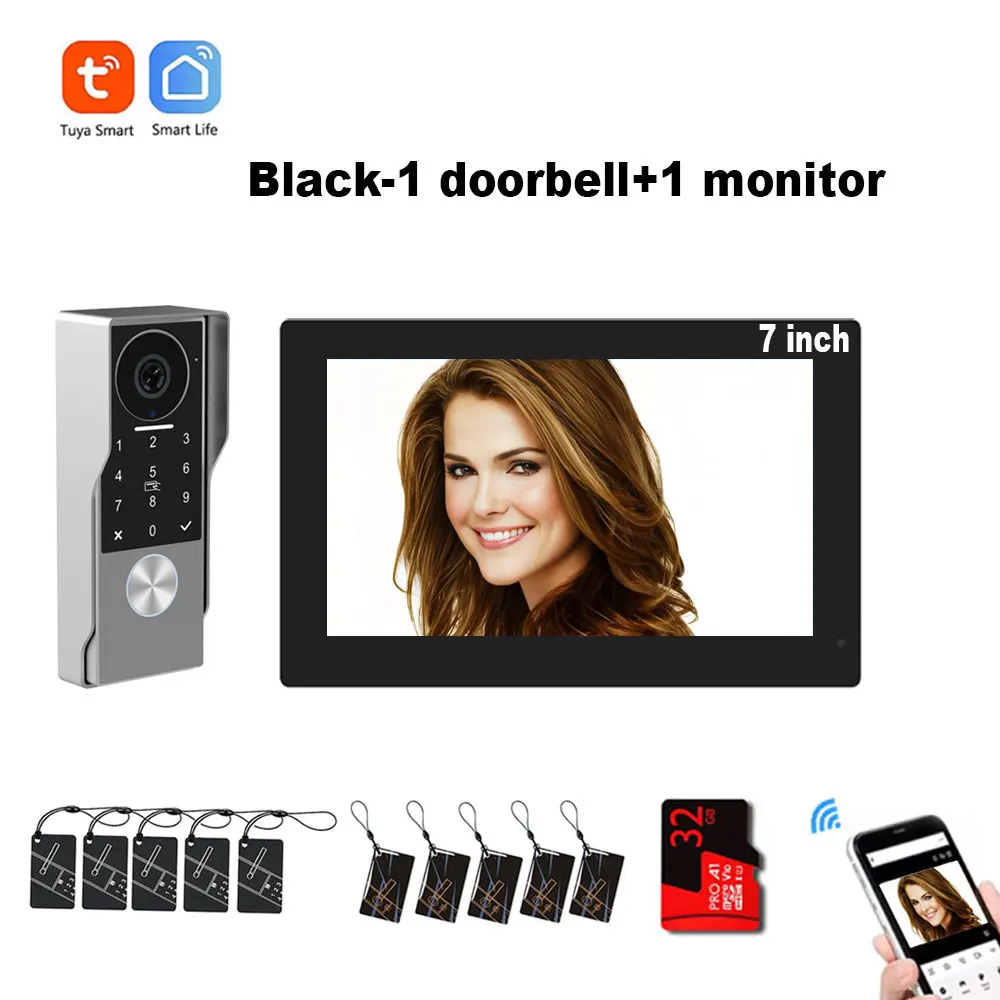

2-Wire TUYA Smart Video intercom doorbell 1080P Waterproof Camera 5G Wifi 7/10inch Touch Screen Support Password Inductive Card
Features

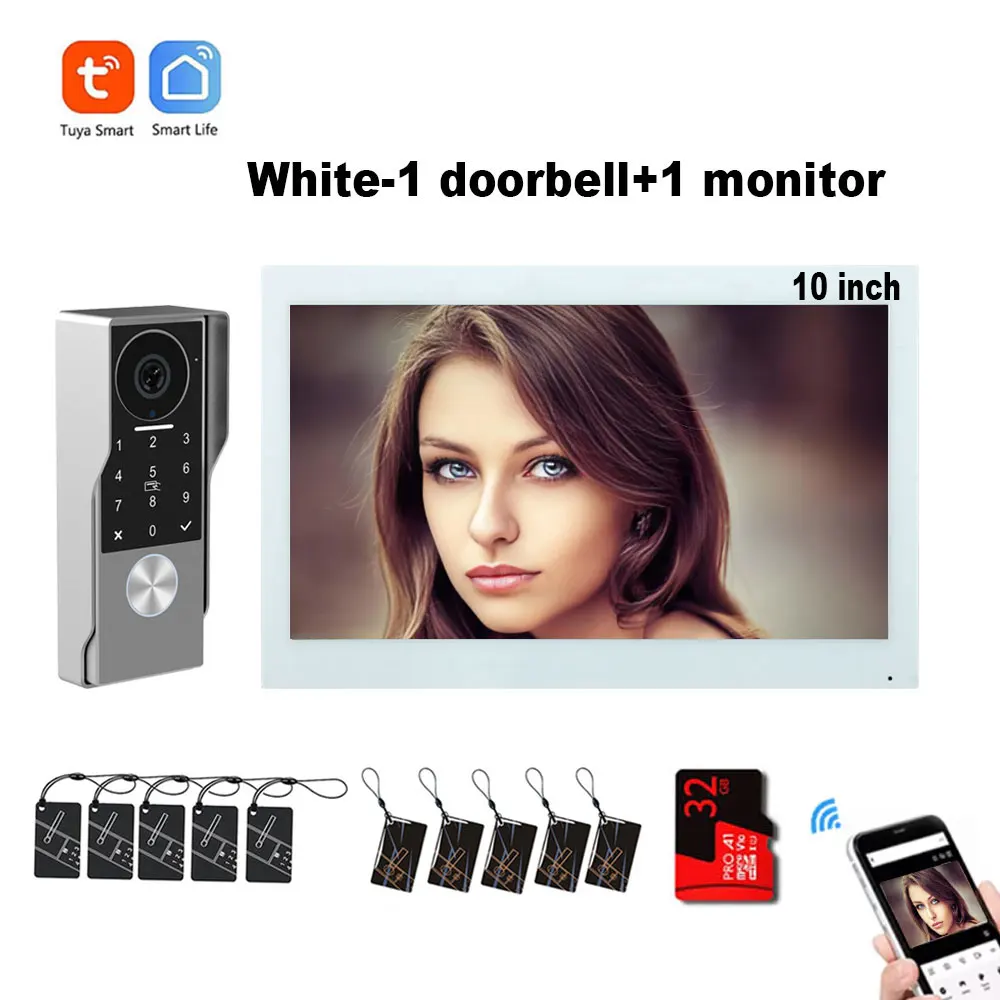

Monitor
– 7” or 10.1” IPS touch screen with 1024 x 600 resolution
– Supports Class 10 Micro SD card, up to 512GB capacity
– Dual-band 2.4 GHz and 5 GHz IEEE 802.11 b/g/n/ac
– Current consumption: 150mA, Power consumption: 3.5W
– 7inch monitor dimensions: 119 (h) x 188 (w) x 18.5 (d) mm
– 10.1inch monitor dimensions: 158 (h) x 242(w) x 18.5 (d) mm

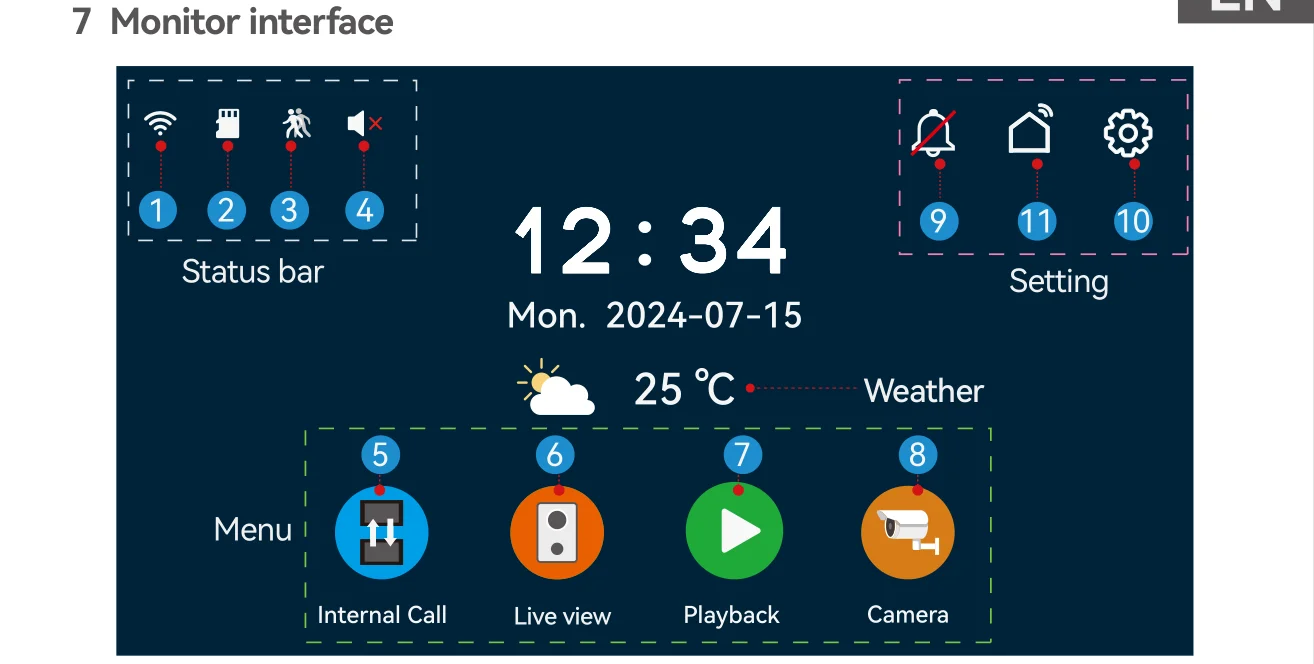

– The screen saver can always display the time and weather
– Take photo or video, twin controls for lock and gate, human detection, weather
– Monitor can talk to another monitor
– Automatic photo/video recording triggered by human detection or incoming calls
– Monitoring time lasts up to 30 minutes.
Intercom panel
– 2-megapixel CMOS color sensor
– Viewing angle: Horizontal ~130°/ Diagonal ~165°
– Current consumption: 220mAPower consumption: 5.5W
– IR CUT no color deviation (4 IR LEDs)
– Wide Dynamic Range (WDR) camera for clear imaging in harsh light
– Camera distortion correction to prevent image stretching/bending
– Human detection function with adjustable motion zones

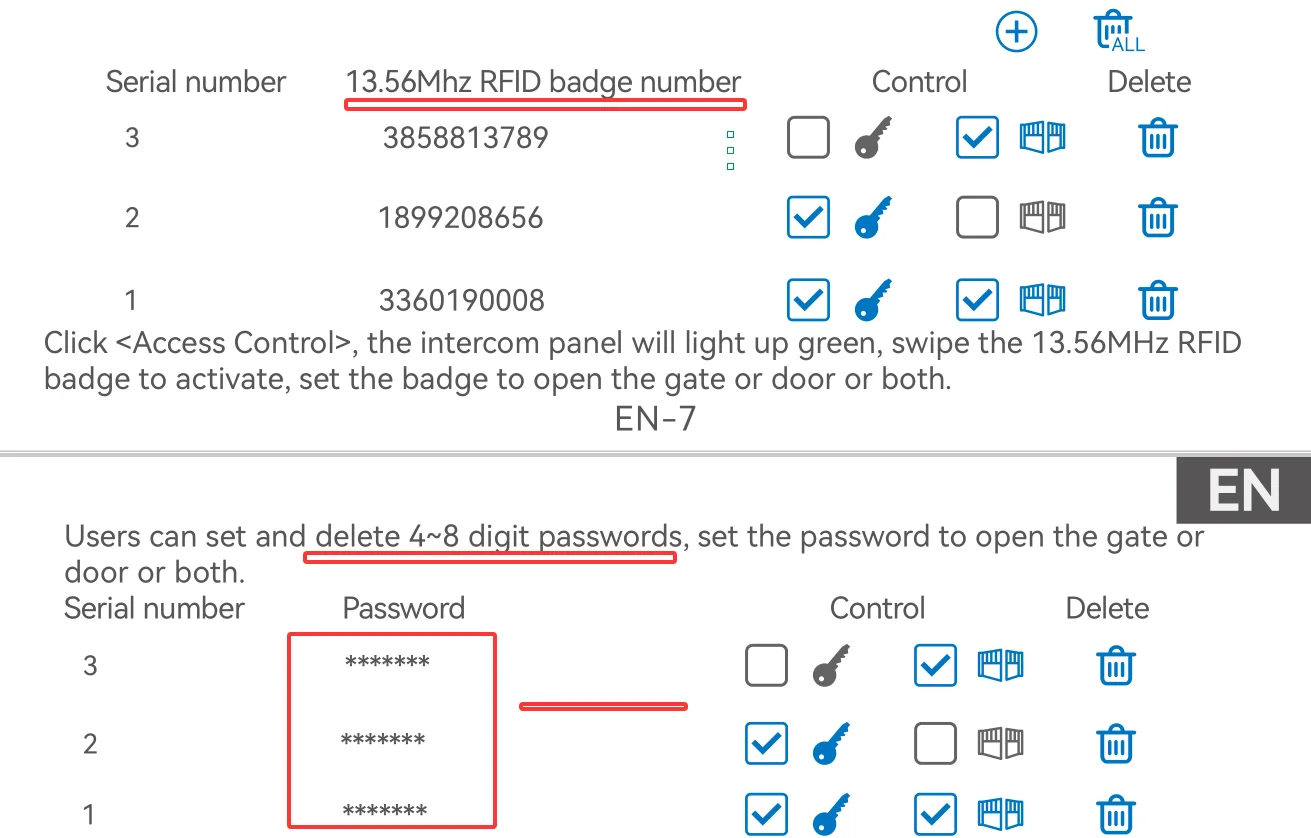

– RFID: 13.56MHz – 100 badges max.
– Operating temperature: -30°C / +70°C
– Dimensions: 149 (h) x 60 (w) x 35 (d) mm
Connect
– 1 Intercom panel and 2 monitors share one power supply

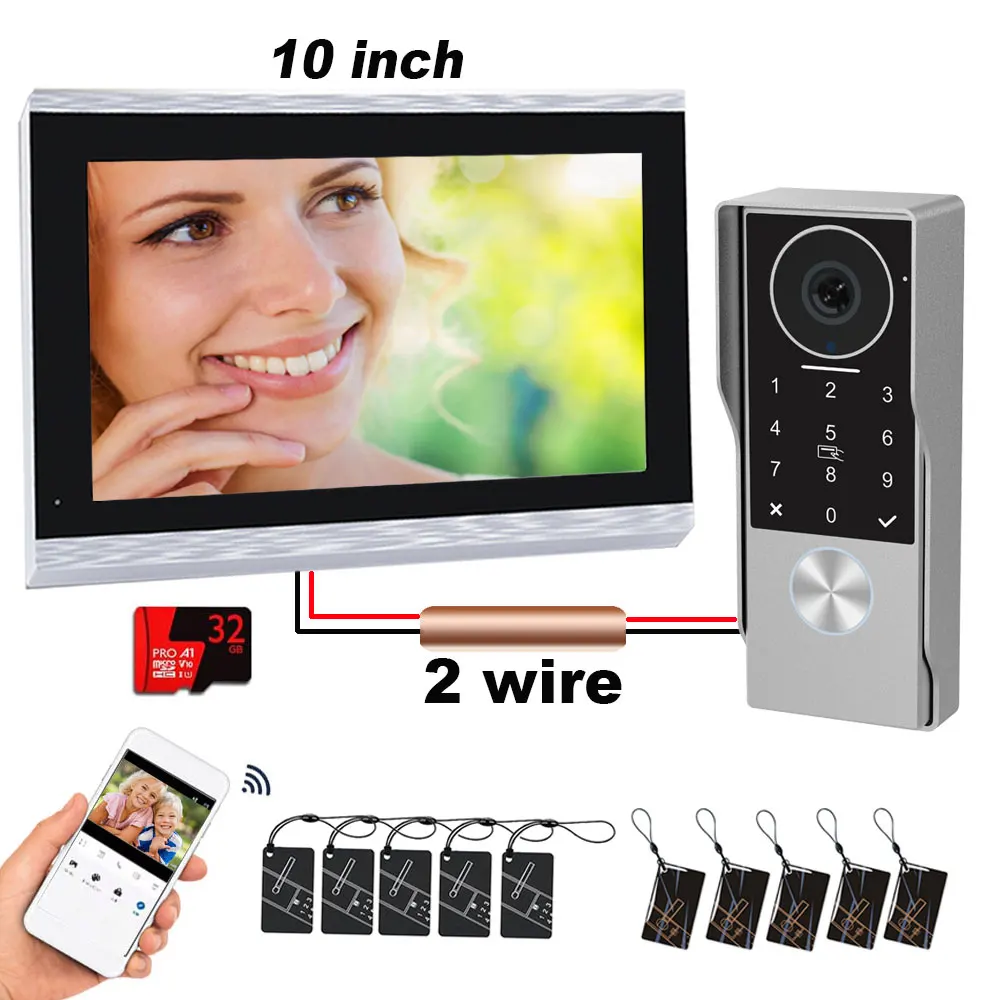

– 2 wires no polarity to conect intercom panel and monitors
– Connect up to 24 ONVIF cameras within the same LAN
APP
– Main monitor connects to «Tuya» or «SmartLife» App
– Supports up to 20 App users, enabling remote 2-way talk, photo/video capture,
real-time monitoring, lock/gate control, and cloud storage
– Automatic photo/video recording triggered by human detection or incoming calls
– Search «Tuya» or «SmartLife» from APP store or Google Play
– Quick download by scanning the QR code in the monitor’s menu
IC Keyfob / Code / Phone APP / Monitor Unlock
You can use your cell phone to open the door remotely to your friends and family. You can assign IC cards to children or elderly or other family members who don’t use cell phones and let them open the door with their IC cards. Doorbell camera can be connected to either the front door, downstairs or fence gate electric lock.
Smart Motion Detection:
Doorbell camera has smart motion detection, receive real-time alerts when anyone approaches so that you never miss a delivery or keep guests waiting.
Automatic recording and playback
1080P camera with 140º wide view angle, Visitors at the door can be seen clearly.Camera built-in microphone and speaker, When visitors press the doorbell or motion detect is triggered, doorbell camera will Automatically record videos or snapshot pictures and save them in monitor micro SD card (32GB card is included, no subscription fee).

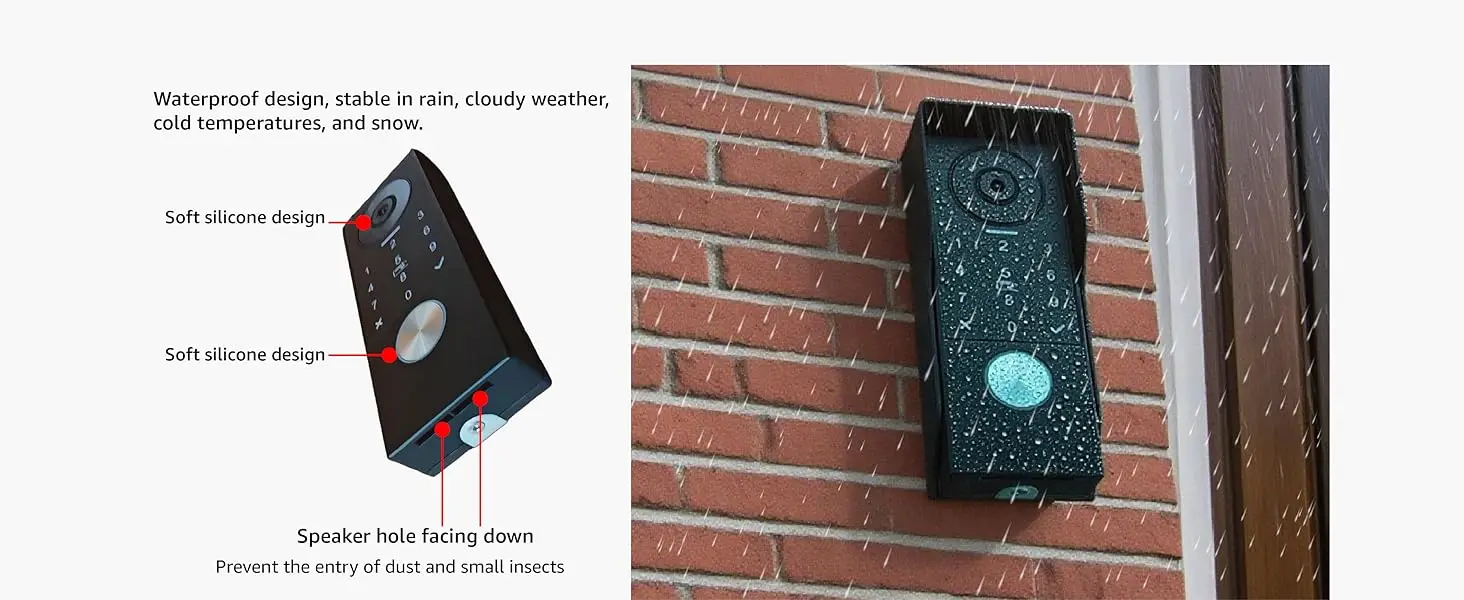

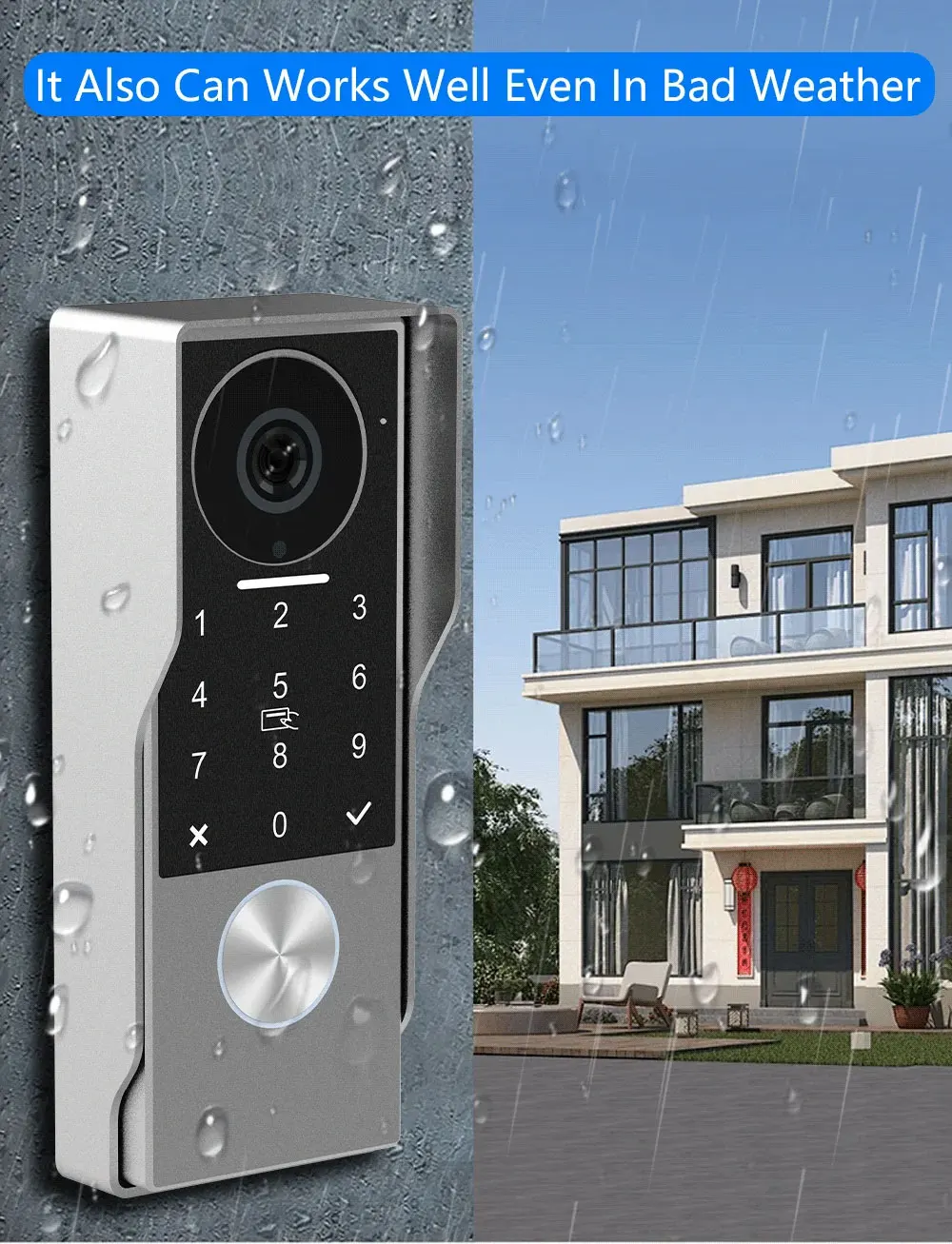

Rainproof and Night vision
Waterproof design,work stable in rainy,cloudy,cold and snow day. Built with 1080p HD camera, anti-oxidation aluminium alloy front panel, Rainproof, Dustproof,and Anti-vandal. IR LED for better night vision.
Clock & Date Mode
Not only can it protect your family, it is also a beautiful decoration.If you not operated the monitor for 1 minute and the time will not displayed at the monitor.This can better protect the screen life and extend the use time.

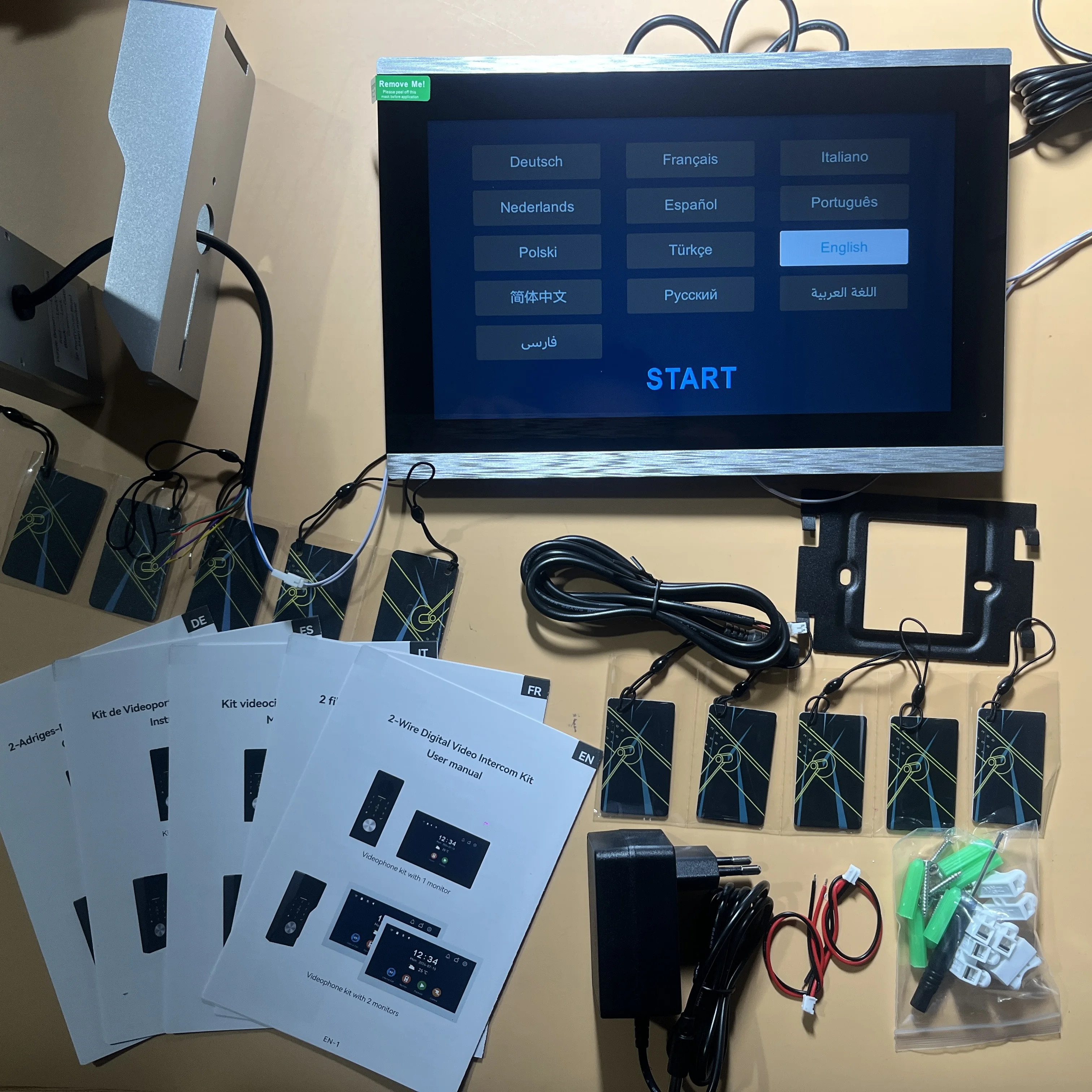

Language :
It supports English, Russian, French, Spanish, German,Arabic, and other languages.

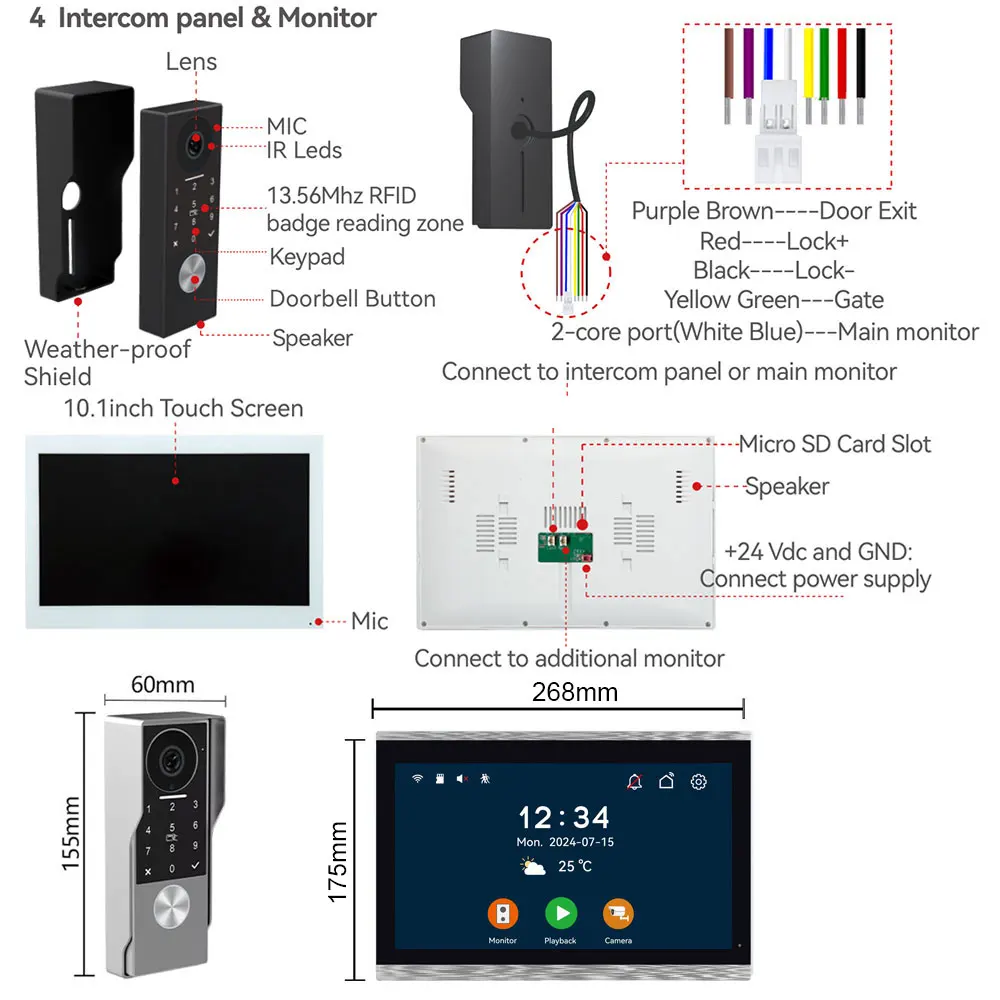

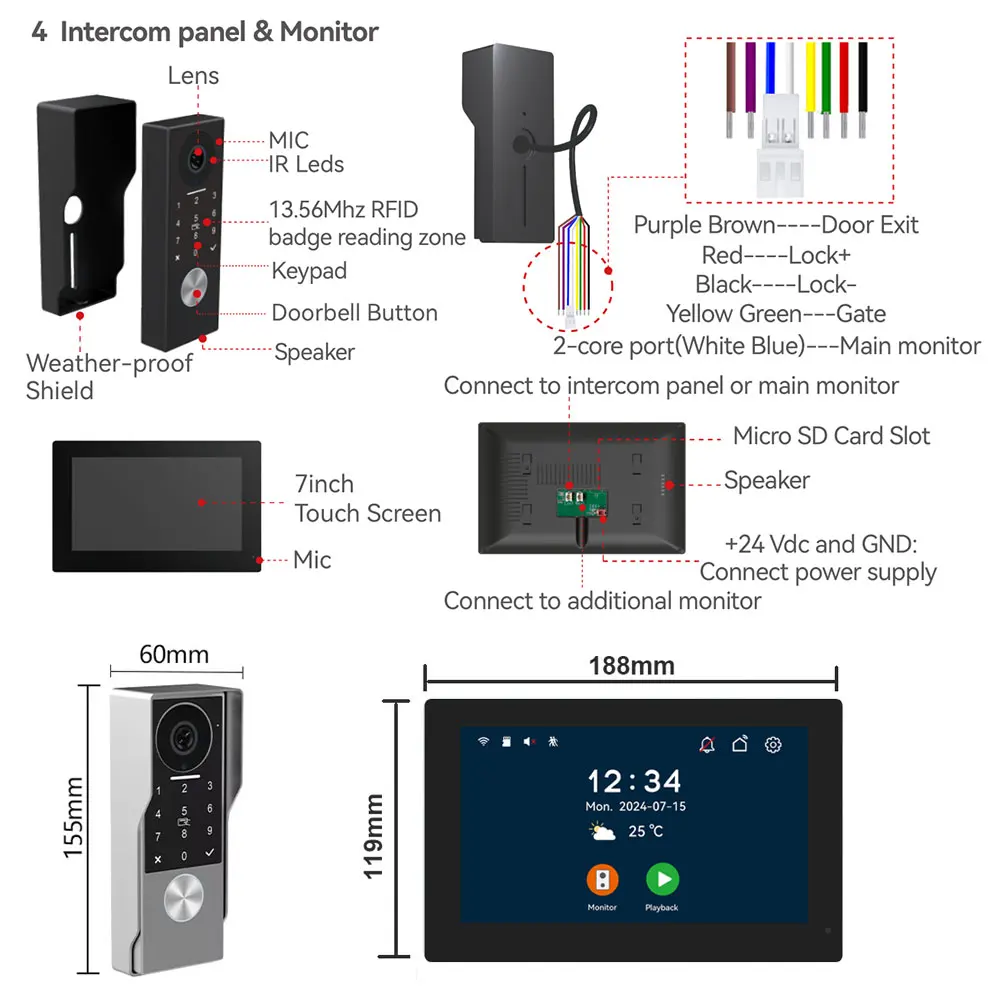

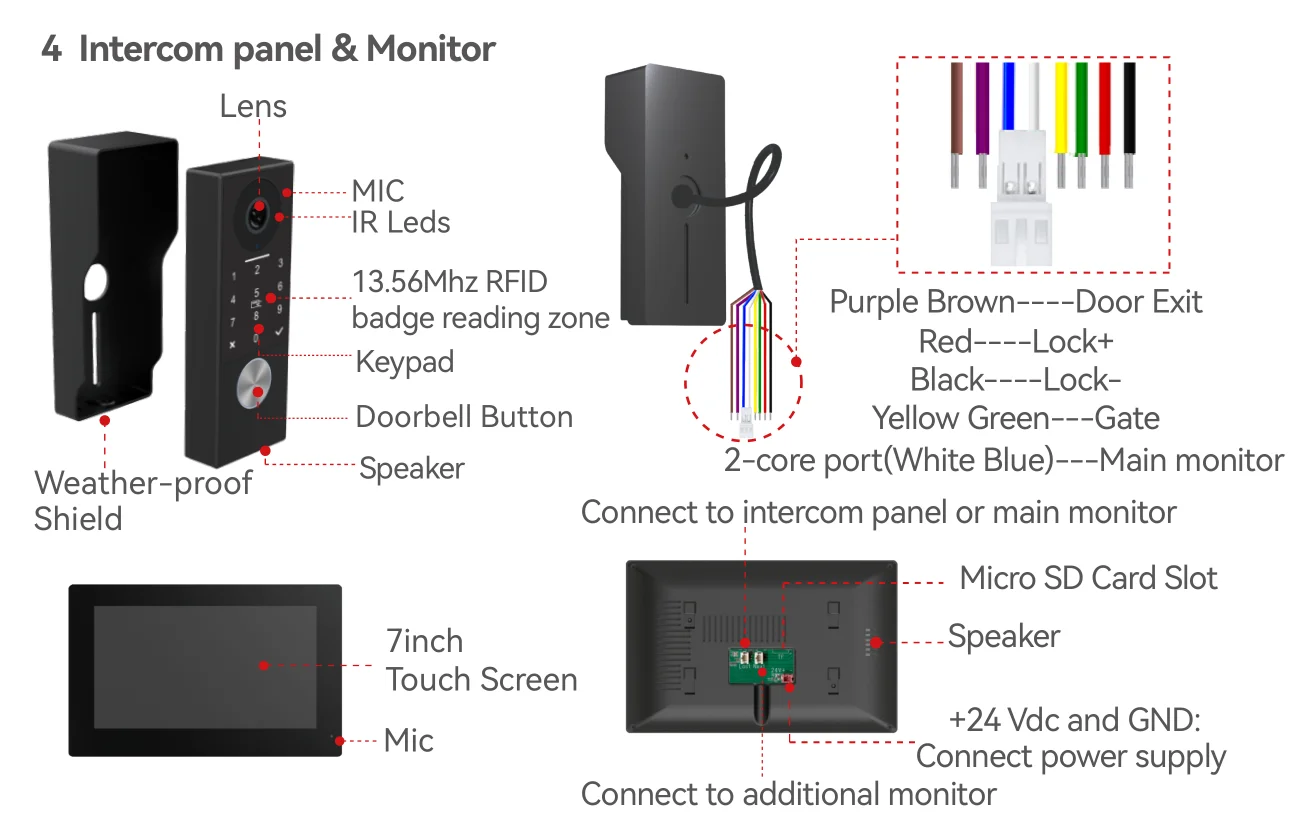

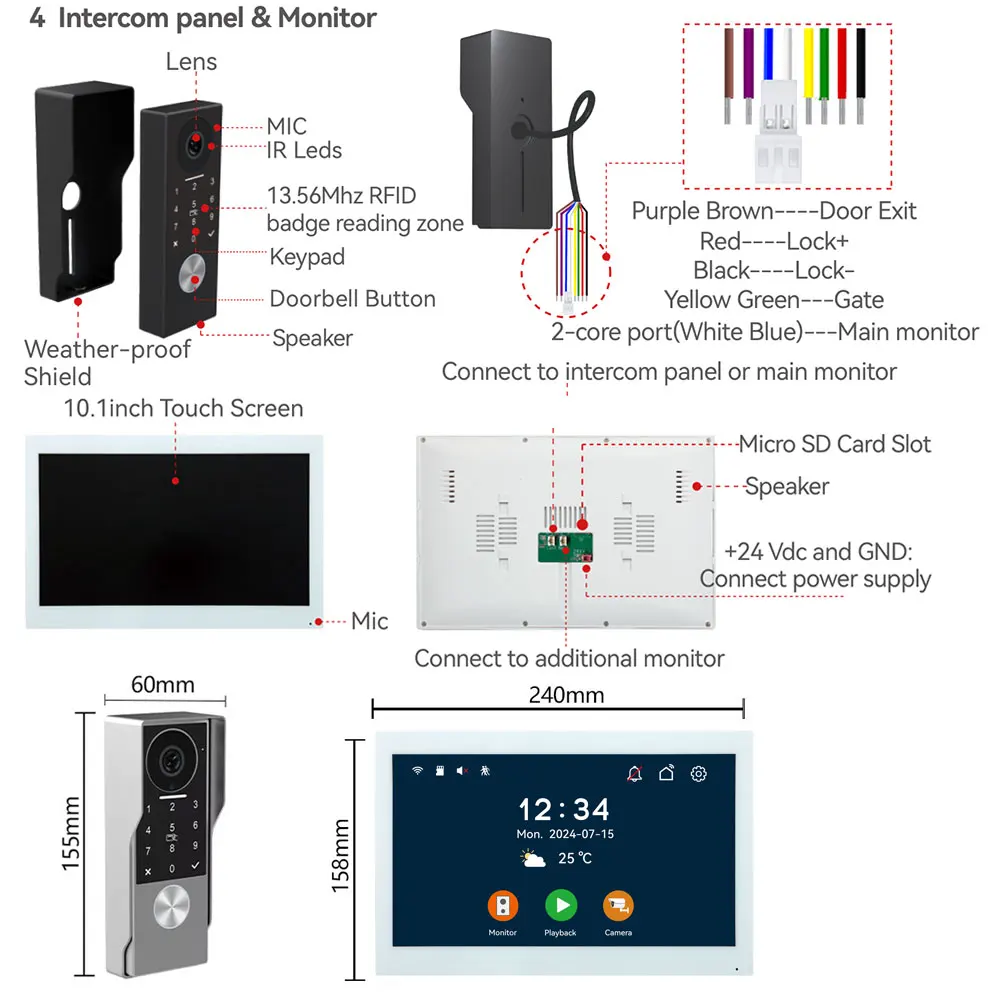

Intercom panel & Monitor

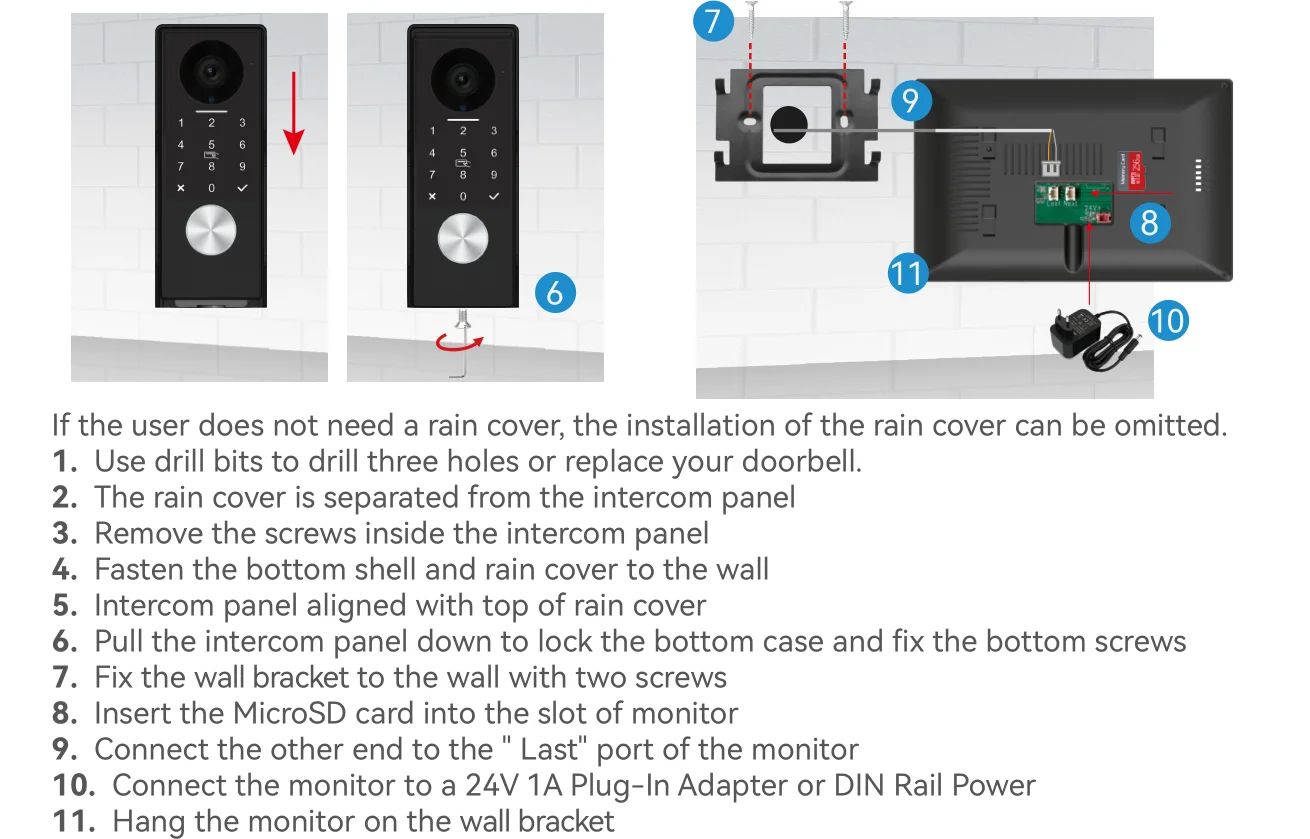

Wiring
In order to avoid the risk of interference and malfunction, do not pass the wire for your
video doorphone through the same sheath as the electrical wires.
Warning: Do not under any circumstances double wires to increase the wire size.

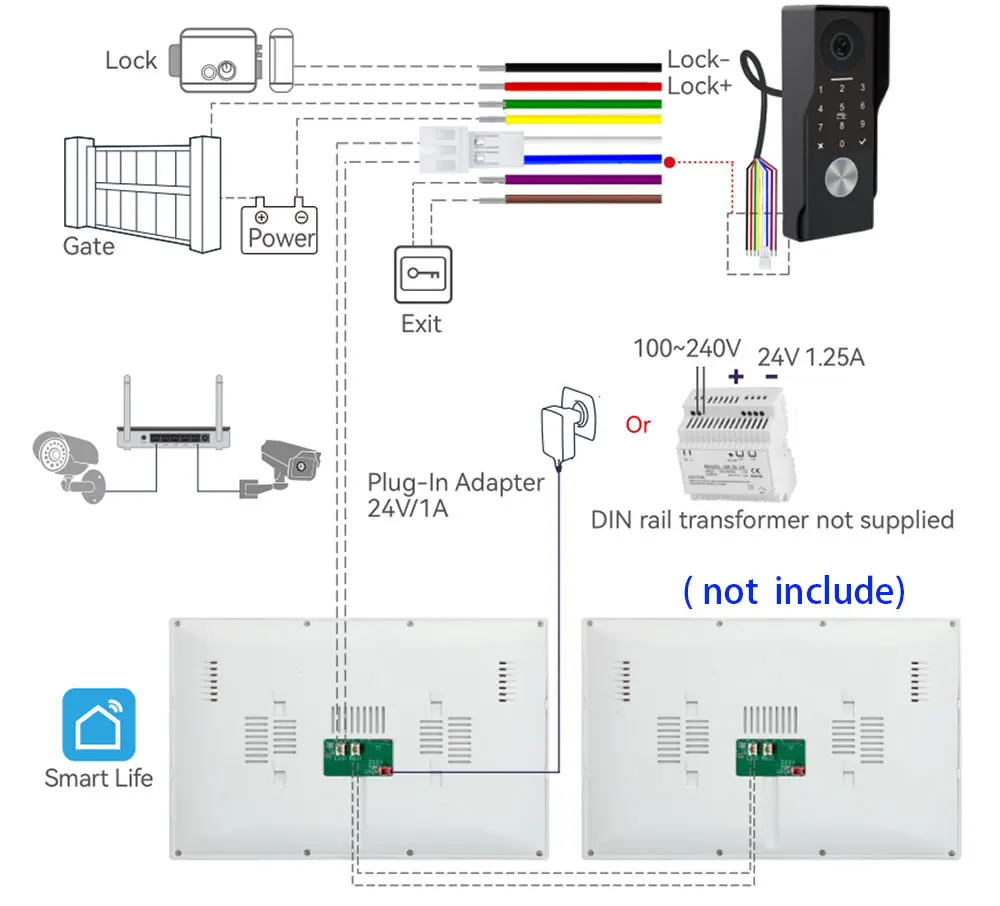

a. Connecting the videophone (monitor and intercom panel)
Wires to be used: 2x 0.75 mm² wires up to 100 m long or 2x 1.5 mm² wires up to 120 m
long.The wires must be in one piece.There must be no terminal strips or similar
connections to avoid altering the signal.
-Ensure that the wires are properly connected, following one of the wiring diagrams
depending on the desired configuration.
– Be sure to refer to the labelling on the back of the monitor and the back of the intercom panel.
When a second intercom panel is installed,the two intercom panels must be terminated
on the connecting cables, and the monitors wired together.
b. Connecting a gate motor drive Please note: the type of command (complete opening, partial opening for a pedestrian)that the motor drive will perform on request from the monitor cannot be selected from the monitor. The function triggered by the motor drive depends on the input on the motor drive electronic card to which the cables are routed.
-The gate output does not provide feedback as to whether the motor drive has taken the
command into account or whether it has executed the command correctly.
-The intercom provides a dry contact (without power) to be connected to the push button
control of the automatic opener.
-Connect the motor drive control directly to the Gate terminals on the intercom panel
(no polarity required).
c. Connecting an electric strike plate or lock Warning: The output of the intercom panel is designed to control a fail-secure electric strike plate or lock.
Important: The current controlling electric strike plate or lock must not exceed 1.1 A.
-Connect the electric lock or strike plate directly to the Lock+ and Lock- terminals.
