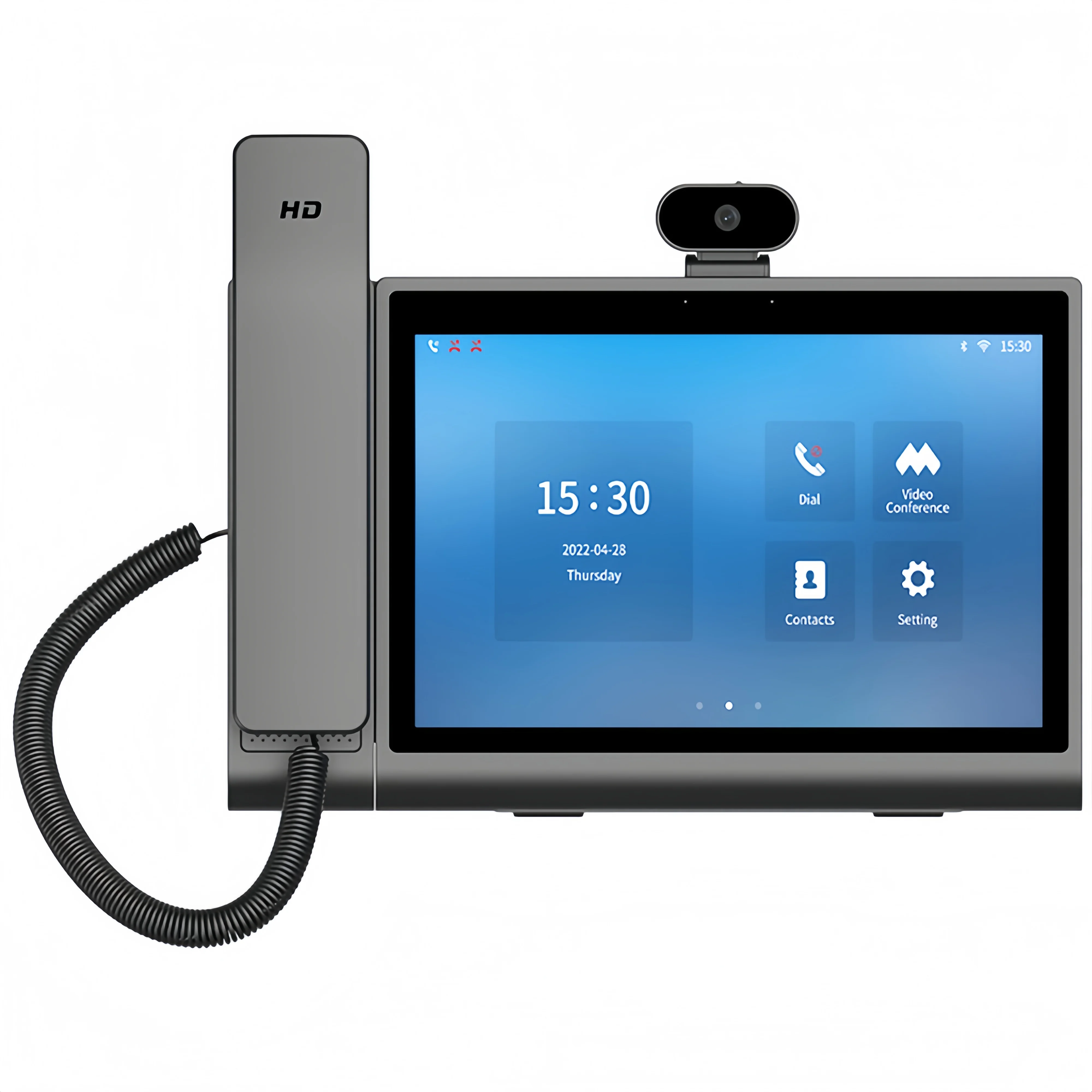

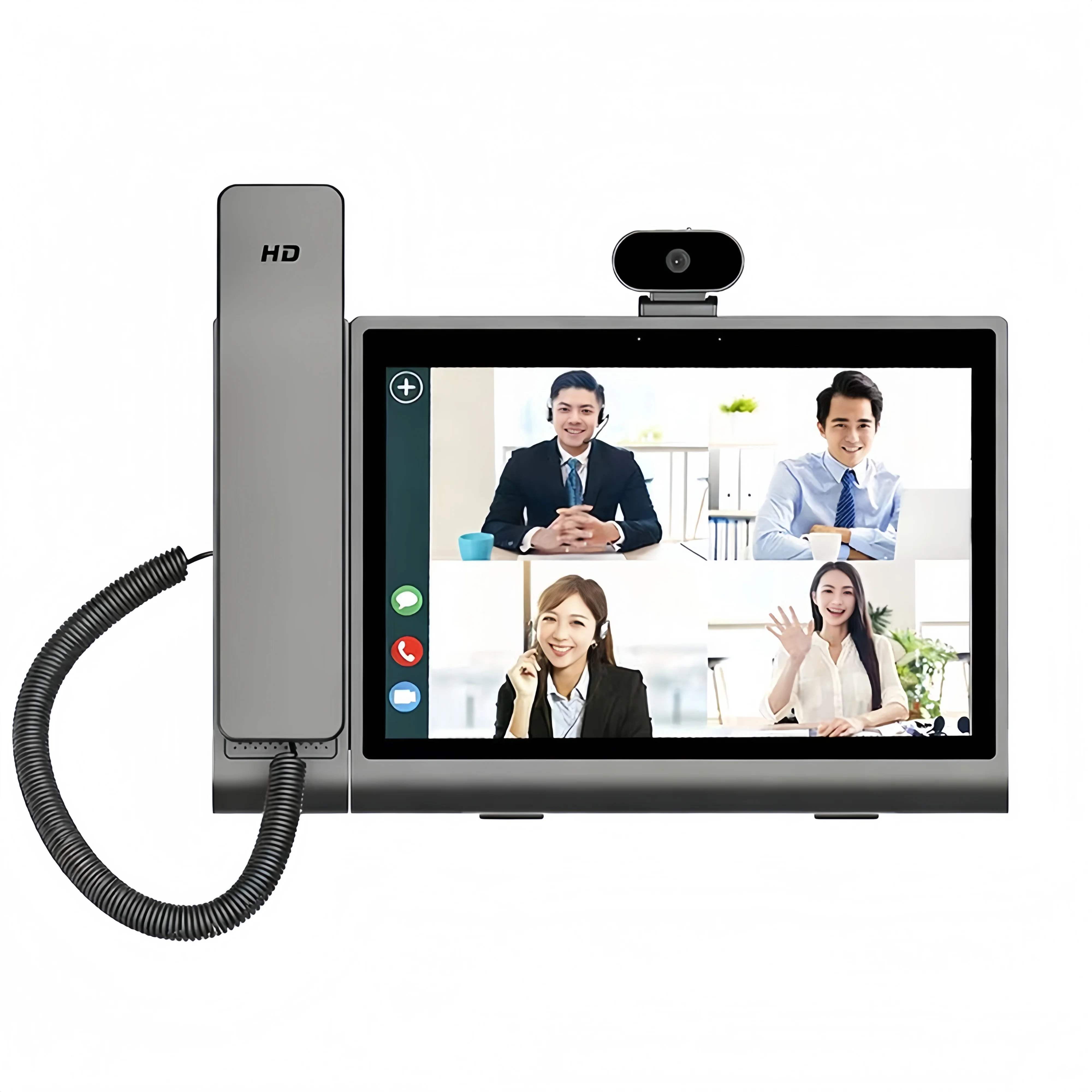

10.1″ VOIP Android Phone Desktop, Rockchip 3568, 4GB RAM, 32GB ROM, Android 12, Noise, echo cancellation, Camera and 2 Micphone

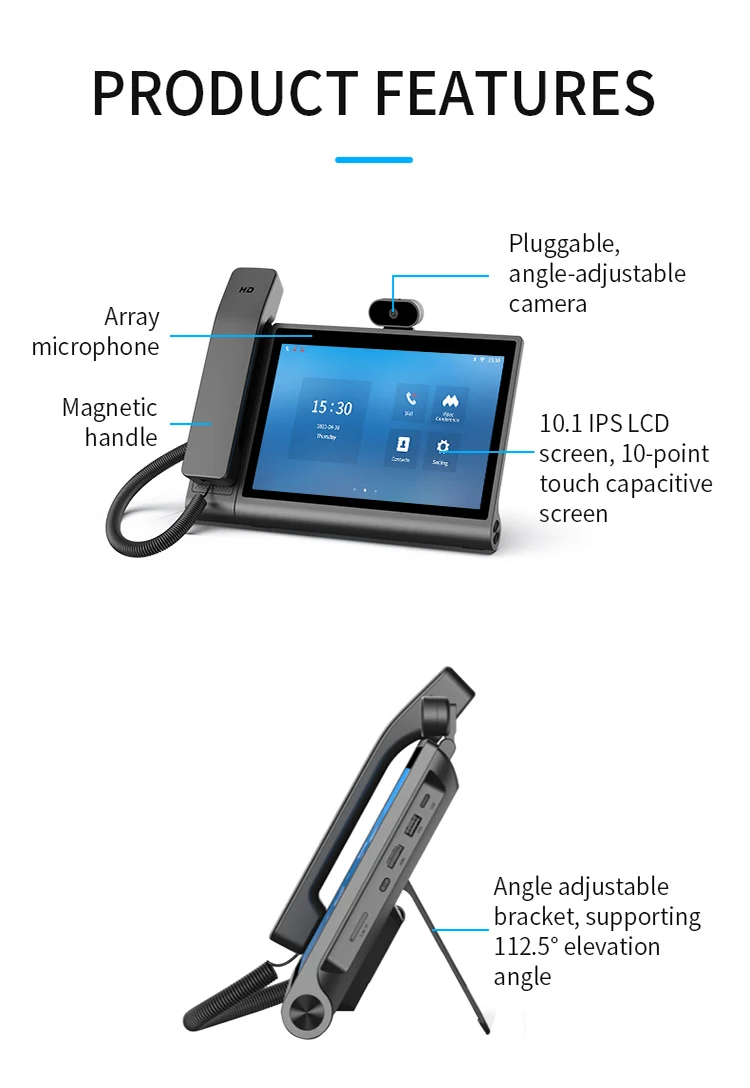

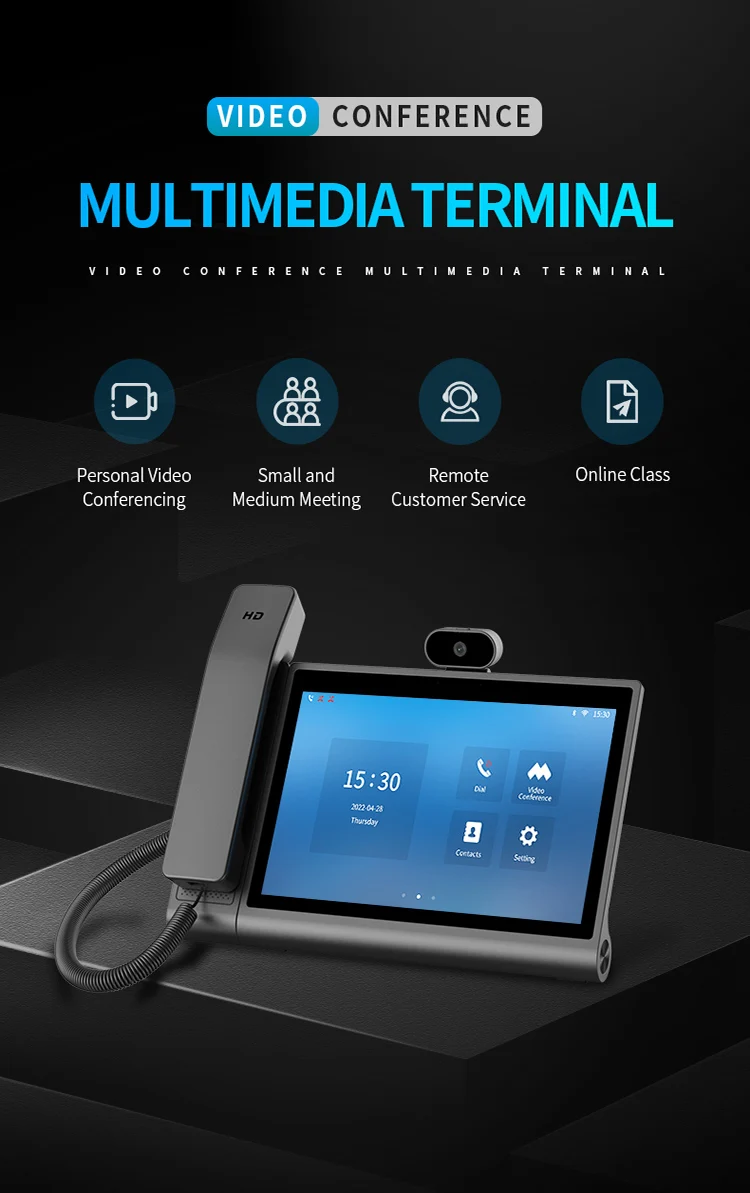

It integrates a 10.1-inchtouch screen, camera, 2*microphone, speaker and conference system. It uses sound pickup magic ball technology and environmental noise filtering technology to effectively eliminate interference background noise from surrounding keyboards, mic, etc. It uses a high-performance processor, supports high-definition video conferencing, and supports Tencent videoconferencing software; it is suitable for various application scenarios, such aspersonal video conferencing, small and medium-sized meetings, remote customer service, and online course assistance.

Product features
1. 200W front camera;
2. Support voice and video calls;
3. Support wired network communication;
4. Support automatic network time calibration;
5. Support remote upgrade;
6. Support secondary dialing for call services;
7. Support caller ID service;
8. Support address book function.

Product specification

System parameters
CPU frequency: 4 cores 4*Cortex-A55 (2.0GHz)
RAM: 4GB
ROM :32GB
Operating system: Android 12.0 (64-bit)

Screen display
Size: 10.1 inches
Resolution: 10-point touch, resolution 1280*800
External interface
Wi-Fi: 802.11a/b/g/n/ac 2.4G/5G dual-band
Bluetooth: 5.0
USB Type-C: upgrade, debug
USB Type-A: USB3.0, external mouse USB flash drive
POWER: power supply
TF card: maximum support 32G
HDMI interface: connect to HDMI terminal, support dual-screen display
Headphone port: RJ9, for external headphones
Network port: standard 2 RJ45 interfaces, Gigabit adaptive network port, one interface supports POE power supply
PHONE port: 1 PSTN telephone line interface

Power supply: DC 12V/1A±10%

Camera: CMOS pixel 2 million

Backlight: Provide color display backlight adjustment function

Operating temperature: 0°C~40°C

Operating humidity: 10%~95% (no condensation)

Atmospheric pressure: 86kPa~106kPa

Storage temperature: -20°C~50°C

Product size: 297*235*67mm

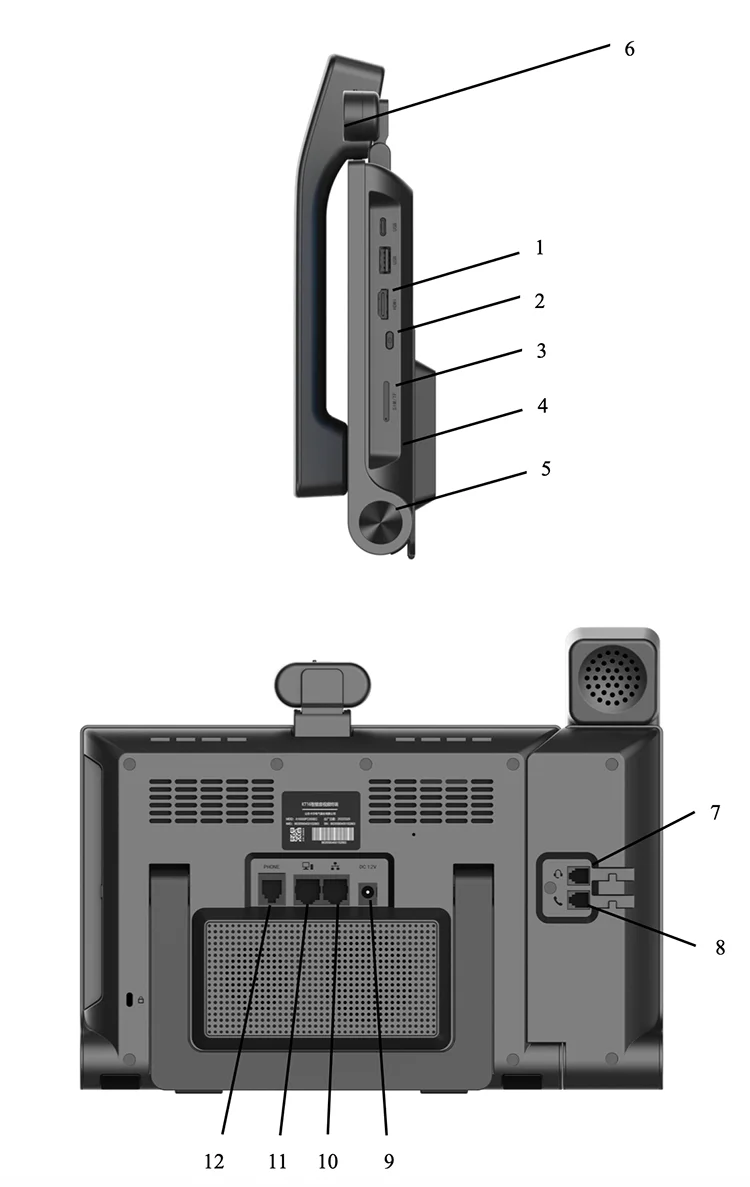

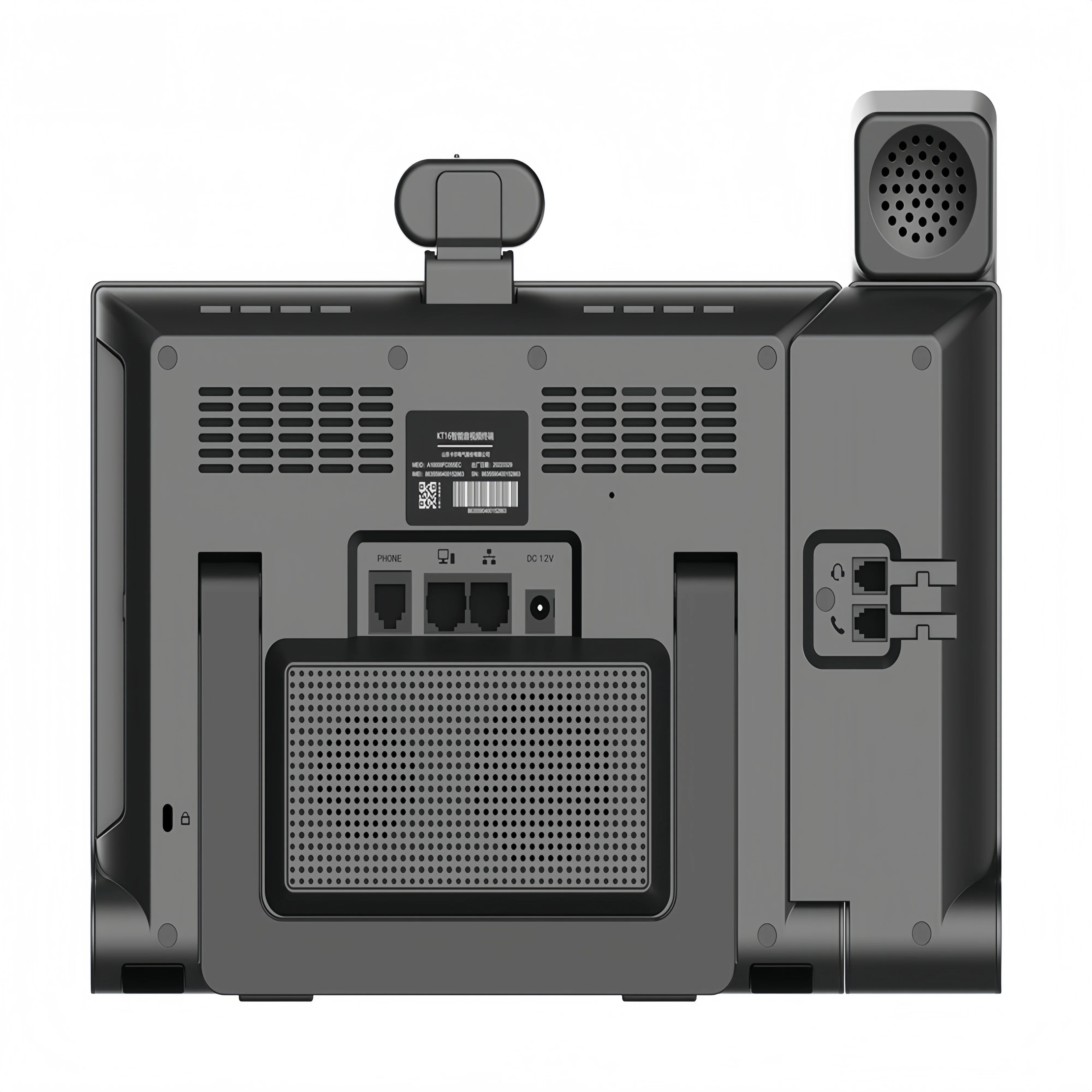

Product details

1. USB Type-C: Phone data interface, connected to a computer for upgrading or debugging;
2. USB Type-A: USB 3.0 interface, used to connect a mouse or USB flash drive;
3. HDMI interface: Connected to an HDMI terminal, supports dual-screen simultaneous display;
4. Power button:When the phone enters sleep mode, can wake it up by pressing the power button; pressing the power button again will turn off the screen;
5. SIM/TF: Insert a TF card for expansion, does not support SIM cards;
6. Front camera (optional): Can use the front camera for video calls;
7. Headphone interface: RJ9, insert headphones, and use headphones for media sound playback;

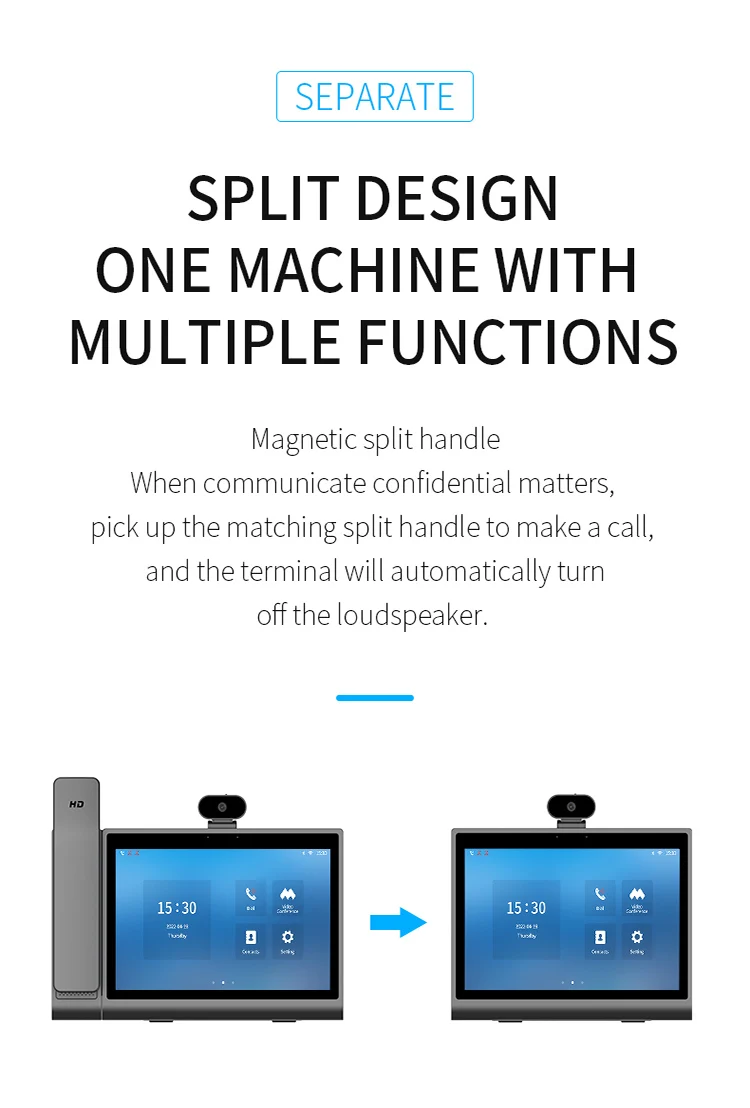

8. Handset interface: RJ9, after connecting the handset, you can use the handset for calls.
9. Power interface: Use the original power adapter to power the phone through the round power socket;
10. INTERNET+POE interface (POE optional): RJ45, connect to the router or switch via a network cable to access the Internet, support POE power supply;
11. PC interface: Connect to the PC via a network cable to share the Internet;
12. PSTN interface (optional): Connect to the traditional telephone line and use wired method to make calls.

Company profile

We offering ODM service for the pcba board and whole units, please feel free to contact us if you are interested.
