We are factory of network device for 12 years. Welcome to talk to us for wholesales price or dropshipping order. Please leave a message.
Features:
* 100m Transmission Distance,250m after use extend function(1000M model doesn’t have this function)

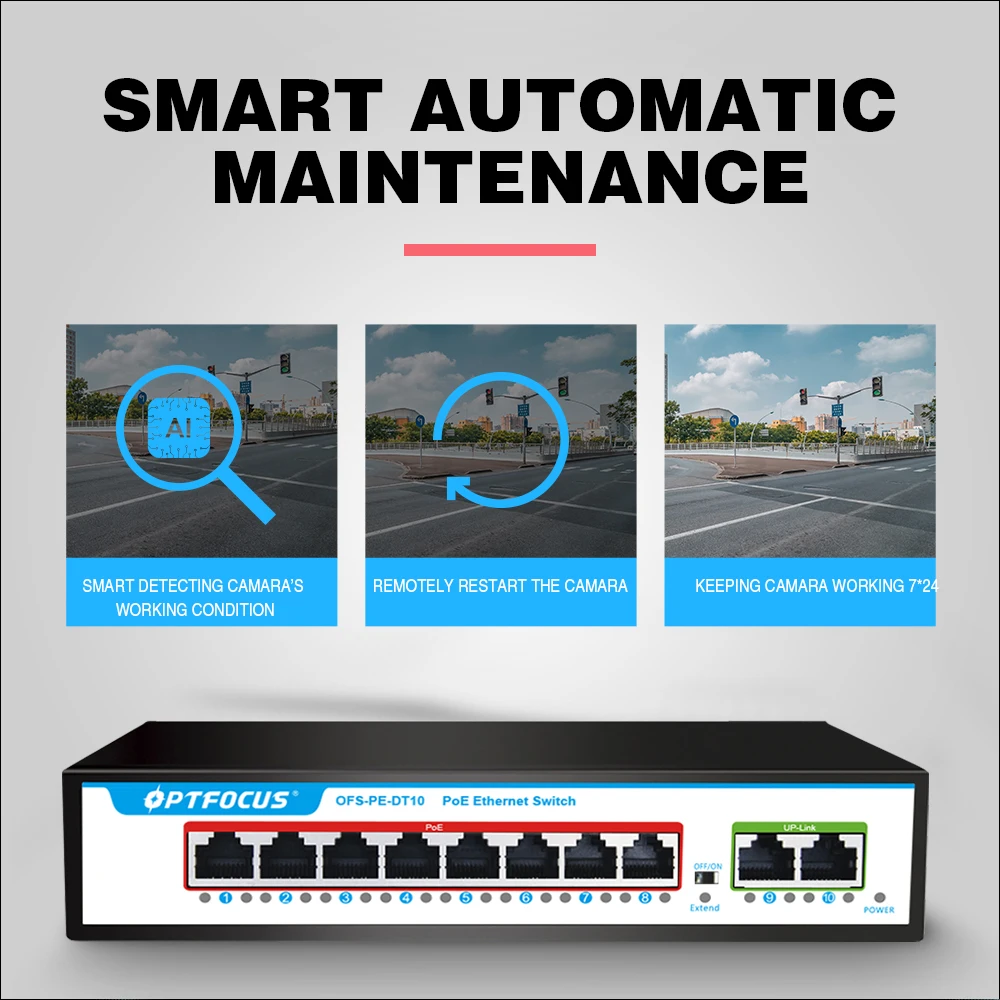

* AI smart WATCHDOG
* Compatible with IEEE802.3AF/AT
* The specification of the built-in power supply: 48-120W(52V)
* All port supported by MDI/MDIX auto flip and self negotiation

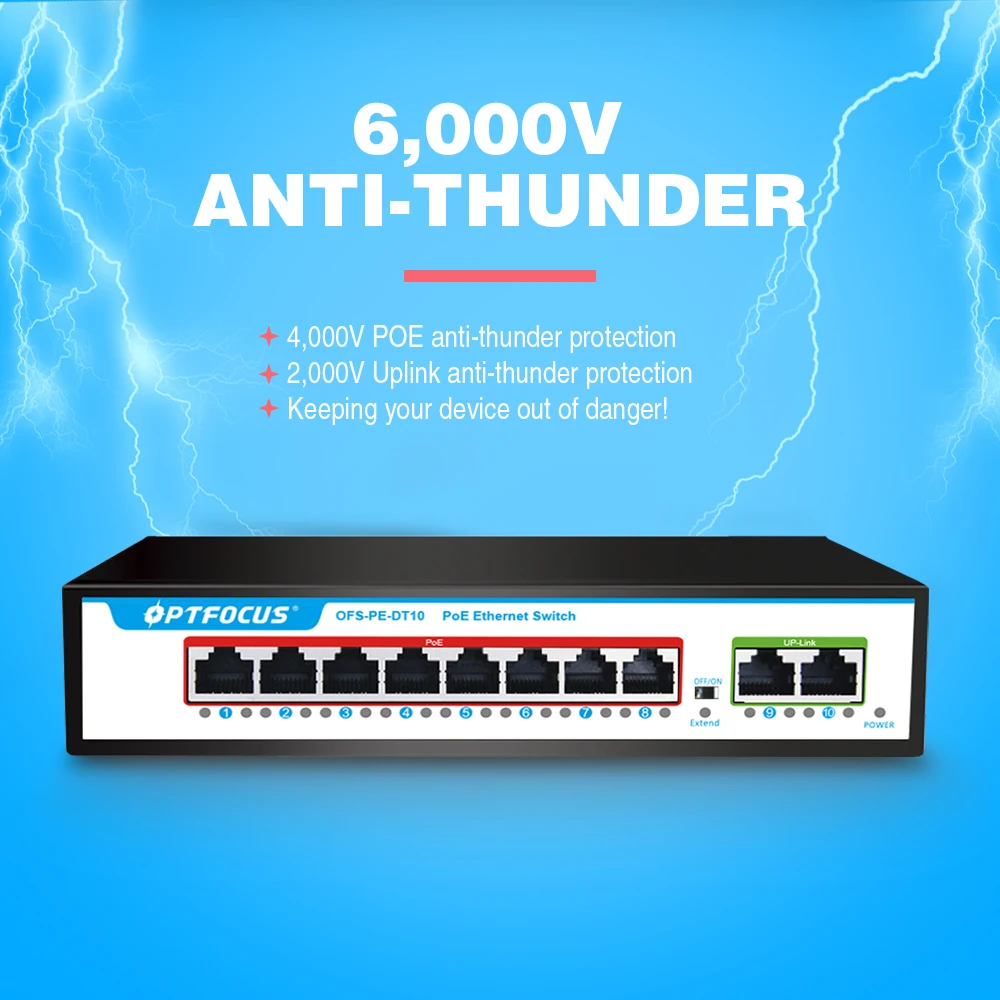

* Add high level lightning protection device, up to 6000V.
* Each port max. power supply reached 30W.
* Low heat design, safe and reliable, high stability
* Application:Wireless Access Point² IP Camera
IP Phone² Computer Networks

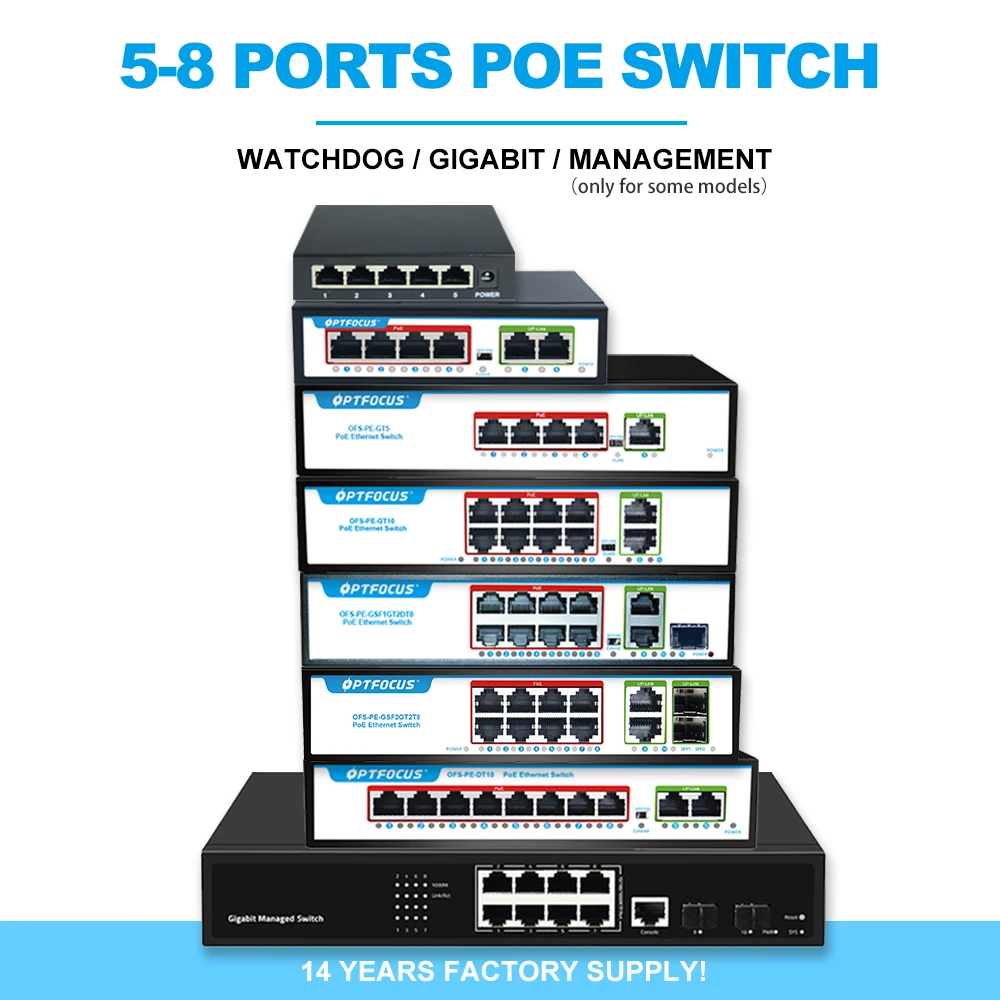

4-8 ports POE SWITCH
The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

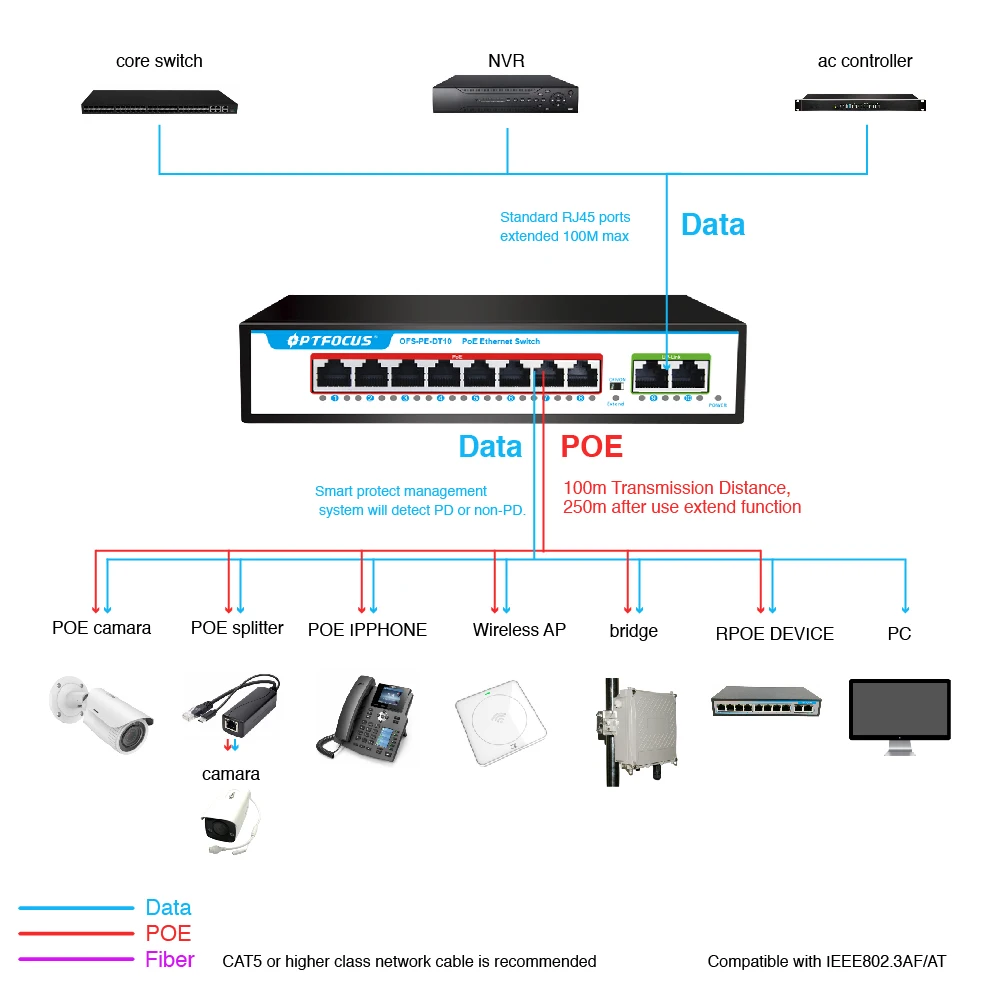

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

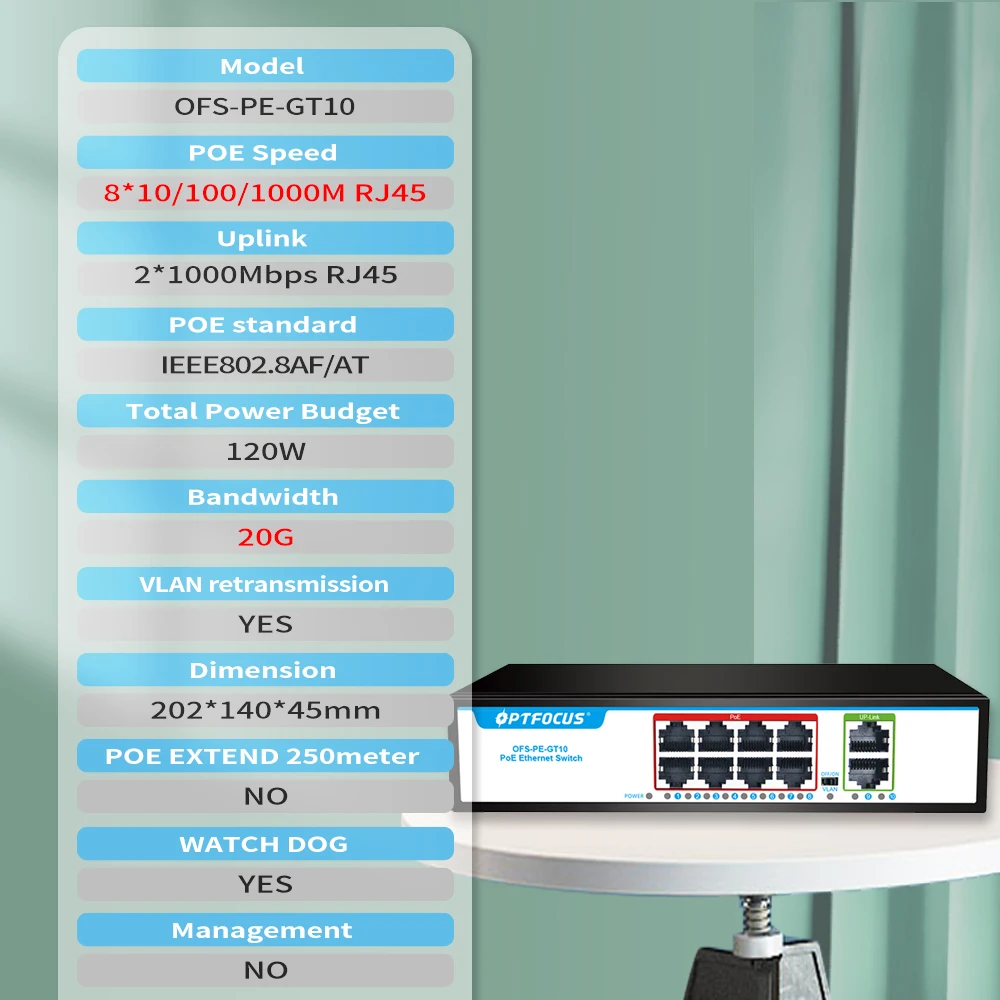

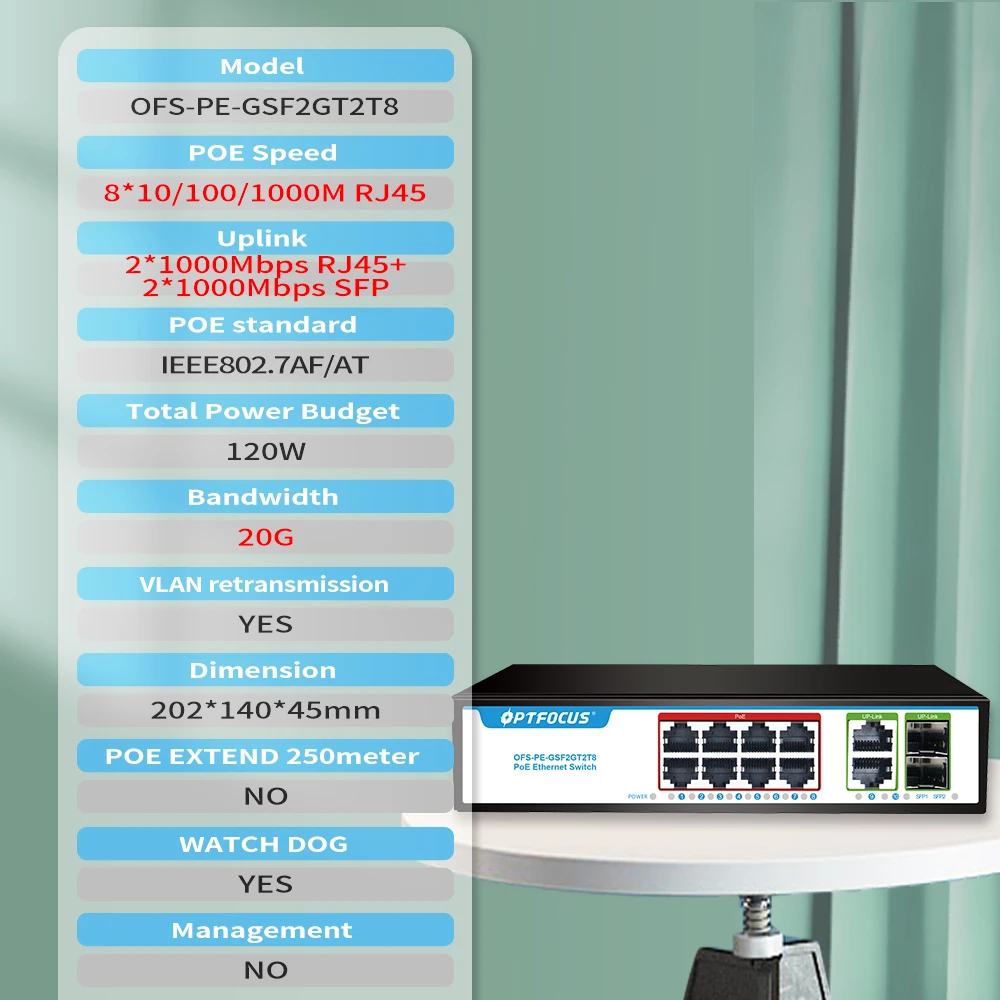

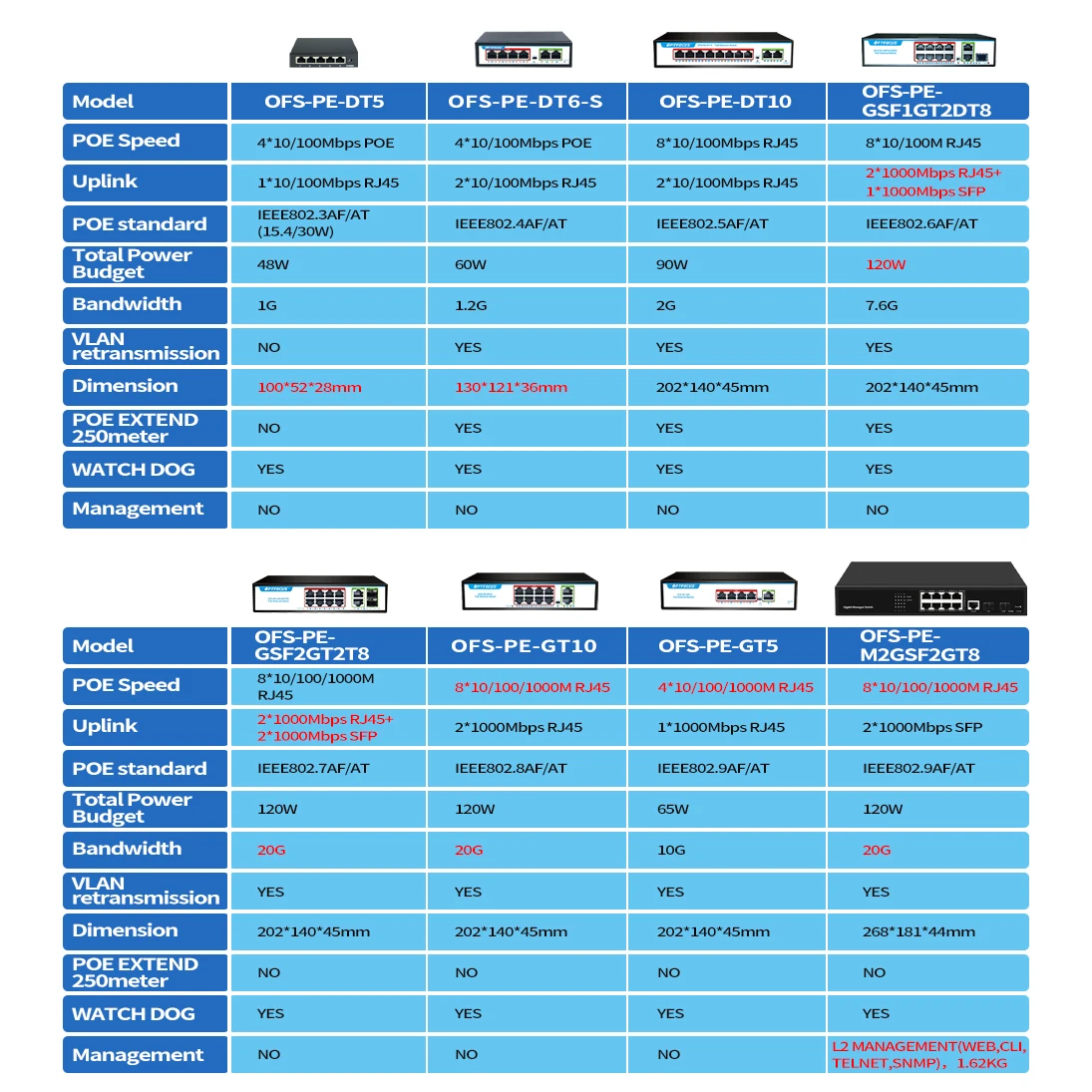

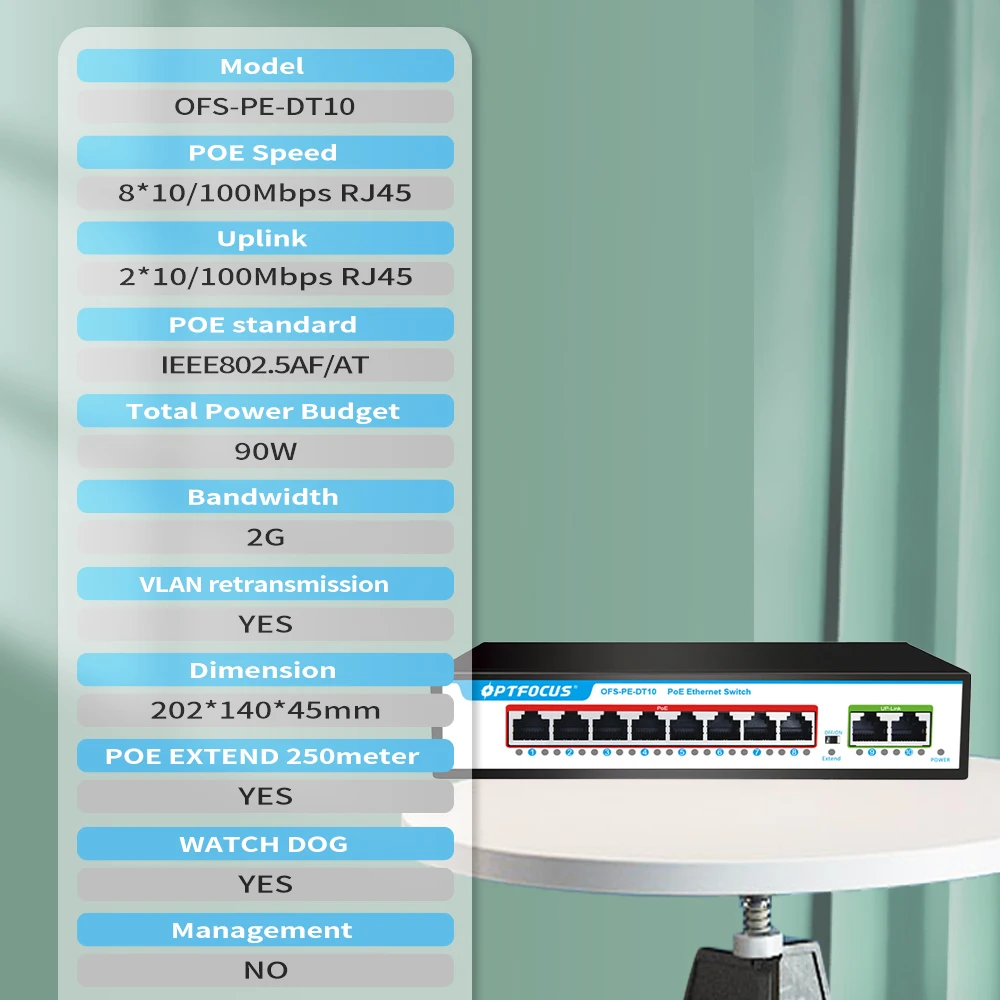

SPECIFICATION
Warranty1 years
Covering any quality problems that are not artificially damaged
Shipping: FREE SHIPPING
to Worldwide 10 countries by RedVozTelecom standard shipping service

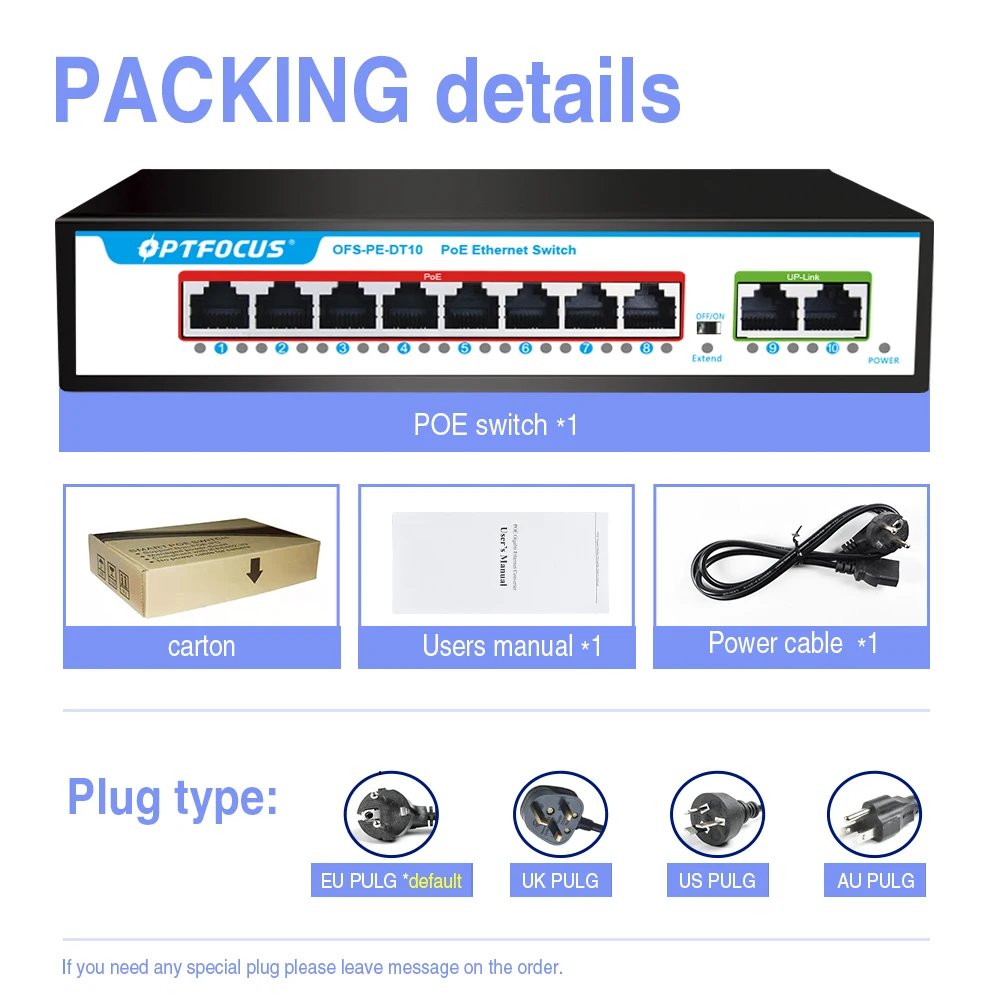

Packing list
1.Switch*1
2.Power adaptor or cable*1
3.Manual*1
please notice: Our default power adaptor is EU standard which is 2 round PIN. If you need any special plug please leave message on the order.
Something you must know:
1.If your address is defined as remote area, you’ll need pay extra remote shipping fee. or please give us a new another address that is not remote.
2.If you have any change for the order, Please leave message in the order.
3.Some nations require VAT or TAX code. Please provide before shipping.
4.Express do NOT cover any Tax and Duty! Please follow your nations policy to finish custom clearance.
5.Our shipping service is based on our forwarder provider. So if you need to ship by other carriers like DHL, UPS. Please consult our sales person for quotation.
COMPANY PROFILE
FAQ:
1.Distance to the camera?

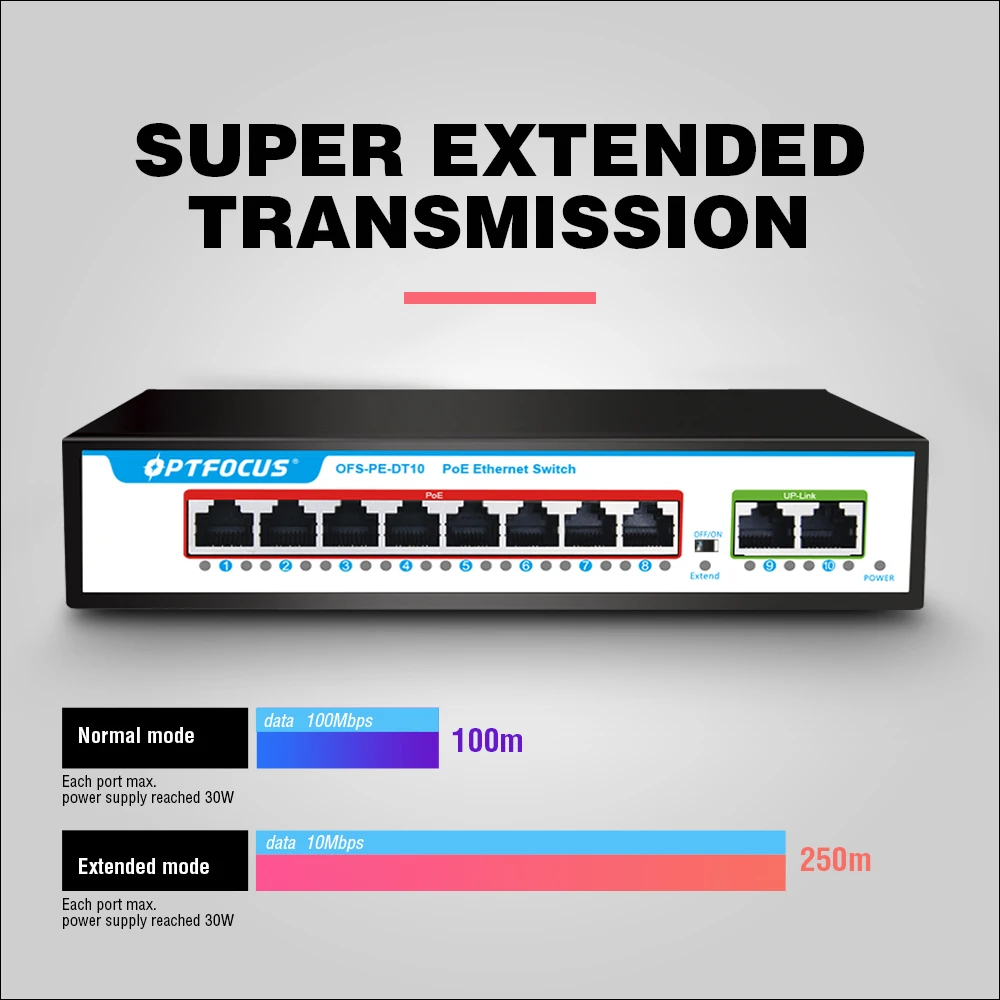

Our switch have 2 modes, EXTEND and NORMAL. EXTEND MODE supports 250M. NORMAL MODEL supports 100M.
PS: CAT5 or above level of cable was recommended.
2.Is that an active Poe? If the camera does not support Poe, will it not burn it?
Yes, it’s an ACTIVE POE. If camera doesn’t support POE, it will self-adaption and automatic select connection of POE or just data.
3.Which type of power adaptor?

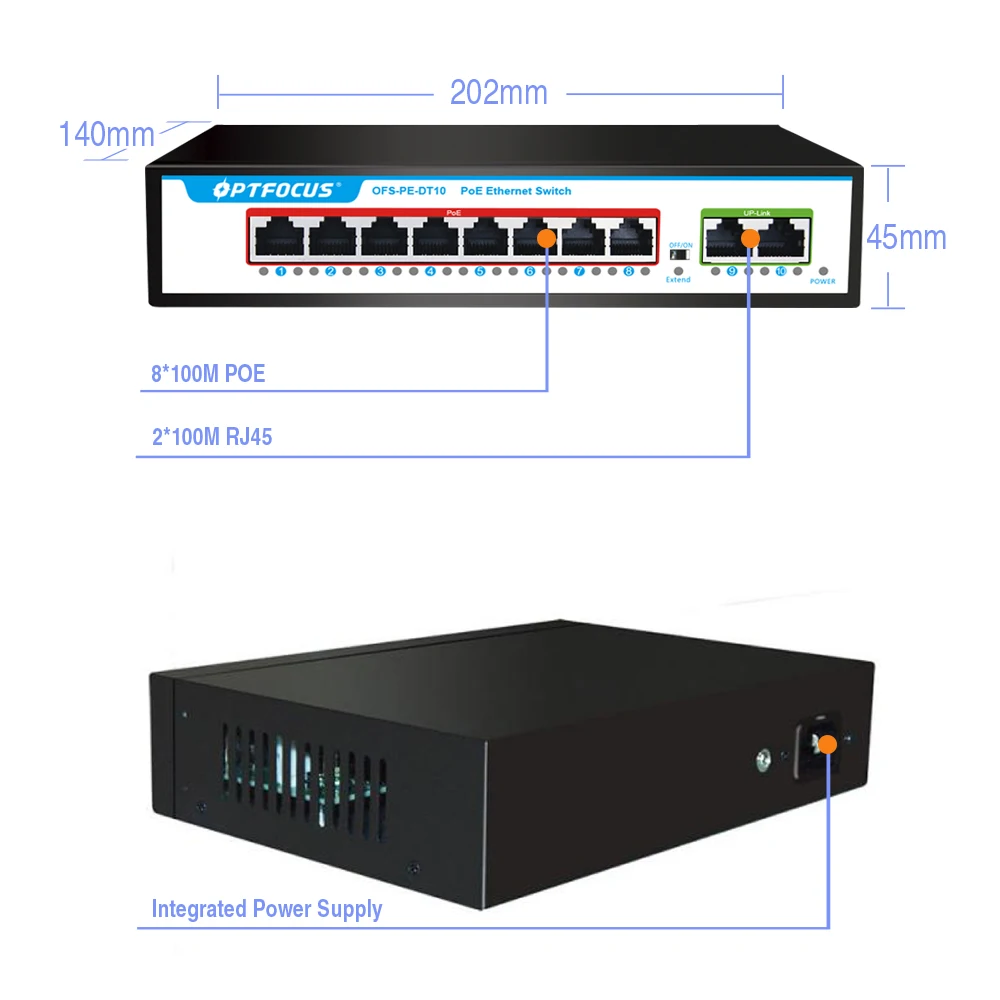

Our power adaptor internal. INPUT is 52V.
Plug type: EU PULG *default, US PULG, AU PULG
4.What’s the data and power transmission method?
30W per port(IEEE802.3af/at).
Wiring: Data & power provided over pairs 1/2 and 3/6.
5.Does it supports Auto- Crossover (MDI / MDI-X)?
All port supported by MDI/MDIX auto flip and self negotiation
6.how many cameras it can supply ?
A: Depend on the power budget. Our products power from 48W-120W. which could support 4-8 15W cameras
7.How many Watt single output POE?
15.4W/30W
