Overview

• Ruggedized design that meets industrial standards for temperature, vibration and electrical noise

• Flexible deployment with a compact design, and wide operating temperature, supporting external building and other outdoor and public-space environments

• Connect and power surveillance cameras, and other IoT devices with a single Ethernet connection

• Simple plug-and-play deployment for easy network edge expansion

Features and Benefits

• Wide operating temp range: -40°C to 75°C supports outdoor operation

• Fanless, with air convection cooling for high reliability

• Dual power input with reverse polarity and current overload protection

• IP40 Protection

• Aluminum Case

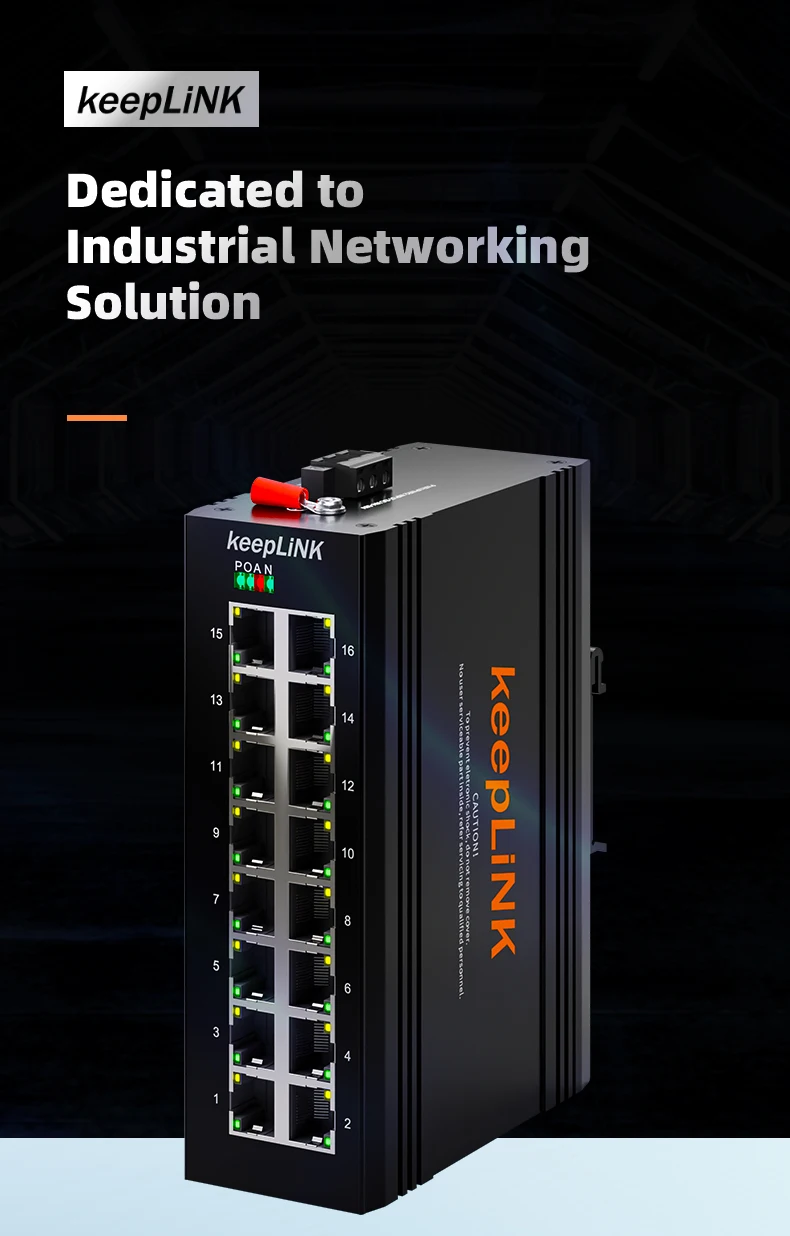

Dedicated to Industrial Networking Solution.

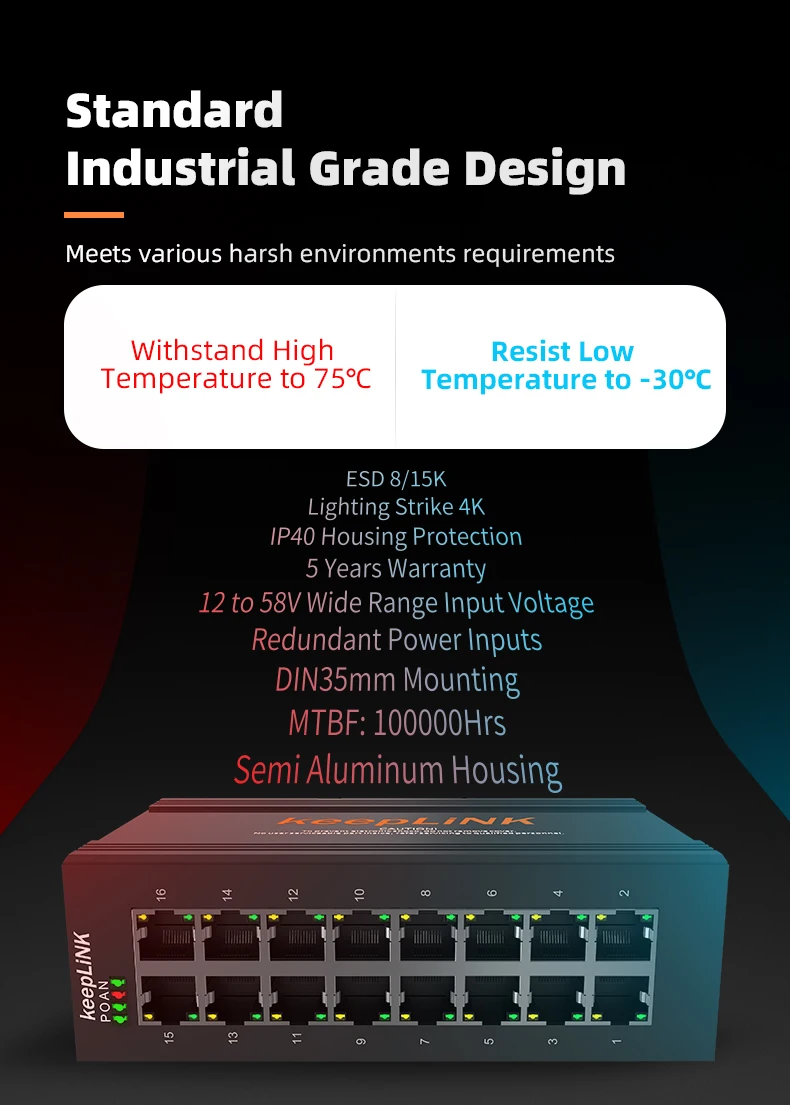

Standard Industrial Grade Design

Meets various harsh environments requirements.

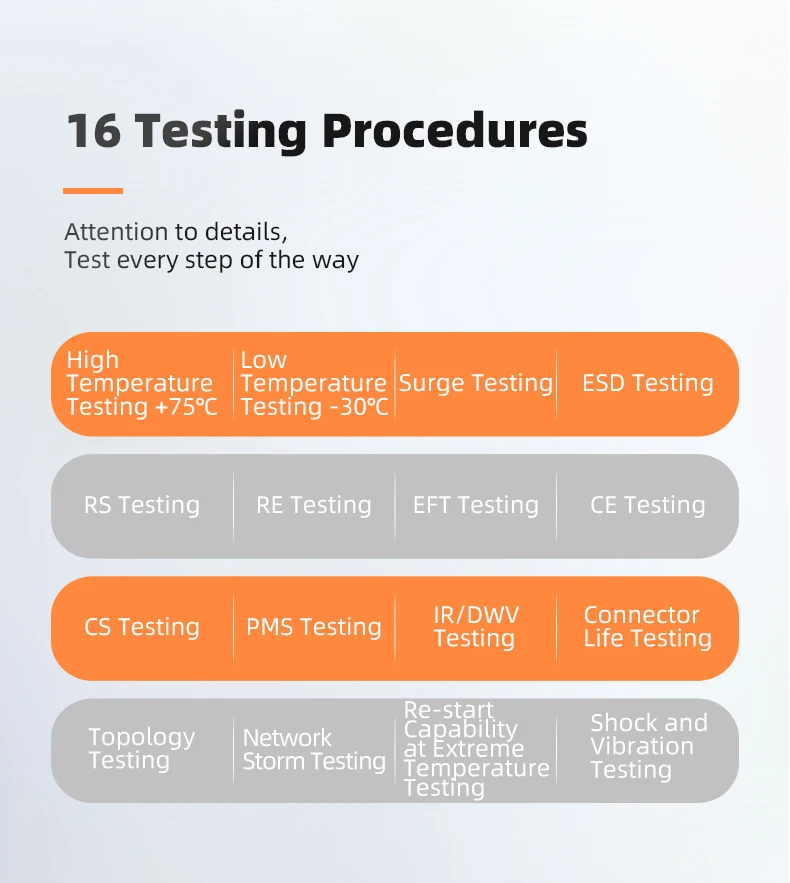

16 Testing Procedures

Attention to details, Test every step of the way

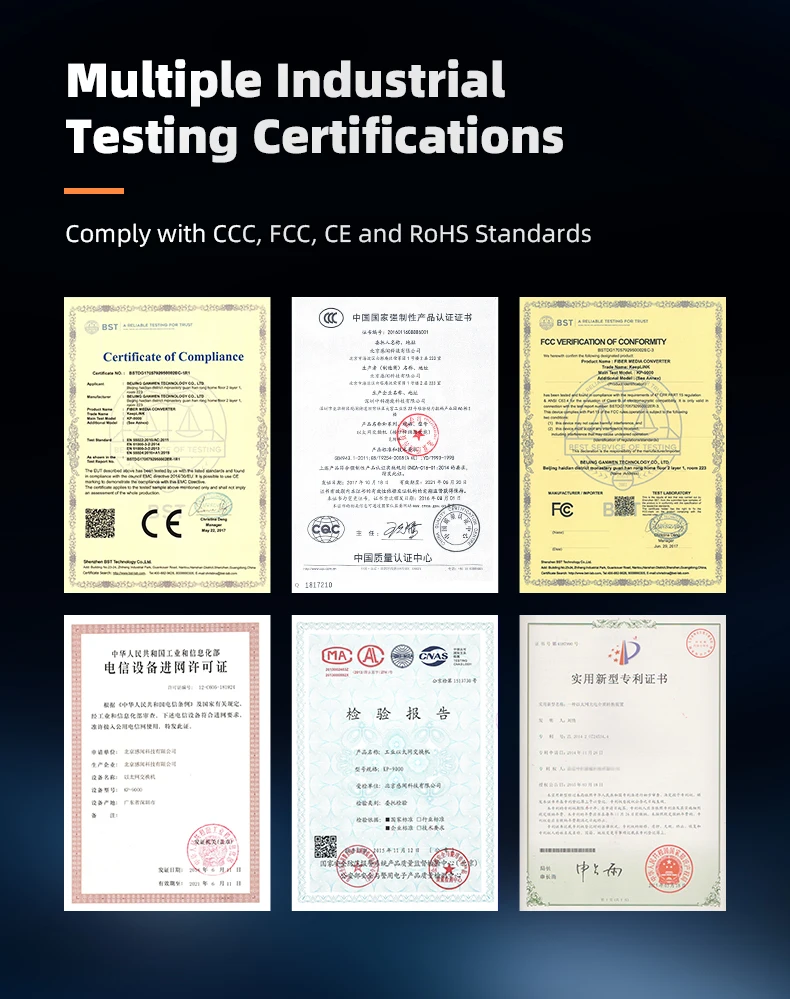

Multiple Industrial Testing Certifications

Comply with CCC, FCC, CE and RoHS Standards

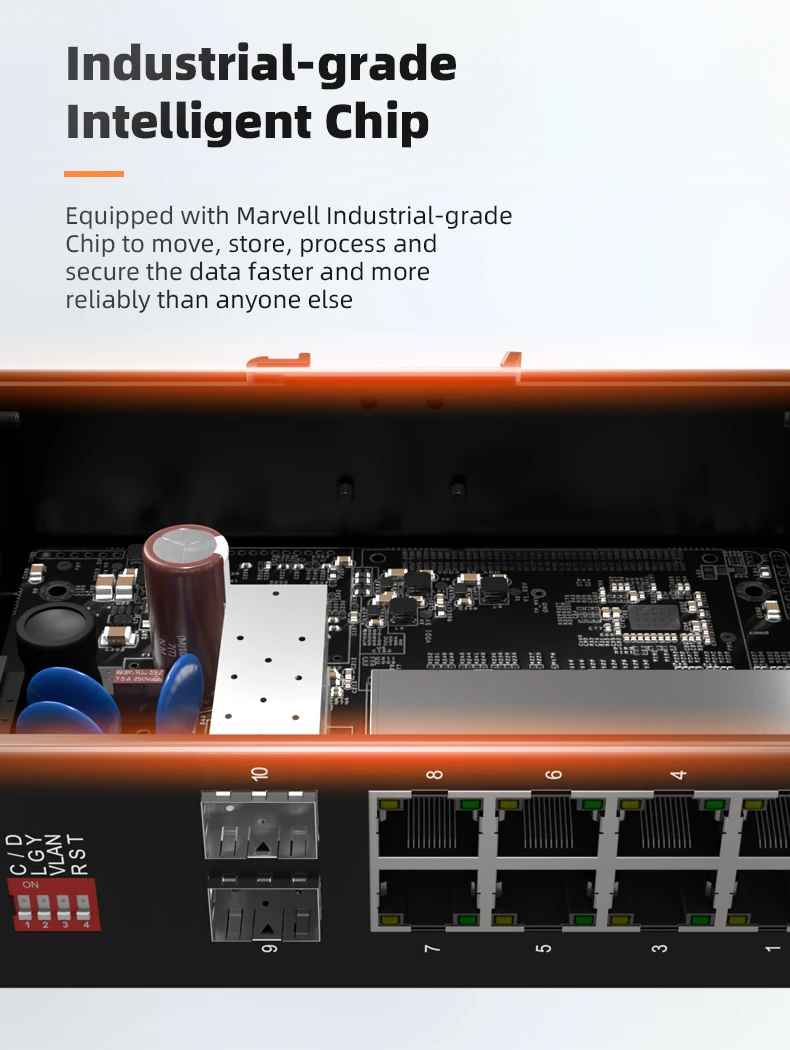

Industrial-grade Intelligent Chip

Equipped with Marvell Industrial-grade Chip to move, store, process and secure the data faster and more reliably than anyone else

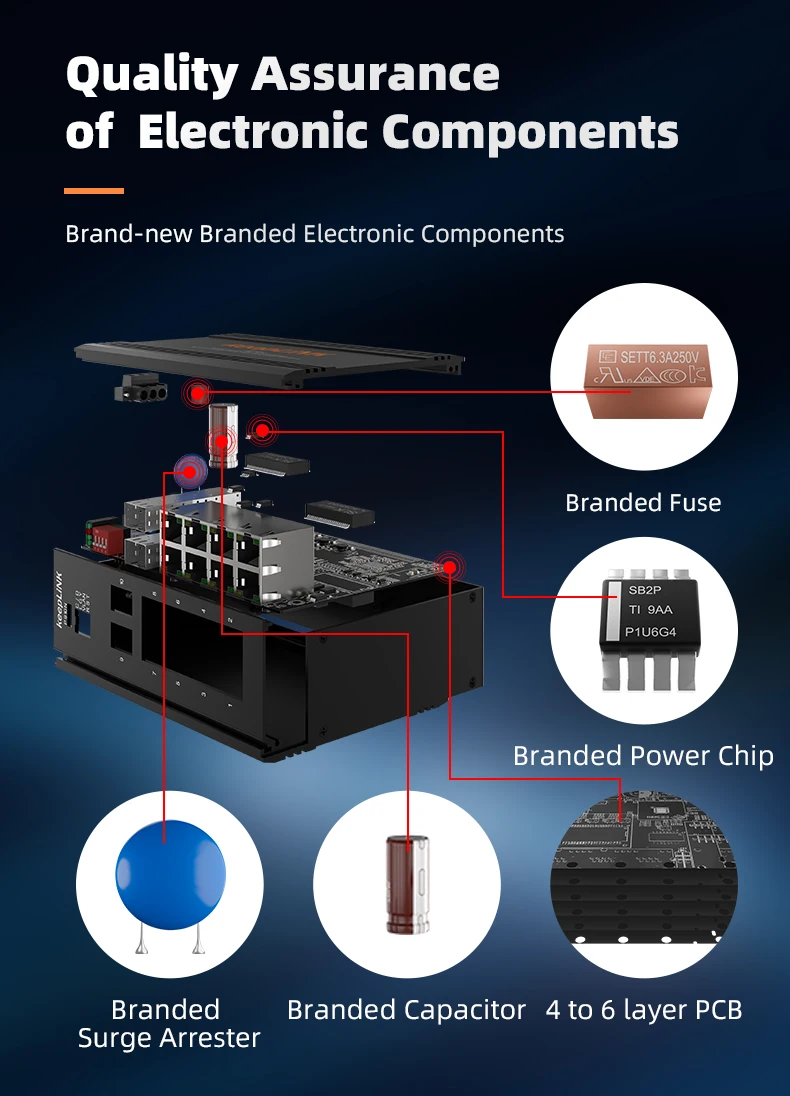

Quality Assurance of Electronic Components

Brand-new Branded Electronic Components

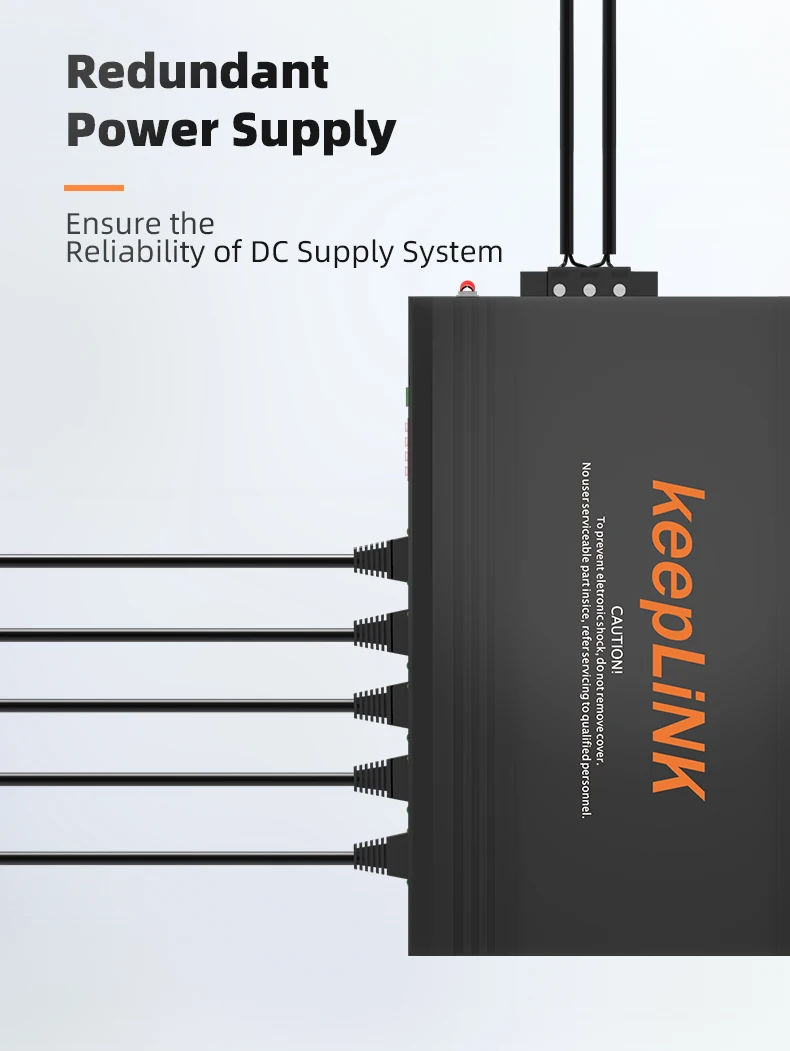

Redundant Power Supply

Ensure the Reliability of DC Supply System

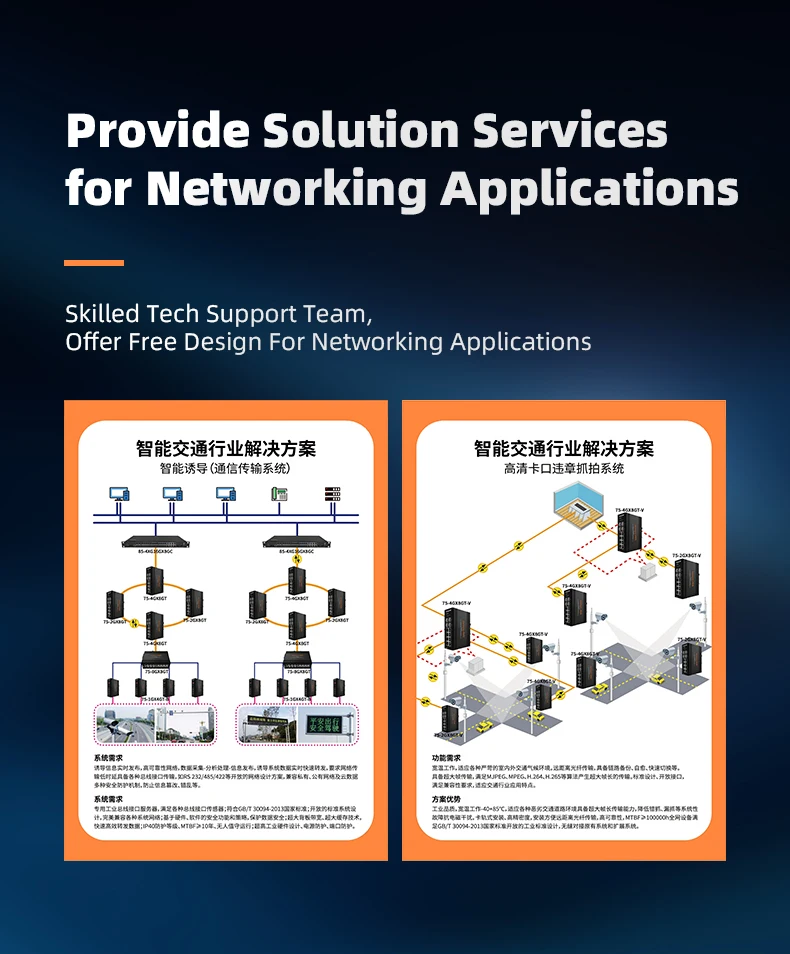

Provide Solution Services for Networking Applications

Skilled Tech Support Team, Offer Free Design For Networking Applications

Industrial-grade Strong Compatibility

Compatible with brands of PLC and Ethernet Switches

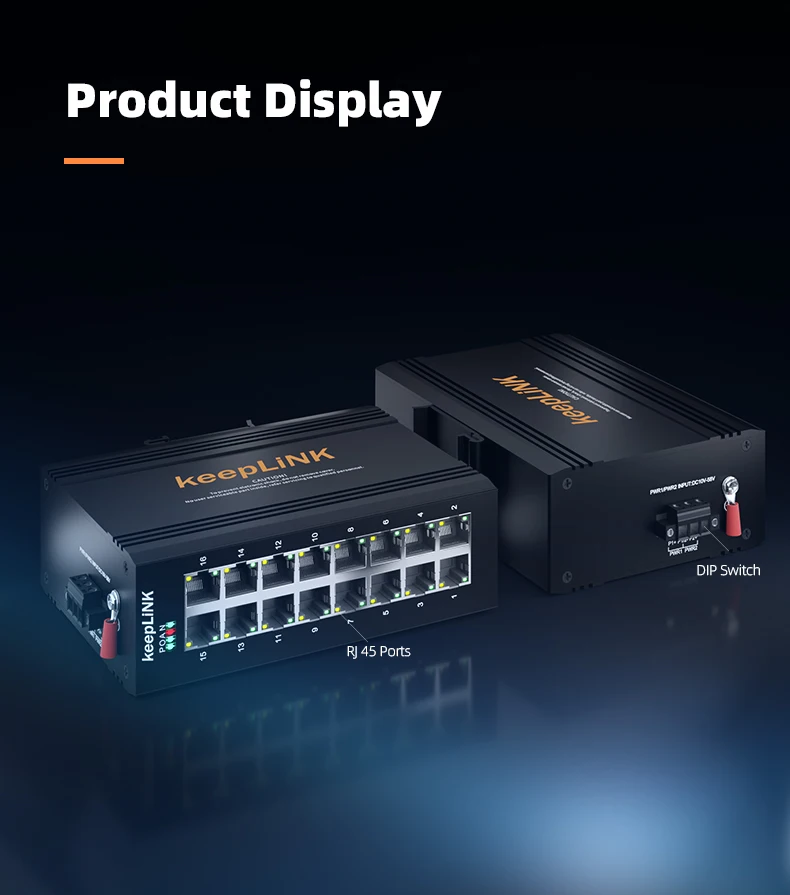

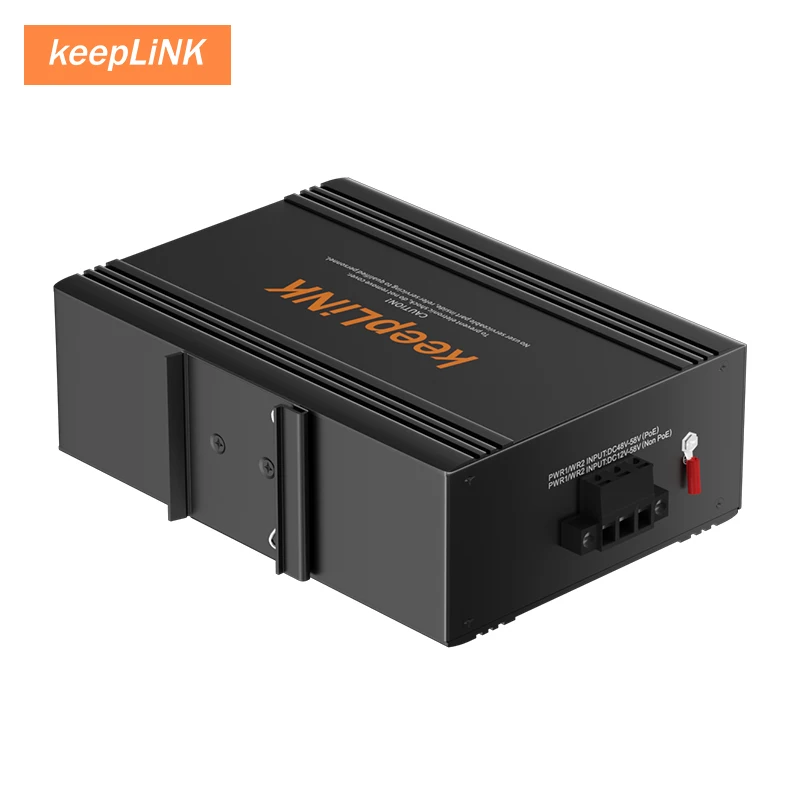

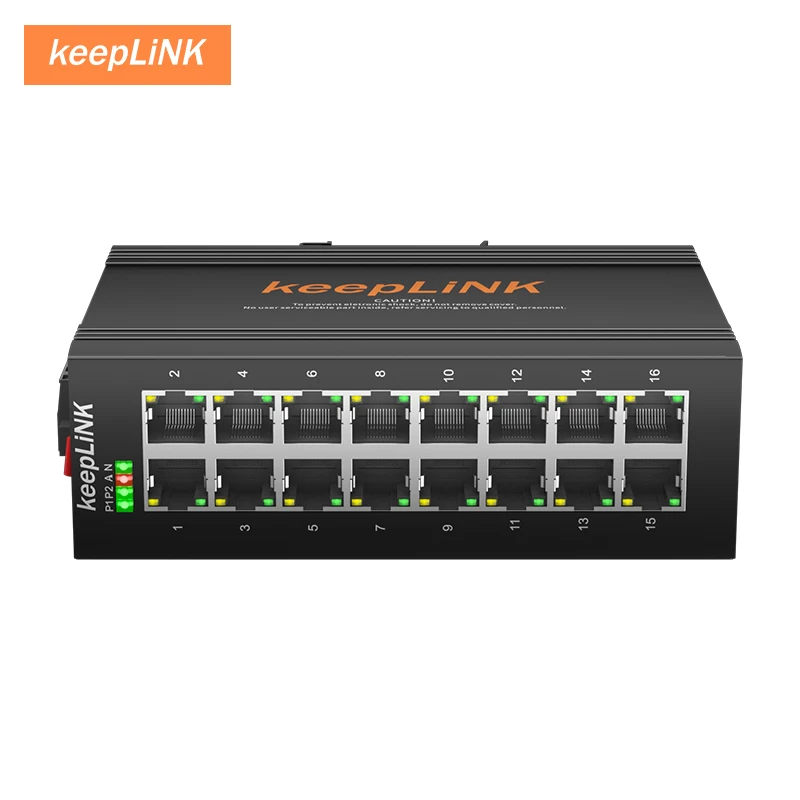

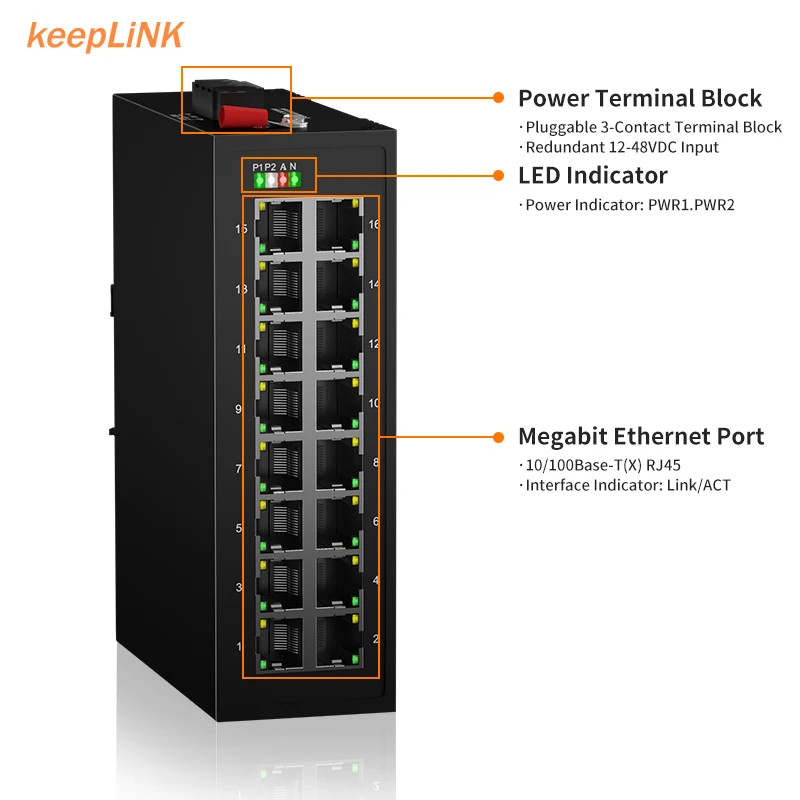

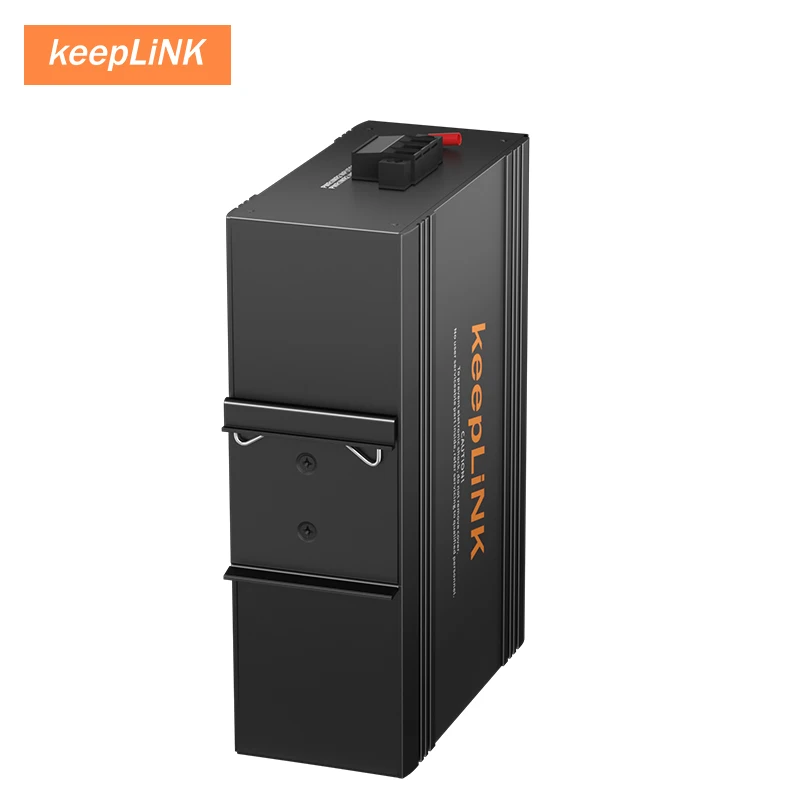

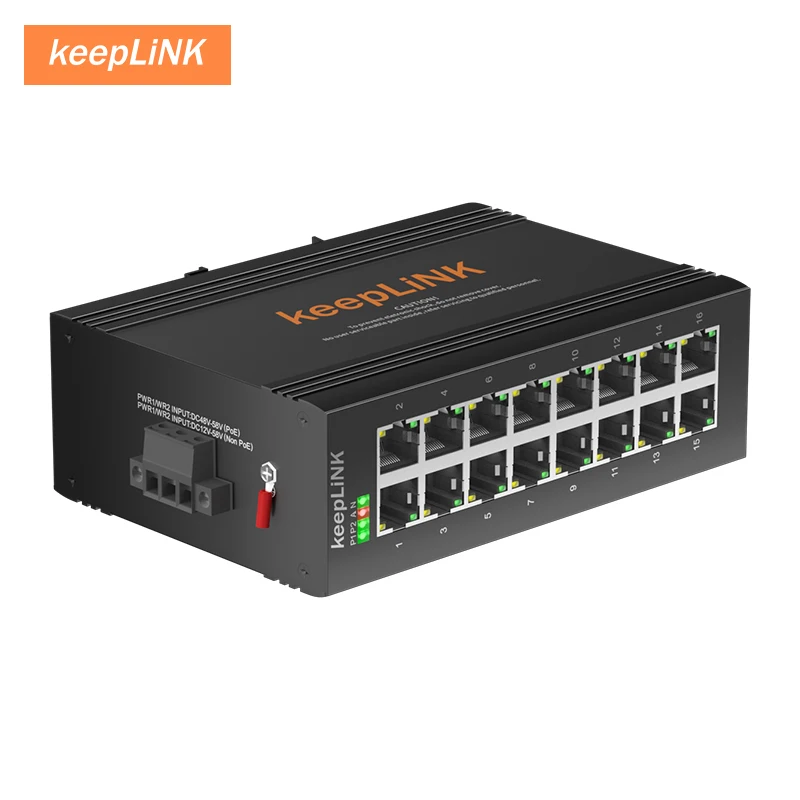

Product Display

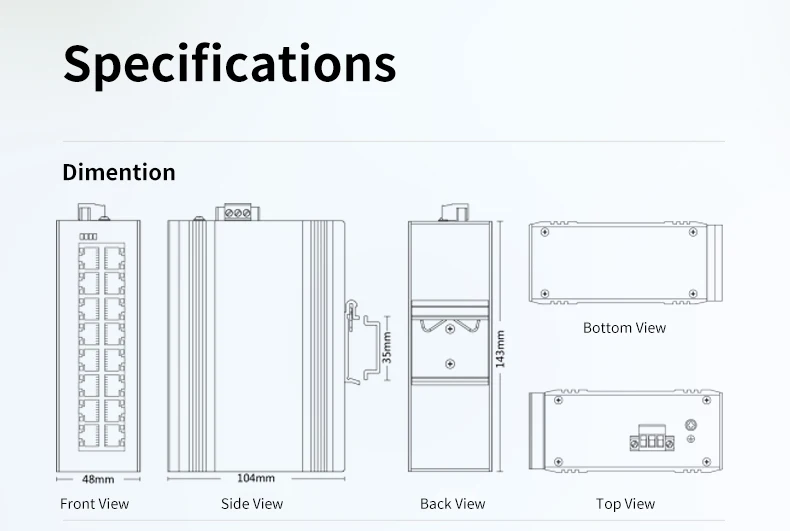

Dimention

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector): Support Auto negotiation speed, Full/half duplex mode
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT

Switch Properties

MAC Table Size: 8K
Switching Capacity: 32G
Packet Forwarding Rate: 23.8Mpps
Packet Buffer Size: 2M
Forwarding delay: <10us
Jumbo Frame: Support 10kbits
Processing Type: Store and Forward
Flow Control: supported
BSR: Supported
Port-Isolation: Supported
MDX/MIDX: Supported
Watch dog: Supported

Power Parameters

Connection: 1 removable 3-contact terminal Block(s)
Input Voltage: 12 to 58 VDC, Redundant dual inputs
Total Power Consumption: <6W
Overload Current Protection: Supported
Reverse Polarity Protection: Supported

DIP Switch Configuration

LFP: Reserve
LGY: Reserve
VLAN: Port Isolation
RST: Reset

Physical Characteristics

Housing: Aluminum
IP Rating: IP40
Dimensions:143*104*48 mm (5.63*4.09*1.89 in)
Weight:800g
Installation: DIN Rail Mounting

Environmental Limits

Operating Temperature: -40°C to 75°C (-40o 167°F)
Storage Temperature (package included): -40°C to 75°C (-40o 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Thermal Methods: Fanless

Standards and Certifications

Compliance Mark: CE RoHS FCC
EMC: EN 55032/24
EMI: FCC Part 15B Class A
Electrostatic Discharge (ESD): IEC 61000-4-2, Level 4, Contact: 8 kV; Air: 15 kV
Lighting/Surge immunity (Surge) : IEC 61000-4-5, Level 3, Power: 6 kV; Signal: 6 kV
Radiated Susceptibility (RS): IEC 61000-4-3 Level 3 10V/m
Electrical Fast Transient (EFT): IEC 61000-4-4 Level 3 1V/2V
Conducted immunity (CS): IEC 61000-4-6 Level 3 10V/m

Freefall: IEC 60068-2-31 Class T2.3(1m drop)
Shock: IEC60068-2-27: operational: 15g 11ms, half sine
MIL-STD-810G, 2008: operational: 15g 11ms, half sine
Vibration: IEC60068-2-6 operational: 1g@10-150Hz
MIL-STD-810G, 2008: operational: Procedure 1, Category 4, per Figure 514.6C-1

MTBF

Time: 100,000hrs
