Product Description:

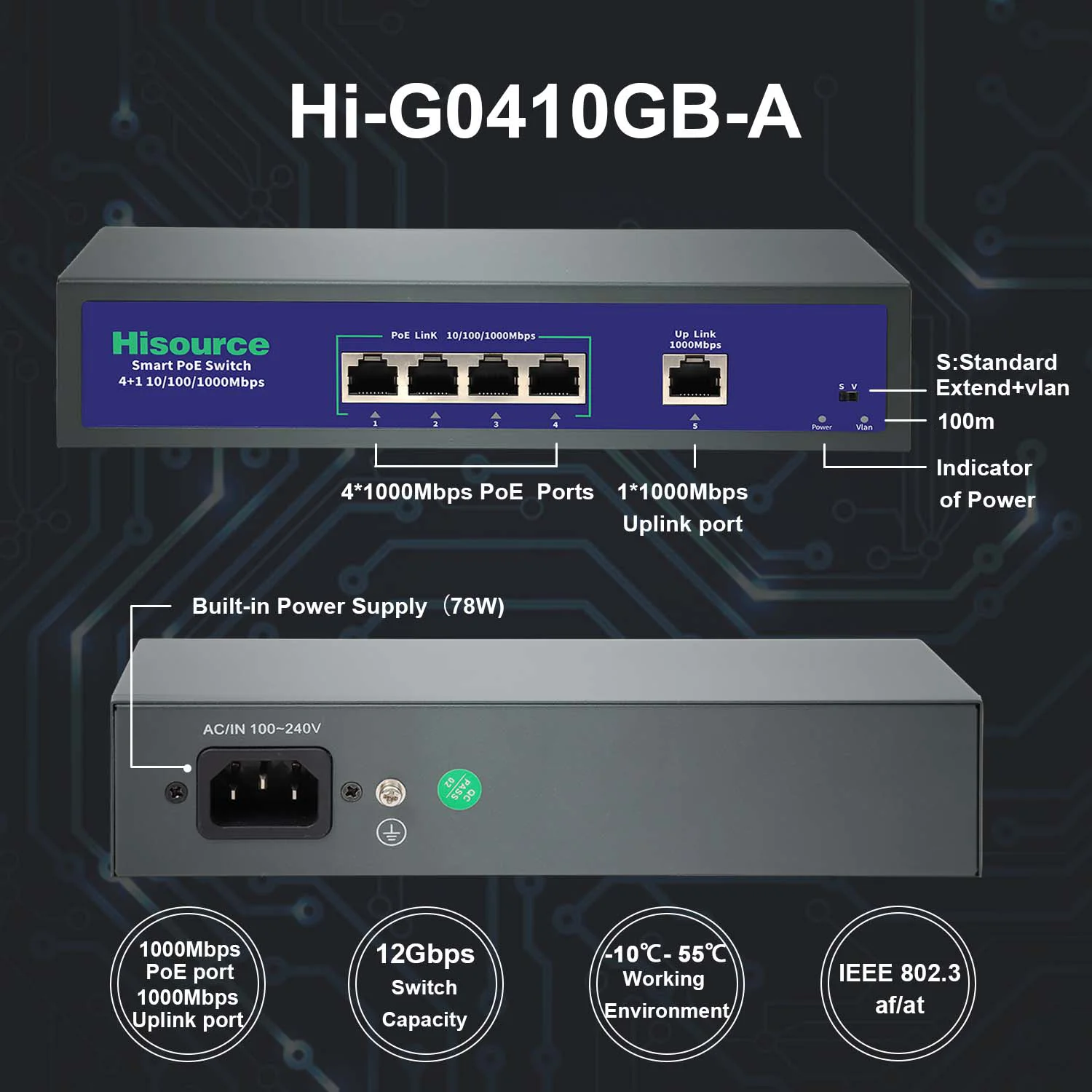

Hi-G0410GB-A Gigabit Ethernet PoE Switch provides 4 Gigabit PoE ports, 1 Gigabit uplink port,the PoE ports meet 802.3af/at standard. The PoE ports meet the 802.3af/at standard. It supports two working modes (Standard, VLAN) and the maximum power is 75W.
Product Characteristics:
• 4*10/1000Mbps POE power supply ports.
• 1 Gigabit uplink port.

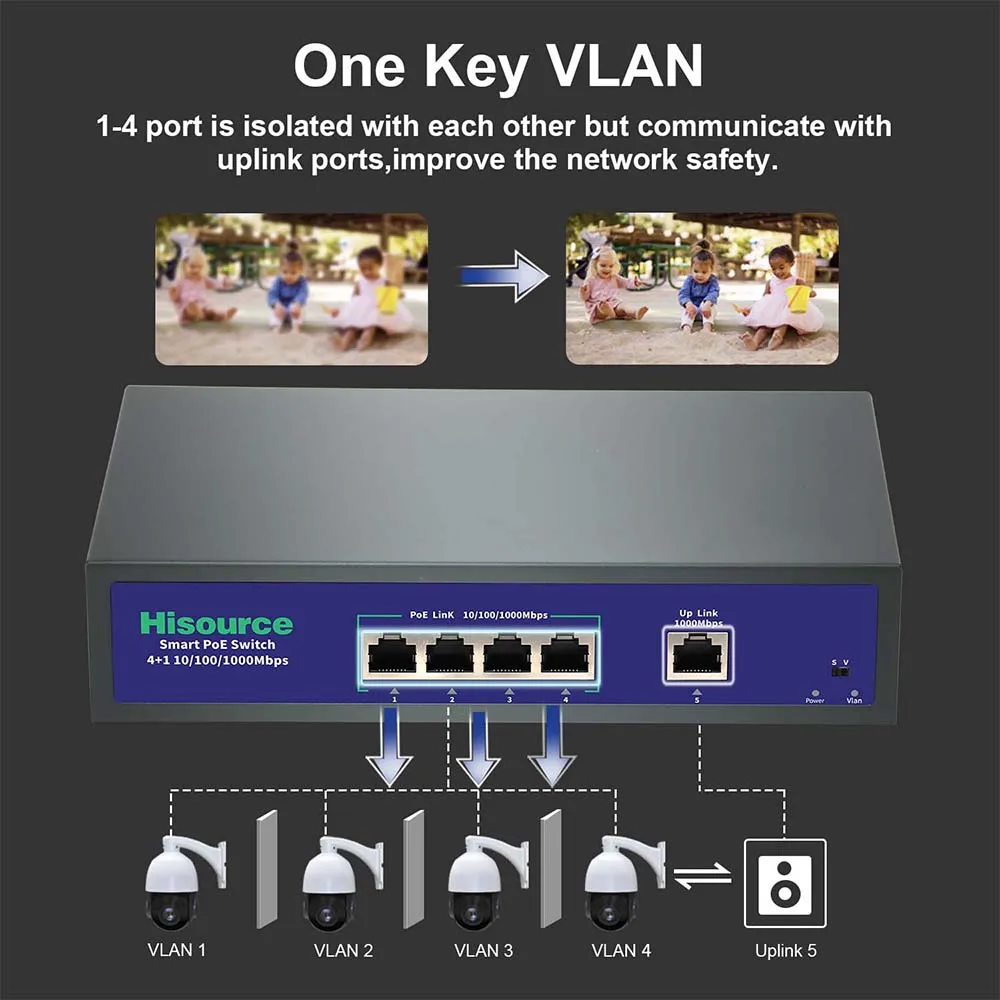

• With PoE port isolated VLAN function.
|
Product Model |
Hi-G0410GB-A |
|
Network Standard |
IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.3ab |
|
Port |
4*100/1000Mbps POE Ports,1*Gigabit uplink Port |
|
Network Transmission Medium |
10/100/1000BASE-TX: Category 5 and above unshielded twisted-pair cable |
|
Performance |
Store and forward Packet Forwarding Ratio 8.92Mpps 100M Transmission VLAN |
|
POE Standard |
IEEE 802.3af/at |
|
Whole Power |
≤75W |
|
Each Power |
≤30W |
|
POE Output Voltage |
DC52V±5% 1.5A |
|
PoE Transmission Cores |
1/2+, 3/6- wire pairs |
|
Forwarding Rate |
10BASE-tx:14880pps/port 100BASE-tx148800pps/port 1000BASE-tx1488000pps/port |
|
Port Function |
Power supply priority mechanism, fast and forward, MAC auto Learning and AgingIEEE802.3X full duplex flow control with Backpressure Half-duplex flow control |
|
Environment |
Operating Temperature-10℃ – -55℃ |
|
Weight &Size |
0.8KG |
Product Description:

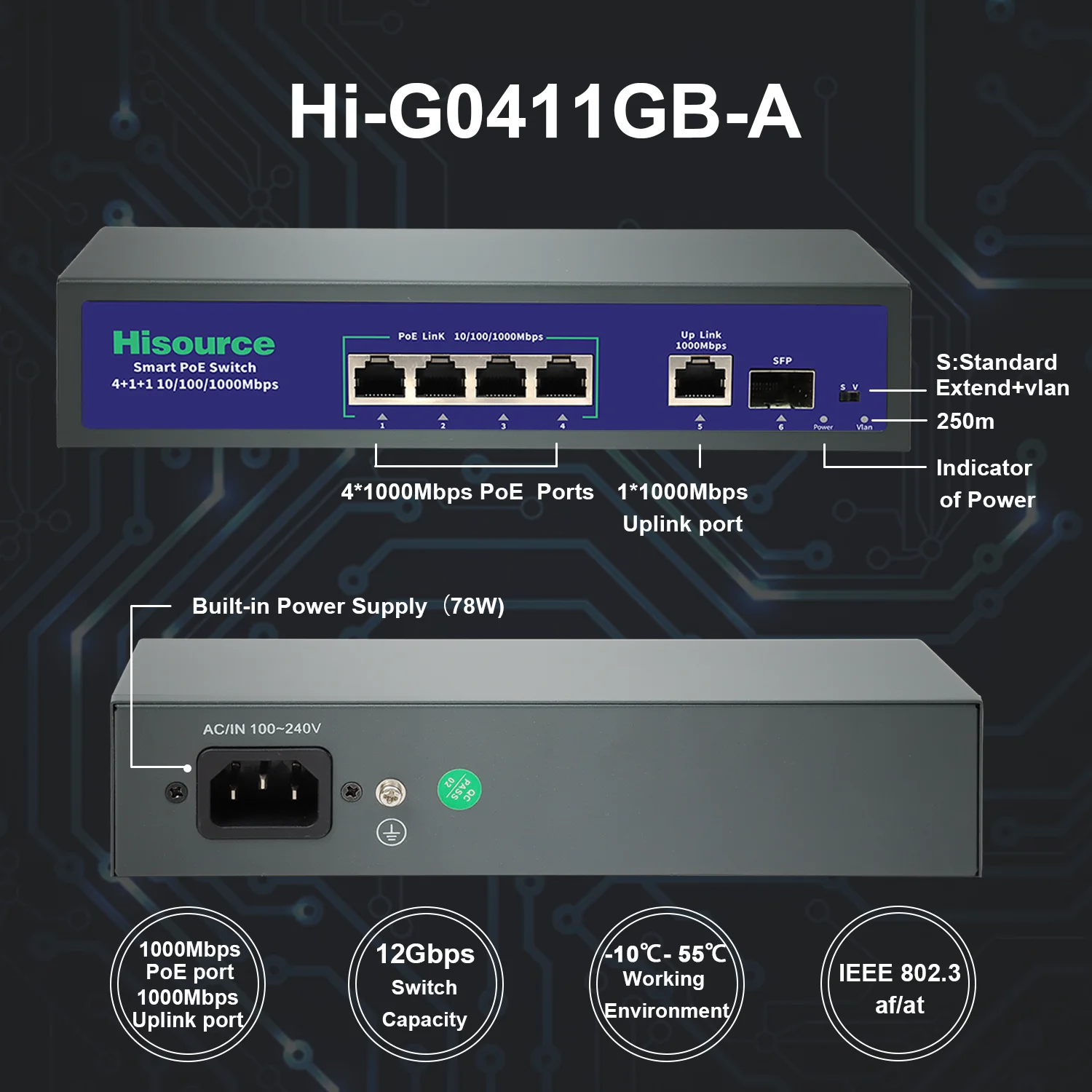

Hi-G0411GB-A Gigabit Ethernet PoE Switch provides 4 Gigabit PoE ports, 1 Gigabit uplink port and 1 SFP optical port, the PoE ports meet 802.3af/at standard. The PoE ports meet the 802.3af/at standard. It supports two working modes (Standard, VLAN) and the maximum power is 75W.
Product Characteristics:
• 4*100/1000Mbps POE powered ports.
• 1 Gigabit uplink port, 1 Gigabit SFP optical port.
• With PoE port isolated VLAN function.
|
Product Model |
Hi-G0411GB-A |
|
Network Standard |
IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.3ab |
|
Port |
4*100/1000Mbps POE Ports,1*Gigabit uplink Port,1 Gigabit SFP Optical Port |
|
Network Transmission Medium |
10/100/1000BASE-TX: Category 5 and above unshielded twisted-pair cable |
|
Performance |
Store and forward Packet Forwarding Ratio8.92Mpps 100M Transmission VLAN |
|
POE Standard |
IEEE 802.3af/at |
|
Whole Power |
≤75W |
|
Each Power |
≤30W |
|
POE Output Voltage |
DC52V±5% 1.5A |
|
PoE Transmission Cores |
1/2+, 3/6- wire pairs |
|
Forwarding Rate |
10BASE-tx:14880pps/port 100BASE-tx148800pps/port |
|
Port Function |
Power supply priority mechanism, fast and forward, MAC auto Learning and AgingIEEE802.3X full duplex flow control with Backpressure Half-duplex flow control |
|
Environment |
Operating Temperature-10℃ – -55℃ |
|
Weight &Size |
0.8KG |
