ProductDescription:

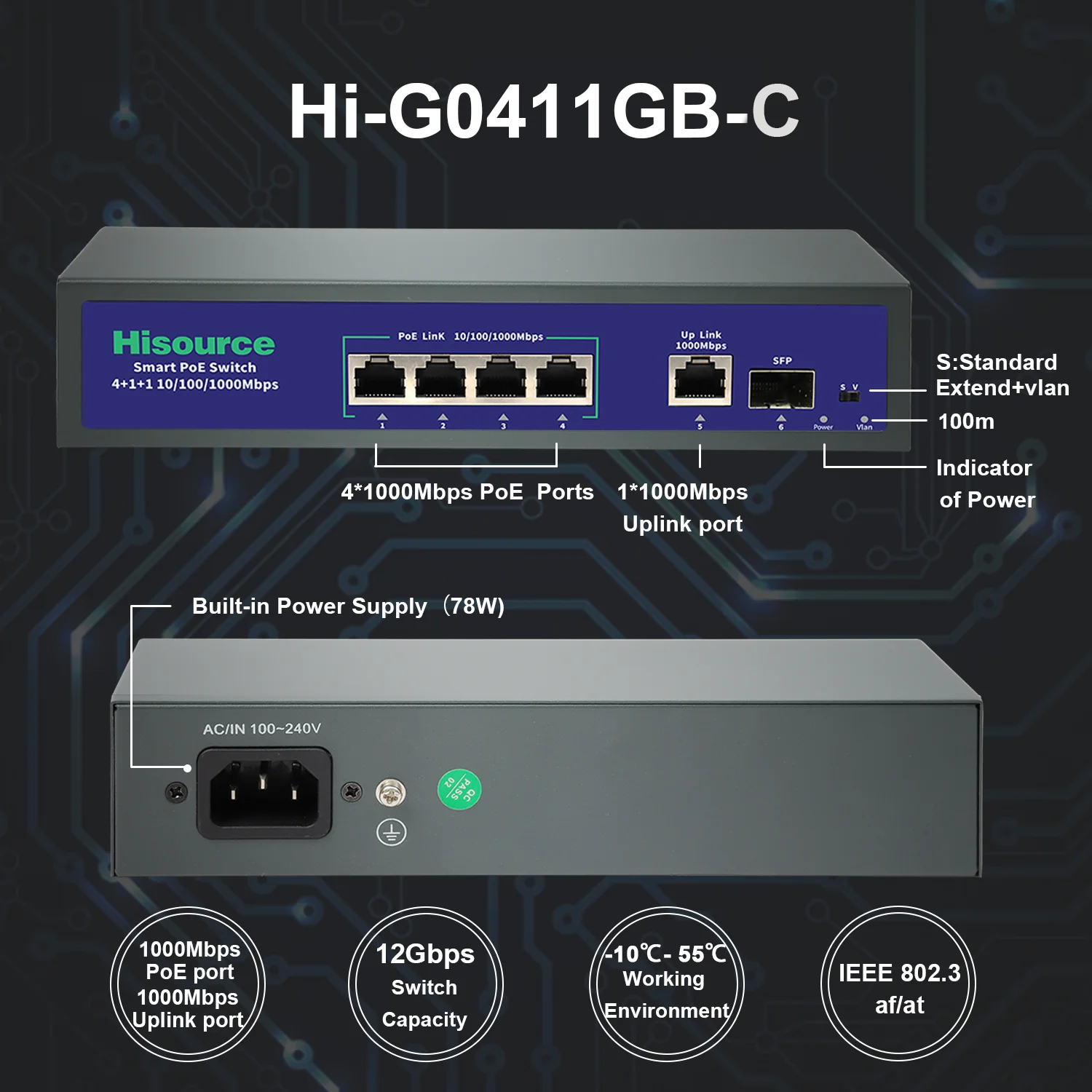

Hi-G0411GB-C Gigabit Ethernet PoE Switch provides 4*100/1000Mbps PoE ports, 1 Gigabit uplink port and 1 SFP optical port, the PoE ports meet 802.3af/at standard. The PoE ports meet the 802.3af/at standard. It supports 2 working modes (Standard, VLAN) and the maximum power is 75W.
Product Feacture:
• 4 POE powered ports.
• 1 Gigabit uplink port, 1 Gigabit SFP optical port.

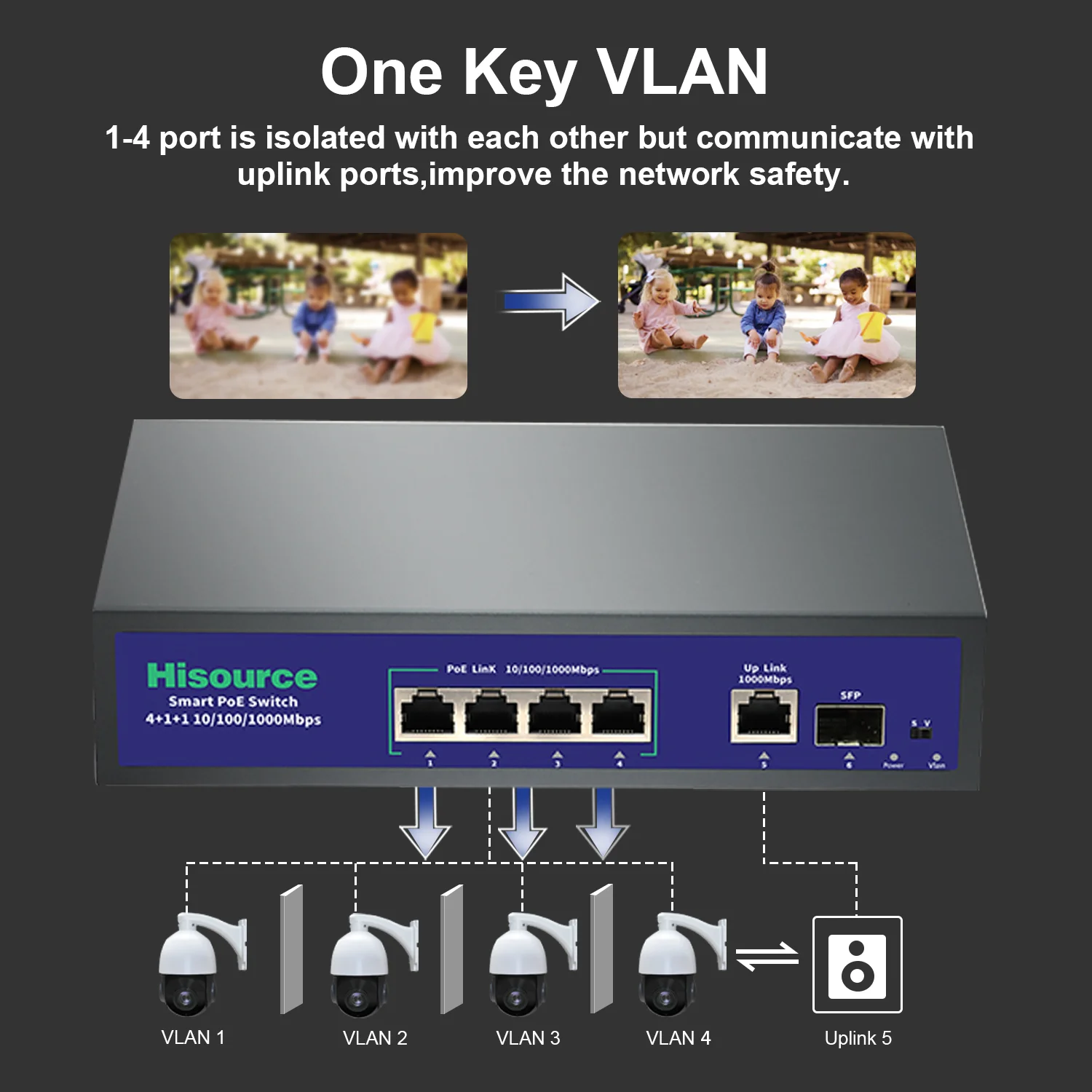

• With PoE port isolated VLAN function.
|
Product Model |
Hi-G0411GB-C |
|
Network Standard |
IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.3ab |
|
Port |
4*10/100Mbps POE Ports, Uplink 1*1000Mbps Port,1*1000Mbps SFP optical port |
|
Network Transmission Medium |
10/100/1000BASE-TX: Category 5 and above unshielded twisted-pair cable |
|
POE Power |
4*10/100Mbps port support POE+ |
|
POE Connection |
IEEE 802.3af/at 100M Transmission |
|
Performance |
Store and forward Packet Forwarding Ratio8.92Mpps |
|
Forwarding Rate |
10BASE-tx:14880pps/port 100BASE-tx148800pps/port 1000BASE-tx1488000pps/port |
|
Port Function |
Power supply priority mechanism, fast and forward, MAC auto Learning and AgingIEEE802.3X full duplex flow control with Backpressure Half-duplex flow control VLAN and AI Watchdog |
|
Environment |
Operating Temperature-10℃ – -55℃ |
|
Power |
Built in power base board |
|
Weight &Size |
0.9KG |
ProductDescription:

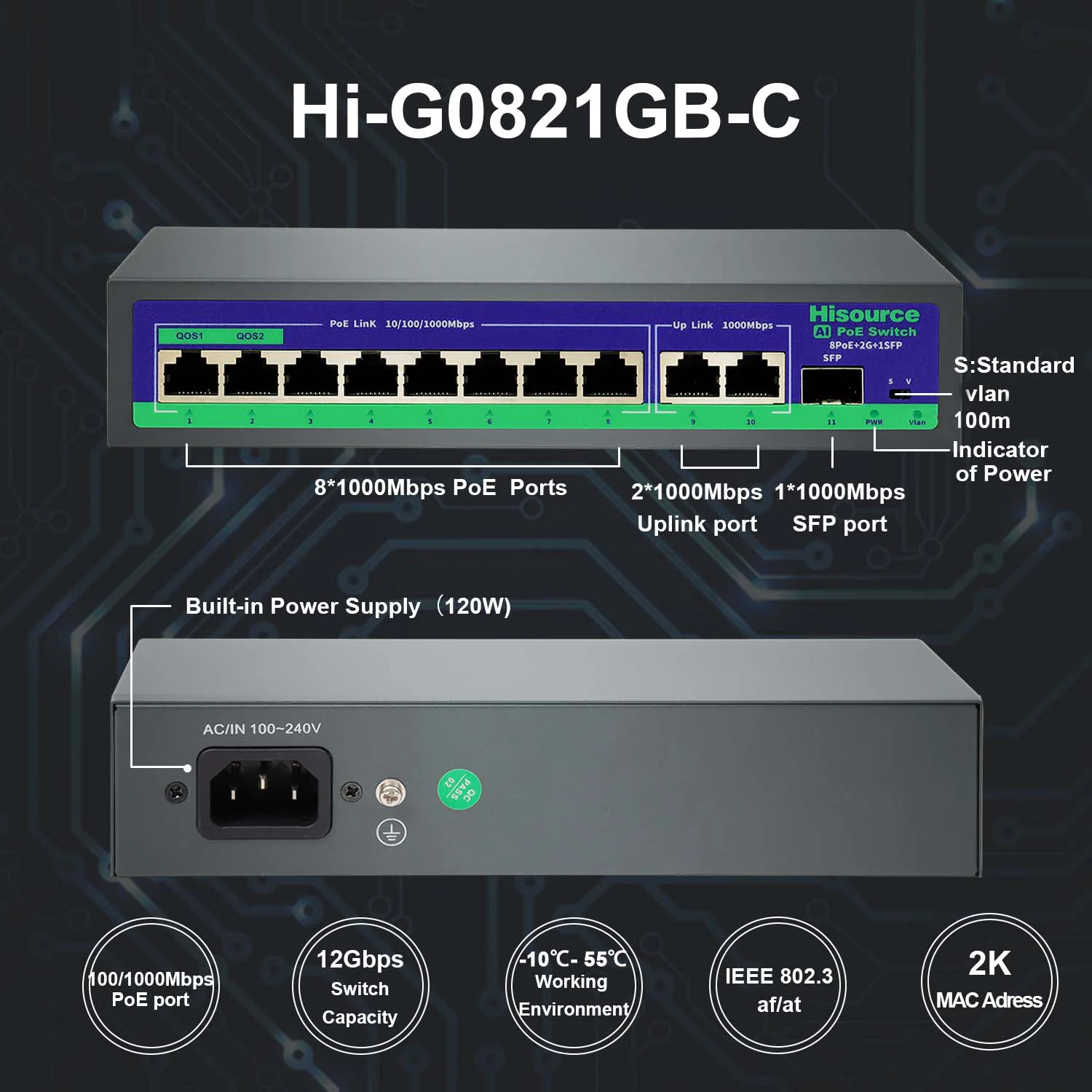

Hi-G0821GB-C Gigabit Ethernet PoE Switch, the product provides 8*100/1000Mbps PoE ports, 2 Gigabit uplink ports and 1 SFP optical port, PoE ports to meet the 802.3af/at standard, with AI watchdog function, support PoE camera drop detection, automatic power failure restart. Support 2 working modes (Standard, VLAN), the maximum power of the machine 120W.
Product Feacture:
• 8*100/1000Mbps POE powered ports ,AI Watchdog function.
• 2 Gigabit uplink ports, 1 SFP optical port.
• PoE port isolated VLAN function.
|
Product Model |
Hi-G0821GB-C |
|
Network Standard |
IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.3ab |
|
Port |
8*10/100/1000Mbps POE Ports,2*Gigabit uplink Port,1 SFP Optical Port |
|
Network Transmission Medium |
10/100/1000BASE-TX: Category 5 and above unshielded twisted-pair cable |
|
POE Power |
8*10/100/1000Mbps port support POE+ |
|
POE Connection |
IEEE 802.3af/at 100M Transmission VLAN |
|
Performance |
Store and forward Packet Forwarding Ratio8.92Mpps |
|
Forwarding Rate |
10BASE-tx:14880pps/port 100BASE-tx148800pps/port 1000BASE-tx1488000pps/port |
|
Port Function |
Power supply priority mechanism, fast and forward, MAC auto Learning and AgingIEEE802.3X full duplex flow control with Backpressure Half-duplex flow control |
|
Environment |
Operating Temperature-10℃ – -55℃ |
|
Power |
Built in power base board |
|
Weight &Size |
0.95KG |
If the above options do not have the plug size you need, you can make a note of it.
e.g.: EU/NBR
