Descripción

Product Description

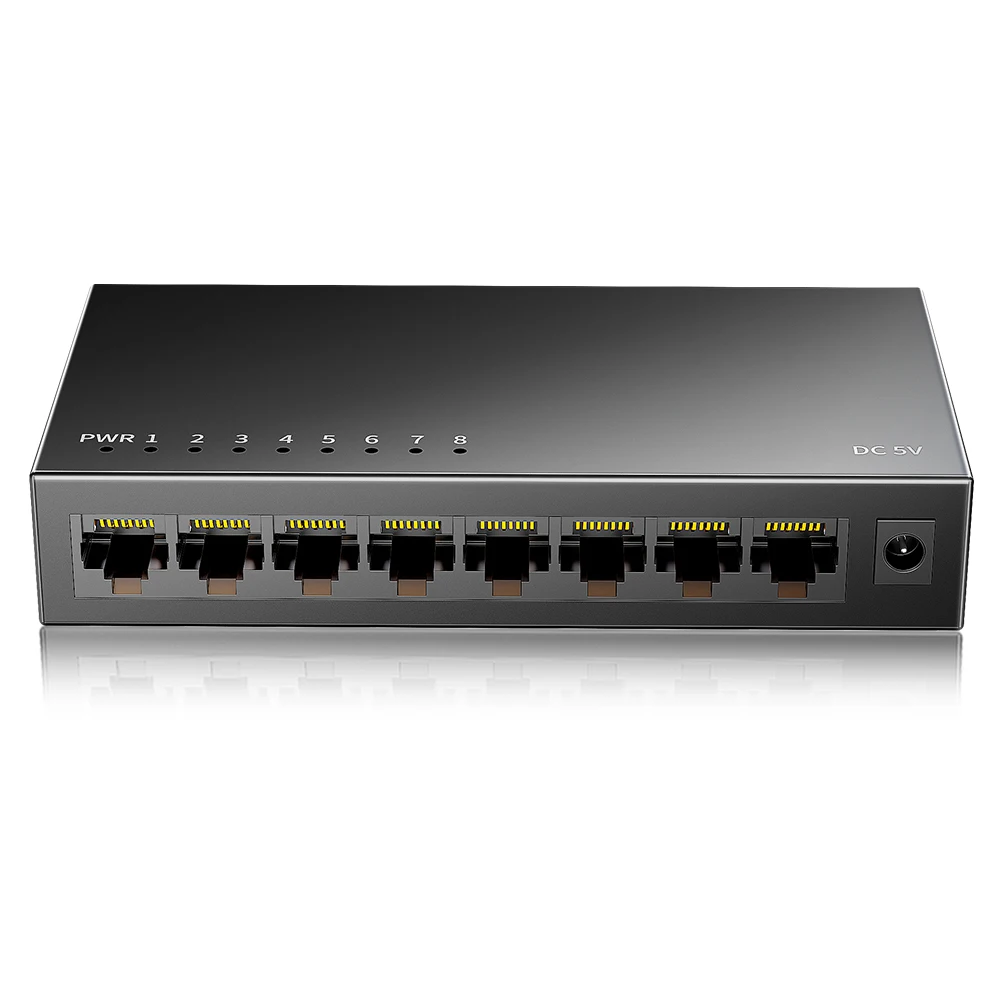

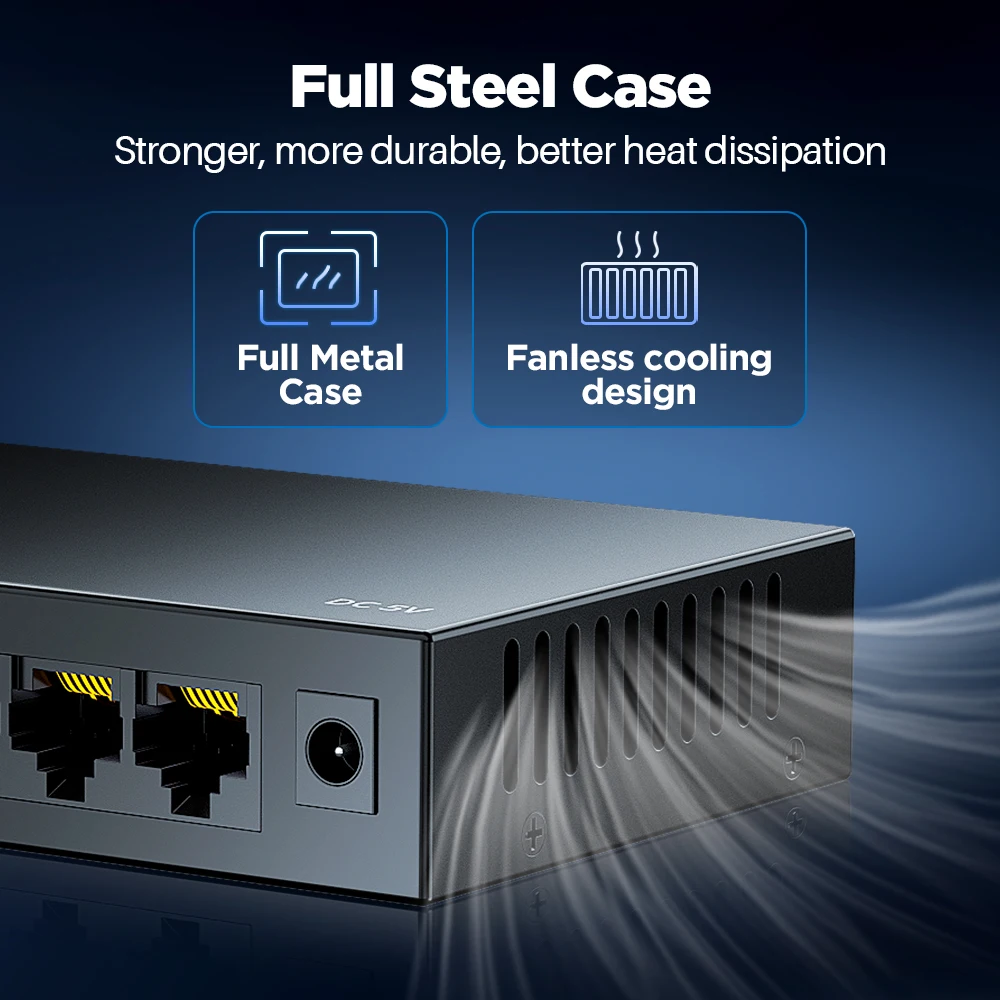

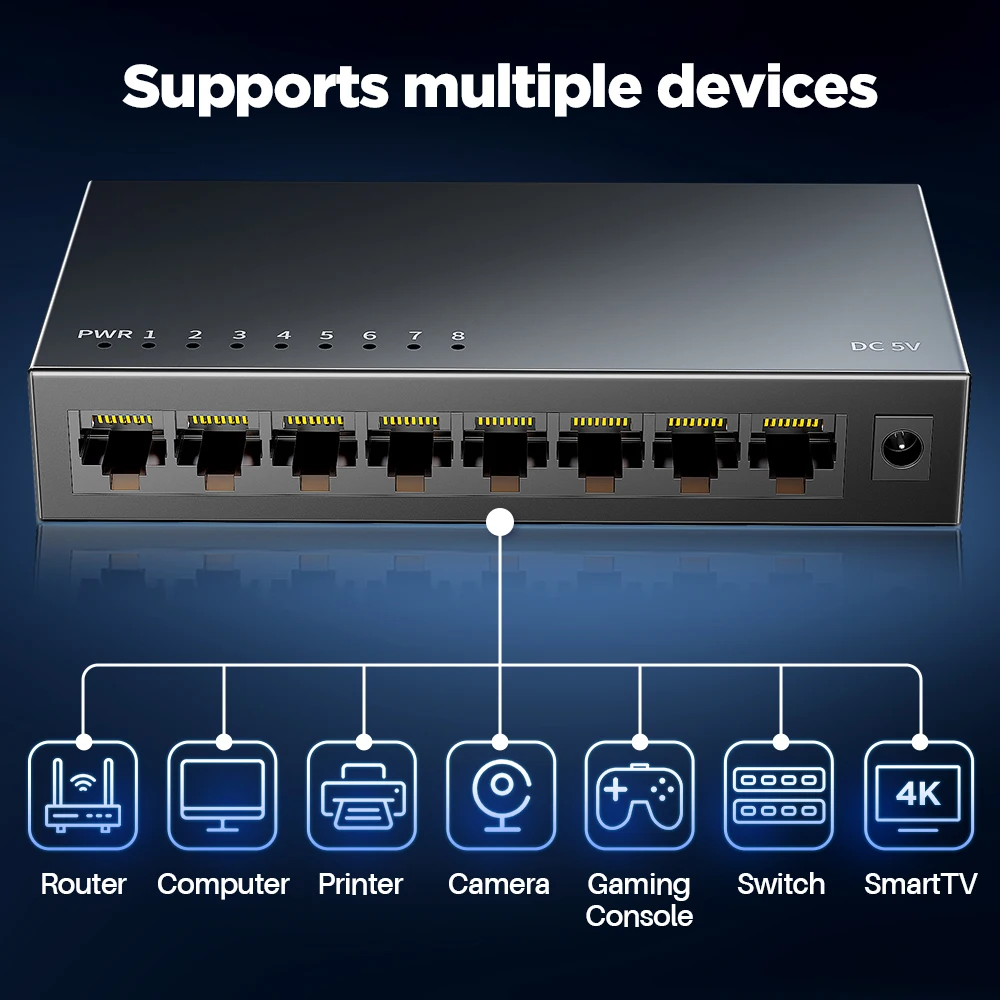

The AMPCOM 5/8-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This AMPCOM switch has 5/8 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.

Main Features

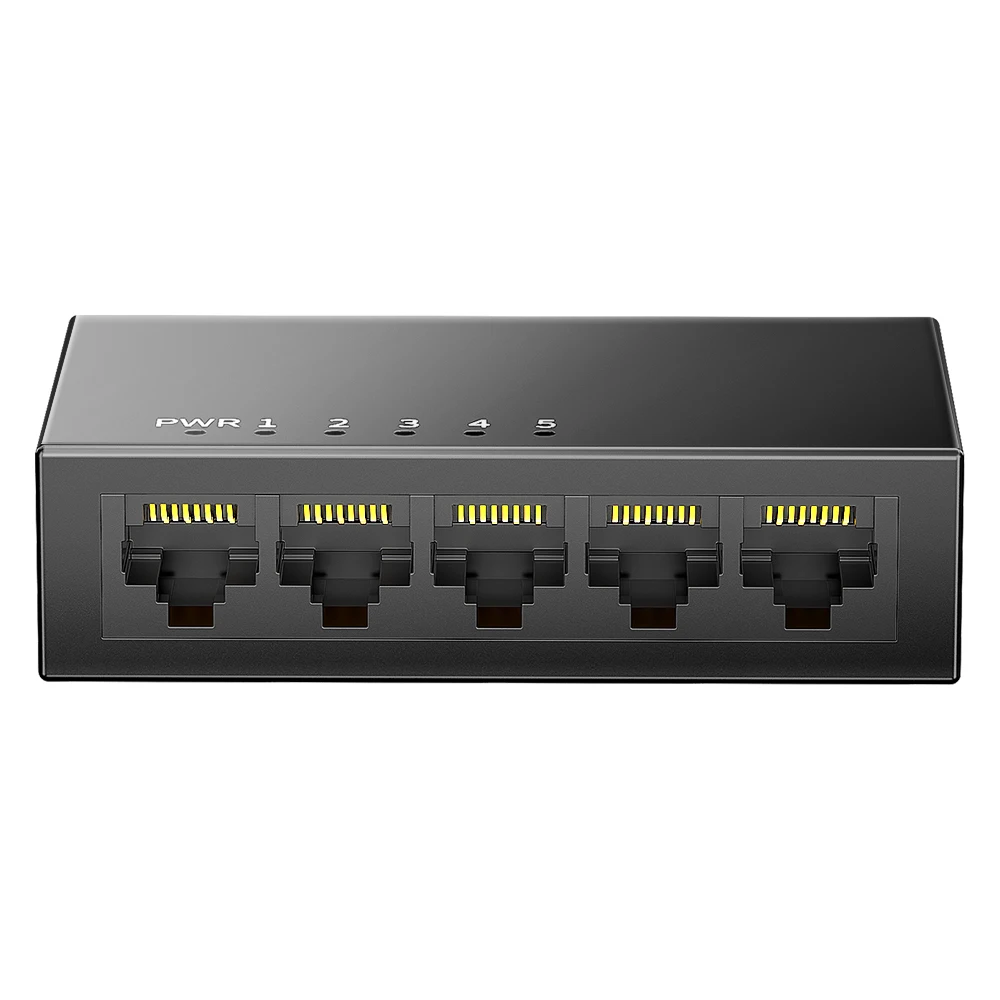

5/8*Gigabit RJ45 Ports

Apply to IEEE802.3IEEE802.3uIEEE802.3ab standard

Ethernet ports support 10/100/1000M adaptive

Support Auto MDI/MDIX

Panel indicators to monitor working status and help fault analysis

Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

Application Environment

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

I/O Interface

Power: DC 5V

Ethernet: 5/8*Gigabit RJ45 Ports

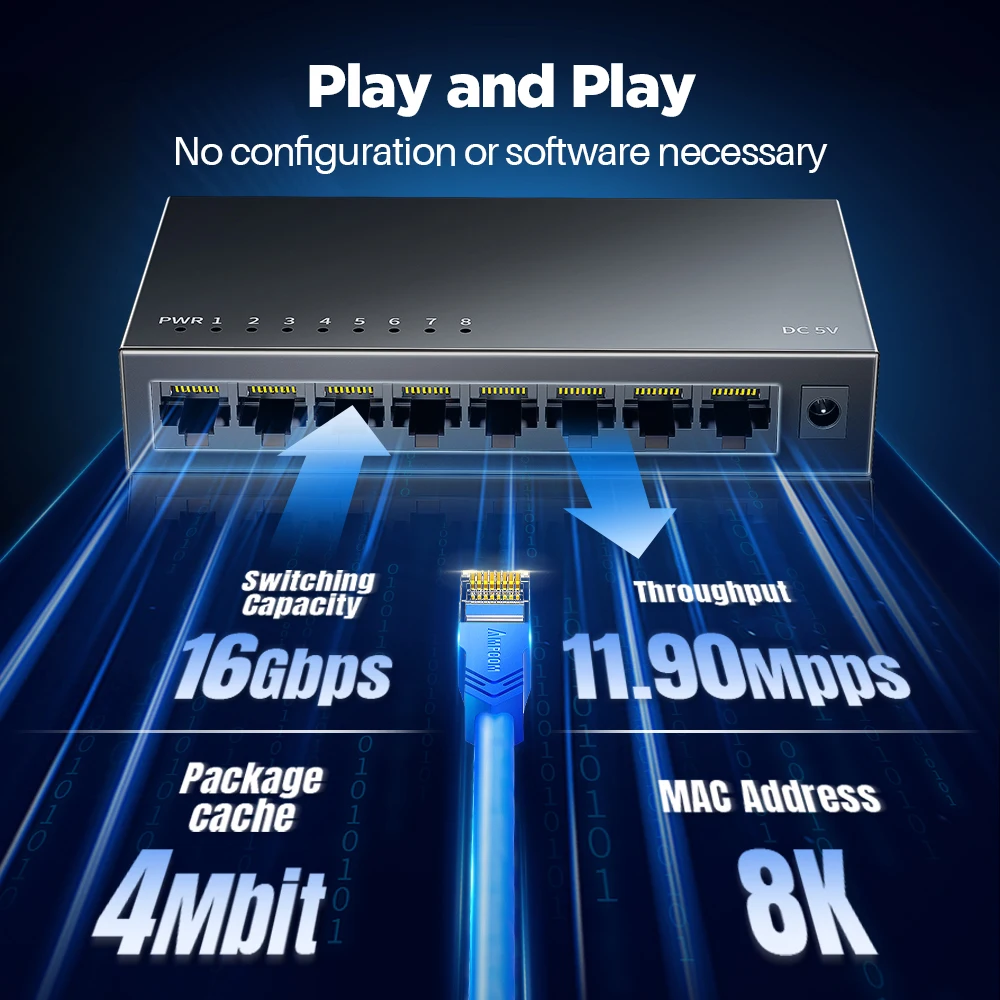

Performance

Switching Capacity:16Gbps@8 Ports, 10Gbps@5 Ports

Throughput: 11.90Mpps

Package cache: 4Mbit@8 Ports, 3Mbit@8 Ports

MAC Address: 8K@8 Ports, 2K@8 Ports

Transfer Mode: Store and forward

Network Parameters

Network Protocol: IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control)

Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or aboveUTP(≤100m)

Environmental Standards

Working Temperature: -10~50°C

Storage Temperature: -20~70°C

Working Humidity: 10%~90%non-condensing

Storage Temperature: 5%~95%non-condensin

Indication

LED Indicators PWRPower indicatorLinkNetwork Link

PWR On: power on

Off: no power

Link On: 10/100/1000M link connection is normal

Blinking: Data transmission is normal

Off: link failure

Mechanical

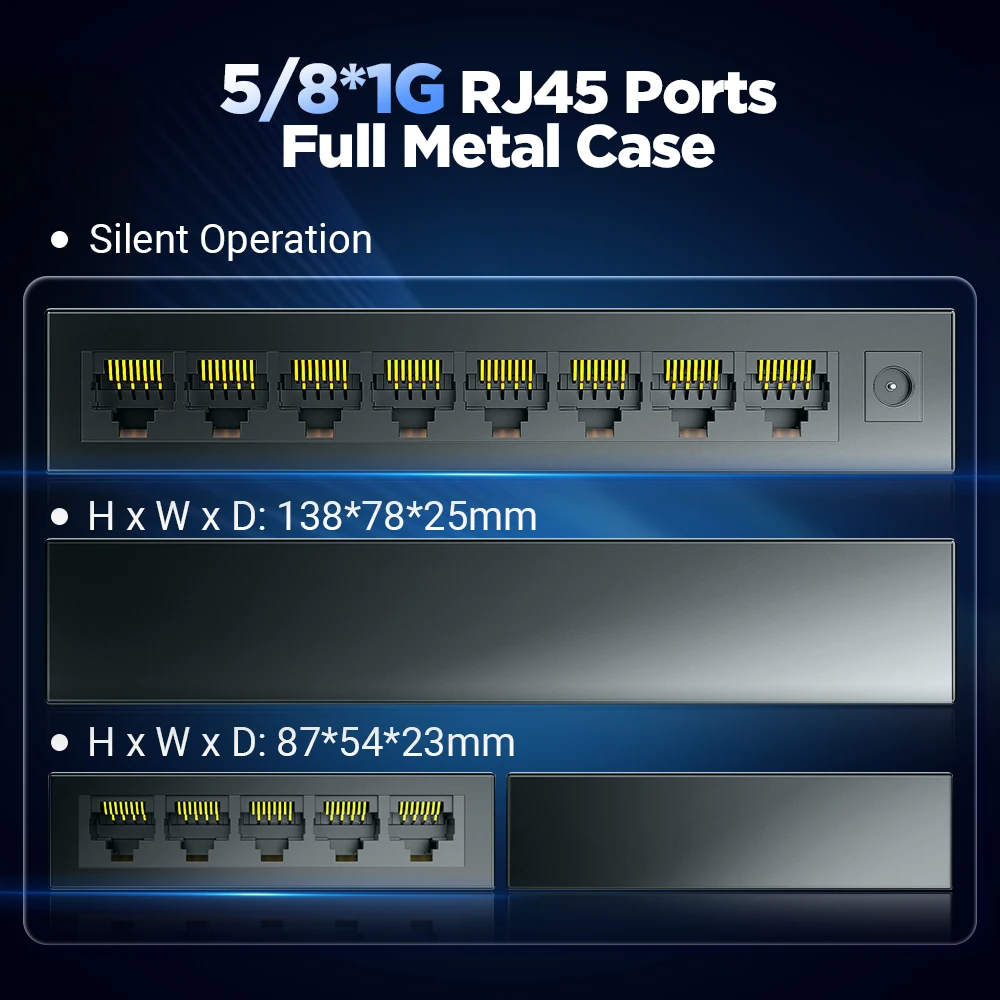

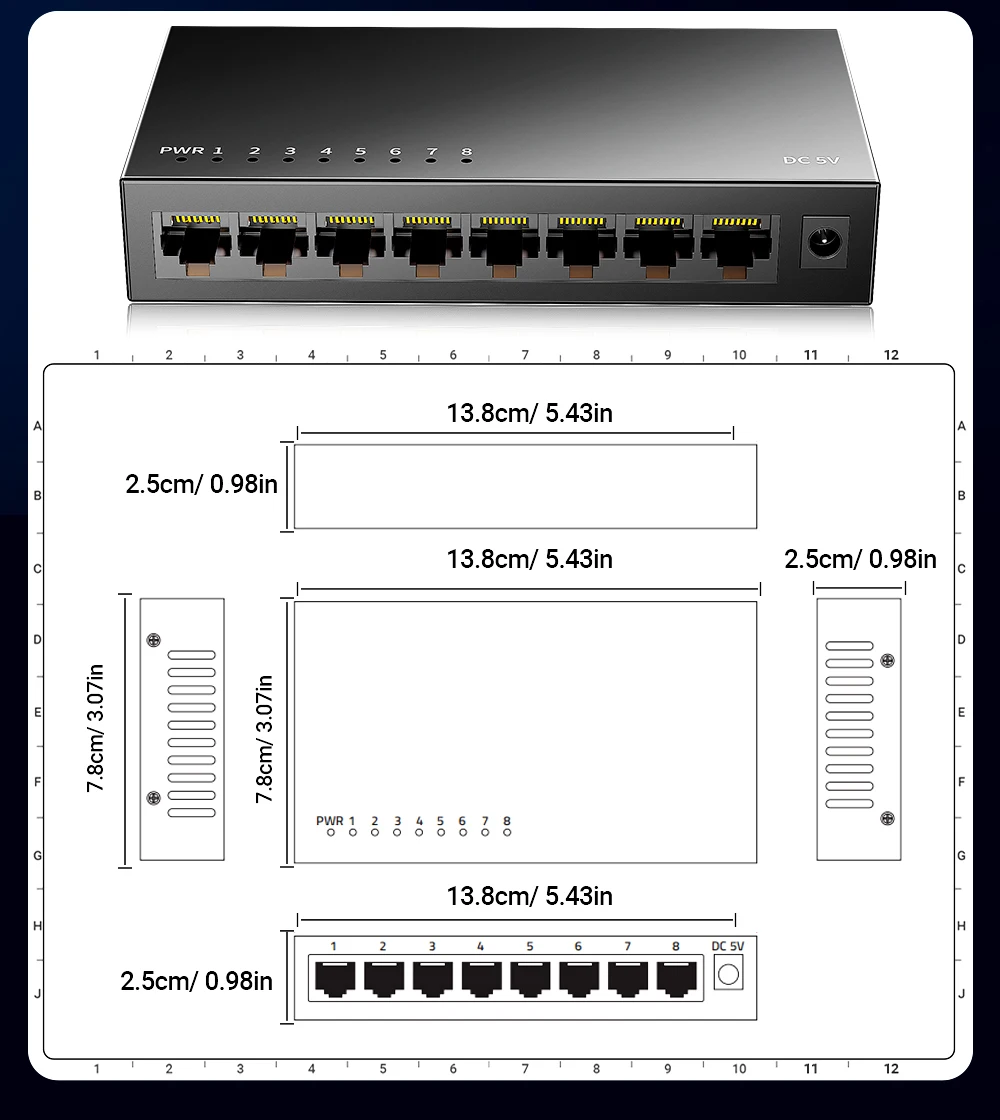

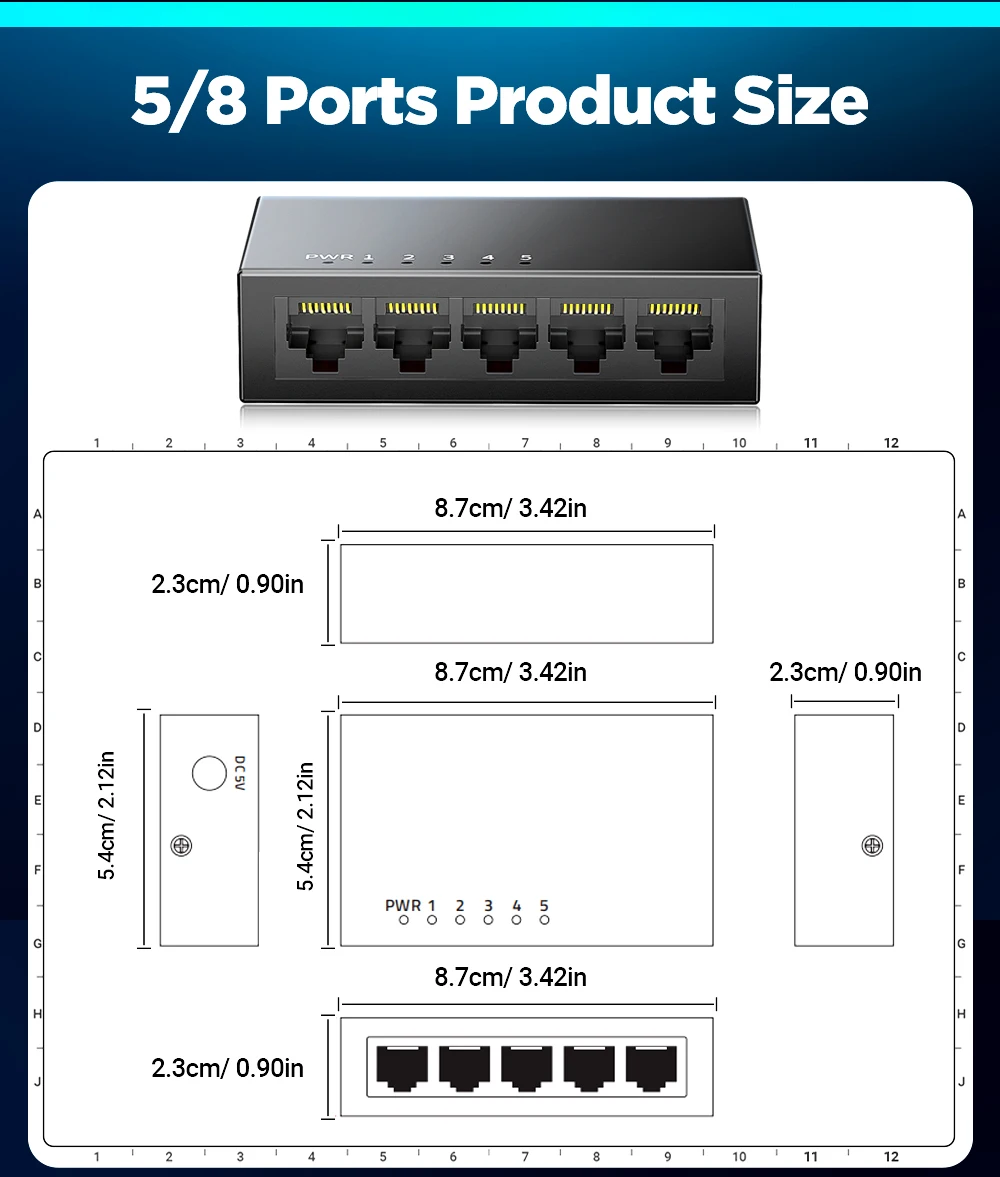

Structure Size Product Size138*78*25mm@8 Ports, 87*54*23mm@5 Ports

Packing Size175*120*63mm@8 Ports, 90*88*58mm@5 Ports

Operating Voltage

Power interface: DC2.1

Switch input voltage: DC 5V1A

Total power

Maximum 5W

Packing list

1.Switch1 PCS

2.User manual 1PCS

3.Warranty 1 PCS

4.Power Adapter1 PCS

5/8 Port Gigabit Easy Smart Switch

Easily expand your gigabit network and save energy

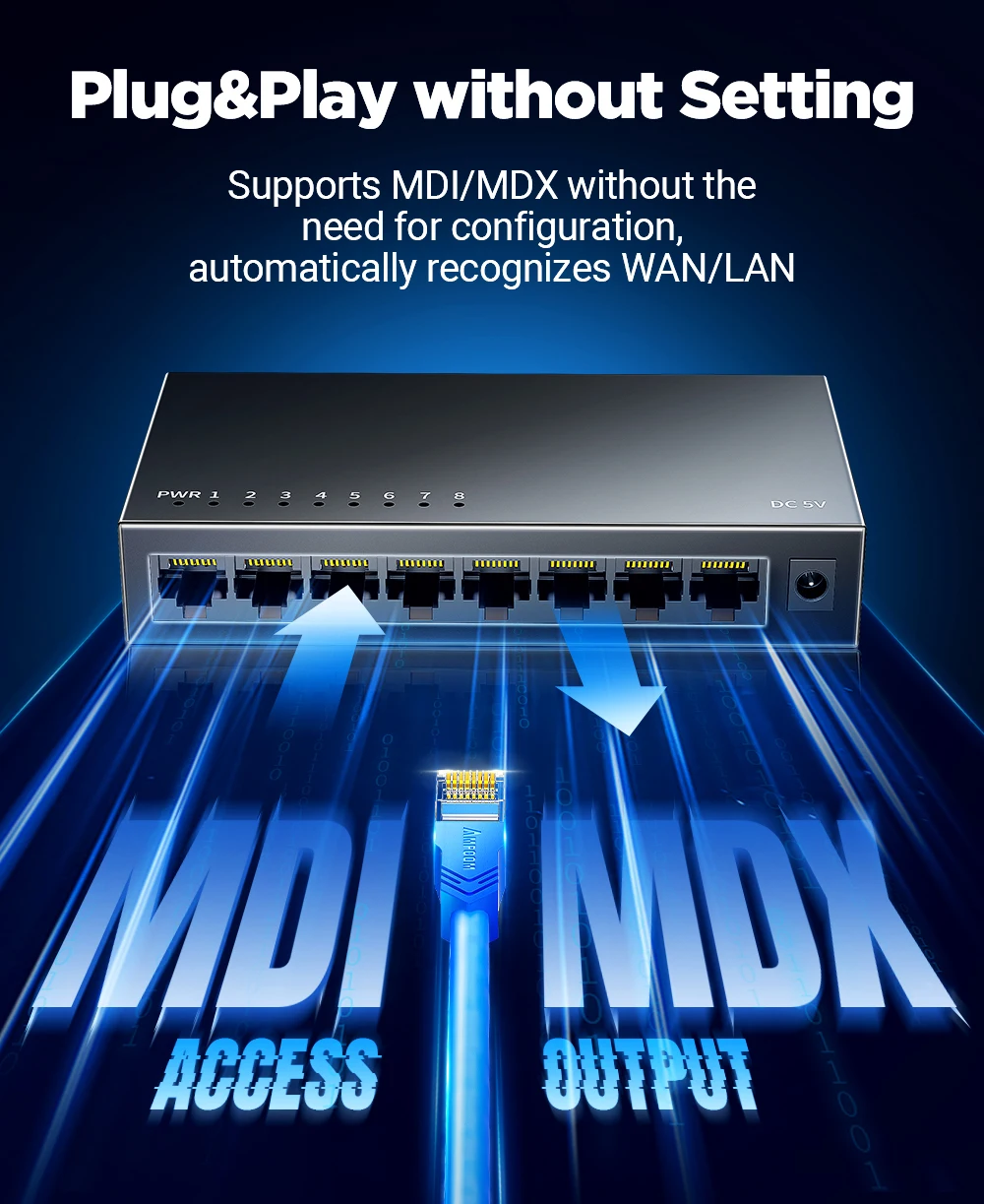

Plug&Play without Setting

Supports MDI/MDX without the need for configuration, automatically recognizes WAN/LAN

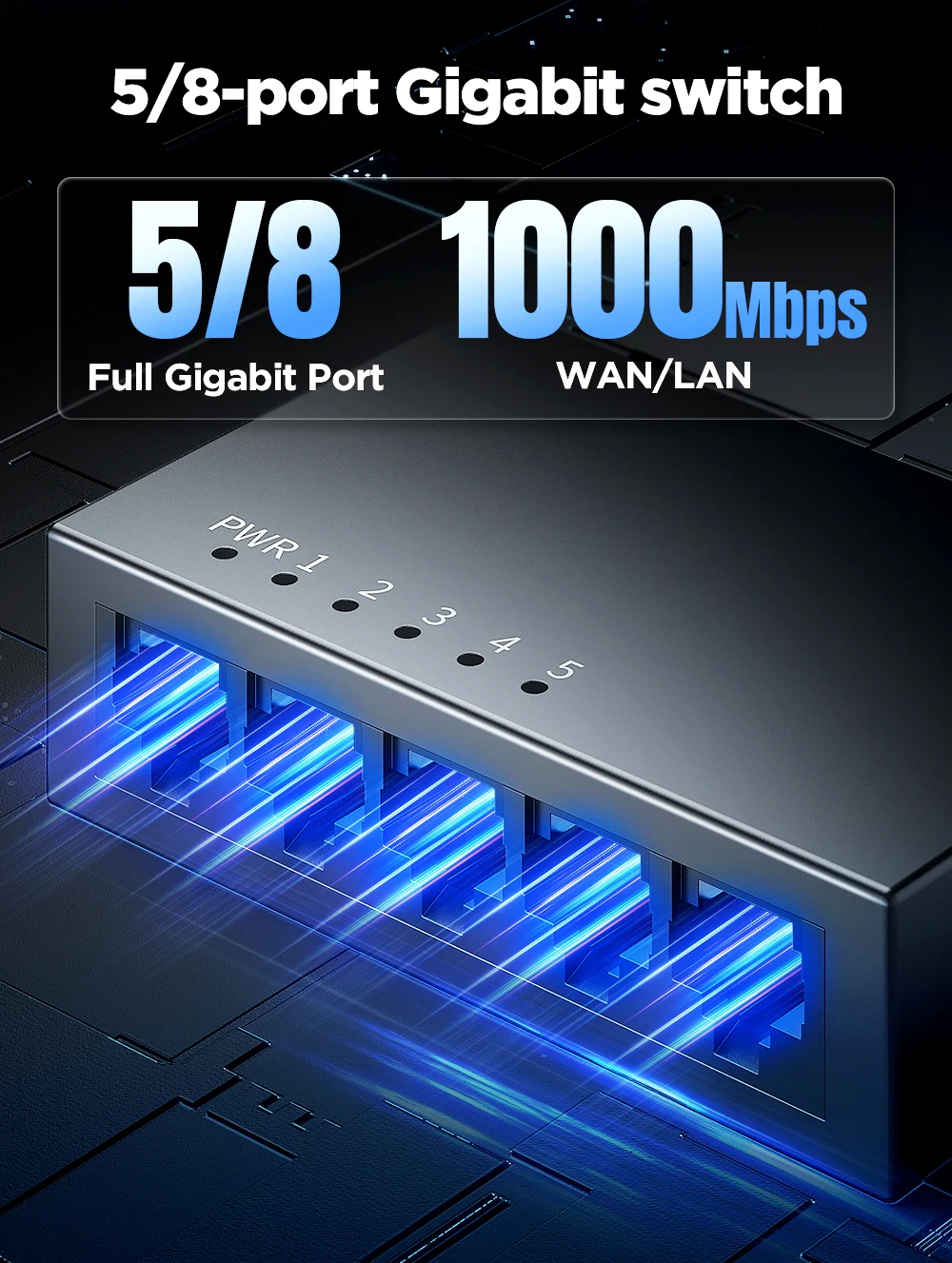

5/8 Full Gigabit Port

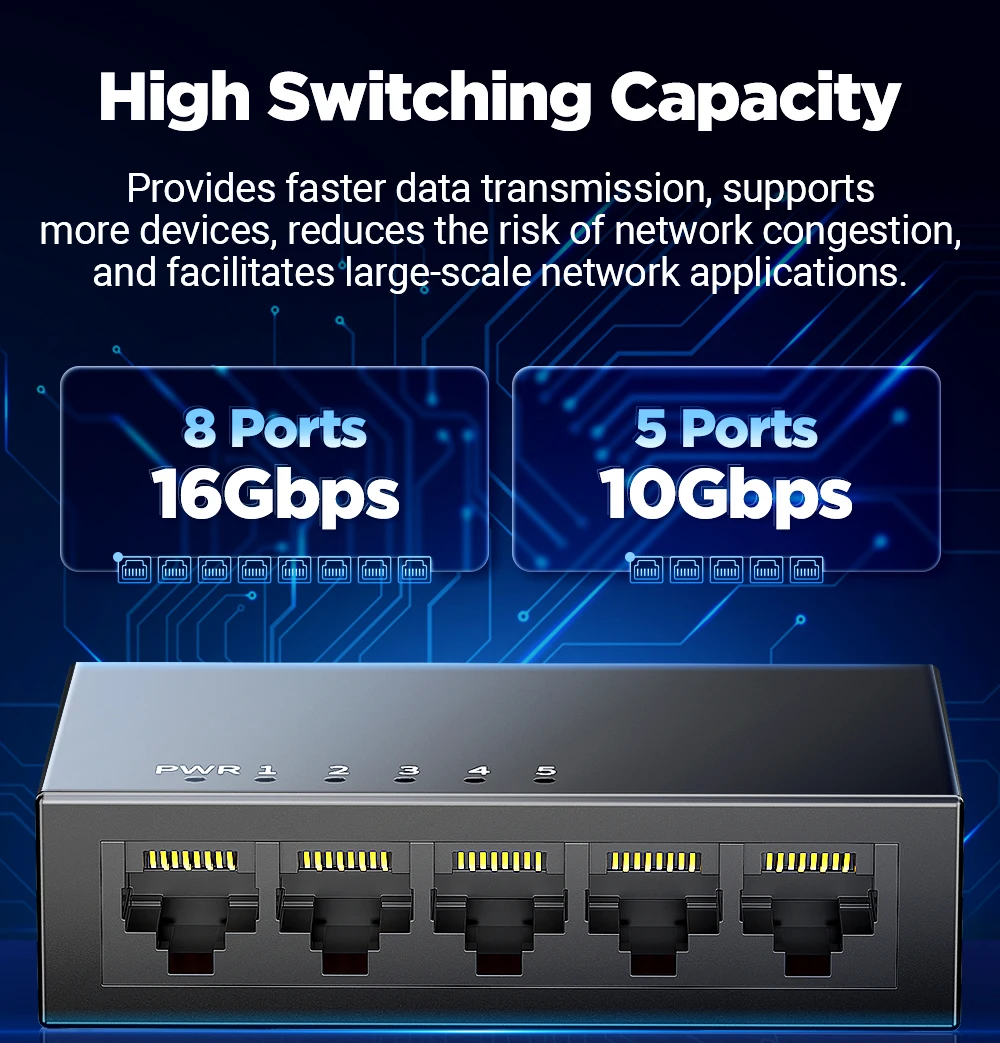

High Switching Capacity

Provides faster data transmission, supports more devices, reduces the risk of network congestion, and facilitates large-scale network applications.

Strong Technical Capabilities

Years of experience make our products more reliable and trustworthy for use

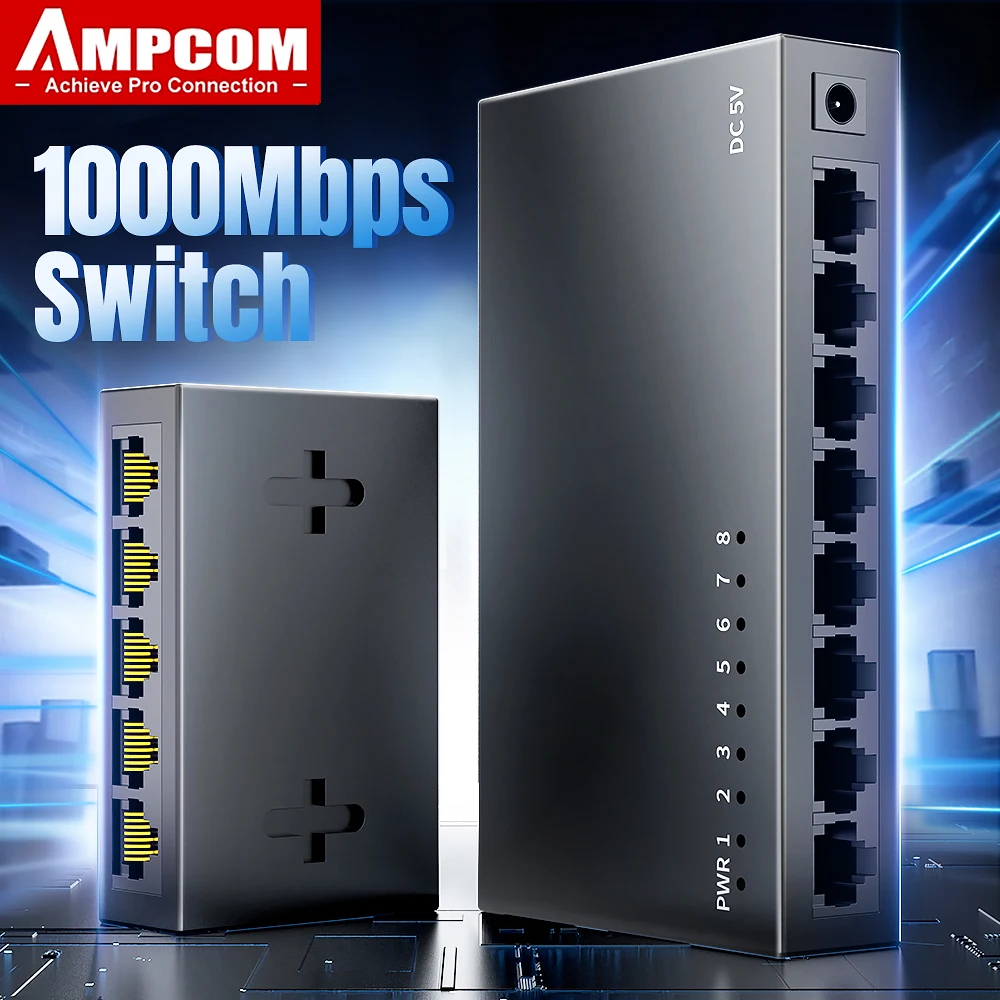

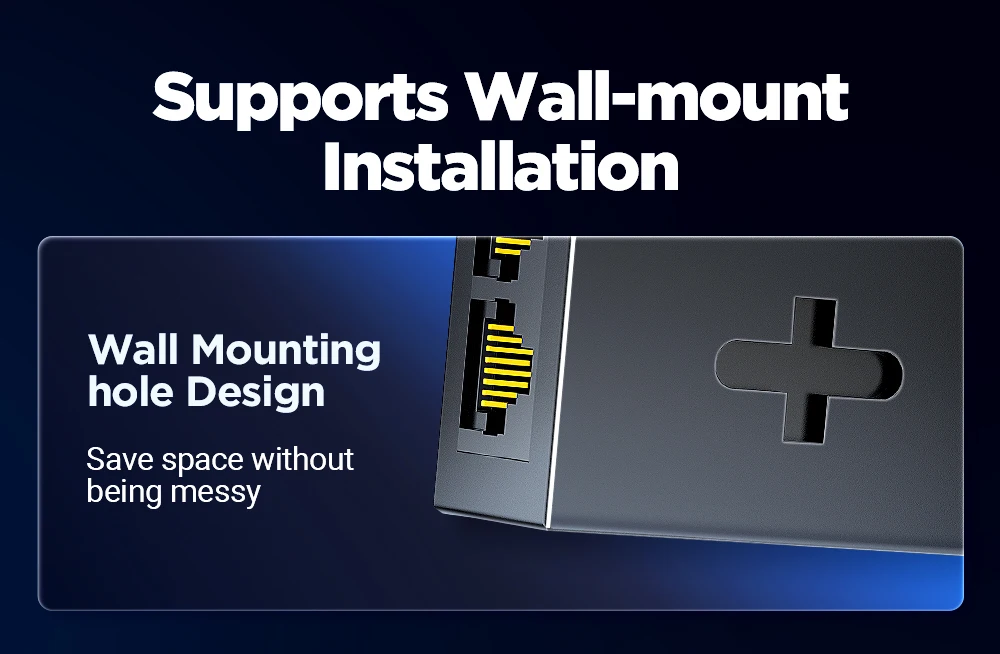

Support Wall-mount Installation

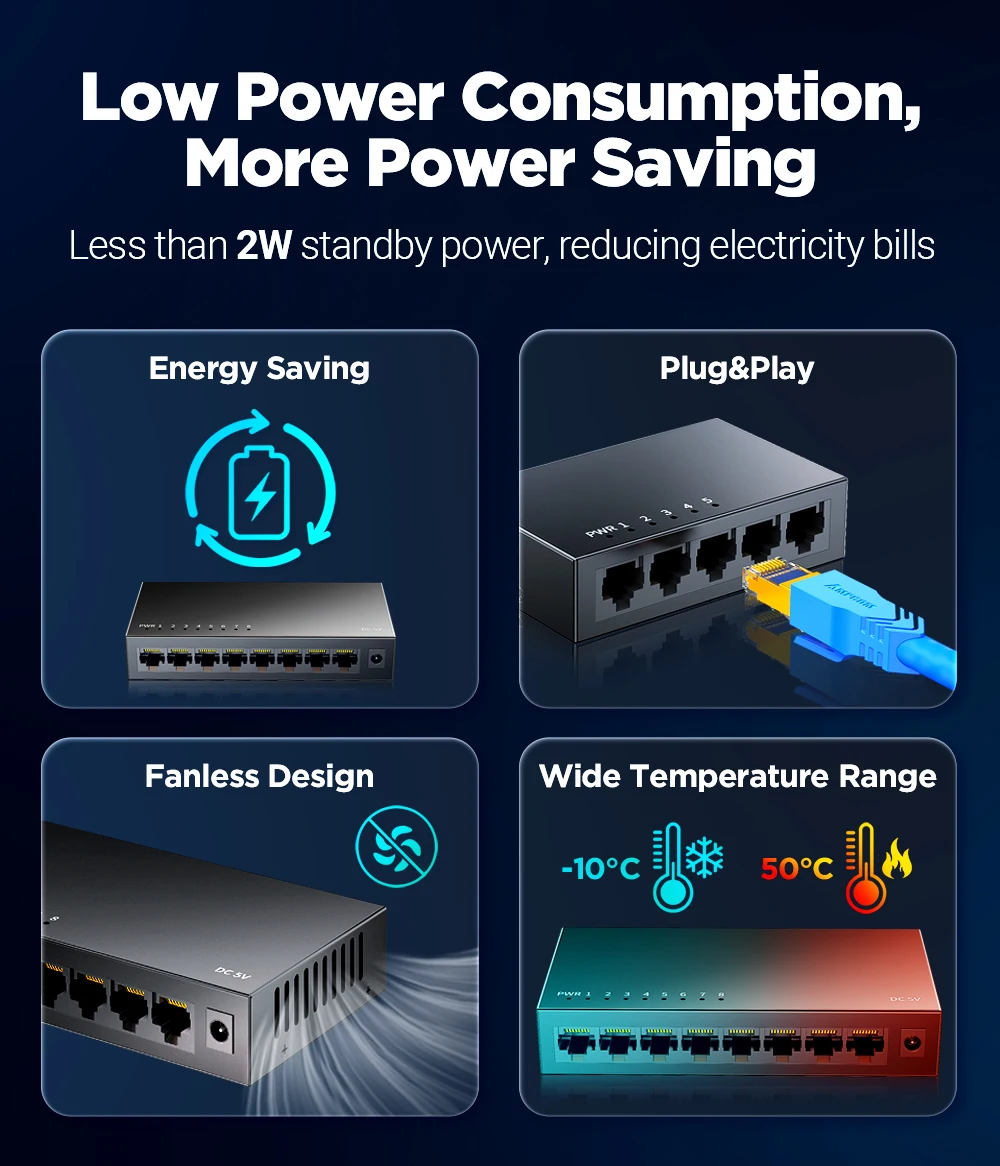

Low Power Consumption, More Power Saving

Less than 2W standby power, reducing electricity bills

Q: Will this power and control (move) p.o.e ptz cameras?

A: No

Q: can HDD be attached or plugged for video and audio recording?

A: Of course. I’m sure they’re ratings for individual ports vs total throughput, but I’ve never experienced issues or a need to look them up.

Q: I plugged my tv into this and it keeps flashing «lan cable connected’ and then ‘lan cable disconnected’ What is causing this?

A: I do not know never connected a switching hub to a TV or TV box. I think if your TV or cable box had a LAN port and y connect to the internet from a direct LAN cable then it should work if your needing more things near buy the switch hub to use the internet by cable. hope i can help also look up on the Tp website for a help person to chat with or email about your setup and the lights. Also try to see where u need to add a ip adress of the internet to connect to if it doesent auto connect on your tv internet setup .

Q: What port for router for the easy smart?

A: Any port would work, easier to distinguish if you use far right or far left port.

Q: If I connect two computers to this switch, what speeds will each connection run at? The full gigabit?

A: Yes, each device will connect to other devices on the switch at 1gb. If the switch is connected to your router, it will only be a 1gb connection to the router/internet. Each port is limited to 1gb.

Q: can this product be used between a security camera and NVR?

A: Yes it is an unmanaged switch and will work perfectly with your surveillance system.
