Hardware Specifications
|
Parameter |

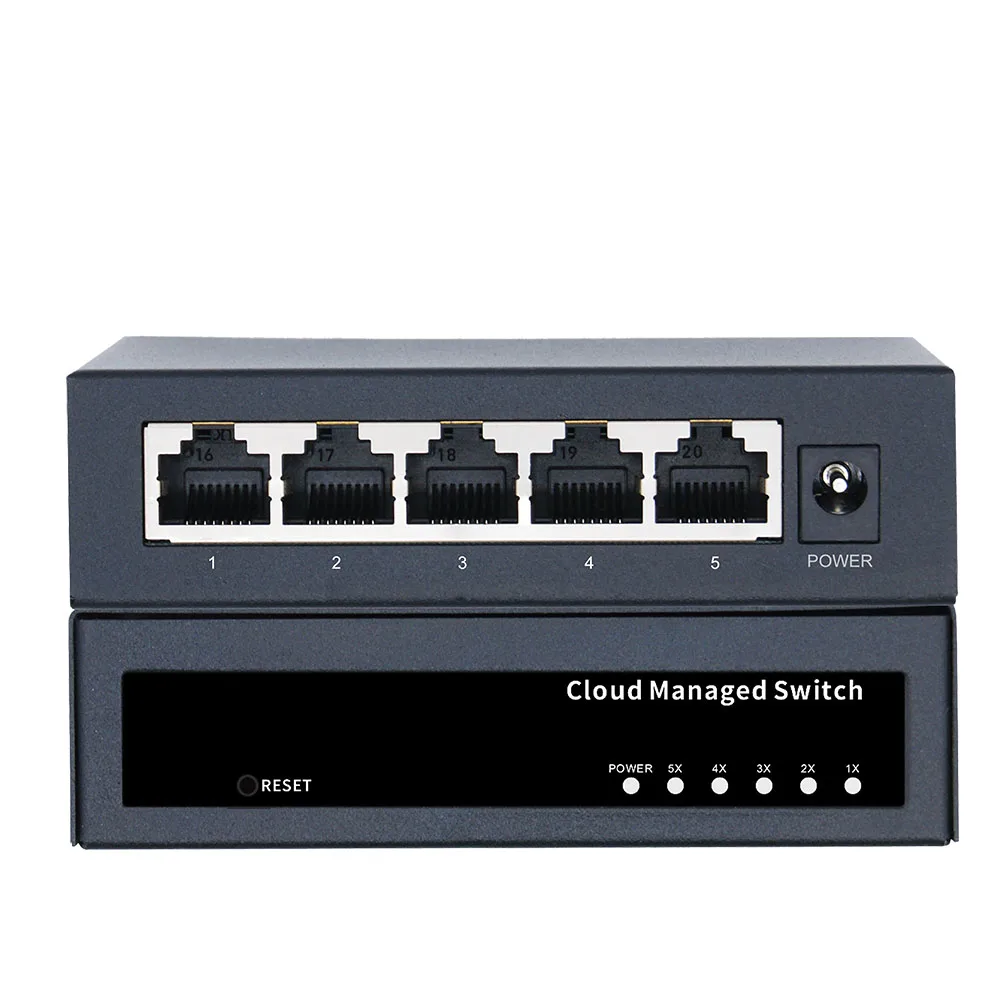

5-Port Gigabit |

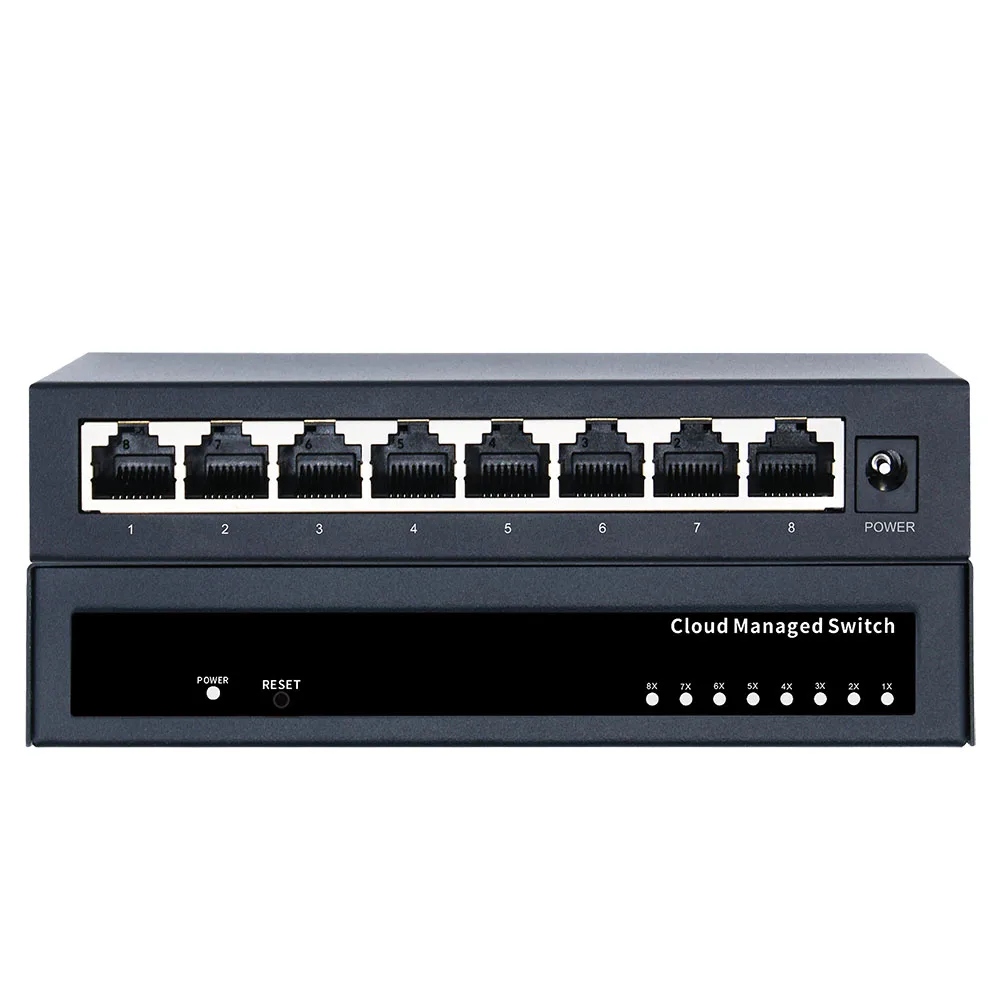

8-Port Gigabit |
|
Gigabit Uplink Ports |
/ |
/ |
|
Gigabit Downlink Ports |
5 × RJ45 |
8 × RJ45 |
|
LED Indicators |
Per device: Power LED |
Same |
|
Button |
Short press: Restart |
Same |
|
MAC Address Table Size |
4K |
4K |
|
Packet Buffer |
2M |
2M |
|

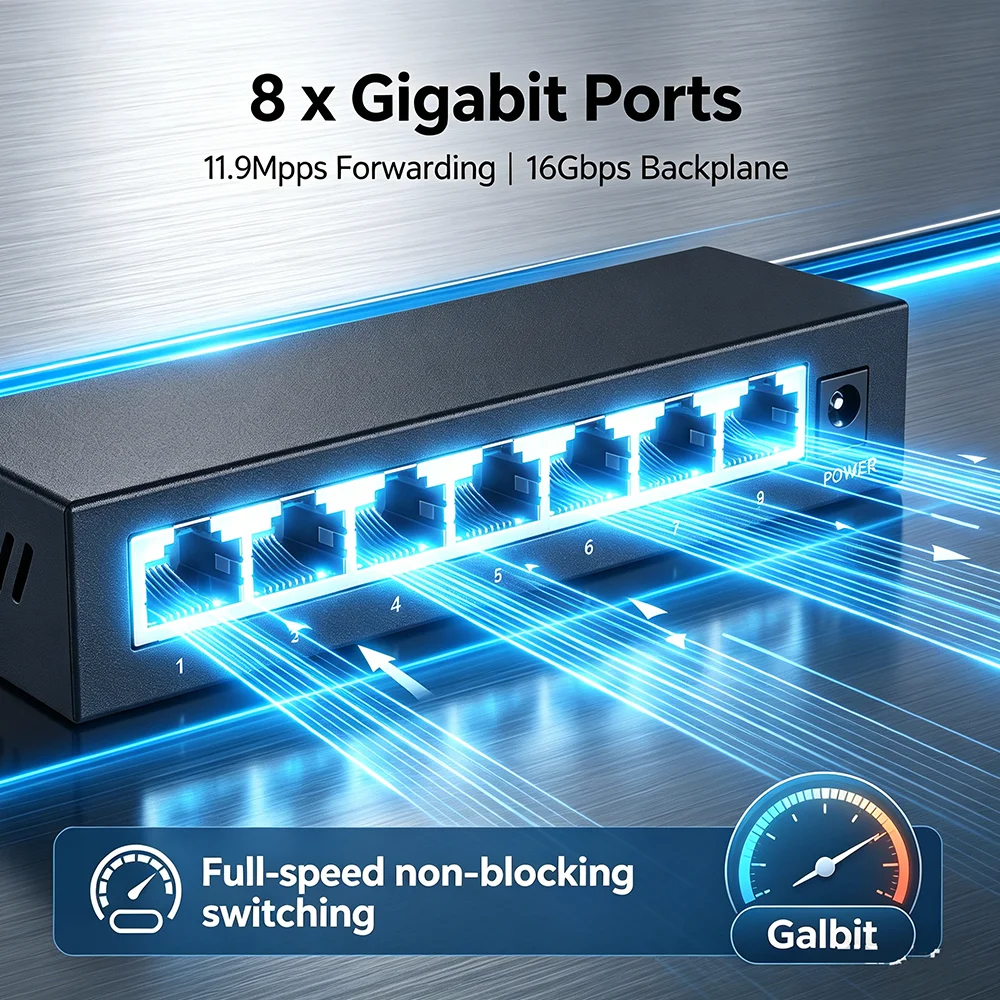

Packet Forwarding Rate |
7.44 Mpps |
11.904 Mpps |
|
Backplane Bandwidth |
10 Gbps |
16 Gbps |
|
Jumbo Frame |
15K |
15K |
|
Total Power |
10W |
10W |
|
Power Input Specification |
AC 100–240V, 50–60Hz |
Same |
|
Power Output Specification |
External DC 5V 2A |
Same |
|
Cooling Method |
Natural convection |
Same |
|
Port Surge Protection |
4KV |
Same |
|
Management Features |
Android/iOS app management, WeChat mini program management, web management |
Same |
|
Dimensions (W×D×H) |
100mm × 50mm × 27mm |
140mm × 50mm × 27mm |
|
Operating Environment |
Operating temperature: -10°C to 50°C |
Software Specifications
|
Parameter |
Description |
|
Network |
Supports dynamically obtaining IP address via DHCP |
|
VLAN |
802.1Q VLAN |
|
Port |
Port rate configuration |
|
Rate Limiting |
Ingress/egress rate limiting per port |
|
Loop Prevention |
Loop protection on switch ports |
|
QoS |
Port priority |
|
MAC |
MAC address table view |
|
Storm Control |
Port‑based storm control |
|
Configuration & Upgrade |
Configuration import/export |
|
Multicast |
IGMP Snooping |
|
Protocol Features |
DHCP Snooping |
|

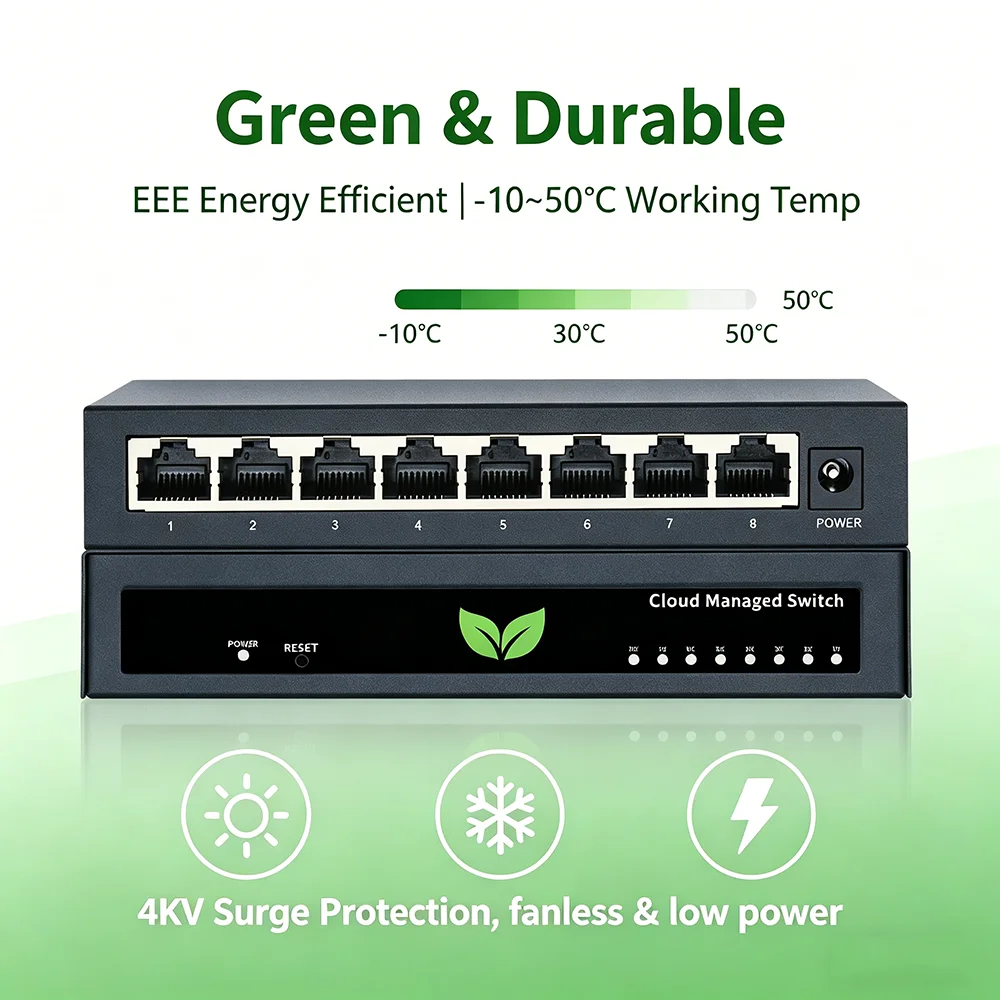

Green / Energy Saving |
EEE (Energy Efficient Ethernet) support |
|
Management & Maintenance |
Android/iOS app management |
