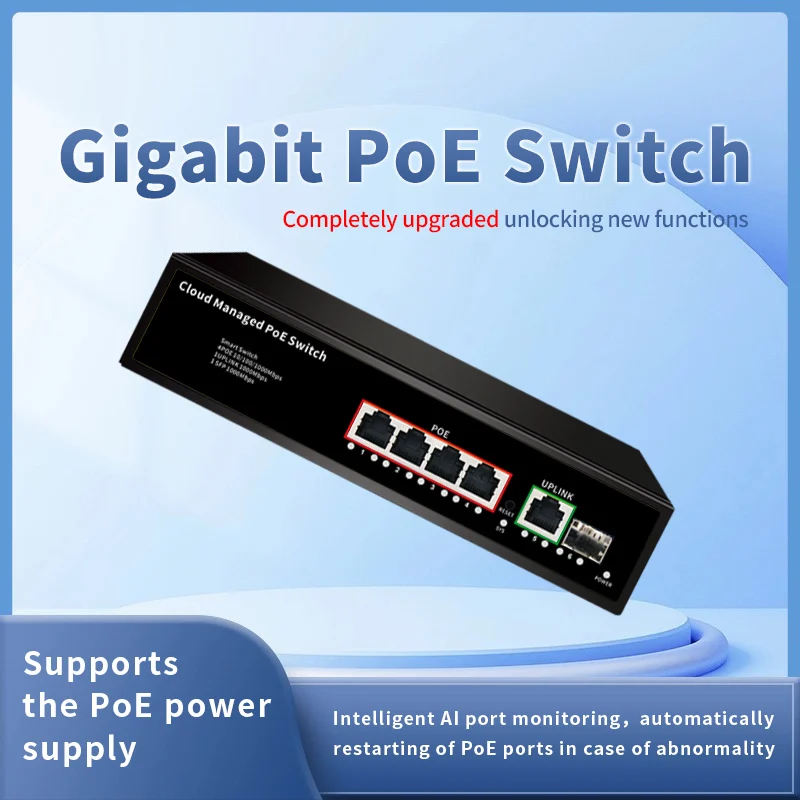

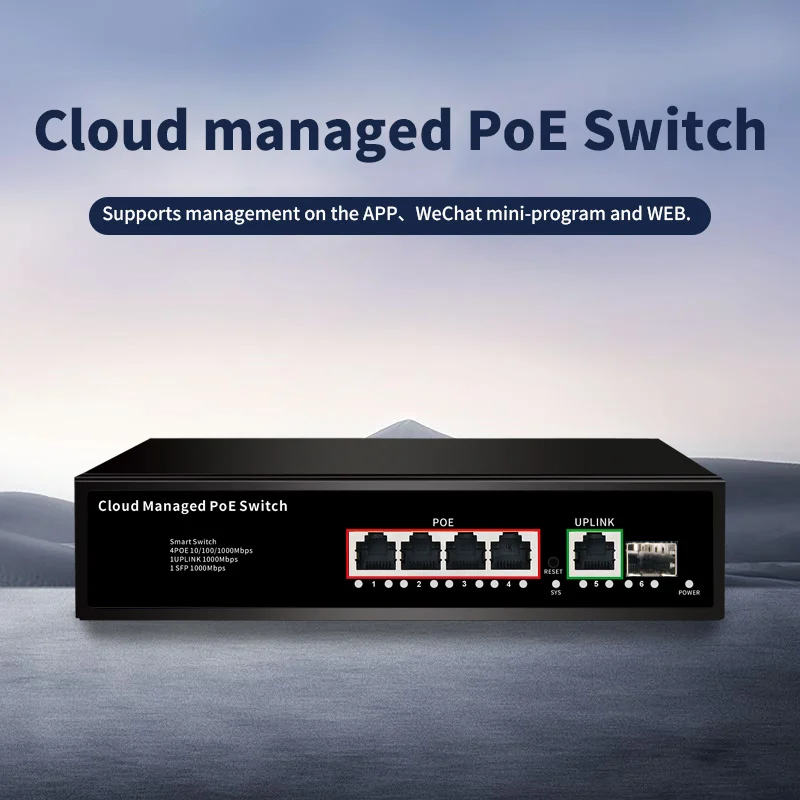

4 Port Cloud managed 1000Mbps PoE Switch Support Web/App Smart Managed Remote Control Network Switch for Small Office Home

Hardware Specifications

Parameter|

|| Gigabit Uplink Ports: 1×RJ45 + 1×SFP

|| Gigabit PoE Ports: 4×PoE RJ45 (for both models)

||| LED Indicators: Per device: Power LED<br>Per port: PoE LED, Link/ACT LED

||| Buttons: Short press: reboot<br>Long press (>5s): factory reset

||| MAC Address Table Size: 2K

||| Packet Forwarding Rate: 8.928 Mpps

||| Backplane Bandwidth: 12 Gbps

||| Jumbo Frame: 15 KB

||| PoE Output Standard: IEEE 802.3af/at PoE (PoE/PoE+)

||| Max. Power per Port: ≤30W

||| Total PoE Power Budget: 60W

||| Power Input: AC 100–240V, 50–60Hz

||| Power Output: DC 52V × 1.15A

||| Cooling Method: Natural convection

||| Port Surge Protection: 4KV

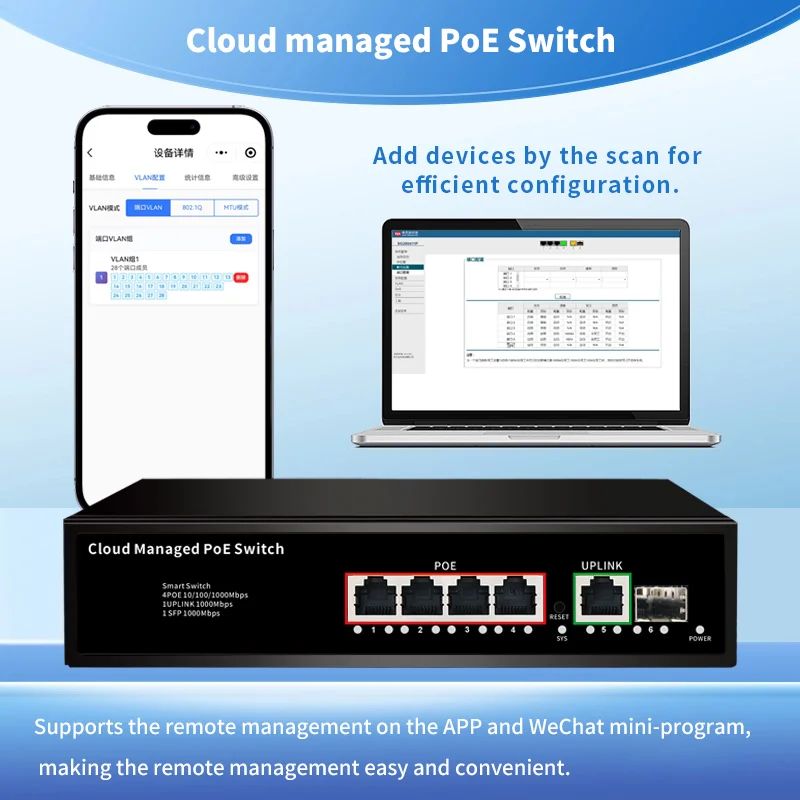

||| Management Features: Android/iOS APP, WeChat Mini Program, Web management

||| Dimensions (W×D×H): 202mm × 140mm × 45mm

Software Specifications

Feature Category|                        Details

||Network:  Dynamic IP assignment via DHCP<br>Static IP assignment (default web IP: 10.10.10.10)

|| VLAN: 802.1Q VLAN, MTU VLAN, Port-based VLAN

|| Port: Port speed configuration, flow control, port mirroring, link aggregation, port traffic statistics, port description

|| Rate Limiting: Ingress/egress rate limiting per port

|| Loop Prevention: Switch port loop protection

|| QoS: Port priority, Strict Priority, Weighted Priority

|| MAC: MAC address table view, static MAC binding

|| Storm Control: Port-based storm control

|| Configuration & Upgrade: Configuration import/export, configuration backup, local firmware upgrade, online firmware upgrade

|| Multicast: IGMP Snooping, Fast Leave

|| Security Features: DHCP Snooping

|| Power Saving: EEE (Energy Efficient Ethernet)

|| PoE: PoE Watchdog, PoE auto-extend

|| Management & Maintenance: Android/iOS APP management, WeChat Mini Program management, local Web management, project network topology view, real-time/historical device temperature view, LED blink for locating, scheduled reboot
